Transporto priemonė: 500 SE / S 500; VIN numerio dalis: 140050

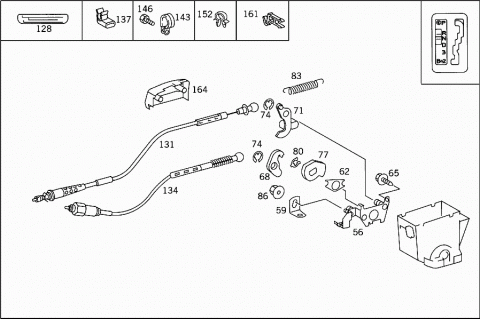

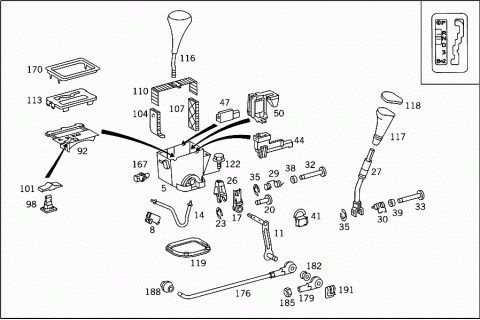

Grupė: 26 TRANSMISSION - 075 FLOOR SHIFT USED WITH AUTOMATIC FOURSPEED TRANSMISSION 722.3
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1402670137 | BEARING BRACKET |
| Repalced by: A 1402670437 | ||
| 005 | A 1402670437 | BEARING BRACKET |
| 005 | A 1402670437 | BEARING BRACKET |
| 005 | A 1402670337 | BEARING BRACKET |
| Repalced by: A 1402670537 | ||
| 005 | A 1402670537 | BEARING BRACKET |
| 005 | A 1402670537 | BEARING BRACKET |
| 008 | A 1292670040 | BRACKET |
| 008 | A 1292670040 | BRACKET |
| 011 | A 1402600138 | SHAFT |
| 011 | A 1402600238 | SHAFT |
| 011 | A 2102600038 | SHAFT |
| 011 | A 2102600038 | SHAFT |
| 011 | A 2102600138 | SHAFT |
| 011 | A 2102600138 | SHAFT |
| 014 | A 1405460217 | LIGHT GUIDE |
| 014 | A 1405460217 | LIGHT GUIDE |
| 017 | A 1402600060 | SUPPORT |
| LIGHT GUIDE | ||
| 017 | A 1402600060 | SUPPORT |
| LIGHT GUIDE | ||
| 017 | A 1402600160 | SUPPORT |
| LIGHT GUIDE | ||
| 017 | A 1402600160 | SUPPORT |
| LIGHT GUIDE | ||
| 020 | A 1402670074 | PIN |
| 020 | A 1402670074 | PIN |
| 023 | N 006799005002 | LOCK PLATE |
| Repalced by: N 006799005004 | ||
| 023 | N 006799005004 | CIRCLIP |
| 023 | N 006799005002 | LOCK PLATE |
| Repalced by: N 006799005004 | ||
| 023 | N 006799005004 | CIRCLIP |
| 026 | A 1402600053 | YOKE |
| Repalced by: A 1402600253 | ||
| 026 | A 1402600253 | YOKE |
| 026 | A 1402600153 | YOKE |
| 027 | A 1402670501 | SHIFT LEVER |
| 027 | A 1402670501 | SHIFT LEVER |
| 027 | A 1402670601 | SHIFT LEVER |
| 027 | A 1402670601 | SHIFT LEVER |
| 029 | A 1409930120 | SPRING |
| YOKE TO SHIFTING SHAFT | ||
| 030 | A 1299930020 | SPRING |
| YOKE TO SHIFTING SHAFT | ||
| 030 | A 1299930020 | SPRING |
| YOKE TO SHIFTING SHAFT | ||
| 032 | A 1402670174 | PIN |
| YOKE TO SHIFTING SHAFT | ||
| 033 | A 1152670174 | PIN |
| YOKE TO SHIFTING SHAFT | ||
| 033 | A 1152670174 | PIN |
| YOKE TO SHIFTING SHAFT | ||
| 035 | N 006799005002 | LOCK PLATE |
| YOKE TO SHIFTING SHAFT | ||
| Repalced by: N 006799005004 | ||
| 035 | N 006799005004 | CIRCLIP |
| YOKE TO SHIFTING SHAFT | ||
| 035 | N 006799005002 | LOCK PLATE |
| YOKE TO SHIFTING SHAFT | ||
| Repalced by: N 006799005004 | ||
| 035 | N 006799005004 | CIRCLIP |
| YOKE TO SHIFTING SHAFT | ||
| 038 | A 1402670050 | BUSHING |
| YOKE TO SHIFTING SHAFT | ||
| 039 | A 1152670950 | BUSHING |
| YOKE TO SHIFTING SHAFT | ||
| 039 | A 1152670950 | BUSHING |
| YOKE TO SHIFTING SHAFT | ||
| 041 | A 1402671276 | WASHER |
| 041 | A 1402671276 | WASHER |
| 044 | A 1295450111 | SWITCH |
| ECONOMY DRIVE PROGRAM | ||
| 044 | A 1295450111 | SWITCH |
| ECONOMY DRIVE PROGRAM | ||
| 044 | A 1295450211 | SWITCH |
| ECONOMY DRIVE PROGRAM | ||
| 044 | A 1295450211 | SWITCH |
| ECONOMY DRIVE PROGRAM | ||
| 047 | A 1405450214 | SWITCH |
| 1ST SPEED | ||
| 050 | A 1402670046 | SHIFTING SEGMENT |
| 1ST SPEED | ||
| 050 | A 1402670246 | SHIFTING SEGMENT |
| 1ST SPEED | ||
| 056 | A 1402600162 | BRACKET |
| Repalced by: A 1402600262 | ||
| 056 | A 1402600262 | BRACKET |
| 056 | A 1402600262 | BRACKET |
| 059 | A 1402671040 | BRACKET |
| 059 | A 1402671040 | BRACKET |
| 062 | A 1402671076 | WASHER |
| 062 | A 1402671076 | WASHER |
| 065 | A 1409900904 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 065 | A 1409900904 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 068 | A 1402670630 | LEVER |
| (LOCK-OUT LEVER),STEERING LOCK | ||
| 068 | A 1402670630 | LEVER |
| (LOCK-OUT LEVER),STEERING LOCK | ||
| 071 | A 1402600637 | LEVER |
| (LOCK-OUT LEVER),BRAKE | ||
| 071 | A 1402600637 | LEVER |
| (LOCK-OUT LEVER),BRAKE | ||
| 074 | N 006799007007 | LOCK PLATE |
| 074 | N 006799007007 | LOCK PLATE |
| 077 | A 1402670776 | WASHER |
| (CAM PLATE) | ||
| 077 | A 1402670776 | WASHER |
| (CAM PLATE) | ||
| 077 | A 1402670876 | WASHER |
| (CAM PLATE) | ||
| 077 | A 1402670876 | WASHER |
| (CAM PLATE) | ||
| 080 | A 1249945241 | LOCK |
| (CAM PLATE) | ||
| 080 | A 1249945241 | LOCK |
| (CAM PLATE) | ||
| 083 | A 1402670193 | SPRING |
| Repalced by: A 1402670293 | ||
| 083 | A 1402670293 | SPRING |
| 083 | A 1402670293 | SPRING |
| 086 | N 913023006001 | NUT |
| 086 | N 913023006001 | NUT |
| 092 | A 1405400549 | INDICATOR |
| Repalced by: A 1405401249 | ||
| 092 | A 1405401249 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 092 | A 1405401949 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 092 | A 1405400349 | INDICATOR |
| Repalced by: A 1405401049 | ||
| 092 | A 1405401049 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 092 | A 1405401849 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 092 | A 1405401749 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 092 | A 1405402149 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 092 | A 1405402249 | INDICATOR |
| SLOTTED GATE LIGHTING | ||
| 098 | A 2015450042 | FOLLOWER |
| 098 | A 2015450042 | FOLLOWER |
| 101 | A 1245450237 | BUTTON |
| 101 | A 1245450237 | BUTTON |
| 101 | A 1405450037 | BUTTON |
| 104 | A 1402600032 | GUIDE |
| SHUTTER | ||
| TO 140 267 01 37 / 03 37 | ||
| 104 | A 1402600032 | GUIDE |
| SHUTTER | ||
| TO 140 267 01 37 / 03 37 | ||
| 107 | A 1402600132 | GUIDE |
| SHUTTER | ||
| TO 140 267 01 37 / 03 37 | ||
| 107 | A 1402600132 | GUIDE |
| SHUTTER | ||
| TO 140 267 01 37 / 03 37 | ||
| 110 | A 1402670126 | SHUTTER |
| Repalced by: A 1402670226 | ||
| 110 | A 1402670226 | SHUTTER |
| 110 | A 1402670126 | SHUTTER |
| Repalced by: A 1402670226 | ||
| 110 | A 1402670226 | SHUTTER |
| 110 | A 1402670126 | SHUTTER |
| Repalced by: A 1402670226 | ||
| 110 | A 1402670226 | SHUTTER |
| 110 | A 1402670226 | SHUTTER |
| 113 | A 1402670847 | SLOTTED GATE |
| 113 | A 1402671447 | SLOTTED GATE |
| 113 | A 1402671347 | SLOTTED GATE |
| 113 | A 1402671047 | SLOTTED GATE |
| 113 | A 1402671547 | SLOTTED GATE |
| A 1402670647 | SLOTTED GATE | |
| 113 | A 1406806939 | SLOTTED GATE |
| A 1402671747 | SLOTTED GATE | |
| 113 | A 1406807039 | SLOTTED GATE |
| 113 | A 1402670947 | SLOTTED GATE |
| 116 | A 1402600040 | HANDLE |
| 116 | A 1402600040 | HANDLE |
| 116 | A 2022670011 | HANDLE |
| GEAR SELECTOR LEVER W/LEATHER FINISH | ||
| 116 | A 1402600440 | HANDLE |
| GEAR SELECTOR LEVER WITH KNOTTED WALNUT FINISH | ||
| B6 6 81 8150 | ||
| 116 | A 1402600440 | HANDLE |
| GEAR SELECTOR LEVER WITH KNOTTED WALNUT FINISH,BLACK | ||
| 117 | A 2022671510 | HANDLE |
| Repalced by: A 2022670011 | ||
| 117 | A 2022670011 | HANDLE |
| SELECTOR LEVER WITH LEATHER COVER | ||
| 117 | A 1402670810 | HANDLE |
| WOODEN SELECTOR LEVER HANDLE WITH LEATHER COVER | ||
| 117 | A 1292670910 | HANDLE |
| 118 | A 2022670934 | BADGE |
| BADGE FOR SELECTOR LEVER HANDLE | ||
| 119 | A 2012670380 | GASKET |
| 119 | A 2012670380 | GASKET |
| 122 | N 914130006106 | SCREW |
| FLOOR SHIFT TO TUNNEL | ||
| 122 | N 914130006106 | SCREW |
| FLOOR SHIFT TO TUNNEL | ||
| 128 | A 1245844638 | GUMMED LABEL |
| IN GERMAN | ||
| 128 | A 1245844738 | GUMMED LABEL |
| IN ENGLISH | ||
| 128 | A 1245844838 | GUMMED LABEL |
| IN FRENCH | ||
| 128 | A 1245844938 | GUMMED LABEL |
| IN SPANISH | ||
| 128 | A 1245845038 | GUMMED LABEL |
| IN PORTUGUESE | ||
| 128 | A 1245845238 | GUMMED LABEL |
| IN DUTCH | ||
| 128 | A 1245845338 | GUMMED LABEL |
| IN DANISH | ||
| 128 | A 1245845438 | GUMMED LABEL |
| IN SWEDISH | ||
| 128 | A 1245845538 | GUMMED LABEL |
| IN FINNISH | ||
| 128 | A 1245845638 | GUMMED LABEL |
| IN SERBO-CROATIAN | ||
| 128 | A 1245845738 | GUMMED LABEL |
| IN ARABIAN | ||
| 128 | A 1245845838 | GUMMED LABEL |
| IN ITALIAN | ||
| 128 | A 1405840738 | GUMMED LABEL |
| IN GERMAN | ||
| 128 | A 1405840838 | GUMMED LABEL |
| IN ENGLISH | ||
| 128 | A 1405840938 | GUMMED LABEL |
| IN FRENCH | ||
| 128 | A 1405841038 | GUMMED LABEL |
| IN SPANISH | ||
| A 1405841138 | GUMMED LABEL | |
| IN PORTUGUESE | ||
| 128 | A 1405841238 | GUMMED LABEL |
| IN ITALIAN | ||
| 128 | A 1405841338 | GUMMED LABEL |
| IN DUTCH | ||
| A 1405841438 | GUMMED LABEL | |
| IN DANISH | ||
| A 1405841538 | GUMMED LABEL | |
| IN SWEDISH | ||
| 128 | A 1405841638 | GUMMED LABEL |
| IN FINNISH | ||
| 128 | A 1405841738 | GUMMED LABEL |
| IN SERBO-CROATIAN | ||
| 128 | A 1405841838 | GUMMED LABEL |
| IN ARABIAN | ||
| 131 | A 1402600151 | WIRE CABLE |
| PEDAL ASSEMBLY TO LOCK-OUT LEVER | ||
| 131 | A 1402600151 | WIRE CABLE |
| PEDAL ASSEMBLY TO LOCK-OUT LEVER | ||
| 131 | A 1402600251 | WIRE CABLE |
| PEDAL ASSEMBLY TO LOCK-OUT LEVER | ||
| 131 | A 1402600251 | WIRE CABLE |
| PEDAL ASSEMBLY TO LOCK-OUT LEVER | ||
| 134 | A 1402670364 | WIRE CABLE |
| STEERING LOCK TO LOCKING LEVER | ||
| 134 | A 1402670364 | WIRE CABLE |
| STEERING LOCK TO LOCKING LEVER | ||
| 134 | A 1402670764 | WIRE CABLE |
| STEERING LOCK TO LOCKING LEVER | ||
| 134 | A 1402670464 | WIRE CABLE |
| STEERING LOCK TO LOCKING LEVER | ||
| 134 | A 1402670464 | WIRE CABLE |
| STEERING LOCK TO LOCKING LEVER | ||
| 134 | A 1402670864 | WIRE CABLE |
| STEERING LOCK TO LOCKING LEVER | ||
| 137 | A 1402671140 | BRACKET |
| 137 | A 1402671140 | BRACKET |
| 143 | N 916016005100 | CLAMP |
| WIRE CABLE TO FLOOR SHIFT MECHANISM | ||
| 143 | N 916016005100 | CLAMP |
| WIRE CABLE TO FLOOR SHIFT MECHANISM | ||
| 146 | N 000933005058 | SCREW |
| WIRE CABLE TO FLOOR SHIFT MECHANISM | ||
| 146 | N 000933005058 | SCREW |
| WIRE CABLE TO FLOOR SHIFT MECHANISM | ||
| 152 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 152 | A 0009956044 | CLAMP |
| WIRE CABLE TO FRAME | ||
| 152 | A 0009956044 | CLAMP |
| WIRE CABLE TO FRAME | ||
| 161 | A 1402671240 | BRACKET |
| Repalced by: A 1402671540 | ||
| 161 | A 1402671540 | BRACKET |
| WIRE CABLE TO STEERING COLUMN JACKET TUBE | ||
| 161 | A 1402671540 | BRACKET |
| WIRE CABLE TO STEERING COLUMN JACKET TUBE | ||
| 164 | A 1402670106 | COVER |
| 164 | A 1402670106 | COVER |
| 167 | A 0005453419 | SOCKET LAMP |
| 167 | A 0005453419 | SOCKET LAMP |
| 170 | A 1402670188 | COVERING |
| 170 | A 1402670188 | COVERING |
| 170 | A 1402670388 | COVERING |
| 170 | A 1402670388 | COVERING |
| 170 | A 1402670288 | COVERING |
| Repalced by: A 1402670788 | ||
| 170 | A 1402670788 | COVERING |
| 170 | A 1402670688 | COVERING |
| Repalced by: A 1402670888 | ||
| 170 | A 1402670888 | COVERING |
| 176 | A 1402600633 | SHIFTING ROD |
| 176 | A 1402600733 | SHIFTING ROD |
| 179 | A 1152600353 | END PIECE |
| 179 | A 1152600353 | END PIECE |
| 182 | A 1159920110 | BUSHING |
| Repalced by: A 2109920010 | ||
| 182 | A 2109920010 | BUSHING |
| 182 | A 2109920010 | BUSHING |
| 185 | N 070616010004 | NUT |
| 185 | N 070616010004 | NUT |
| 188 | A 1249920010 | BUSHING |
| Repalced by: A 1159920310 | ||
| 188 | A 1159920310 | BUSHING |
| RANGE SELECTOR LEVER | ||
| 188 | A 1159920310 | BUSHING |
| RANGE SELECTOR LEVER | ||
| 191 | A 0009944160 | PIN LOCK |
| SHIFTING ROD | ||
