Transporto priemonė: C 220 CDI; VIN numerio dalis: 202133

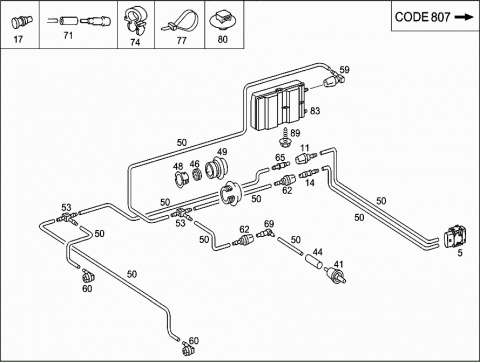

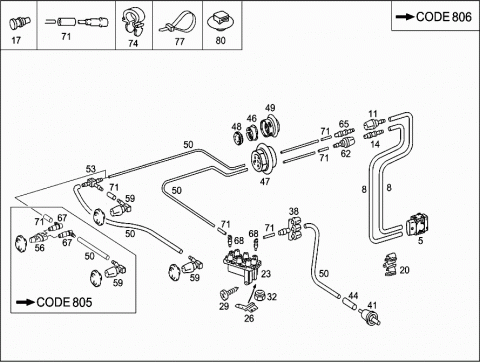

Grupė: 80 VACUUM SYSTEM - 015 ENGINE VACUUM CONNECTION AND LIGHT RANGE REGULATOR

#	Kodas	Pavadinimas
005	A 1248000673	SWITCH
		LIGHT RANGE ADJUSTER
008	A 0001581435	PIPE LINE
		FROM POTENTIOMETER TO VALVE BLOCK
		1950 MM
011	A 2028000353	COUPLING
		FRONT PANEL GROMMET SEPARATION POINT
014	A 2028050344	PLUG
		FRONT PANEL GROMMET SEPARATION POINT
017	A 1248050244	PLUG
		BLIND PLUG,FOR FREE CONNECTIONS
020	A 1248050125	CLIP
023	A 1298001478	VALVE BLOCK
026	A 2028050414	BRACKET
		VALVE BLOCK
029	N 914135004200	SCREW
		VALVE BLOCK TO PLATE
032	N 913023006001	NUT
		BRACKET MOUNTING
038	A 2028000422	DISTRIBUTOR
041	A 0011406660	VALVE
		AT ENGINE
044	A 1179971182	HOSE
		AT ENGINE
044	A 1170780281	HOSE
		AT ENGINE
046	A 2028050282	WASHER
047	A 0089971781	GROMMET
048	A 1408050199	RING
049	A 1408050299	RING
050	A 0001581435	PIPE LINE
		DIA.,
		4MM
050	A 0001581435	PIPE LINE
		FROM ENGINE TO ENGINE COMPARTMENT SEPARATION POINT
		700 MM
050	A 0001581435	PIPE LINE
		FROM ENGINE TO ENGINE COMPARTMENT SEPARATION POINT
		830 MM
050	A 0001581435	PIPE LINE
		FROM ENGINE COMPARTMT.SEPARATION POINT TO FRONT PANEL GROMMET SEPARAT. POINT
		1000 MM
050	A 0001581435	PIPE LINE
		FRONT PANEL GROMMET SEPARATION POINT TO T-SHAPE DISTRIBUTOR
		1100 MM
050	A 0001581435	PIPE LINE
		FROM LEFT LIGTHING UNIT DISTRIBUTOR TO RIGHT LIGHTING UNIT
		1800 MM
050	A 0001581435	PIPE LINE
		FROM VALVE BLOCK TO FRONT PANEL GROMMET SEPARATION POINT
		560 MM
050	A 0001581435	PIPE LINE
		FROM VALVE BLOCK TO FRONT PANEL GROMMET SEPARATION POINT
		2000 MM
050	A 0001581435	PIPE LINE
		FROM ENGINE TO CONNECTION AT GROMMET, FIREWALL
		2000 MM
050	A 0001581435	PIPE LINE
		LIGHT RANGE ADJUSTER
		3600 MM
050	A 0001581435	PIPE LINE
		LIGHT RANGE ADJUSTER
		4800 MM
053	A 2108000222	DISTRIBUTOR
056	A 1298000822	DISTRIBUTOR
		RIGHT LIGHTING UNIT
059	A 2028000253	COUPLING
		LEFT LIGHTING UNIT
059	A 2028000253	COUPLING
		LAMP UNIT LEFT AND RIGHT
059	A 2028000253	COUPLING
		LINE TO TANK
060	A 2028000453	COUPLING
		LAMP UNIT LEFT AND RIGHT
062	A 2028000353	COUPLING
		FRONT PANEL GROMMET SEPARATION POINT
062	A 2028000353	COUPLING
		FRONT PANEL GROMMET SEPARATION POINT
062	A 2028000353	COUPLING
		ENGINE COMPARTMENT SEPARATION POINT
065	A 2028050344	PLUG
		FRONT PANEL GROMMET SEPARATION POINT
067	A 2028050244	PLUG
		RIGHT LIGHTING UNIT
068	A 2028050244	PLUG
		VALVE BLOCK
068	A 2028050344	PLUG
		VALVE BLOCK
069	A 2028050244	PLUG
		ENGINE COMPARTMENT SEPARATION POINT
071	A 0079976182	HOSE
		CONNECTOR FOR VACUUM LINES
		30 MM
074	A 0009956844	CLAMP
	Repalced by: A 0009956044
074	A 0009956044	CLAMP
		7 MM
077	A 0019978390	LOOM TIE
		280 MM
080	A 0019881581	FASTENER BUTTON
083	A 1708050019	TANK
083	A 2108050119	TANK
089	N 914128004200	SHEET METAL SCREW
		SUPPLY TANK TO WHEELHOUSE BRACKET
