Transporto priemonė: 300GE/G300; VIN numerio dalis: 463227
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 015 LOOM TIES, CONTACT AND MOUNTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|

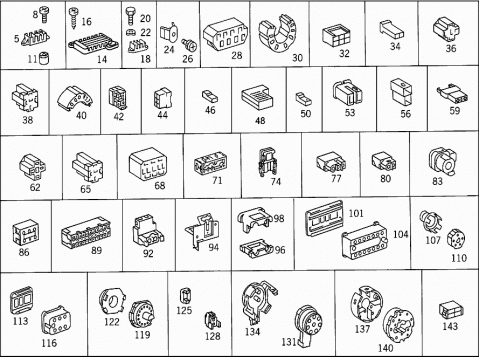

| 005 | A 1245400269 | SOCKET-TERMINAL STRIP |
| ELECTRIC CABLE TO ALTERNATOR | ||
| 005 | A 1245400269 | SOCKET-TERMINAL STRIP |
| AT FIRE WALL | ||
| 008 | N 007985004125 | SCREW |
| Repalced by: N 007985004107 | ||
| 008 | N 007985004107 | SCREW |
| M4X10 | ||
| 011 | A 0029943045 | LOCK |
| 014 | A 4635400169 | SOCKET-TERMINAL STRIP |
| VENTILATION CASE | ||
| 016 | N 914127004204 | SHEET METAL SCREW |
| 4.2X13 | ||
| 018 | A 0005400169 | SOCKET-TERMINAL STRIP |
| WINDSHIELD FRAME | ||
| 018 | A 0005400169 | SOCKET-TERMINAL STRIP |
| WINDSHIELD FRAME | ||
| 018 | A 0015465841 | CABLE CONNECTOR |
| Repalced by: A 0015468341 | ||
| 018 | A 0015468341 | CABLE CONNECTOR |
| FLOOR, CENTRAL | ||
| 020 | N 000933004030 | SCREW |
| M 4X10 | ||
| 020 | N 000933004030 | SCREW |
| 022 | N 000137004202 | SPRING WASHER |
| 022 | N 000137004202 | SPRING WASHER |
| 024 | A 1238210041 | CABLE CONNECTOR |
| HEATED REAR WINDOW PANE | ||
| 026 | N 914025004103 | COMBINATION BOLT |
| HEATED REAR WINDOW PANE | ||
| M 4X10 | ||
| 028 | A 6115450028 | PIN BUSHING HOUSING |
| AIR FLAP CONTROL,OPENING/CLOSING | ||
| 028 | A 6115450028 | PLUG |
| INTERIOR REAR LAMP SWITCH | ||
| 028 | A 6115450028 | PLUG |
| HEATED REAR PANE SWITCH | ||
| 028 | A 6115450028 | PLUG |
| DIFFERENTIAL LOCK SWITCH | ||
| 028 | A 6115450028 | PLUG |
| INTERMITTENT & CONTINUOUS ACTION WIPER SWITCH | ||
| 028 | A 6115450028 | PLUG |
| REAR WIPE/WASH SYSTEM SWITCH | ||
| 030 | A 6675450628 | PIN BUSHING HOUSING |
| HEATER BLOWER SWITCH | ||
| 032 | A 0075450528 | PIN BUSHING HOUSING |
| WIPER PULSE SENDER UNIT | ||
| 032 | A 0075450528 | PLUG |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF FRONT & REAR SIDE DOORS | ||
| 032 | A 0075450528 | PLUG |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF FRONT & REAR SIDE DOORS | ||
| 032 | A 0075450528 | PLUG |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF FRONT & REAR SIDE DOORS | ||
| 032 | A 0075450528 | PLUG |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF FRONT & REAR SIDE DOORS | ||
| 032 | A 0075450528 | PLUG |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF FRONT & REAR SIDE DOORS | ||
| 032 | A 0075450528 | PLUG |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF FRONT & REAR SIDE DOORS | ||
| 034 | A 0045450728 | PIN BUSHING HOUSING |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF REAR END DOOR | ||
| 034 | A 0045450728 | PIN BUSHING HOUSING |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF REAR END DOOR | ||
| 034 | A 0045450728 | PIN BUSHING HOUSING |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF REAR END DOOR | ||
| 034 | A 0045450728 | PIN BUSHING HOUSING |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF REAR END DOOR | ||
| 034 | A 0045450728 | PIN BUSHING HOUSING |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF REAR END DOOR | ||
| 034 | A 0045450728 | PIN BUSHING HOUSING |
| CENTRAL LOCKING MECHANISM OPERATING MOTOR OF REAR END DOOR | ||
| 034 | A 0045450728 | PLUG |
| AIR FLAP MOTOR PLUG-CONNECTION | ||
| 036 | A 0045454028 | PIN BUSHING HOUSING |
| WIPER MOTOR | ||
| 038 | A 0065450728 | PIN BUSHING HOUSING |
| BLINKER SENDER UNIT | ||
| 038 | A 0065450728 | PIN BUSHING HOUSING |
| HEATED REAR WINDOW PANE RELAY | ||
| 038 | A 0065450728 | PIN BUSHING HOUSING |
| TIME RELAY | ||
| 038 | A 0065450728 | PIN BUSHING HOUSING |
| DIFFERENTIAL LOCK RELAY | ||
| 038 | A 0065450728 | PIN BUSHING HOUSING |
| DAY DRIVING LIGHT | ||
| 040 | A 6675450528 | PIN BUSHING HOUSING |
| HEATER BLOWER SWITCH | ||
| 042 | A 0125458828 | PIN BUSHING HOUSING |
| INSTRUMENT CLUSTER;4-POLE | ||
| 044 | A 0145456328 | PIN BUSHING HOUSING |
| DIAGNOSIS BOX | ||
| 046 | A 0085458928 | PIN BUSHING HOUSING |
| DOOR CONTACT SWITCH | ||
| 046 | A 0085458928 | PIN BUSHING HOUSING |
| DOOR CONTACT SWITCH | ||
| 046 | A 0085458928 | PLUG |
| BRAKE FLUID CONTROL | ||
| 046 | A 0085458928 | PLUG |
| SIDE BLINKER LAMP | ||
| 046 | A 0085458928 | PLUG |
| FOGLAMP | ||
| 046 | A 0085458928 | PLUG |
| REAR LEFT AND RIGHT INTERIOR LAMPS | ||
| 046 | A 0085458928 | PLUG |
| DIFFERENTIAL LOCK CONTROL | ||
| 046 | A 0085458928 | PLUG |
| CLOCK | ||
| 046 | A 0085458928 | PLUG |
| CIGAR LIGHTER | ||
| 046 | A 0085458928 | PLUG |
| GLOVE COMPARTMENT LAMP | ||
| 046 | A 0085458928 | PLUG |
| FUSE BOX | ||
| 046 | A 0085458928 | PLUG |
| DAY DRIVING LIGHT | ||
| 048 | A 0055457228 | PLUG |
| COMBINED TAIL/STOP/BLINKER LAMP | ||
| 048 | A 0055457228 | PIN BUSHING HOUSING |
| HEATED REAR WINDOW PANE,UNIPOLAR | ||
| 048 | A 0055457228 | PLUG |
| HAND BRAKE SWITCH | ||
| 050 | A 0025451128 | PIN BUSHING HOUSING |
| HEATED WASHER NOZZLE | ||
| 050 | A 0025451128 | PLUG |
| PLUG CONNECTION | ||
| 15R | ||
| 053 | A 0125453928 | PIN BUSHING HOUSING |
| PARKING LIGHT,LEFT AND RIGHT | ||
| 056 | A 0015458728 | PIN BUSHING HOUSING |
| PANE WASHER | ||
| 056 | A 0015458728 | PIN BUSHING HOUSING |
| TEST LAMP | ||
| 056 | A 0015458728 | PIN BUSHING HOUSING |
| CIGAR LIGHTER | ||

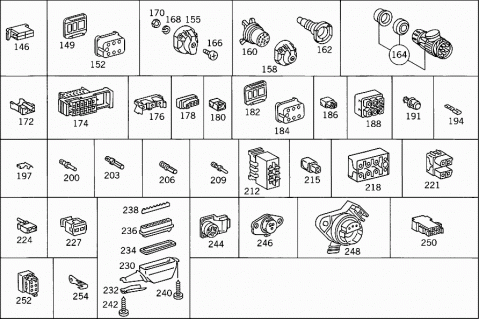

| 059 | A 6015450026 | PIN BUSHING HOUSING |
| TEST LAMP PLUG CONNECTION | ||
| 059 | A 6015450026 | PLUG SOCKET |
| FUSE | ||
| F28 | ||
| 062 | A 0015458528 | PIN BUSHING HOUSING |
| HEADLAMP | ||
| 065 | A 0065451428 | PIN BUSHING HOUSING |
| DIFFERENTIAL LOCK RELAY | ||
| Repalced by: A 0008250518 | ||
| 065 | A 0008250518 | BASE |
| DIFFERENTIAL LOCK RELAY | ||
| 068 | A 6115450128 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| 071 | A 0155450228 | PIN BUSHING HOUSING |
| INTERIOR LAMP | ||
| 074 | A 0125450428 | PIN BUSHING HOUSING |
| LONGITUDINAL DIFFERENTIAL LOCK SOLENOID VALVE | ||
| 074 | A 0125450428 | PLUG |
| BRAKE LINING WEAR INDICATOR PLUGCONNECTION | ||
| 074 | A 0125450428 | PLUG |
| FOGLAMP PLUG-CONNECTION | ||
| 077 | A 0125458328 | PIN BUSHING HOUSING |
| ABS | ||
| 077 | A 0125458328 | PLUG |
| TACHOMETER | ||
| 080 | A 0125458628 | PLUG |
| WINDSHIELD WASHER WATER LEVEL | ||
| 080 | A 0125458628 | PLUG |
| REAR WIPE/WASH SYSTEM PLUG-CONNECTION | ||
| 080 | A 0125458628 | PLUG |
| HALL SENDER UNIT PLUG-CONECTION | ||
| 080 | A 0125458628 | PLUG |
| AIR FLAP MOTOR PLUG-CONNECTION | ||
| 083 | A 0115458528 | PIN BUSHING HOUSING |
| OIL PRESSURE GAUGE SENDER UNIT | ||
| 083 | A 0115458528 | PLUG |
| COOLING WATER TEMPERATURE | ||
| 086 | A 0155453028 | PIN BUSHING HOUSING |
| OVERLOAD PROTECTOR | ||
| 089 | A 1265452328 | PIN BUSHING HOUSING |
| IDLING ADJUSTMENT CONTROL UNIT | ||
| 092 | A 0115457128 | PIN BUSHING HOUSING |
| ELECTRO-HYDRAULIC FINAL CONTROL ELEMNT;BIPOLAR | ||
| 092 | A 0115457128 | PLUG |
| REFRIGERANT INDICATOR | ||
| 092 | A 0115457128 | PLUG |
| IDLE SPEED ACTUATOR | ||
| 094 | A 4635451740 | BRACKET |
| Repalced by: A 4635455440 | ||
| 094 | A 4635455440 | BRACKET |
| MAIN CABLE HARNESS TO PEDAL ASSEMBLY | ||
| 096 | A 0085453728 | PIN BUSHING HOUSING |
| STOP LIGHT SWITCH | ||
| 098 | A 0085453828 | COVER |
| STOP LIGHT SWITCH | ||
| 101 | A 0095452228 | COVER |
| BLINKER SWITCH | ||
| 104 | A 0095452328 | PIN BUSHING HOUSING |
| BLINKER SWITCH | ||
| 107 | A 0095452728 | PIN BUSHING HOUSING |
| IGNITION LOCK | ||
| 110 | A 0095452928 | PIN BUSHING HOUSING |
| IGNITION LOCK | ||
| 113 | A 0095453028 | COVER |
| TRANSMISSION CABLE-HARNESS PLUGCONNECTION | ||
| 116 | A 0065458028 | PIN BUSHING HOUSING |
| TRANSMISSION CABLE-HARNESS PLUGCONNECTION | ||
| 119 | A 0105450428 | PIN BUSHING HOUSING |
| INSTRUMENT CLUSTER;15-POLE | ||
| 122 | A 0105450528 | COVER |
| INSTRUMENT CLUSTER;15-POLE | ||
| 125 | A 0105450928 | COVER |
| BUZZER CONTACT | ||
| 125 | A 0105450928 | PLUG |
| BACK-UP LIGHT SWITCH PLUG CONNECTION | ||
| 128 | A 0105451028 | PIN BUSHING HOUSING |
| BUZZER CONTACT | ||
| 128 | A 0105451028 | PLUG |
| BACK-UP LIGHT SWITCH PLUG CONNECTION | ||
| 131 | A 0135454728 | PIN BUSHING HOUSING |
| TRIMMER PLUG | ||
| 134 | A 0135454828 | COVER |
| Repalced by: A 0225458828 | ||
| 134 | A 0225458828 | COVER |
| TRIMMER PLUG | ||
| 137 | A 0145456428 | COVER |
| LIGHT SWITCH | ||
| 140 | A 0145456528 | PIN BUSHING HOUSING |
| LIGHT SWITCH | ||
| 143 | A 0025451228 | PLUG HOUSING |
| SEAT HEATING PLUG-CONNECTION | ||
| 143 | A 0025451228 | PLUG HOUSING |
| SEAT HEATING PLUG-CONNECTION | ||
| 146 | A 0015454128 | PIN BUSHING HOUSING |
| SEAT HEATING PLUG-CONNECTION | ||
| 146 | A 0015454128 | PIN BUSHING HOUSING |
| SEAT HEATING PLUG-CONNECTION | ||
| 149 | A 0095453028 | COVER |
| HITCHING MECHANISM PLUG-CONNECTION | ||
| 149 | A 0095453028 | COVER |
| HITCHING MECHANISM PLUG-CONNECTION | ||
| 152 | A 0095458028 | PLUG |
| HITCHING MECHANISM PLUG-CONNECTION | ||
| 152 | A 0095458028 | PLUG |
| HITCHING MECHANISM PLUG-CONNECTION | ||
| 155 | A 0005402224 | CASE |
| Repalced by: A 0005403324 | ||

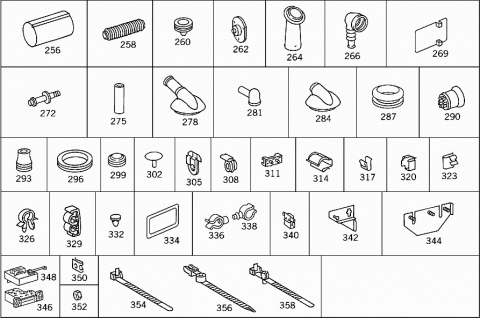

| 155 | A 0005404781 | PLUG SOCKET |
| Repalced by: A 0005403781 | ||
| 155 | A 0005406481 | PLUG SOCKET |
| Repalced by: A 0015407581 | ||
| 155 | A 0015407581 | PLUG SOCKET |
| ON FRAME SIDE MEMBER,FRONT SPRING SEAT AND CROSS MEMBER | ||
| 155 | A 0015407581 | PLUG SOCKET |
| ON FRAME SIDE MEMBER,FRONT SPRING SEAT AND CROSS MEMBER | ||
| 158 | A 0005403324 | CASE |
| 13-POLE TRAILER PLUG SOCKET | ||
| 160 | A 0005403781 | CONTACT INSERT |
| 162 | A 0005455480 | GASKET |
| 164 | A 6015401181 | PLUG |
| 166 | N 007985005131 | SCREW |
| PLUG SOCKET TO FRAME | ||
| M 5X35 | ||
| 166 | N 007985005131 | SCREW |
| PLUG SOCKET TO FRAME | ||
| M 5X35 | ||
| 168 | N 912004005102 | LOCK WASHER |
| PLUG SOCKET TO FRAME | ||
| 168 | N 912004005102 | LOCK WASHER |
| PLUG SOCKET TO FRAME | ||
| 170 | N 000934005006 | NUT |
| Repalced by: N 304032005002 | ||
| 170 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 170 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 170 | N 304032005005 | NUT |
| PLUG SOCKET TO FRAME | ||
| 170 | N 304032005005 | NUT |
| PLUG SOCKET TO FRAME | ||
| 172 | A 0085450928 | PLUG HOUSING |
| Repalced by: A 0125450428 | ||
| 172 | A 0125450428 | PIN BUSHING HOUSING |
| BUZZER CONTACT | ||
| 174 | A 0125452428 | PIN BUSHING HOUSING |
| THROTTLE VALVE SWITCH | ||
| 174 | A 0125452428 | PLUG |
| AIR FLOW SENSOR | ||
| 176 | A 0125450728 | PIN BUSHING HOUSING |
| THRUST CUTOFF MICRO-SWITCH;TWO-POLE | ||
| 178 | A 0008210565 | CASE |
| RADIO PLUG-CONNECTION | ||
| 180 | A 0125458428 | PLUG HOUSING |
| WINDSHIELD WASHER WATER LEVEL | ||
| 180 | A 0125458428 | PLUG HOUSING |
| MICRO-SWITCH | ||
| 182 | A 0065457828 | PLUG HOUSING |
| TEMPOMAT SWITCH | ||
| 184 | A 0095453028 | COVER |
| TEMPOMAT SWITCH | ||
| 186 | A 0125458628 | PLUG |
| OVERHEAT WARNING INDICATOR SENDER UNIT | ||
| 188 | A 0115455028 | PIN BUSHING HOUSING |
| OVERHEAT WARNING INDICATOR | ||
| 191 | A 0005453219 | SOCKET |
| CATALYST OVERHEAT TELL-TALE LAMP | ||
| 194 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 194 | A 0075457426 | PIN BUSHING |
| 8.0X0.8 MM | ||
| 194 | A 0005454626 | PIN BUSHING |
| 6.3X0.8 MM | ||
| 194 | A 0005454026 | PIN BUSHING |
| 6.3X0.8 MM | ||
| 194 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 194 | A 0075458426 | PIN BUSHING |
| 6.3X0.8 MM | ||
| 194 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 194 | A 0075458226 | PIN BUSHING |
| 6.3X0.8 MM | ||
| 197 | A 0005456626 | PIN BUSHING |
| 6.3X0.8 MM | ||
| 200 | A 0015452626 | PIN BUSHING |
| Repalced by: A 0015454426 | ||
| 200 | A 0015454426 | ROUND PIN BUSHING |
| 4.0 MM | ||
| 203 | A 0035452626 | ROUND PIN BUSHING |
| 4.0 MM | ||
| 206 | A 0025459926 | ROUND PIN BUSHING |
| 2.5 MM | ||
| 206 | A 0035450626 | ROUND PIN BUSHING |
| 2.5 MM | ||
| 209 | A 0115451628 | PLUG PIN |
| 2.5 MM | ||
| 209 | A 0085451828 | PLUG PIN |
| Repalced by: A 0135457928 | ||
| 209 | A 0135457928 | PLUG PIN |
| 4.0 MM | ||
| 212 | A 0175452328 | PIN BUSHING HOUSING |
| 212 | A 0195454928 | PLUG |
| 215 | A 0165450228 | PIN BUSHING HOUSING |
| 215 | A 0165450228 | PIN BUSHING HOUSING |
| 218 | A 0165457628 | PLUG |
| MIRROR ADJUSTMENT SWITCH; 8-POLE | ||
| 221 | A 1295450128 | PLUG |
| 224 | A 0125450528 | PLUG |
| Repalced by: A 0085450928 | ||
| 224 | A 0085450928 | PLUG HOUSING |
| Repalced by: A 0125450428 | ||
| 224 | A 0125450428 | PIN BUSHING HOUSING |
| FRONT BRAKE LINING WEAR INDICATOR | ||
| 227 | A 1165400381 | PLUG SOCKET |
| 230 | A 4605400181 | PLUG SOCKET |
| Repalced by: A 0005451981 | ||
| 230 | A 0005451981 | SHELL TYPE HANDLE |
| 232 | A 0005454903 | CAP |
| 234 | A 0005450839 | RUBBER RING |
| 234 | A 0005451339 | RUBBER RING |
| 236 | A 0005452140 | PIN BUSHING HOUSING |
| 238 | A 0005450973 | LOCK |
| 240 | N 007971002206 | SHEET METAL SCREW |
| 242 | N 007981002208 | SHEET METAL SCREW |
| 244 | A 1245401381 | PIN BUSHING HOUSING |
| 246 | A 1295403581 | PLUG SOCKET |
| 248 | A 4635400081 | PLUG SOCKET |
| Repalced by: A 1295450126 | ||
| 248 | A 1295450126 | PLUG SOCKET |
| 250 | A 0175451928 | PIN BUSHING HOUSING |
| OUTSIDE REARVIEW MIRROR,ELECTR. ADJUSTMT. | ||
| 252 | A 0175450828 | PLUG |
| OUTSIDE REARVIEW MIRROR,ELECTR. ADJUSTMT. | ||
| 254 | N 046225006103 | CABLE SHOE |
| A6X4.5 MM | ||
| 254 | N 046236006101 | CABLE SHOE |
| A6X3.4 MM | ||
| 254 | N 046225006102 | CABLE SHOE |
| A6-2.5 MM | ||
| 254 | N 046225006102 | CABLE SHOE |
| A6X2.3 MM | ||
| 254 | N 046225006100 | CABLE SHOE |
| A5X3.4 MM | ||
| 254 | N 046225005101 | CABLE SHOE |
| A5-2.5 MM | ||
| 254 | N 046225004101 | CABLE SHOE |
| A4-6 MM | ||
| 254 | N 046236004101 | CABLE SHOE |
| A4X3.4 MM | ||
| 254 | N 046225004102 | CABLE SHOE |
| A 4-2.5 MM | ||
| 254 | N 046236004100 | CABLE SHOE |
| A4X2.3 MM | ||
| 254 | N 046225004103 | CABLE SHOE |
| A4-1 MM | ||
| 256 | N 040621022200 | INSULATING HOSE |
| 22X1.2 MM | ||
| 256 | N 040621020200 | INSULATING HOSE |
| 20X1.2 MM | ||
| 256 | N 040621018200 | INSULATING HOSE |
| 18X1 MM | ||
| 256 | N 040621016200 | INSULATING HOSE |
| 16X1 MM | ||
| 256 | N 040621014200 | INSULATING HOSE |
| 14X1 MM | ||
| 256 | N 040621012200 | INSULATING HOSE |
| 12X0.8 MM | ||
| 256 | N 040621011200 | INSULATING HOSE |
| 11X0.7 MM | ||
| 256 | N 040621010200 | INSULATING HOSE |
| 10X0.7 MM | ||
| 256 | N 040621009200 | INSULATING HOSE |
| 9X0.7 MM | ||
| 256 | N 040621008200 | INSULATING HOSE |
| 8X0.7 MM | ||
| 256 | N 040621007200 | INSULATING HOSE |
| 7X0.7 MM | ||
| 256 | N 040621006200 | INSULATING HOSE |
| 6X0.6 MM | ||
| 256 | N 040621005200 | INSULATING HOSE |
| 5X0.6 MM | ||
| 256 | N 040621004200 | INSULATING HOSE |
| 4X0.5 MM | ||
| 256 | N 040621003200 | INSULATING HOSE |
| 3X0.4 MM | ||
| 258 | A 0015465030 | INSULATING HOSE |
| Repalced by: A 0015465130 | ||
| 258 | A 0015465130 | INSULATING HOSE |
| 258 | A 0015465130 | INSULATING HOSE |
| 310 MM | ||
| 260 | A 2019970281 | GROMMET |
| PASSAGE OF CABLE THRU FRONT PANEL PILLAR TO BLINKER LIGHT AND DOOR CONTACT | ||
| 262 | A 1249972381 | GROMMET |
| TRAILER PLUG SOCKET CABLE HARNESS | ||
| 262 | A 1249972381 | GROMMET |
| TRAILER PLUG SOCKET CABLE HARNESS | ||
| 264 | A 6019973781 | GROMMET |
| FIRE WALL | ||
| 266 | A 0005460235 | BOOT |
| Repalced by: A 0005463335 | ||
| 266 | A 0005463335 | BOOT |
| FUEL PUMP CONNECTION | ||
| 269 | A 0005461081 | COVERING |
| ENGINE CABLE HARNESS | ||
| 500 GE | ||
| 272 | A 1249975681 | GROMMET |
| FRONT BRAKE LINING WEAR INDICATOR | ||
| 275 | A 4639970681 | GROMMET |
| 275 | A 0009970381 | GROMMET |
| 275 | A 0009970181 | GROMMET |
| 275 | A 0009970581 | GROMMET |
| 278 | A 3149970181 | GROMMET |
| 281 | A 1239971681 | GROMMET |
| HORN | ||
| 284 | A 0079978181 | GROMMET |
| 287 | A 4609975281 | GROMMET |
| 287 | A 1159972481 | GROMMET |
| Repalced by: A 0029971081 | ||
| 287 | A 0029971081 | GROMMET |
| 290 | A 1239971181 | GROMMET |
| 293 | A 6019972181 | GROMMET |
| 296 | A 0009972081 | GROMMET |
| 296 | A 0005465337 | GROMMET |
| 296 | A 0009973281 | GROMMET |
| Repalced by: A 0009979681 | ||
| 296 | A 0009979681 | GROMMET |
| Repalced by: A 3179970281 | ||
| 296 | A 3179970281 | GROMMET |
| HEATED REAR WINDOW PANE | ||
| 299 | A 0009973181 | GROMMET |
| SEAT FRAMEWORK | ||
| 299 | A 0009973181 | GROMMET |
| SEAT FRAMEWORK | ||
| 302 | A 0019883935 | CAP |
| 305 | A 2015460737 | GROMMET |
| Repalced by: A 4635450045 | ||
| 305 | A 4635450045 | BOOT |
| STARTING CABLE TO FIRE WALL | ||
| 308 | A 0001593140 | BRACKET |
| 311 | A 2015451140 | BRACKET |
| FOGLAMP | ||
| 311 | A 2015451140 | BRACKET |
| BRAKE LINING WEAR INDICATOR PLUGCONNECTION | ||
| 314 | A 0009881878 | CLIP |
| REAR FOGLAMP | ||
| 314 | A 0009881878 | CLIP |
| ELECTRIC SLIDING ROOF CABLE HARNESS | ||
| 314 | A 0009881878 | CLIP |
| DOME LAMP CABLE HARNESS | ||
| 314 | A 0009881878 | CLIP |
| HEATED WINDSHIELD CABLE HARNESS | ||
| 317 | A 0059883778 | CLIP |
| REAR FOGLAMP | ||
| 320 | A 2019884178 | CLIP |
| AIR FLAP MOTOR PLUG-CONNECTION | ||
| 320 | A 2019884178 | CLIP |
| TEMPERATURE SENSOR PLUG-CONNECTION | ||
| 320 | A 2019884178 | CLIP |
| AUTOMATIC ANTENNA PLUG-CONNECTION | ||
| 323 | A 0049885978 | CLIP |
| OUTSIDE REARVIEW MIRROR,ELECTR. ADJUSTMT. | ||
| 326 | A 0009956044 | CLAMP |
| 326 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 326 | A 0009956044 | CLAMP |
| SEAT BOX | ||
| 326 | A 0009955444 | CLAMP |
| Repalced by: A 0009956044 | ||
| 326 | A 0009956044 | CLAMP |
| FINAL CONTROL ELEMENT BRACKET | ||
| 329 | A 0009950668 | CLAMP |
| OIL PRESSURE GAUGE LINE | ||
| 332 | A 3819972186 | PLUG |
| LAMBDA PROBE BORE | ||
| 25 MM | ||
| 332 | A 3819972186 | PLUG |
| BORE IN FIRE WALL | ||
| 500 GE | ||
| 334 | A 4604760081 | RUBBER PAD |
| 500 GE | ||
| 336 | A 0009951765 | CLAMP |
| ELECTRIC CABLE TO FUEL LINE | ||
| 338 | A 0004760636 | BRACKET |
| ELECTRIC CABLE TO FUEL LINE | ||
| 338 | A 0004760436 | BRACKET |
| IGNITION CABLE TO VACUUM LINE | ||
| 338 | A 0004760436 | BRACKET |
| ELECTRIC CABLE TO FUEL LINE | ||
| 340 | A 0059889078 | CLIP |
| 342 | A 4635454040 | BRACKET |
| 344 | A 4635400973 | BRACKET |
| 346 | A 1295455540 | BRACKET |
| DIAGNOSIS | ||
| 348 | A 1295450003 | CAP |
| BRACKET | ||
| 350 | A 1239901191 | NUT RETAINER |
| 352 | N 000934004006 | NUT |
| M4 | ||
| 352 | N 000934005008 | NUT |
| M5 | ||
| 352 | N 000934006007 | NUT |
| M6 | ||
| 352 | N 304032008006 | NUT |
| M8 | ||
| 354 | A 0039979390 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 354 | A 0019974390 | LOOM TIE |
| 9 MM | ||
| 354 | A 0019974190 | LOOM TIE |
| 7 MM | ||
| 354 | A 0019978390 | LOOM TIE |
| 4.5 MM | ||
| 356 | A 0039978190 | LOOM TIE |
| Repalced by: A 6389971890 | ||
| 356 | A 6389971890 | LOOM TIE |
| 358 | A 0039977090 | LOOM TIE |
| Repalced by: A 0049976390 | ||
| 358 | A 0049976390 | LOOM TIE |
| 358 | A 1149970590 | LOOM TIE |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
