Transporto priemonė: 0 1017; VIN numerio dalis: 685185

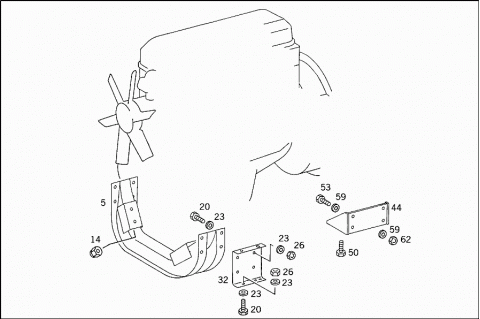

Grupė: 24 ENGINE SUSPENSION

#	Kodas	Pavadinimas
005	H XM6852400001	ENGINE SUPPORT
005	H XM6852400601	ENGINE SUPPORT
014	N 913004012003	NUT
		RUBBER MOUNTING TO ENGINE FRONT SUPPORT
020	Q 23-09440-150	PART NAME MISSING
		SCREW
		1/2-13 X 1 1/2 FG8
020	Q 23-09440-175	PART NAME MISSING
		SCREW
		1/2-13 X 1 3/4 FG8
020	Q 23-09440-200	PART NAME MISSING
		SCREW
		1/2-13 X 2 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		ENGINE CROSS MEMBER TO CONSOLE
023	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2-1.06-.14 Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		ENGINE CROSS MEMBER TO CONSOLE
026	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2-13 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		ENGINE CROSS MEMBER TO CONSOLE
032	H XM6852410040	BRACKET
		LEFT
032	H XM6852410840	BRACKET
		LEFT
032	H XM6852410140	BRACKET
		RIGHT
032	H XM6852410940	BRACKET
		RIGHT
044	H XM6852400306	CONSOLE
		LEFT AND RIGHT
044	H XM6852400406	CONSOLE
	Repalced by: H XM6852400506
044	H XM6852400506	CONSOLE
		LEFT AND RIGHT
050	N 000961012151	SCREW
		ENGINE MOUNTING TO CONSOLE
053	Q 23-09440-150	PART NAME MISSING
		SCREW
		1/2-13 X 1 1/2 FG8
053	Q 23-09440-175	PART NAME MISSING
		SCREW
		1/2-13 X 1 3/4 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		CONSOLE TO SIDE MEMBER
059	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2-1.06-.14 Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		CONSOLE TO SIDE MEMBER
062	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2-13 CAD G8
	Y YYYYYYYYYYYY	PART NAME MISSING
		CONSOLE TO SIDE MEMBER
