Transporto priemonė: 0 1017; VIN numerio dalis: 685185
Grupė: 49 EXHAUST SYSTEM

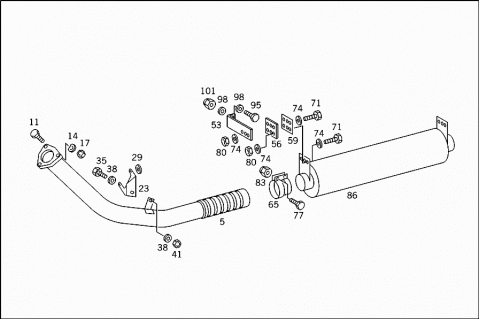

60335

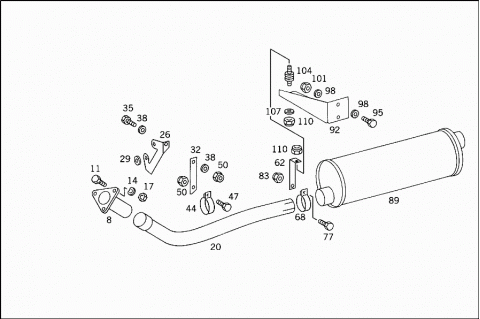

60267
60268
# Kodas Pavadinimas
005 H XM6854902619 EXHAUST PIPE
FRONT
005 H XM6854902719 EXHAUST PIPE
FRONT
005 H XM6854902719 EXHAUST PIPE
FRONT
H XM6854904319 EXHAUST PIPE
FRONT
008 H XM6854900019 EXHAUST PIPE
FRONT
008 H XM6854901719 EXHAUST PIPE
FRONT
A 6004920080 FLANGE GASKET
EXHAUST PIPE TO EXHAUST MANIFOLD
011 Q 23-09440-200 PART NAME MISSING
SCREW
1/2-13 X 2 FG8
011 Q 24863R1 PART NAME MISSING
SCREW
1/2-13 X 1 3/4
011 Q 23-09440-175 PART NAME MISSING
SCREW
1/2-13 X 1 3/4 FG8
Y YYYYYYYYYYYY PART NAME MISSING
CONNECTING PIPE TO EXHAUST MANIFOLD
014 Q 23-09319-013 PART NAME MISSING
SPRING WASHER
1/2 X.883 X.151 CAD
014 Q 23-09319-013 PART NAME MISSING
SPRING WASHER
1/2 X.883 X.151 CAD
Y YYYYYYYYYYYY PART NAME MISSING
CONNECTING PIPE TO EXHAUST MANIFOLD
Q 23-09983-050 PART NAME MISSING
SPRING WASHER
1/2
017 Q 23-09247-108 PART NAME MISSING
NUT
1/2-13 FG8
017 Q 23-09247-108 PART NAME MISSING
NUT
1/2-13 FG8
Y YYYYYYYYYYYY PART NAME MISSING
CONNECTING PIPE TO EXHAUST MANIFOLD
Q 23-09982-050 PART NAME MISSING
NUT
1/2-13
020 H XM6854923501 FRONT EXHAUST PIPE
FRONT
020 H XM6854922101 FRONT EXHAUST PIPE
FRONT
023 H XM6854920241 BRACKET
AT BELL HOUSING
026 H XM6854921217 ANGLE
AT BELL HOUSING
029 N 000125010517 WASHER
AT BELL HOUSING
032 H XM6854920418 BASE PLATE
BRACKET TO EXHAUST PIPE
035 Q 23-09436-125 PART NAME MISSING
BRACKET TO EXHAUST PIPE
3/8-16 X 1 1/4 FG8
035 Q 23-09436-125 PART NAME MISSING
BRACKET TO EXHAUST MUFFLER BRACKET
3/8-16 X 1 1/4 FG8
038 Q 23-09114-002 PART NAME MISSING
BRACKET TO EXHAUST PIPE
3/8-.812-.072 Z
038 Q 23-09114-002 PART NAME MISSING
BRACKET TO EXHAUST MUFFLER BRACKET
3/8-.812-.072 Z
041 Q 23-09901-106 PART NAME MISSING
NUT
3/8-16 CAD G8
T YYYYYYYYYYYY PART NAME MISSING
BRACKET TO EXHAUST PIPE
044 N 071555100500 CLAMP
FRONT EXHAUST PIPE TO BRACKET
100.5MM
047 Q 23-09436-150 PART NAME MISSING
SCREW
3/8-16 X 1 1/2 FG8
T YYYYYYYYYYYY PART NAME MISSING
FRONT EXHAUST PIPE TO BRACKET
050 Q 23-09901-106 PART NAME MISSING
NUT
3/8-16 CAD G8
T YYYYYYYYYYYY PART NAME MISSING
FRONT EXHAUST PIPE TO BRACKET
053 H XM6854922217 ANGLE
MUFFLER BRACKET TO BRACKET AT SIDE MEMBER
056 A 6804910020 MOUNTING STRAP
MUFFLER BRACKET TO BRACKET AT SIDE MEMBER
059 A 6804910018 PLATE
MUFFLER BRACKET TO BRACKET AT SIDE MEMBER
062 H XM6854921317 ANGLE
EXHAUST MUFFLER TO SIDE MEMBER
065 Q A041-2096-001 PART NAME MISSING
CLAMP
4"
065 Q A041-2096-001 PART NAME MISSING
CLAMP
4"
H XM6854920840 CLAMP
068 N 071555104501 CLAMP
EXHAUST PIPE TO MUFFLER
104.5
071 Q 23-11609-125 PART NAME MISSING
SCREW
10-24 UNC X 1 1/4
071 Q 23-11609-100 PART NAME MISSING
SCREW
CF 10-24 X 1
T YYYYYYYYYYYY PART NAME MISSING
MUFFLER BRACKET TO BRACKET AT SIDE MEMBER
074 Q 23-00600-010 PART NAME MISSING
WASHER
10
T YYYYYYYYYYYY PART NAME MISSING
MUFFLER BRACKET TO BRACKET AT SIDE MEMBER
077 Q 23-09436-150 PART NAME MISSING
SCREW
3/8-16 X 1 1/2 FG8
Y YYYYYYYYYYYY PART NAME MISSING
FRONT AND REAR EXHAUST PIPES TO MUFFLER
080 Q 23-09336-005 PART NAME MISSING
NUT
10
T YYYYYYYYYYYY PART NAME MISSING
MUFFLER BRACKET TO BRACKET AT SIDE MEMBER
083 Q 23-09901-106 PART NAME MISSING
NUT
3/8-16 CAD G8
Y YYYYYYYYYYYY PART NAME MISSING
FRONT AND REAR EXHAUST PIPES TO MUFFLER
086 H XM6854900801 EXHAUST MUFFLER
089 H XM6854900401 EXHAUST MUFFLER
092 H XM6854920916 SUPPORT
EXHAUST MUFFLER TO SIDE MEMBER
095 Q 23-09436-125 PART NAME MISSING
MUFFLER BRACKET TO FRAME
3/8-16 X 1 1/4 FG8
095 Q 23-09436-125 PART NAME MISSING
BRACKET TO SIDE MEMBER
3/8-16 X 1 1/4 FG8
098 Q 23-09114-002 PART NAME MISSING
MUFFLER BRACKET TO FRAME
3/8-.812-.072 Z
098 Q 23-09114-002 PART NAME MISSING
BRACKET TO SIDE MEMBER
3/8-.812-.072 Z
101 Q 23-09901-106 PART NAME MISSING
MUFFLER BRACKET TO FRAME
3/8-16 CAD G8
101 Q 23-09901-106 PART NAME MISSING
BRACKET TO SIDE MEMBER
3/8-16 CAD G8
104 A 0019873140 RUBBER BUFFER
EXHAUST MUFFLER TO SIDE MEMBER
107 N 000125010517 WASHER
BRACKET TO RUBBER MOUNTING
110 N 913004010004 NUT
BRACKET TO RUBBER MOUNTING
113 N 071555100500 CLAMP
EXHAUST PIPE TO MUFFLER
100.5
116 H XM6854924201 FRONT EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
116 H XM6854923601 FRONT EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
116 H XM6854921301 EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
116 H XM6854923301 EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
116 H XM6854921201 EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
116 H XM6854921201 EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
116 H XM6854923101 EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
116 H XM6854923101 EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
H XM6854927001 EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
116 H XM6854921401 EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
116 H XM6854923201 EXHAUST PIPE
CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER
119 H XM6854920004 REAR EXHAUST PIPE
CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE
H XM6854922501 EXHAUST PIPE
CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE
119 H XM6854901519 EXHAUST PIPE
Repalced by: H XM6854923701
119 H XM6854923701 EXHAUST PIPE
CENTRAL REAR EXHAUST PIPE TO REAR EXHAUST PIPE
H XM6854922401 EXHAUST PIPE
REAR EXHAUST PIPE
122 H XM6854922601 EXHAUST PIPE
Repalced by: H XM6854901919
122 H XM6854901919 EXHAUST PIPE
REAR EXHAUST PIPE
125 H XM6854920916 SUPPORT
EXHAUST PIPE TO SIDE MEMBER
H XM6854920618 ANGLE
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
H XM6854920716 SUPPORT
EXHAUST PIPE TO SIDE MEMBER
128 Q 23-09436-125 PART NAME MISSING
SCREW
3/8-16 X 1 1/4 FG8
T YYYYYYYYYYYY PART NAME MISSING
SUPPORT TO SIDE MEMBER
131 Q 23-09436-150 PART NAME MISSING
SCREW
3/8-16 X 1 1/2 FG8
T YYYYYYYYYYYY PART NAME MISSING
ANGLE TO ANGLE
134 Q 23-09114-002 PART NAME MISSING
WASHER
3/8-.812-.072 Z
134 Q 23-09114-002 PART NAME MISSING
SUPPORT TO SIDE MEMBER
3/8-.812-.072 Z
134 Q 23-09114-002 PART NAME MISSING
ANGLE TO ANGLE
3/8-.812-.072 Z
137 Q 23-09901-106 PART NAME MISSING
NUT
3/8-16 CAD G8
137 Q 23-09901-106 PART NAME MISSING
SUPPORT TO SIDE MEMBER
3/8-16 CAD G8
137 Q 23-09901-106 PART NAME MISSING
ANGLE TO ANGLE
3/8-16 CAD G8
H XM6854920817 ANGLE
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
140 A 0019873140 RUBBER BUFFER
BRACKET TO EXHAUST PIPE BRACKET
143 N 000125010517 WASHER
BRACKET TO RUBBER MOUNTING
146 N 000934010005 NUT
BRACKET TO RUBBER MOUNTING
149 H XM6854920141 BRACKET
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
152 H XM6854921317 ANGLE
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
155 N 071555100500 CLAMP
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
100.5MM
155 N 071555100500 CLAMP
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
100.5MM
158 N 071555104501 CLAMP
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
104.5MM
158 N 071555104501 CLAMP
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
104.5MM
158 N 071555104501 CLAMP
EXHAUST PIPE TO EXHAUST PIPE
104.5MM
161 H XM6854921417 ANGLE
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
164 H XM6854921717 ANGLE
EXHAUST PIPE TO BRACKET ON SIDE MEMBER
165 H XM6855420149 ANGLE
TAIL PIPE TO BRACKET
167 H XM6854921617 ANGLE
TAIL PIPE TO BRACKET
170 Q 23-09436-150 PART NAME MISSING
CLAMP TO BRACKET
3/8-16 X 1 1/2 FG8
170 Q 23-09436-150 PART NAME MISSING
EXHAUST PIPE TO EXHAUST PIPE
3/8-16 X 1 1/2 FG8
173 Q 23-09114-003 PART NAME MISSING
WASHER
1/2-13 X 1 1/2 FG8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO CROSS MEMBER
176 Q 23-09901-106 PART NAME MISSING
CLAMP TO BRACKET
3/8-16 CAD G8
176 Q 23-09901-106 PART NAME MISSING
EXHAUST PIPE TO EXHAUST PIPE
3/8-16 CAD G8
179 Q 23-09901-108 PART NAME MISSING
NUT
1/2-13 CAD8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO CROSS MEMBER
H XM6854900030 PROTECTIVE PLATE
HEAT SHIELD TO EXHAUST MANIFOLD
