Transporto priemonė: 0 1017; VIN numerio dalis: 685185
Grupė: 41 PROPELLER SHAFT

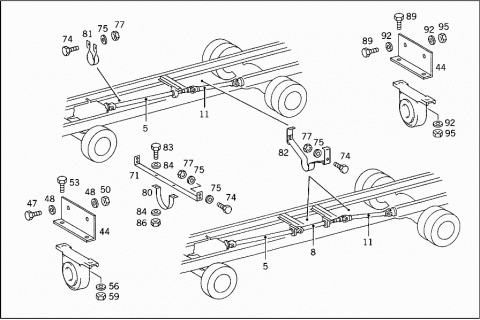

41626
# Kodas Pavadinimas
005 H XM6854109801 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
740 MM
005 H XM6854103101 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1490 MM
005 H XM6854104901 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1490 MM
005 H XM6854109201 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1220 MM
005 H XM6854109701 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1131 MM
005 H XM6854103201 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1062 MM
005 H XM6854105001 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1062 MM
005 H XM6854109301 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1055 MM
005 H XM6854103601 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
992 MM
005 H XM6854105901 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
992 MM
005 H XM6854103701 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
1430.5 MM
005 H XM6854106001 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
56.32"
008 H XM6854104301 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1329 MM
008 H XM6854103301 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1084 MM
008 H XM6854105101 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1084 MM
008 H XM6854101001 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1058 MM
008 H XM6854101601 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1058 MM
008 H XM6854103801 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1496.5 MM
008 H XM6854106101 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
58.92"
011 H XM6854105302 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1220 MM
011 H XM6854103102 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1259 MM
011 H XM6854104102 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1259 MM
011 H XM6854107902 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1214 MM
011 H XM6854107302 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1260 MM
011 H XM6854107502 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1070 MM
011 H XM6854103202 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1168 MM
011 H XM6854104202 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1168 MM
011 H XM6854107402 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1170 MM
011 H XM6854103402 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1188 MM
011 H XM6854104902 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1188 MM
011 H XM6854103302 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1260 MM
011 H XM6854104802 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
49.60"
044 H XM6854135442 BRACKET
INTERMEDIATE BEARING
I
044 H XM6854135042 BRACKET
INTERMEDIATE BEARING
II
044 H XM6854136342 BRACKET
INTERMEDIATE BEARING
044 H XM6854104340 BRACKET
INTERMEDIATE BEARING
044 H XM6854135842 BRACKET
INTERMEDIATE BEARING
044 H XM6854104440 BRACKET
INTERMEDIATE BEARING
044 H XM6854104540 BRACKET
INTERMEDIATE BEARING
044 H XM6854102840 BRACKET
INTERMEDIATE BEARING
044 H XM6854102940 BRACKET
INTERMEDIATE BEARING
044 H XM6854135942 BRACKET
INTERMEDIATE BEARING
I
044 H XM6854135342 BRACKET
INTERMEDIATE BEARING
II
044 H XM6854102740 BRACKET
INTERMEDIATE BEARING
044 H XM6854103040 BRACKET
INTERMEDIATE BEARING
047 Q 23-09440-150 PART NAME MISSING
SCREW
1/2-13 X 1/2 FG8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO CROSS MEMBER
048 Q 23-09114-003 PART NAME MISSING
WASHER
1/2-1.06 14 Z
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO CROSS MEMBER
050 Q 23-09901-108 PART NAME MISSING
NUT
1/2-13 CAD G8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO CROSS MEMBER
053 Q 23-09440-150 PART NAME MISSING
SCREW
1/2-13 X 1/2 FG8
053 Q 23-09438-150 PART NAME MISSING
SCREW
7/16-14 X 150 FG8
Y YYYYYYYYYYYY PART NAME MISSING
INTERMEDIATE BEARING TO BRACKET
056 Q 23-09114-003 PART NAME MISSING
WASHER
1/2-1.06 14 Z
056 Q 23-09114-001 PART NAME MISSING
WASHER
7/16-.92 .08
Y YYYYYYYYYYYY PART NAME MISSING
INTERMEDIATE BEARING TO BRACKET
059 Q 23-09901-108 PART NAME MISSING
NUT
1/2-13 CAD G8
059 Q 23-09901-107 PART NAME MISSING
NUT
7/16-14
Y YYYYYYYYYYYY PART NAME MISSING
INTERMEDIATE BEARING TO BRACKET
071 H XM6854140040 BRACKET
PROPELLER SHAFT RETAINING STRAP
074 Q 23-09440-150 PART NAME MISSING
SCREW
1/2-13 X 1 1/2 FG8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO FRAME
075 Q 23-09114-003 PART NAME MISSING
WASHER
1/2-1.06 14 Z
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO FRAME
077 Q 23-09901-108 PART NAME MISSING
NUT
1/2-13 CAD G8
Y YYYYYYYYYYYY PART NAME MISSING
BRACKET TO FRAME
080 H XM6854130246 REBOUND STRAP
080 H XM6854130746 REBOUND STRAP
080 H XM6854130046 REBOUND STRAP
081 H XM6854130646 REBOUND STRAP
082 H XM6854130846 REBOUND STRAP
083 Q 23-09436-125 PART NAME MISSING
SCREW
3/8-16 X 1 1/4 FG8
Y YYYYYYYYYYYY PART NAME MISSING
PROPELLER SHAFT RETAINING STRAP
084 Q 23-09114-002 PART NAME MISSING
WASHER
3/8-.812 072 Z
Y YYYYYYYYYYYY PART NAME MISSING
PROPELLER SHAFT RETAINING STRAP
086 Q 23-09901-106 PART NAME MISSING
NUT
3/8-16 CAD G8
Y YYYYYYYYYYYY PART NAME MISSING
PROPELLER SHAFT RETAINING STRAP
089 Q 23-09440-150 PART NAME MISSING
SCREW
Y YYYYYYYYYYYY PART NAME MISSING
REBOUND STRAP TO SUPPORT
089 Q 23-09440-150 PART NAME MISSING
REBOUND STRAP TO FRAME
092 Q 23-09114-003 PART NAME MISSING
WASHER
Y YYYYYYYYYYYY PART NAME MISSING
REBOUND STRAP TO SUPPORT
092 Q 23-09114-003 PART NAME MISSING
REBOUND STRAP TO FRAME
095 Q 23-09901-108 PART NAME MISSING
NUT
Y YYYYYYYYYYYY PART NAME MISSING
REBOUND STRAP TO SUPPORT
095 Q 23-09901-108 PART NAME MISSING
REBOUND STRAP TO FRAME
