Transporto priemonė: 0 1017; VIN numerio dalis: 685185

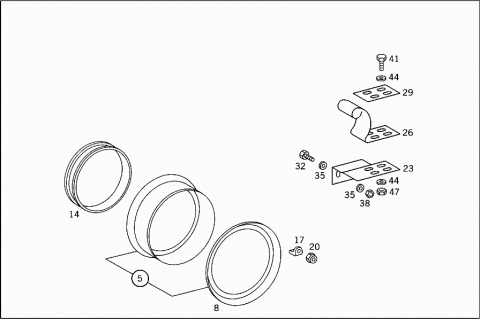

Grupė: 40 WHEELS - 090 DISC WHEELS AND SPARE WHEEL CARRIER
40786
# Kodas Pavadinimas
005 H XM6854000302 DISC WHEEL
005 H XM6854000802 DISC WHEEL
008 H XM6854010006 SIDE RING
014 H XM6854010106 SIDE RING
Repalced by: H XM6814020315
014 H XM6814020315 SPACER
017 H XM6854020069 CLAMPING PIECE
FRONT WHEELS
017 H XM6854020169 CLAMPING PIECE
REAR WHEELS
020 H XM6859900551 NUT
FRONT AND REAR
3/4-10
023 H XM6858800014 BRACKET
LEFT
023 H XM6858800114 BRACKET
RIGHT
026 A 6808870070 PIVOT
HINGE
029 A 6808870122 REINFORCEMENT
032 Q 23-09440-175 PART NAME MISSING
SCREW
1/2-13 X 1 3/4 FG8
T YYYYYYYYYYYY PART NAME MISSING
SPARE WHEEL CARRIER
035 Q 23-09114-003 PART NAME MISSING
WASHER
1/2-1.06 14 Z
T YYYYYYYYYYYY PART NAME MISSING
SPARE WHEEL CARRIER
038 Q 23-09901-108 PART NAME MISSING
NUT
1/2-13 CAD G8
T YYYYYYYYYYYY PART NAME MISSING
SPARE WHEEL CARRIER
041 Q 23-09436-150 PART NAME MISSING
SCREW
3/8-16 X 1 1/2 FG8
T YYYYYYYYYYYY PART NAME MISSING
HINGE
044 Q 23-09114-002 PART NAME MISSING
WASHER
3/8-812 072Z
T YYYYYYYYYYYY PART NAME MISSING
HINGE
047 Q 23-09901-106 PART NAME MISSING
NUT
3/8-16 CAD G8
Y YYYYYYYYYYYY PART NAME MISSING
HINGE
