Transporto priemonė: 0 302 OTOMARSAN/TUERKEI; VIN numerio dalis: 373051
Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|

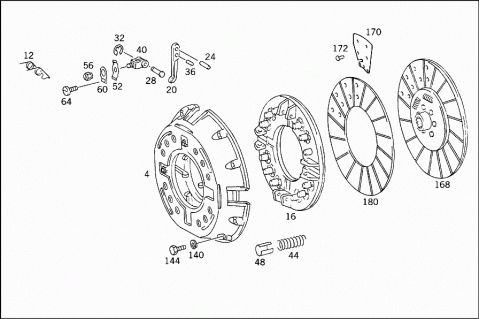

| 004 | A 0022509604 | CLUTCH PRESSURE PLATE |
| 012 | A 0002520827 | SPRING |
| 016 | A 0002524312 | PRESSURE PLATE |
| 020 | A 0002523713 | RELEASE LEVER |
| 024 | A 0002521616 | SPINDLE |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 028 | A 0002521716 | SPINDLE |
| RELEASE LEVER,BRACKET | ||
| 032 | N 006799007007 | LOCK PLATE |
| 036 | A 0002520318 | ROLLER |
| 040 | A 0002522314 | BRACKET |
| 044 | A 0002525020 | PRESSURE SPRING |
| 048 | A 0002520253 | SPACER TUBE |
| 052 | A 0002520619 | LEAF SPRING |
| 056 | A 0002523372 | NUT |
| 060 | A 0002521173 | LOCK |
| 064 | A 0002522971 | SCREW |

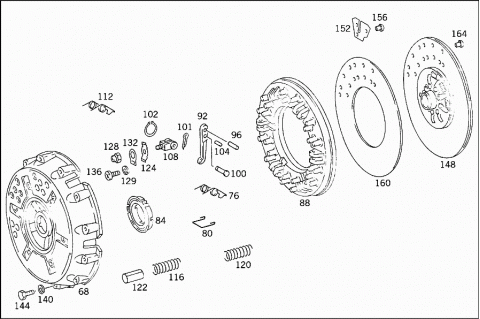

| 068 | A 0032501604 | CLUTCH PRESSURE PLATE |
| 068 | A 0032502004 | CLUTCH PRESSURE PLATE |
| 076 | A 0002522127 | SPRING |
| 076 | A 0002520727 | SPRING |
| 080 | A 0002521829 | CLAMP |
| 080 | A 0002520929 | CLAMP |
| 084 | A 0002520545 | FLANGE |
| 084 | A 0002522045 | FLANGE |
| 088 | A 0002520512 | PRESSURE PLATE |
| 088 | A 0002520412 | PRESSURE PLATE |
| 092 | A 0002523413 | RELEASE LEVER |
| 092 | A 0002524613 | RELEASE LEVER |
| 096 | A 0002520816 | SPINDLE |
| Repalced by: A 0002523716 | ||
| 096 | A 0002523716 | SPINDLE |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 096 | A 0002522916 | SPINDLE |
| RELEASE LEVER,CLUTCH PRESSURE PLATE | ||
| 100 | A 0002520516 | SPINDLE |
| RELEASE LEVER,BRACKET | ||
| 100 | A 0002522816 | SPINDLE |
| RELEASE LEVER,BRACKET | ||
| 101 | N 000094002059 | COTTER PIN |
| 102 | N 006799007007 | LOCK PLATE |
| 104 | A 0002520018 | ROLLER |
| 104 | A 0002520118 | ROLLER |
| 108 | A 0002521714 | BRACKET |
| 108 | A 0002520614 | BRACKET |
| 112 | A 0002522227 | SPRING |
| 112 | A 0002521927 | SPRING |
| 116 | A 0002526020 | PRESSURE SPRING |
| 116 | A 0002524320 | PRESSURE SPRING |
| 120 | A 0002526120 | PRESSURE SPRING |
| 122 | A 0002520535 | SLEEVE |
| 124 | A 0002520619 | LEAF SPRING |
| 124 | A 0002520519 | LEAF SPRING |
| 128 | A 0002523372 | NUT |
| 128 | A 0002521372 | NUT |
| 129 | A 0009901647 | LOCK WASHER |
| 132 | A 0002521173 | LOCK |
| 132 | A 0002521073 | LOCK |
| 136 | A 0002522971 | SCREW |
| 136 | N 000085005106 | SCREW |
| 140 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 140 | N 912004010102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 144 | N 000931008229 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X35 | ||
| 144 | N 000931008173 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X65 | ||
| 144 | N 000931010422 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 148 | A 0042509003 | CLUTCH DISC |
| Repalced by: A 0092504003 | ||
| 148 | A 0092504003 | CLUTCH DISC |
| 148 | A 0042508903 | CLUTCH DISC |
| Repalced by: A 0092504103 | ||
| 148 | A 0092504103 | CLUTCH DISC |
| 152 | A 0002521719 | LEAF SPRING |
| Repalced by: A 0002523419 | ||
| 152 | A 0002523419 | LEAF SPRING |
| Repalced by: A 0002524419 | ||
| 152 | A 0002524419 | LEAF SPRING |
| TO 009 250 40 03 | ||
| 152 | A 0002523819 | LEAF SPRING |
| TO 009 250 41 03 | ||
| 156 | A 0002520675 | RIVET |
| Repalced by: A 0002522075 | ||
| 156 | A 0002522075 | RIVET |
| TO 004 250 89 03,90 03 | ||
| 156 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 156 | A 0002521475 | RIVET |
| TO 004 250 89 03,90 03 | ||
| 156 | A 0002524375 | RIVET |
| TO 009 250 40 03,41 03 | ||
| 160 | A 0002528810 | CLUTCH LINING |
| Repalced by: A 0012524310 | ||
| 160 | A 0012524310 | CLUTCH LINING |
| TO 004 250 90 03 | ||
| 160 | A 0012524810 | CLUTCH LINING |
| ASBESTOS-FREE LINING | ||
| TO 009 250 40 03 | ||
| 160 | A 0002528310 | CLUTCH LINING |
| Repalced by: A 0012522910 | ||
| 160 | A 0012522910 | CLUTCH LINING |
| TO 004 250 89 03 | ||
| 160 | A 0012523210 | CLUTCH LINING |
| ASBESTOS-FREE LINING | ||
| TO 009 250 41 03 | ||
| 164 | A 0002521275 | RIVET |
| TO 004 250 89 03,90 03 | ||
| 164 | A 0002523875 | RIVET |
| TO 009 250 40 03,41 03 | ||
| 168 | A 0032508303 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 168 | A 0032508603 | CLUTCH DISC |
| Repalced by: A 0092501303 | ||
| 168 | A 0092501303 | CLUTCH DISC |
| 170 | A 0002522019 | LEAF SPRING |
| TO 009 250 13 03 | ||
| 172 | A 0002521475 | RIVET |
| TO 003 250 86 03 | ||
| 172 | A 0002523875 | RIVET |
| TO 009 250 13 03 | ||
| 172 | A 0002522175 | RIVET |
| TO 003 250 86 03,009 250 13 03 | ||
| 180 | A 0002529010 | CLUTCH LINING |
| TO 003 250 86 03 | ||
| 180 | A 0012525010 | CLUTCH LINING |
| TO 009 250 13 03 | ||

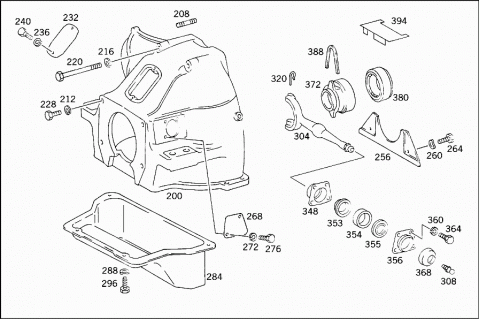

| 200 | A 3522511501 | BELL HOUSING |
| 200 | A 3522512101 | BELL HOUSING |

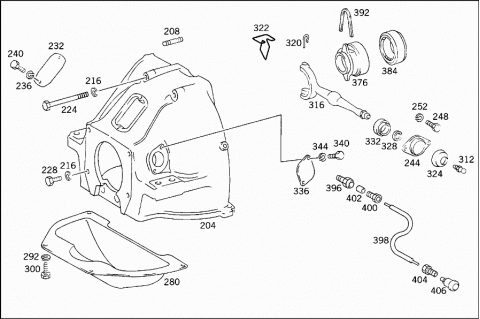

| 204 | A 3022510501 | BELL HOUSING |
| 204 | A 3552510101 | BELL HOUSING |
| 208 | N 000939010158 | STUD BOLT |
| STARTING MOTOR TO BELL HOUSING | ||
| 208 | A 0009902605 | STUD |
| 212 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 216 | N 912004014100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 216 | N 912004010102 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 220 | N 000931012262 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X135 | ||
| 224 | N 000931014107 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 14 X 135 MM | ||
| 228 | N 900170012040 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 228 | N 000931014100 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 14X60 | ||
| 228 | N 000931010397 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 10X40 | ||
| 232 | A 3602510004 | END COVER |
| TOP | ||
| 232 | A 3602510004 | END COVER |
| TOP | ||
| 232 | A 3602510004 | END COVER |
| TOP | ||
| 236 | N 912004006102 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 236 | N 912004006102 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 236 | N 912004006102 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 240 | N 000933006103 | SCREW |
| END COVER TO BELL HOUSING | ||
| 240 | N 000933006103 | SCREW |
| END COVER TO BELL HOUSING | ||
| 240 | N 000933006103 | SCREW |
| END COVER TO BELL HOUSING | ||
| 244 | A 3279970165 | FLANGE |
| 244 | A 3732500046 | FLANGE |
| 248 | N 000933008214 | SCREW |
| FLANGE TO BELL HOUSING | ||
| 252 | N 912004008102 | LOCK WASHER |
| FLANGE TO BELL HOUSING | ||
| 256 | A 3522510106 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 256 | A 3522500055 | PROTECTIVE PLATE |
| BELL HOUSING | ||
| 260 | N 000137006101 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 260 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 264 | N 000933006074 | SCREW |
| Repalced by: N 304017006034 | ||
| 264 | N 304017006034 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 268 | A 3522510004 | END COVER |
| BELL HOUSING | ||
| 272 | N 912004008102 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 276 | N 000933008214 | SCREW |
| END COVER TO BELL HOUSING | ||
| 280 | A 3272500505 | HOUSING |
| LOWER PART | ||
| 284 | A 3522510202 | BELL HOUSING |
| LOWER PART | ||
| 288 | N 000137006101 | SPRING WASHER |
| Repalced by: N 000137006204 | ||
| 288 | N 000137006204 | SPRING WASHER |
| LOWER PART TO HOUSING | ||
| 292 | N 912004008102 | LOCK WASHER |
| LOWER PART TO HOUSING | ||
| 296 | N 000933006074 | SCREW |
| Repalced by: N 304017006034 | ||
| 296 | N 304017006034 | SCREW |
| LOWER PART TO HOUSING | ||
| 300 | N 000933008214 | SCREW |
| LOWER PART TO HOUSING | ||
| 304 | A 3412930011 | RELEASE YOKE |
| 308 | A 3029910015 | BALL PIVOT |
| 308 | A 3529910415 | BALL PIVOT |
| 312 | A 3029910215 | BALL PIVOT |
| 316 | A 3272540808 | RELEASE LEVER |
| 316 | A 3732540008 | RELEASE LEVER |
| 320 | A 3402540013 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| 322 | A 3739930025 | SPRING |
| RELEASE YOKE TO RELEASE BEARING | ||
| 324 | A 3272540097 | BOOT |
| 328 | N 912009029100 | SNAP RING |
| 332 | A 0009810631 | JOINT BEARING |
| 336 | A 3272500055 | COVER |
| RELEASE LEVER TO BELL HOUSING | ||
| 340 | N 000933008214 | SCREW |
| COVER TO BELL HOUSING | ||
| 344 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 348 | A 3522540040 | BRACKET |
| INSIDE | ||
| 353 | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| 353 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 353 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 354 | A 3802540059 | SEAL RING |
| SOFT | ||
| 354 | A 3802540259 | SEAL RING |
| SOFT | ||
| 355 | A 3802540159 | SEAL RING |
| HARD | ||
| 355 | A 3802540359 | SEAL RING |
| HARD | ||
| 356 | A 3522500243 | BRACKET |
| OUTSIDE | ||
| 360 | N 912004008102 | LOCK WASHER |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 364 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 364 | N 304017008021 | SCREW |
| BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING | ||
| 368 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 368 | A 3142540197 | BOOT |
| 372 | A 3522500115 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 372 | A 3402500215 | RELEASE BEARING |
| CLUTCH | ||
| 376 | A 3272501115 | RELEASE BEARING |
| Repalced by: A 3052500615 | ||
| 376 | A 3052500615 | RELEASE BEARING |
| CLUTCH | ||
| 376 | A 0002506715 | RELEASE BEARING |
| CLUTCH | ||
| 380 | A 0002540020 | RELEASE BEARING |
| 380 | A 0002540120 | RELEASE BEARING |
| 384 | A 0009814425 | BALL BEARING |
| 388 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| 392 | A 3129870110 | STRIP |
| RELEASE BEARING | ||
| 394 | A 3052540033 | COVER |
| TO 352 250 01 15 | ||
| 396 | N 071428004102 | SCREW-IN FITTING |
| 398 | A 3859970582 | HOSE |
| RELEASE COLLAR LUBRICATION | ||
| 400 | N 003871004102 | UNION SCREW |
| RELEASE COLLAR LUBRICATION | ||
| 402 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE COLLAR LUBRICATION | ||
| 404 | N 071428004102 | SCREW-IN FITTING |
| RELEASE COLLAR LUBRICATION | ||
| 406 | N 003411002001 | GREASE CUP |
| RELEASE COLLAR LUBRICATION | ||
