Transporto priemonė: 0 302 OTOMARSAN/TUERKEI; VIN numerio dalis: 373051
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

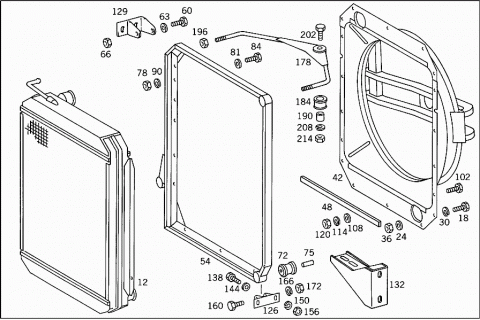

| 012 | A 3025010101 | RADIATOR |
| Repalced by: A 3025010201 | ||
| 012 | A 3025010201 | RADIATOR |
| Repalced by: A 3025010401 | ||
| 012 | A 3025010401 | RADIATOR |
| 018 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 018 | N 304017008016 | SCREW |
| RADIATOR TO BODY | ||
| M 8X16 | ||
| 018 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 018 | N 304017008021 | SCREW |
| RADIATOR TO BODY | ||
| M 8X20 | ||
| 024 | N 000125008418 | WASHER |
| RADIATOR TO BODY | ||
| 030 | N 912004008102 | LOCK WASHER |
| RADIATOR TO BODY | ||
| 036 | N 000934008010 | NUT |
| RADIATOR TO BODY | ||
| 042 | A 3025000027 | SUPPORT |
| RADIATOR | ||
| 042 | A 3735000027 | SUPPORT |
| RADIATOR | ||
| 042 | A 3735000427 | SUPPORT |
| RADIATOR | ||
| 048 | A 3219870014 | RUBBER STRIP |
| 054 | A 3025000127 | SUPPORT |
| RADIATOR | ||
| 054 | A 3735000127 | SUPPORT |
| RADIATOR | ||
| A 3735040340 | BRACKET | |
| 060 | N 000933010105 | SCREW |
| BRACKET TO BRACKET | ||
| 060 | N 000933010105 | SCREW |
| BRACKET TO BODY | ||
| 063 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 063 | N 009021010209 | WASHER |
| BRACKET TO BRACKET | ||
| 063 | N 009021010209 | WASHER |
| BRACKET TO BODY | ||
| 066 | N 913004010008 | NUT |
| BRACKET TO BRACKET | ||
| 072 | A 3028880224 | MOUNTING |
| 072 | A 3028880224 | MOUNTING |
| 075 | A 3028880026 | SLEEVE |
| 078 | N 000934016007 | NUT |
| RADIATOR BASE FRAME TO BODY | ||
| 078 | N 000439016206 | NUT |
| Repalced by: N 308675016001 | ||
| 078 | N 308675016001 | NUT |
| RADIATOR BASE FRAME TO BODY | ||
| 078 | N 000934012022 | NUT |
| RADIATOR BASE FRAME TO BODY | ||
| 078 | N 913004012008 | NUT |
| Repalced by: N 910113012002 | ||
| 078 | N 910113012002 | NUT |
| RADIATOR BASE FRAME TO BODY | ||
| 081 | N 009021017201 | WASHER |
| RADIATOR BASE FRAME TO BODY | ||
| 084 | N 000960012230 | SCREW |
| Repalced by: N 000960012345 | ||
| 084 | N 000960012345 | SCREW |
| RADIATOR BASE FRAME TO BODY | ||
| 090 | N 912004012102 | LOCK WASHER |
| RADIATOR BASE FRAME TO BODY | ||
| 102 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 102 | N 304017008016 | SCREW |
| RADIATOR BASE FRAME TO BODY | ||
| 8X16 | ||
| 102 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 102 | N 304017008021 | SCREW |
| RADIATOR BASE FRAME TO BODY | ||
| 8X20 | ||
| 108 | N 000125008418 | WASHER |
| RADIATOR BASE FRAME TO BODY | ||
| 114 | N 912004008102 | LOCK WASHER |
| RADIATOR BASE FRAME TO BODY | ||
| 120 | N 000934008010 | NUT |
| RADIATOR BASE FRAME TO BODY | ||
| 120 | N 913004008004 | NUT |
| Repalced by: N 910113008003 | ||
| 120 | N 910113008003 | NUT |
| RADIATOR BASE FRAME TO BODY | ||
| 126 | A 3025000031 | BRACKET |
| 129 | A 3735000031 | BRACKET |
| 132 | A 3735000531 | BRACKET |
| H XB3736100930 | CONSOLE | |
| 138 | N 000931010232 | SCREW |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| TO HXB 373 610 09 30, | ||
| 138 | N 000933008115 | SCREW |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| TO 302 500 00 31 | ||
| 138 | N 000933010105 | SCREW |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| M 10X25 | ||
| 138 | N 000931010402 | SCREW |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| M 10X55 | ||
| 138 | N 000933010254 | SCREW |
| Repalced by: N 304017010019 | ||
| 138 | N 304017010019 | SCREW |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| TO HXB 373 500 04 31,HXB373 610 09 30 | ||
| 144 | N 000125008418 | WASHER |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| TO 302 500 00 31 | ||
| 144 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 144 | N 000125010532 | WASHER |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| 144 | N 009021010102 | WASHER |
| Repalced by: N 009021010202 | ||
| 144 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 144 | N 009021010209 | WASHER |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| TO HXB 373 500 04 31,HXB 373 610 09 30 | ||
| 150 | N 912004008102 | LOCK WASHER |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| TO 302 500 00 31 | ||
| 150 | N 000127010202 | LOCK WASHER |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| TO HXB 373 500 04 31,HXB370 610 09 30 | ||
| 156 | N 000934008010 | NUT |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| TO 302 500 00 31 | ||
| 156 | N 913004010008 | NUT |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| 156 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 156 | N 304032010003 | NUT |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| TO HXB 373 500 04 31,HXB 373 610 09 30 | ||
| 160 | N 000960012230 | SCREW |
| Repalced by: N 000960012345 | ||
| 160 | N 000960012345 | SCREW |
| FRAME TO BOTTOM BRACKET | ||
| 166 | N 912004012100 | LOCK WASHER |
| FRAME TO BOTTOM BRACKET | ||
| 172 | N 913004012008 | NUT |
| Repalced by: N 910113012002 | ||
| 172 | N 910113012002 | NUT |
| FRAME TO BOTTOM BRACKET | ||
| 172 | N 910113012002 | NUT |
| FRAME TO BOTTOM BRACKET | ||
| 178 | A 3025000032 | STAY |
| RADIATOR BASE FRAME | ||
| 184 | A 3216420074 | JOINT RUBBER |
| 190 | A 3216420026 | SPACER TUBE |
| 196 | N 000934012021 | NUT |
| STAY TO FRAME | ||
| 202 | N 000960012154 | SCREW |
| STAY TO SUBSTRUCTURE | ||
| 208 | N 000127012201 | LOCK WASHER |
| STAY TO SUBSTRUCTURE | ||
| 214 | N 000934012022 | NUT |
| STAY TO SUBSTRUCTURE | ||

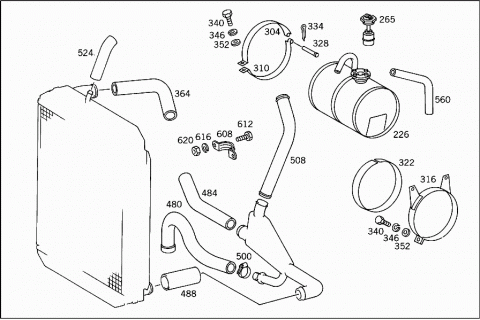

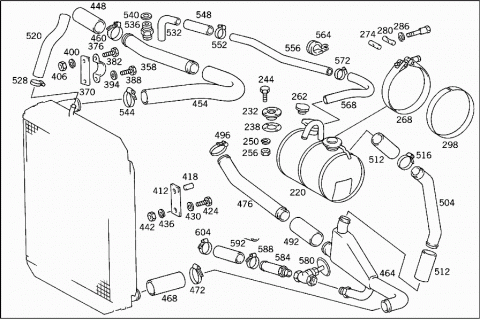

| 220 | A 3025000649 | TANK |
| EXPANSION TANK | ||
| 226 | A 3025001549 | TANK |
| Repalced by: A 3025000749 | ||
| 226 | A 3025000749 | TANK |
| EXPANSION TANK | ||
| 232 | A 0005000740 | VALVE |
| 238 | A 0005010080 | GASKET |
| 244 | N 000933005058 | SCREW |
| 250 | N 912004005103 | LOCK WASHER |
| 256 | N 000934005021 | NUT |
| 262 | A 0005010015 | RADIATOR CAP |
| 265 | A 0015425717 | SENDER UNIT |
| 268 | A 3225000331 | BRACKET |
| EXPANSION TANK TO SUPPORT | ||
| 268 | A 3735010320 | BRACKET |
| 274 | A 1861550174 | PIN |
| 280 | A 1861550074 | PIN |
| 286 | N 912004008102 | LOCK WASHER |
| A 3225010071 | SCREW | |
| 298 | A 3029870814 | RUBBER STRIP |
| EXPANSION TANK TO SUPPORT | ||
| 304 | A 3025000131 | BRACKET |
| UPPER PART,RIGHT | ||
| 304 | A 3735000331 | BRACKET |
| UPPER PART,RIGHT | ||
| 310 | A 3025000231 | BRACKET |
| LOWER PART; RIGHT | ||
| 316 | A 3025000331 | BRACKET |
| EXPANSION TANK | ||
| 316 | A 3735000131 | BRACKET |
| EXPANSION TANK | ||
| 322 | A 3029870514 | RUBBER STRIP |
| BRACKET TO EXPANSION TANK | ||
| 322 | A 3029870614 | RUBBER STRIP |
| BRACKET TO EXPANSION TANK | ||
| 328 | N 001444005206 | PIN |
| BRACKET TO EXPANSION TANK | ||
| 334 | N 000094001207 | COTTER PIN |
| BRACKET TO EXPANSION TANK | ||
| 340 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 340 | N 304017008021 | SCREW |
| BRACKET TO EXPANSION TANK | ||
| 340 | N 304017008021 | SCREW |
| EXPANSION TANK TO SUPPORT | ||
| 346 | N 912004008102 | LOCK WASHER |
| BRACKET TO EXPANSION TANK | ||
| 346 | N 912004008102 | LOCK WASHER |
| EXPANSION TANK TO SUPPORT | ||
| 352 | N 000125008418 | WASHER |
| EXPANSION TANK TO SUPPORT | ||
| 358 | A 3025010024 | COOLING WATER PIPE |
| FROM THERMOSTAT TO RADIATOR | ||
| 358 | A 3735010724 | COOLING WATER PIPE |
| FROM THERMOSTAT TO RADIATOR | ||
| 364 | A 3735010124 | COOLING WATER PIPE |
| FROM THERMOSTAT TO RADIATOR | ||
| 370 | A 3025060240 | BRACKET |
| COOLING WATER LINE TU RUBBER PAD | ||
| 376 | A 0009951410 | CLAMP |
| COOLING WATER LINE TU RUBBER PAD | ||
| 382 | N 000933008115 | SCREW |
| COOLING WATER LINE TU RUBBER PAD | ||
| M 8X25 | ||
| 388 | N 000931008058 | SCREW |
| COOLING WATER LINE TU RUBBER PAD | ||
| M 8X40 | ||
| 394 | N 000125008418 | WASHER |
| COOLING WATER LINE TU RUBBER PAD | ||
| 400 | N 912004008102 | LOCK WASHER |
| COOLING WATER LINE TU RUBBER PAD | ||
| 406 | N 000934008010 | NUT |
| COOLING WATER LINE TU RUBBER PAD | ||
| 412 | A 3025010020 | RUBBER PAD |
| 418 | A 3179910840 | SPACER TUBE |
| COOLING WATER LINE TU RUBBER PAD | ||
| 424 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 424 | N 304017008018 | SCREW |
| RUBBER PAD TO RADIATOR BASE FRAME | ||
| 430 | N 000125008418 | WASHER |
| RUBBER PAD TO RADIATOR BASE FRAME | ||
| 436 | N 912004008102 | LOCK WASHER |
| RUBBER PAD TO RADIATOR BASE FRAME | ||
| 442 | N 000934008010 | NUT |
| RUBBER PAD TO RADIATOR BASE FRAME | ||
| 448 | N 900271045000 | HOSE |
| COOLING WATER PIPE TO THERMOSTAT HOUSING | ||
| 454 | A 3025011582 | HOSE |
| COOLING WATER PIPE TO RADIATOR | ||
| 460 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 460 | N 000000000671 | CLAMP |
| COOLING WATER PIPE TO THERMOSTAT HOUSING | ||
| 460 | N 000000000671 | CLAMP |
| COOLING WATER PIPE TO RADIATOR | ||
| 460 | A 3739950601 | CLAMP |
| COOLING WATER PIPE TO THERMOSTAT HOUSING | ||
| 460 | A 3739950601 | CLAMP |
| COOLING WATER PIPE TO RADIATOR | ||
| 464 | A 3025000169 | SEPARATOR |
| Repalced by: A 3735000469 | ||
| 464 | A 3735000469 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| 464 | A 3735000769 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| 464 | A 3735000869 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| A 3735000169 | SEPARATOR | |
| Repalced by: A 3735000569 | ||
| 464 | A 3735000569 | SEPARATOR |
| (BUBBLE SEPARATOR) | ||
| 468 | N 900271045000 | HOSE |
| FROM RADIATOR TO BUBBLE SEPARATOR | ||
| 472 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 472 | N 000000000671 | CLAMP |
| HOSE TO RADIATOR AN TO BUBBLE SEPARATOR | ||
| 472 | A 3739950601 | CLAMP |
| HOSE TO RADIATOR AN TO BUBBLE SEPARATOR | ||
| 476 | A 3025000572 | LINE |
| BETWEEN BUBBLE SEPARATOR AND WATER PUMP | ||
| 476 | A 3025011382 | HOSE |
| FROM BUBBLE SEPARATOR TO WATER PUMP | ||
| 480 | A 3735010082 | HOSE |
| FROM BUBBLE SEPRATOR TO OIL COOLER | ||
| 488 | N 900271045000 | HOSE |
| COOLING WATER LINE TO BUBBLE SEPARATOR | ||
| 492 | N 900271042007 | HOSE |
| AT WATER PUMP | ||
| 496 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 496 | N 000000000671 | CLAMP |
| BETWEEN BUBBLE SEPARATOR AND WATER PUMP | ||
| 496 | A 3739950601 | CLAMP |
| BETWEEN BUBBLE SEPARATOR AND WATER PUMP | ||
| 500 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 500 | N 000000000672 | CLAMP |
| HOSE TO RADIATOR AN TO BUBBLE SEPARATOR | ||
| 500 | A 3739950801 | CLAMP |
| HOSE TO RADIATOR AN TO BUBBLE SEPARATOR | ||
| 504 | A 3025010224 | COOLING WATER PIPE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 504 | A 3735010624 | COOLING WATER PIPE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 504 | A 3735010824 | COOLING WATER PIPE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 508 | A 3735010024 | COOLING WATER PIPE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 512 | N 900271038019 | HOSE |
| Repalced by: N 900271038015 | ||
| 512 | N 900271038015 | HOSE |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 516 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 516 | N 000000000670 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 516 | A 3739950501 | CLAMP |
| COOLING WATER LINE TO EXPANSION TANK & TO BUBBLE SEPARATOR | ||
| 520 | A 3025011682 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 524 | N 900271002034 | HOSE |
| VENTILATION, FROM RADIATOR TO EXPANSION TANK | ||
| 528 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 528 | N 000000000667 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 528 | A 3739950301 | CLAMP |
| HOSE TO RADIATOR AND TO EXPANSION TANK | ||
| 532 | A 3025000372 | LINE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 532 | A 3735000272 | LINE |
| DE-AERATION; FROM ENGINE TO EXPANSION TANK | ||
| 536 | N 915013010001 | SCREW FITTING |
| LINES TO ENGINE | ||
| 540 | N 007603016100 | SEAL RING |
| LINES TO ENGINE | ||
| 544 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 544 | N 000000000671 | CLAMP |
| COOLING-WATER-LINE-TO-RADIATOR DE-AERATION LINE | ||
| 544 | A 3739950601 | CLAMP |
| COOLING-WATER-LINE-TO-RADIATOR DE-AERATION LINE | ||
| 548 | N 900271012010 | HOSE |
| BETWEEN THE DE-AERATION LINES | ||
| 552 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 552 | N 000000000666 | CLAMP |
| BETWEEN THE DE-AERATION LINES | ||
| 552 | A 3739951801 | CLAMP |
| BETWEEN THE DE-AERATION LINES | ||
| 556 | A 3025060059 | CONNECTING PIPE |
| FROM ENGINE TO EXPANSION TANK,2ND PART | ||
| 560 | A 3735060157 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK,2ND PART | ||
| 560 | A 3735060057 | BREATHER PIPE |
| FROM ENGINE TO EXPANSION TANK,2ND PART | ||
| 564 | N 916016012201 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 568 | A 3025011482 | HOSE |
| BETWEEN DE-AERATION LINE AND EXPANSION TANK | ||
| 572 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 572 | N 000000000666 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 572 | A 3739951801 | CLAMP |
| HOSE TO BREATHER PIPE AND TO ESPANSION TANK | ||
| 580 | A 3205060064 | VALVE |
| (SHUT-OFF VALVE) | ||
| 584 | A 3025000972 | LINE |
| HEATING WATER | ||
| 588 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 588 | N 000000000671 | CLAMP |
| BUBBLE SEPARATOR AND RADIATOR | ||
| 588 | A 3739950601 | CLAMP |
| BUBBLE SEPARATOR AND RADIATOR | ||
| 592 | N 900271038015 | HOSE |
| HEATING WATER RETURN LINE | ||
| H XB3735061056 | PIPE | |
| H XB3739951001 | CLAMP | |
| 604 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 604 | N 000000000670 | CLAMP |
| HEATING WATER RETURN LINE | ||
| 608 | A 0009951710 | CLAMP |
| COOLING WATER PIPE TO FAN SUPPORT | ||
| 612 | N 000933008214 | SCREW |
| COOLING WATER PIPE TO FAN SUPPORT | ||
| 616 | N 912004008102 | LOCK WASHER |
| COOLING WATER PIPE TO FAN SUPPORT | ||
| 620 | N 000934008010 | NUT |
| COOLING WATER PIPE TO FAN SUPPORT | ||

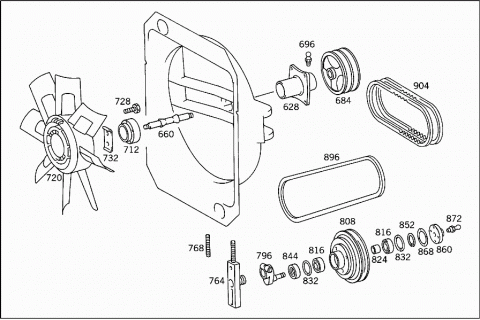

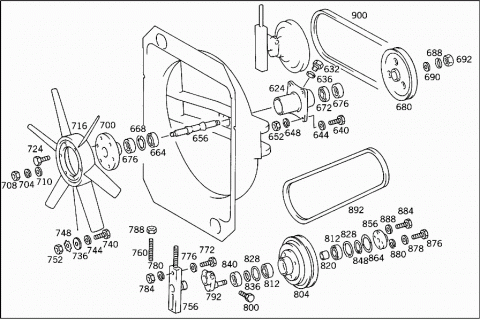

| 624 | A 3212050405 | BEARING BODY |
| Repalced by: A 3732057105 | ||
| 624 | A 3732057105 | BEARING BODY |
| FAN DRIVE | ||
| 628 | A 3022050005 | BEARING BODY |
| Repalced by: A 3732057205 | ||
| 628 | A 3732057205 | BEARING BODY |
| FAN DRIVE | ||
| 632 | N 007604010102 | SCREW PLUG |
| 632 | N 007604010102 | SCREW PLUG |
| TO 373 205 72 05,302 205 00 05 | ||
| 636 | N 007603010404 | SEAL RING |
| 640 | N 000931008182 | SCREW |
| BEARING BODY TO SUPPORT | ||
| 644 | N 000125008418 | WASHER |
| BEARING BODY TO SUPPORT | ||
| 648 | N 912004008102 | LOCK WASHER |
| BEARING BODY TO SUPPORT | ||
| 652 | N 000934008010 | NUT |
| BEARING BODY TO SUPPORT | ||
| 656 | A 3212050302 | FAN SHAFT |
| Repalced by: A 3732057102 | ||
| 656 | A 3732057102 | FAN SHAFT |
| 232 MM;TO 373 205 71 05 | ||
| 660 | A 3022050302 | FAN SHAFT |
| Repalced by: A 3732057202 | ||
| 660 | A 3732057202 | FAN SHAFT |
| 212 MM; TO 373 205 72 05 | ||
| 664 | N 000628003304 | ANG. CONTACT BALL BEARING |
| REAR | ||
| 668 | N 000472052001 | LOCK RING |
| Repalced by: N 000472052000 | ||
| 668 | N 000472052000 | LOCK RING |
| 672 | N 000625006304 | GROOVED BALL BEARING |
| FRONT | ||
| 676 | N 003760030300 | RADIAL SEAL RING |
| TO 302 205 00 05 | ||
| 676 | A 0019978447 | SEAL RING |
| 680 | A 3022050310 | PULLEY |
| FAN DRIVE | ||
| 680 | A 3022050410 | PULLEY |
| 684 | A 3732050110 | PULLEY |
| FAN DRIVE | ||
| 684 | A 3732050210 | PULLEY |
| FAN DRIVE | ||
| 688 | N 912004016101 | LOCK WASHER |
| PULLEY TO FAN SHAFT | ||
| TO 302 205 03 02 | ||
| 690 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 690 | N 000125017016 | WASHER |
| PULLEY TO FAN SHAFT | ||
| TO 321 205 03 02;373 205 71 02;72 02 | ||
| 692 | N 000439016203 | NUT |
| PULLEY TO FAN SHAFT | ||
| TO 321 205 03 02,302 205 03 02 | ||
| 692 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 692 | N 910113016001 | NUT |
| PULLEY TO FAN SHAFT | ||
| TO 373 205 71 02,72 02 | ||
| 696 | N 071412008100 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 696 | N 071412008102 | GREASE NIPPLE |
| FAN V-BELT PULLEY | ||
| TO 302 205 00 05 | ||
| 700 | A 3212050012 | HUB |
| FAN | ||
| 704 | N 912004016102 | LOCK WASHER |
| HUB TO FAN DRIVE | ||
| TO 302 205 03 02 | ||
| 708 | N 000439016203 | NUT |
| HUB TO FAN DRIVE | ||
| TO 321 205 03 02;302 205 03 02 | ||
| 708 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 708 | N 910113016001 | NUT |
| HUB TO FAN DRIVE | ||
| TO 373 205 71 02,373 205 72 02 | ||
| 710 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 710 | N 000125017016 | WASHER |
| HUB TO FAN DRIVE | ||
| TO 321 205 03 02,373 205 71 02;72 02 | ||
| 712 | A 3022050036 | FLANGE |
| 716 | A 3212050006 | FAN |
| 720 | A 3022000423 | FAN |
| 724 | N 000933008215 | SCREW |
| FAN TO HUB | ||
| M 8X22 | ||
| 728 | N 000931008058 | SCREW |
| FAN TO HUB | ||
| M 8X40 | ||
| 732 | A 3159940030 | LOCK |
| FAN TO HUB | ||
| 736 | A 3219900440 | WASHER |
| Repalced by: A 3219900540 | ||
| 736 | A 3219900540 | WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 736 | A 3219900840 | WASHER |
| AS REQUIRED | ||
| 2.50 MM | ||
| 740 | N 000912006018 | SCREW |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| 6X20 MM | ||
| 740 | N 000912006041 | SCREW |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| 6X15 | ||
| 740 | N 000912006004 | SCREW |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| 6X12 | ||
| 744 | N 000125006421 | WASHER |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| 748 | N 006797006142 | TOOTHED WASHER |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| 752 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 752 | N 304032006004 | NUT |
| BALANCING PLATES TO FAN AND TO PULLEY | ||
| 756 | A 3212000039 | SUPPORT |
| CLAMPING LEVER | ||
| 760 | A 3219900005 | STUD |
| 764 | A 3012000039 | SUPPORT |
| CLAMPING LEVER | ||
| 768 | A 3019900005 | STUD |
| 772 | N 000931010231 | SCREW |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 776 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 776 | N 000125010532 | WASHER |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 780 | N 912004010102 | LOCK WASHER |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 784 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 784 | N 304032010003 | NUT |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 788 | N 000934012022 | NUT |
| SUPPORT TO RADIATOR BASE FRAME | ||
| 792 | A 3022000073 | LEVER |
| TIGHTENER PULLEY | ||
| 792 | A 3022000073 | LEVER |
| TIGHTENER PULLEY | ||
| 796 | A 3022000373 | LEVER |
| TIGHTENER PULLEY | ||
| 796 | A 3022000373 | LEVER |
| TIGHTENER PULLEY | ||
| 800 | N 000960012154 | SCREW |
| CLAMPING LEVER TO SUPPORT | ||
| 804 | A 3022060819 | TIGHTENER PULLEY |
| 804 | A 3022060819 | TIGHTENER PULLEY |
| 808 | A 3732060119 | TIGHTENER PULLEY |
| 808 | A 3732060119 | TIGHTENER PULLEY |
| 812 | N 000625006303 | GROOVED BALL BEARING |
| 812 | N 000625006303 | GROOVED BALL BEARING |
| 816 | N 000625006304 | GROOVED BALL BEARING |
| 816 | N 000625006304 | GROOVED BALL BEARING |
| 820 | A 3022060053 | SPACER TUBE |
| 820 | A 3022060053 | SPACER TUBE |
| 824 | A 3022060153 | SPACER TUBE |
| 824 | A 3022060153 | SPACER TUBE |
| 828 | N 000472047001 | LOCK RING |
| 828 | N 000472047001 | LOCK RING |
| 832 | N 000472052001 | LOCK RING |
| Repalced by: N 000472052000 | ||
| 832 | N 000472052000 | LOCK RING |
| 832 | N 000472052000 | LOCK RING |
| 836 | A 3022050152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 836 | A 3022050152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 836 | A 3022050552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 836 | A 3022050552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 836 | A 3022050652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 836 | A 3022050652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 836 | A 3022050352 | SPACER WASHER |
| Repalced by: A 3022050252 | ||
| 836 | A 3022050252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 836 | A 3022050252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| A 3022050752 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 3022050752 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.00 MM | ||
| 840 | N 003760022300 | RADIAL SEAL RING |
| 840 | N 003760022300 | RADIAL SEAL RING |
| 844 | N 003760025300 | RADIAL SEAL RING |
| 844 | N 003760025300 | RADIAL SEAL RING |
| 848 | N 000471017001 | LOCK RING |
| 848 | N 000471017001 | LOCK RING |
| 852 | N 000471020001 | LOCK RING |
| 852 | N 000471020001 | LOCK RING |
| 856 | A 3022060057 | EXPANSION PLUG |
| TIGHTENER PULLEY | ||
| 856 | A 3022060057 | EXPANSION PLUG |
| TIGHTENER PULLEY | ||
| 860 | A 3022060157 | EXPANSION PLUG |
| TIGHTENER PULLEY | ||
| 860 | A 3022060157 | EXPANSION PLUG |
| TIGHTENER PULLEY | ||
| 864 | A 3022060079 | GASKET |
| COVER TO TIGHTENER PULLEY | ||
| 864 | A 3022060079 | GASKET |
| COVER TO TIGHTENER PULLEY | ||
| 868 | A 3022060179 | GASKET |
| COVER TO TIGHTENER PULLEY | ||
| 868 | A 3022060179 | GASKET |
| COVER TO TIGHTENER PULLEY | ||
| 872 | N 071412010100 | GREASE NIPPLE |
| AT FILLER CAP | ||
| 872 | N 071412010100 | GREASE NIPPLE |
| AT FILLER CAP | ||
| 876 | N 000933006074 | SCREW |
| Repalced by: N 304017006034 | ||
| 876 | N 304017006034 | SCREW |
| COVER TO TIGHTENER PULLEY | ||
| 878 | N 000125006418 | WASHER |
| COVER TO TIGHTENER PULLEY | ||
| 880 | N 000127006100 | LOCK WASHER |
| COVER TO TIGHTENER PULLEY | ||
| 884 | N 007604010102 | SCREW PLUG |
| TIGHTENER PULLEY | ||
| 884 | N 007604010102 | SCREW PLUG |
| TIGHTENER PULLEY | ||
| 888 | N 007603010404 | SEAL RING |
| TIGHTENER PULLEY | ||
| 888 | N 007603010404 | SEAL RING |
| TIGHTENER PULLEY | ||
| 892 | N 007753012560 | NARROW V-BELT |
| Repalced by: A 0089972992 | ||
| 892 | A 0839972992 | V-BELT |
| BETWEEN VIBRATION DAMPER AND TIGHTENER PULLEY | ||
| 892 | N 007753012533 | NARROW V-BELT |
| Repalced by: A 0039975892 | ||
| 892 | A 0039975892 | V-BELT |
| BETWEEN VIBRATION DAMPER AND TIGHTENER PULLEY | ||
| 892 | A 0039976092 | V-BELT |
| SET = 2 PIECES | ||
| 896 | A 0079970792 | V-BELT |
| BETWEEN VIBRATION DAMPER AND TIGHTENER PULLEY | ||
| 12.5X1825 MM | ||
| 896 | A 0089973192 | V-BELT |
| BETWEEN VIBRATION DAMPER AND TIGHTENER PULLEY | ||
| 900 | A 0019972692 | V-BELT |
| Repalced by: A 0039975092 | ||
| 900 | A 0039975092 | V-BELT |
| BETWEEN TIGHTENER PULLEY AND FAN | ||
| 12.5X1000 MM | ||
| 900 | A 0019976092 | V-BELT |
| Repalced by: A 0049973692 | ||
| 900 | A 0049973692 | V-BELT |
| BETWEEN TIGHTENER PULLEY AND FAN | ||
| 12.5X975 MM | ||
| 900 | A 0059971392 | V-BELT |
| BETWEEN VIBRATION DAMPER AND TIGHTENER PULLEY | ||
| 904 | A 0059978992 | V-BELT |
| Repalced by: A 0069972192 | ||
| 904 | A 0069972192 | V-BELT |
| Repalced by: A 0069970592 | ||
| 904 | A 0069970592 | V-BELT |
| BETWEEN TIGHTENER PULLEY AND FAN | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
