Transporto priemonė: 0 302 OTOMARSAN/TUERKEI; VIN numerio dalis: 373051
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

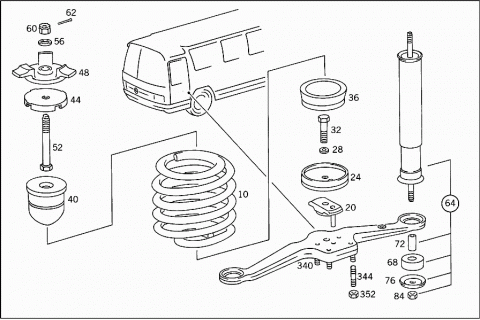

| 010 | A 3023210704 | FRONT SPRING |
| 010 | A 3023210904 | FRONT SPRING |
| 020 | A 3213200666 | SPRING CLAMP |
| BOTTOM | ||
| 024 | A 3213200543 | BRACKET |
| SPRING SEAT | ||
| N 912004020100 | LOCK WASHER | |
| BRACKET TO SPRING BRACKET | ||
| 028 | N 000125021008 | WASHER |
| BRACKET TO SPRING BRACKET | ||
| 032 | N 000960020026 | SCREW |
| BRACKET TO SPRING BRACKET | ||
| 036 | A 3023220044 | RUBBER BUFFER |
| HELPER SPRING STOP | ||
| 040 | A 3023210206 | HELPER SPRING |
| FRONT AXLE | ||
| 044 | A 3023220031 | PLATE |
| FRONT AXLE | ||
| 048 | A 3023210133 | SPRING CLAMP |
| TOP | ||
| 052 | A 3029900302 | SCREW |
| FRONT AXLE | ||
| 056 | A 3129901540 | WASHER |
| HELPER SPRING TO SUBSTRUCTURE | ||
| 060 | N 000935020001 | NUT |
| HELPER SPRING TO SUBSTRUCTURE | ||
| 062 | N 000094004066 | COTTER PIN |
| HELPER SPRING TO SUBSTRUCTURE | ||
| 064 | A 3023230100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 064 | A 3023230000 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 068 | A 3173260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 072 | A 3029910040 | SPACER TUBE |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 076 | A 3023230067 | RETAINER |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| N 912004014100 | LOCK WASHER | |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||
| 084 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 084 | N 910113014000 | NUT |
| SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE | ||

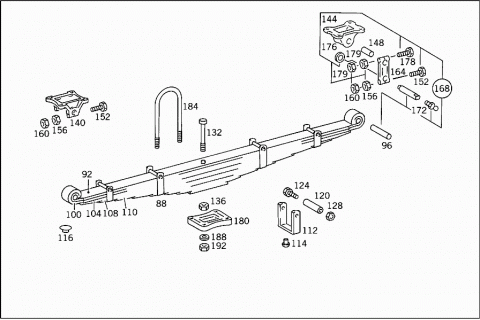

| 088 | A 3733200006 | REAR SPRING |
| 11-LEAF | ||
| 088 | A 3733200106 | REAR SPRING |
| 11-LEAF | ||
| 088 | A 3733200206 | REAR SPRING |
| 12-LEAF | ||
| A 3023200093 | SPRING LEAF | |
| NO.1 | ||
| 092 | A 3023200693 | SPRING LEAF |
| NO.1 | ||
| 096 | A 3223240050 | BUSHING |
| A 3023240012 | SPRING LEAF | |
| NO.2 | ||
| 100 | A 3023240212 | SPRING LEAF |
| NO.2 | ||
| 104 | A 3023240013 | SPRING LEAF |
| NO.3 | ||
| 104 | A 3733240113 | SPRING LEAF |
| NO.3 | ||
| 108 | A 3733240014 | SPRING LEAF |
| NO.4 | ||
| 108 | A 3733240013 | SPRING LEAF |
| NO.3 | ||
| 108 | A 3733240013 | SPRING LEAF |
| NO.4 | ||
| 108 | A 3733240114 | SPRING LEAF |
| NO.4 | ||
| 108 | A 3733240114 | SPRING LEAF |
| NO.5 | ||
| 110 | A 3023240015 | SPRING LEAF |
| NO.5 | ||
| 110 | A 3733240015 | SPRING LEAF |
| NO.5 | ||
| 112 | A 3733240033 | SPRING CLAMP |
| AT SPRING LEAF NO.8 | ||
| 112 | A 3733240133 | SPRING CLAMP |
| AT SPRING LEAF NO.9 | ||
| 112 | A 0003244233 | SPRING CLAMP |
| AT SPRING LEAF NO.10 | ||
| 112 | A 3733240233 | SPRING CLAMP |
| AT SPRING LEAF NO.10 | ||
| 112 | A 3733240034 | SPRING CLAMP |
| AT LEAF NO.4 | ||
| 112 | A 3733240134 | SPRING CLAMP |
| AT SPRING LEAF NO.6 | ||
| 112 | A 3733240234 | SPRING CLAMP |
| AT SPRING LEAF NO.7 | ||
| 114 | N 910005010003 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 10X28 MM | ||
| 116 | A 3023240138 | SLIDING BLOCK |
| 116 | A 3733240038 | SLIDING BLOCK |
| 120 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP TO SPRING LEAF | ||
| 124 | N 000601012007 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| 128 | N 000934012000 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 132 | N 004626016122 | SPRING BOLT |
| M16X135 | ||
| 132 | N 004626016123 | SPRING BOLT |
| M16X150 | ||
| 132 | N 004626016124 | SPRING BOLT |
| M16X165 | ||
| 136 | N 000934016006 | NUT |
| 140 | A 3023250101 | REAR SPRING BRACKET |
| FRONT | ||
| 144 | A 3223202575 | SPRING BRACKET |
| REAR | ||
| 148 | A 3223250150 | BUSHING |
| 152 | N 000960014235 | SCREW |
| REAR SPRING FRONT AND REAR BRACKETS TO SUBSTRUCTURE | ||
| 156 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 156 | N 308673014001 | NUT |
| REAR SPRING FRONT AND REAR BRACKETS TO SUBSTRUCTURE | ||
| 160 | N 000936014005 | NUT |
| REAR SPRING FRONT AND REAR BRACKETS TO SUBSTRUCTURE | ||
| 164 | A 3023250020 | SHACKLE |
| REAR SPRING | ||
| 164 | A 3023250520 | SHACKLE |
| REAR SPRING | ||
| 168 | A 3025860132 | REPAIR KIT |
| Repalced by: A 3023200065 | ||
| 168 | A 3023200065 | SHACKLE PIN |
| PARTS KIT | ||
| 172 | N 071412010300 | GREASE NIPPLE |
| 172 | N 071412010100 | GREASE NIPPLE |
| 176 | A 3023230176 | WASHER |
| 3.70 MM | ||
| A 3023230276 | WASHER | |
| 3.80 MM | ||
| 176 | A 3023230376 | WASHER |
| 4.00 MM | ||
| 176 | A 3023230476 | WASHER |
| 4.20 MM | ||
| A 3023230576 | WASHER | |
| 4.30 MM | ||
| 176 | A 3023230676 | WASHER |
| 4.50 MM | ||
| A 3023230776 | WASHER | |
| 4.60 MM | ||
| 176 | A 3023230876 | WASHER |
| 4.80 MM | ||
| 176 | A 3023230976 | WASHER |
| 5.00 MM | ||
| A 3023231076 | WASHER | |
| 5.10 MM | ||
| 178 | N 000960012410 | SCREW |
| SHACKLE AND REAR SPRING FRONT BRACKET | ||
| 179 | N 000936012005 | NUT |
| SHACKLE AND REAR SPRING FRONT BRACKET | ||
| 179 | N 000934012023 | NUT |
| SHACKLE AND REAR SPRING FRONT BRACKET | ||
| 180 | A 3023250131 | PLATE |
| 184 | A 3023510025 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 184 | A 3733510025 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 184 | A 3733510125 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 188 | A 3029970026 | WASHER |
| REAR AXLE TO TO REAR SPRINGS | ||
| 192 | N 000934022006 | NUT |
| REAR AXLE TO TO REAR SPRINGS | ||

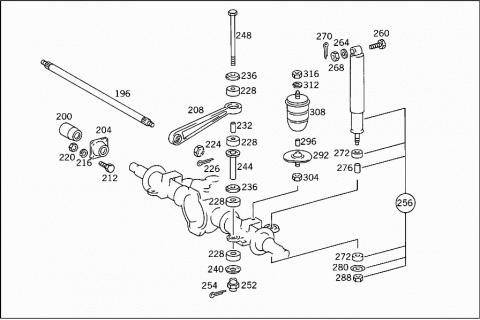

| 196 | A 3223260165 | TORSION BAR |
| 200 | A 3213260081 | RUBBER MOUNTING |
| 204 | A 3213260082 | HOUSING |
| 208 | A 3213260269 | LEVER |
| LEFT | ||
| 208 | A 3213260369 | LEVER |
| RIGHT | ||
| 212 | N 000961012052 | SCREW |
| TORSION BAR,RUBBER MOUNTING,AND HOUSING TO SUBSTRUCTURE | ||
| 216 | N 000127012100 | LOCK WASHER |
| TORSION BAR,RUBBER MOUNTING,AND HOUSING TO SUBSTRUCTURE | ||
| 220 | N 000934012022 | NUT |
| TORSION BAR,RUBBER MOUNTING,AND HOUSING TO SUBSTRUCTURE | ||
| 224 | A 3219900255 | NUT |
| LEVER TO TORSION BAR | ||
| 226 | N 000094006312 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 228 | A 3203230044 | RUBBER BUFFER |
| TORSION BAR AND LEVER TO REAR SPRING SADDLE | ||
| 232 | A 3219910340 | SPACER TUBE |
| TORSION BAR AND LEVER TO REAR SPRING SADDLE | ||
| 236 | A 3213230167 | RETAINER |
| TORSION BAR AND LEVER TO REAR SPRING SADDLE | ||
| 240 | A 3013230367 | RETAINER |
| Repalced by: A 3213230267 | ||
| 240 | A 3213230267 | RETAINER |
| TORSION BAR AND LEVER TO REAR SPRING SADDLE | ||
| 244 | A 3223200843 | BRACKET |
| RUBBER BUFFER | ||
| 248 | N 000960018110 | SCREW |
| 252 | A 3029900055 | NUT |
| 254 | N 000094004066 | COTTER PIN |
| 256 | A 3023260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 256 | A 3023260000 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 260 | A 3029900402 | SCREW |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 264 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 264 | N 000125017016 | WASHER |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 268 | N 000935016010 | NUT |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 270 | N 000094004050 | COTTER PIN |
| SHOCK ABSORBER TO SUBSTRUCTURE | ||
| 272 | A 3173260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO REAR AXLE | ||
| 276 | A 3029910140 | SPACER TUBE |
| SHOCK ABSORBER TO REAR AXLE | ||
| 280 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO REAR AXLE | ||
| N 912004016101 | LOCK WASHER | |
| SHOCK ABSORBER TO REAR AXLE | ||
| 288 | N 913004016004 | NUT |
| SHOCK ABSORBER TO REAR AXLE | ||
| 292 | A 3023200029 | STOP |
| REAR AXLE HELPER SPRING | ||
| 292 | A 3733200029 | STOP |
| REAR AXLE HELPER SPRING | ||
| 292 | A 3733200129 | STOP |
| REAR AXLE HELPER SPRING | ||
| 296 | N 001472008011 | GROOVED PIN |
| TO A 3023200029;3733200129 | ||
| 296 | N 000007008206 | CYLINDRICAL PIN |
| TO A 3733200029 | ||
| N 912004016101 | LOCK WASHER | |
| STOP TO REAR AXLE | ||
| 304 | N 913004016004 | NUT |
| STOP TO REAR AXLE | ||
| 308 | A 3023200377 | RUBBER SPRING |
| REAR AXLE HELPER SPRING | ||
| 312 | N 912004016101 | LOCK WASHER |
| REAR AXLE HELPER SPRING | ||
| 316 | N 000934016007 | NUT |
| REAR AXLE HELPER SPRING | ||
| 340 | A 3023200270 | REAR SUBFRAME |
| FRONT SPRING SHOCK ABSORBER | ||
| 344 | N 000939014023 | STUD BOLT |
| N 912004014102 | LOCK WASHER | |
| 352 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 352 | N 910113014000 | NUT |
| SPRING BRACKET TO FRONT AXLE BEAM | ||

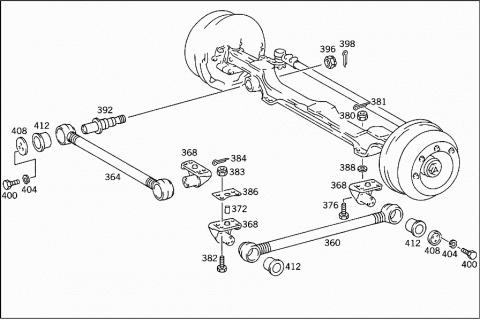

| 360 | A 3223301011 | THRUST ARM |
| LONGITUDINAL CONTROL ARM | ||
| 360 | A 3573303111 | THRUST ARM |
| LONGITUDINAL CONTROL ARM | ||
| 364 | A 3173300411 | THRUST ARM |
| TRANSVERSE CONTROL ARM | ||
| 364 | A 3573300411 | THRUST ARM |
| TRANSVERSE CONTROL ARM | ||
| 368 | A 3073300013 | BEARING BRACKET |
| 368 | A 3733300013 | BEARING BRACKET |
| 372 | A 3173330174 | PIN |
| 376 | N 000960018020 | SCREW |
| BEARING BODY TO FRONT AXLE | ||
| M 18X72 | ||
| 376 | N 000960018119 | SCREW |
| BEARING BODY TO FRONT AXLE | ||
| M 18X85 | ||
| 380 | N 000935018001 | NUT |
| BEARING BODY TO FRONT AXLE | ||
| 381 | N 000094004061 | COTTER PIN |
| BEARING BODY TO FRONT AXLE | ||
| 382 | N 000960018016 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X65 | ||
| 382 | N 000960018133 | SCREW |
| BEARING BODY TO SUBSTRUCTURE | ||
| M 18X75 | ||
| 383 | N 000935018001 | NUT |
| BEARING BODY TO SUBSTRUCTURE | ||
| 384 | N 000094004061 | COTTER PIN |
| BEARING BODY TO SUBSTRUCTURE | ||
| 386 | A 3223330184 | SHIM |
| LONGITUDINAL-CONTROL-ARM BEARING BODY TO SUBSTRUCTURE | ||
| 1.00 MM | ||
| 386 | A 3223330084 | SHIM |
| LONGITUDINAL-CONTROL-ARM BEARING BODY TO SUBSTRUCTURE | ||
| 2.50 MM | ||
| 388 | A 3179901340 | WASHER |
| BEARING BODY TO SUBSTRUCTURE | ||
| 1.00 MM | ||
| 388 | A 3179901440 | WASHER |
| BEARING BODY TO SUBSTRUCTURE | ||
| 2.00 MM | ||
| 388 | A 3179901540 | WASHER |
| BEARING BODY TO SUBSTRUCTURE | ||
| 3.00 MM | ||
| 392 | A 3073330030 | PIN |
| 396 | N 000937040001 | NUT |
| THRUST ARM TO FRONT AXLE | ||
| 398 | N 000094006320 | COTTER PIN |
| THRUST ARM TO FRONT AXLE | ||
| 400 | A 3079900014 | SCREW |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 400 | A 3079900014 | SCREW |
| THRUST ARM TO BEARING BODY AT SUBSTRUCTURE | ||
| 400 | A 3079900014 | SCREW |
| PIN TO THRUST ARM | ||
| 404 | N 000127012100 | LOCK WASHER |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 404 | N 000127012100 | LOCK WASHER |
| THRUST ARM TO BEARING BODY AT SUBSTRUCTURE | ||
| 404 | N 000127012100 | LOCK WASHER |
| PIN TO THRUST ARM | ||
| 408 | A 3173330162 | THRUST WASHER |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 408 | A 3173330162 | THRUST WASHER |
| THRUST ARM TO BEARING BODY AT SUBSTRUCTURE | ||
| 408 | A 3173330162 | THRUST WASHER |
| PIN TO THRUST ARM | ||
| 412 | A 3173331164 | RUBBER RING |
| THRUST ARM TO BEARING BODY,TO BODY AND TO FRONT AXLE | ||
| 412 | A 3173331164 | RUBBER RING |
| THRUST ARM TO BEARING BODY AT SUBSTRUCTURE | ||
| 412 | A 3173331164 | RUBBER RING |
| PIN TO THRUST ARM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
