Transporto priemonė: 0 302 OTOMARSAN/TUERKEI; VIN numerio dalis: 373083
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|

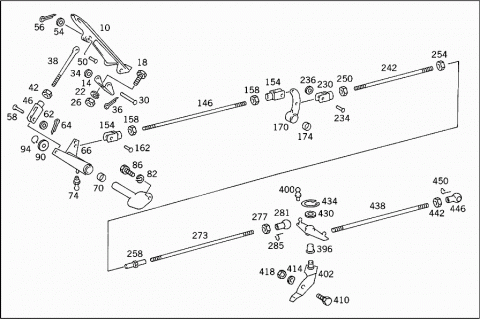

| 010 | A 3023010002 | PEDAL PLATE |
| ACCELERATOR PEDAL | ||
| 014 | A 3023010105 | ARTICULATION PIECE |
| ACCELERATOR PEDAL | ||
| 018 | N 000964008017 | SCREW |
| ARTICULATION ELEMENT TO FLOOR | ||
| 022 | N 912004008102 | LOCK WASHER |
| ARTICULATION ELEMENT TO FLOOR | ||
| 026 | N 000934008010 | NUT |
| ARTICULATION ELEMENT TO FLOOR | ||
| 030 | N 001444010200 | PIN |
| ACCELERATOR PEDAL TO JOINT | ||
| 034 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 034 | N 000125010532 | WASHER |
| ACCELERATOR PEDAL TO JOINT | ||
| 036 | N 000094003202 | COTTER PIN |
| ACCELERATOR PEDAL TO JOINT | ||
| 038 | A 3023002915 | ROD |
| CONTROL | ||
| 042 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 042 | N 304032006004 | NUT |
| ROD | ||
| 046 | A 3073010022 | YOKE |
| ROD | ||
| 050 | N 001444006228 | PIN |
| LINK TO PEDAL PLATE | ||
| 054 | N 000433006402 | WASHER |
| LINK TO PEDAL PLATE | ||
| 056 | N 000094001610 | COTTER PIN |
| LINK TO PEDAL PLATE | ||
| 058 | N 001444006201 | PIN |
| LINK TO LEVER | ||
| 062 | N 000433006402 | WASHER |
| LINK TO LEVER | ||
| 064 | N 000094001610 | COTTER PIN |
| LINK TO LEVER | ||
| 066 | A 3023000304 | LEVER |
| ACCELERATOR PEDAL | ||
| 070 | A 3213010050 | BUSHING |
| 074 | N 071412010100 | GREASE NIPPLE |
| ACCELERATOR PEDAL | ||
| A 3023000120 | SHAFT | |
| 082 | N 912004010102 | LOCK WASHER |
| SHAFT TO SUBSTRUCTURE | ||
| 086 | N 000933010286 | SCREW |
| SHAFT TO SUBSTRUCTURE | ||
| 090 | A 3219900040 | WASHER |
| LEVER TO PIVOT PIN | ||
| 094 | N 000471020001 | LOCK RING |
| LEVER TO PIVOT PIN | ||
| 146 | N 900331006461 | PULL ROD |
| CONTROL,FRONT | ||
| 154 | A 3073010022 | YOKE |
| CONTROL,FRONT | ||
| 158 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 158 | N 304032006004 | NUT |
| CONTROL,FRONT | ||
| 162 | N 918001006000 | PIN |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 170 | A 3223000225 | LEVER |
| ACCELERATOR PEDAL CONTROL | ||
| 174 | A 3213010050 | BUSHING |
| 230 | A 3073010022 | YOKE |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 234 | N 918001006000 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 236 | N 000125006421 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 242 | N 900331006150 | PULL ROD |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 250 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 250 | N 304032006004 | NUT |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 254 | N 000934006012 | NUT |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 258 | A 3219960034 | NUT |
| FROM INTERMEDIATE LEVER TO TURNBUCKLE NUT | ||
| 273 | N 900331006292 | PULL ROD |
| FROM TURNBUCKLE NUT TO CONTROL LEVER | ||
| 273 | N 900331006294 | PULL ROD |
| FROM TURNBUCKLE NUT TO CONTROL LEVER | ||
| 277 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 277 | N 304032006004 | NUT |
| 281 | N 071805010204 | BALL SOCKET |
| CONTROL,REAR | ||
| 285 | N 071805010403 | SECURING CLIP |
| CONTROL,REAR | ||
| A 3023000725 | LEVER | |
| LEFT | ||
| A 3023000525 | LEVER | |
| LEFT | ||
| 396 | A 3023010150 | BUSHING |
| 400 | A 3129910120 | BALL PIVOT |
| 402 | A 3023001036 | BEARING BRACKET |
| LEFT REAR LEVER | ||
| 410 | N 000961012122 | SCREW |
| Repalced by: N 308676012028 | ||
| 410 | N 308676012028 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 414 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 418 | N 000936012011 | NUT |
| BEARING BRACKET TO TRANSMISSION | ||
| 430 | A 3023010076 | WASHER |
| LEVER TO BEARING BRACKET | ||
| 434 | N 000471014001 | LOCK RING |
| LEVER TO BEARING BRACKET | ||
| 438 | N 900331006481 | PULL ROD |
| CONTROL,REAR | ||
| 438 | N 900331006660 | PULL ROD |
| CONTROL,REAR | ||
| 442 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 442 | N 304032006004 | NUT |
| CONTROL,REAR | ||
| 446 | N 071805010204 | BALL SOCKET |
| CONTROL,REAR | ||
| 450 | N 071805010403 | SECURING CLIP |
| CONTROL,REAR | ||

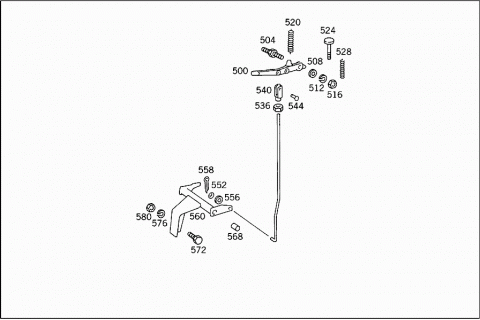

| 500 | A 3203020514 | LEVER |
| (SHUT-OFF LEVER) | ||
| 504 | A 3209900005 | STUD |
| SHUT-OFF LEVER | ||
| 508 | N 000125008417 | WASHER |
| Repalced by: N 000125008443 | ||
| 508 | N 000125008443 | WASHER |
| LEVER TO STEERING COLUMN BRACKET | ||
| 512 | N 912004008102 | LOCK WASHER |
| LEVER TO STEERING COLUMN BRACKET | ||
| 516 | N 000934008045 | NUT |
| LEVER TO STEERING COLUMN BRACKET | ||
| 520 | A 3209930301 | SPRING |
| 524 | A 3173000010 | KNURLED HEAD SCREW |
| 528 | A 1829930601 | SPRING |
| A 3023020104 | ROD | |
| MANUAL CONTROL | ||
| 536 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 536 | N 304032006004 | NUT |
| MANUAL CONTROL | ||
| 540 | A 3073010022 | YOKE |
| MANUAL CONTROL | ||
| 544 | N 918001006000 | PIN |
| PULL ROD TO SHUT-OFF LEVER,TOP | ||
| 552 | N 900056006401 | COUNTERSUNK WASHER |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 556 | N 000433006402 | WASHER |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 558 | N 000094002059 | COTTER PIN |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| 560 | A 3023001336 | BEARING BRACKET |
| 568 | A 3173010450 | BUSHING |
| 572 | N 000933008016 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 576 | N 912004008102 | LOCK WASHER |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 580 | N 000934008010 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
