Transporto priemonė: 1114; VIN numerio dalis: 688143

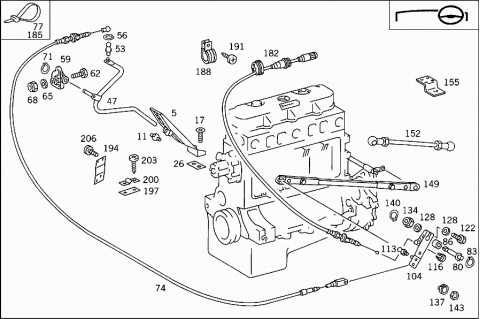

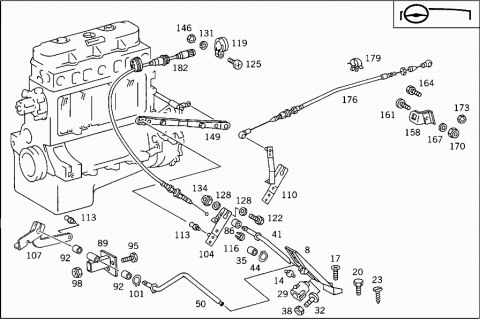

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6673000004 | ACCELERATOR PEDAL |
| 008 | A 6733000004 | ACCELERATOR PEDAL |
| Repalced by: A 3843007004 | ||
| 008 | A 3843007004 | ACCELERATOR PEDAL |
| 008 | A 3843007004 | ACCELERATOR PEDAL |
| 008 | A 3843007004 | ACCELERATOR PEDAL |
| 011 | A 1233010022 | JOINT |
| 014 | A 3093010022 | JOINT |
| 014 | A 3093010022 | JOINT |
| 014 | A 3093010022 | JOINT |
| 017 | N 000965006064 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 017 | N 000965006066 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 020 | N 000963006071 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 023 | N 007972006002 | SHEET METAL SCREW |
| PEDAL TO CAB FLOOR | ||
| 026 | A 6673010184 | SHIM |
| PEDAL TO CAB FLOOR | ||
| 029 | A 1263010141 | STOP |
| FULL THROTTLE | ||
| 029 | A 1263010141 | STOP |
| 032 | A 3012910241 | STOP |
| FULL THROTTLE | ||
| M8 | ||
| 035 | A 3863017050 | BUSHING |
| 038 | N 000934008008 | NUT |
| STOP | ||
| 041 | A 6673000225 | LEVER |
| Repalced by: A 3843007625 | ||
| 041 | A 3843007625 | LEVER |
| (PEDAL LEVER) | ||
| 044 | N 006799009001 | LOCK PLATE |
| 047 | A 6673000625 | LEVER |
| (PEDAL LEVER) | ||
| 047 | A 6673000925 | LEVER |
| (PEDAL LEVER) | ||
| 047 | A 6883007325 | LEVER |
| (PEDAL LEVER) | ||
| 050 | A 6883007125 | LEVER |
| (PEDAL LEVER) | ||
| 053 | N 071803008100 | BALL PIVOT |
| 053 | N 071803008201 | BALL PIVOT |
| 056 | N 900055010403 | LOCK RING |
| 059 | A 2013010118 | BEARING |
| PEDAL LEVER | ||
| 062 | N 000000001147 | SCREW |
| BEARING TO FIRE WALL | ||
| M 6X20 | ||
| 065 | N 000125006420 | WASHER |
| BEARING TO FIRE WALL | ||
| 068 | N 913023006002 | NUT |
| BEARING TO FIRE WALL | ||
| 071 | N 000471012002 | LOCK RING |
| 074 | A 6883007330 | WIRE CABLE |
| FROM PEDAL LEVER TO CONTROL LEVER | ||
| 077 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 077 | A 3459977390 | LOOM TIE |
| FROM PEDAL LEVER TO CONTROL LEVER | ||
| 080 | A 6673000425 | SHAFT |
| CONTROL LEVER | ||
| 083 | N 000471010001 | LOCK RING |
| 086 | A 3193010150 | BUSHING |
| (CONTROL LEVER) | ||
| 086 | A 3863017050 | BUSHING |
| (CONTROL LEVER) | ||
| 089 | A 6883007236 | BEARING BRACKET |
| (CONTROL LEVER) | ||
| 092 | A 3863017050 | BUSHING |
| (CONTROL LEVER) | ||
| 095 | N 000933008268 | SCREW |
| BEARING BRACKET TO CAB FLOOR | ||
| 098 | N 913004008001 | NUT |
| BEARING BRACKET TO CAB FLOOR | ||
| 101 | N 900055010403 | RETAINING RING |
| BEARING BRACKET TO PEDAL LEVER | ||
| 104 | A 6673000125 | LEVER |
| (CONTROL LEVER) | ||
| 104 | A 6673000125 | LEVER |
| 104 | A 6673000125 | LEVER |
| 104 | A 6883007425 | LEVER |
| (CONTROL LEVER) | ||
| 107 | A 6883007225 | LEVER |
| 110 | A 6883007025 | LEVER |
| 113 | N 071803008200 | BALL PIVOT |
| B8X4 | ||
| 113 | N 071803008200 | BALL STUD |
| 113 | N 071803010205 | BALL PIVOT |
| B10X4,5 | ||
| 113 | N 071803010200 | BALL PIVOT |
| 116 | A 3093020050 | BUSHING |
| CONTROL LEVER | ||
| 116 | A 3093020050 | BUSHING |
| 119 | N 916016006201 | CLAMP |
| IDLING ADJUSTER | ||
| 122 | N 910105006005 | SCREW |
| CONTROL LEVER TO PEDAL LEVER | ||
| M 6X30 | ||
| 122 | N 000000001422 | HEXALOBULAR BOLT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 122 | N 000000001422 | HEXALOBULAR BOLT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 122 | N 000000001422 | HEXALOBULAR BOLT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 122 | N 000000001422 | HEXALOBULAR BOLT |
| CONTROL LEVER TO PEDAL LEVER | ||
| M6X30 | ||
| 125 | N 007985006510 | SCREW |
| IDLING ADJUSTER | ||
| 128 | N 000125006420 | WASHER |
| CONTROL LEVER TO PEDAL LEVER | ||
| 128 | N 000125006420 | WASHER |
| CONTROL LEVER TO PEDAL LEVER | ||
| 128 | N 000125006420 | WASHER |
| CONTROL LEVER TO PEDAL LEVER | ||
| 128 | N 000125006420 | WASHER |
| CONTROL LEVER TO PEDAL LEVER | ||
| 131 | N 913023006002 | NUT |
| IDLING ADJUSTER | ||
| 134 | N 913023006002 | NUT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 134 | N 913023006002 | NUT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 134 | N 913023006002 | NUT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 137 | A 6889977681 | GROMMET |
| 140 | N 900055010403 | RETAINING RING |
| CONTROL LEVER TO PEDAL LEVER | ||
| 143 | N 000934006006 | NUT |
| CONTROL LEVER TO PEDAL LEVER | ||
| 146 | N 000934006006 | NUT |
| IDLING ADJUSTER | ||
| 149 | A 6883007015 | ROD |
| 149 | A 6883007015 | ROD |
| 149 | A 6883007015 | ROD |
| 149 | A 6883007115 | ROD |
| 152 | A 6883007215 | ROD |
| CONTROL LEVER TO INJECTION PUMP LEVER | ||
| 155 | A 6883007040 | BRACKET |
| 158 | A 6673000040 | BRACKET |
| 158 | A 6673000040 | BRACKET |
| 161 | N 000000001147 | SCREW |
| BRACKET TO COWL | ||
| M 6X20 | ||
| 164 | N 000000001147 | SCREW |
| BRACKET TO COWL | ||
| M 6X20 | ||
| 164 | N 000000001147 | HEXALOBULAR BOLT |
| BRACKET TO COWL | ||
| M 6X20 | ||
| 167 | N 000125006420 | WASHER |
| BRACKET TO COWL | ||
| 170 | N 913023006002 | NUT |
| BRACKET TO COWL | ||
| 173 | N 000934006006 | NUT |
| BRACKET TO COWL | ||
| 173 | N 000934006006 | NUT |
| BRACKET TO COWL | ||
| 176 | A 6883007130 | WIRE CABLE |
| 179 | A 0009956044 | CLAMP |
| BOWDEN CABLE TO CAB | ||
| 179 | A 0009956044 | CLAMP |
| BOWDEN CABLE TO CAB | ||
| 182 | A 3843007132 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 182 | A 3843007132 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 182 | A 6883007032 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 182 | A 6883007332 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 182 | A 6883007532 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 182 | A 6883007732 | WIRE CABLE |
| 182 | A 6883007732 | WIRE CABLE |
| Repalced by: A 6883000032 | ||
| 182 | A 6883007932 | WIRE CABLE |
| Repalced by: A 6883000032 | ||
| 182 | A 6883008232 | WIRE CABLE |
| Repalced by: A 6883000032 | ||
| 182 | A 6883000032 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 182 | A 6883000032 | WIRE CABLE |
| IDLING ADJUSTER | ||
| 185 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 185 | A 3459977390 | LOOM TIE |
| 185 | A 3889977590 | LOOM TIE |
| A 0009881878 | CLIP | |
| WIRE CABLE TO HOOD BRACKET | ||
| 188 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 188 | N 916016008200 | CLAMP |
| WIRE CABLE TO HOOD BRACKET | ||
| 191 | N 007981004226 | SHEET METAL SCREW |
| WIRE CABLE TO HOOD BRACKET | ||
| 194 | A 6883007140 | BRACKET |
| 197 | A 6673010084 | SHIM |
| 200 | N 072573001019 | CLAMP |
| 203 | N 007981004226 | SHEET METAL SCREW |
| 206 | N 007985005183 | SCREW |
