Transporto priemonė: 1114; VIN numerio dalis: 688143

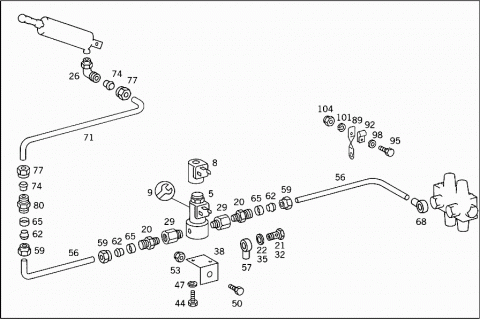

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3459977336 | VALVE |
| Repalced by: A 3889978236 | ||
| 005 | A 3889978236 | VALVE |
| "PARKER" | ||
| 005 | A 6889977336 | VALVE |
| "WABCO" | ||
| 008 | A 3647630056 | MAGNET |
| TO 388 997 82 36 | ||
| 008 | A 0005460388 | SOLENOID |
| TO 688 997 73 36 | ||
| 009 | A 0004206855 | REPAIR KIT |
| TO 688 997 73 36 | ||
| 009 | A 0059972336 | REPAIR KIT |
| TO 388 997 82 36 | ||
| 011 | A 6884207171 | VALVE |
| (SOLENOID VALVE) | ||
| 014 | A 0004202071 | REPAIR KIT |
| (SOLENOID VALVE) | ||
| TO 688 420 71 71 | ||
| 017 | A 3504307070 | MUFFLER |
| 3/2-WAY VALVE;CONNECTION: | ||
| "3" | ||
| 018 | A 3459977390 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 195 MM | ||
| 019 | A 6659977272 | FITTING |
| AT MUFFLER | ||
| 020 | A 3454297736 | CONNECTOR |
| 020 | A 3454297736 | CONNECTOR |
| 020 | A 3454297736 | CONNECTOR |
| 021 | N 915036008202 | HOLLOW SCREW |
| 021 | N 915036008202 | HOLLOW SCREW |
| 022 | N 007603012110 | SEAL RING |
| 022 | N 007603012110 | SEAL RING |
| 023 | A 3444297136 | CONNECTOR |
| SOLENOID VALVE CONNECTION | ||
| 023 | A 3454298136 | CONNECTOR |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 026 | N 003952006102 | FITTING |
| SINGLE CIRCUIT PISTON CYLINDER, CONNECTION: | ||
| "1" | ||
| 026 | N 003952006102 | FITTING |
| SINGLE CIRCUIT PISTON CYLINDER, CONNECTION: | ||
| "1" | ||
| 027 | A 0004290827 | THRUST RING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 028 | A 0019875046 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 029 | A 3509977472 | FITTING |
| 029 | A 3509977472 | FITTING |
| 032 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 032 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 035 | N 007603012405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 035 | N 007603012405 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 038 | A 6884347040 | BRACKET |
| 041 | A 3454288440 | BRACKET |
| SOLENOID VALVE | ||
| 044 | N 910105005010 | SCREW |
| SOLENOID VALVE TO BRACKET | ||
| 047 | N 912004005100 | LOCK WASHER |
| SOLENOID VALVE TO BRACKET | ||
| 050 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| M10X30 | ||
| 053 | N 913023010002 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 056 | A 0089976082 | HOSE |
| 4X6 MM | ||
| 056 | A 0089976082 | HOSE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO 3/2-WAY VALVE | ||
| 4X6 MM | ||
| 056 | A 0089976082 | HOSE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO 3/2-WAY VALVE | ||
| 4X6 MM | ||
| 056 | A 0089976082 | HOSE |
| FROM 3/2-WAY VALVE TO CONNECTOR | ||
| 4X6 MM | ||
| 056 | A 0089976082 | HOSE |
| FROM 3/2-WAY VALVE TO CONNECTOR | ||
| 4X6 MM | ||
| 056 | A 0089976082 | HOSE |
| FROM 3/2-WAY VALVE TO CYLINDER | ||
| 4X6 MM | ||
| 056 | A 0089976082 | HOSE |
| FROM 3/2-WAY VALVE TO CYLINDER | ||
| 4X6 MM | ||
| 056 | A 0089976082 | HOSE |
| FROM SOLENOID VALVE TO MUFFLER | ||
| 4X6 MM | ||
| 057 | N 915052004015 | BANJO UNION |
| 057 | N 915052004015 | BANJO UNION |
| 057 | N 915052004015 | BANJO UNION |
| 057 | N 915052004015 | BANJO UNION |
| 059 | N 915017006100 | UNION NUT |
| 059 | N 915017006100 | UNION NUT |
| 059 | N 915017006100 | UNION NUT |
| 059 | N 915017006100 | UNION NUT |
| 062 | N 003861006007 | GLAND |
| 062 | N 003861006007 | GLAND |
| 062 | N 003861006007 | GLAND |
| 062 | N 003861006007 | GLAND |
| 065 | N 915062004000 | SLEEVE |
| 065 | N 915062004000 | SLEEVE |
| 065 | N 915062004000 | SLEEVE |
| 065 | N 915062004000 | SLEEVE |
| 068 | N 915052004002 | BANJO UNION |
| 069 | N 040621006235 | INSULATING HOSE |
| COLOR CODE BLUE | ||
| 071 | A 6884208928 | LINE |
| FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE | ||
| 071 | A 6884208928 | LINE |
| FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE | ||
| 074 | N 003861006007 | GLAND |
| 074 | N 003861006007 | GLAND |
| 077 | N 915017006100 | UNION NUT |
| 077 | N 915017006100 | UNION NUT |
| 080 | N 003902006001 | CONNECTION FITTING |
| 080 | N 003902006001 | CONNECTION FITTING |
| 080 | N 003952006002 | FITTING |
| 080 | N 003952006002 | FITTING |
| 083 | A 6884357382 | HOSE |
| EXHAUST BRAKE CYLINDER | ||
| 086 | A 3509978790 | CLAMP |
| COMPRESSED AIR LINE TO BRAKE CYLINDER | ||
| 086 | N 916017011001 | CLAMP |
| COMPRESSED AIR LINE TO BRAKE CYLINDER | ||
| 089 | A 6884297040 | BRACKET |
| LINE TO FITTING AND TO ELBOW FITTING | ||
| 089 | A 6884297040 | BRACKET |
| LINE TO FITTING AND TO ELBOW FITTING | ||
| 092 | N 916016006201 | CLAMP |
| LINE TO BRACKET | ||
| 092 | N 916016006201 | CLAMP |
| LINE TO BRACKET | ||
| 092 | A 6889957101 | CLAMP |
| LINE TO BRACKET | ||
| 092 | A 6889957101 | CLAMP |
| LINE TO BRACKET | ||
| 092 | N 916017016000 | CLAMP |
| LINE TO BRACKET | ||
| 095 | N 000933006030 | SCREW |
| LINE TO BRACKET | ||
| 095 | N 000933006030 | SCREW |
| LINE TO BRACKET | ||
| 098 | N 000125006117 | WASHER |
| LINE TO BRACKET | ||
| 098 | N 000125006117 | WASHER |
| LINE TO BRACKET | ||
| 101 | N 912004006100 | LOCK WASHER |
| LINE TO BRACKET | ||
| 101 | N 912004006100 | LOCK WASHER |
| LINE TO BRACKET | ||
| 104 | N 000934006014 | NUT |
| LINE TO BRACKET | ||
| 104 | N 000934006014 | NUT |
| LINE TO BRACKET | ||
| 104 | N 913002006003 | NUT |
| LINE TO BRACKET | ||
