Transporto priemonė: 1114; VIN numerio dalis: 688143

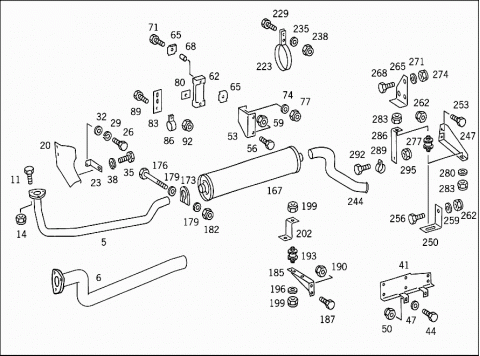

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6884907219 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6884907119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6884907119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6884907019 | EXHAUST PIPE |
| FRONT | ||
| A 6884907119 | EXHAUST PIPE | |
| A 6884907119 | EXHAUST PIPE | |
| A 6884907119 | EXHAUST PIPE | |
| 006 | A 6884907719 | EXHAUST PIPE |
| FRONT | ||
| 006 | A 6884907719 | EXHAUST PIPE |
| 006 | A 6884907719 | EXHAUST PIPE |
| 006 | A 6884907719 | EXHAUST PIPE |
| 008 | H LM6854902819 | EXHAUST PIPE |
| FRONT | ||
| A 6884900119 | EXHAUST PIPE | |
| FRONT | ||
| NO. 1 | ||
| A 6884900019 | EXHAUST PIPE | |
| FRONT | ||
| NO. 2 | ||
| 011 | N 000933010269 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M10X35 | ||
| 011 | N 000933010269 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M10X35 | ||
| 011 | N 000933010255 | SCREW |
| Repalced by: N 910105010011 | ||
| 011 | N 910105010011 | HEXAGON HEAD BOLT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M10X40 | ||
| 011 | N 000931010425 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 914440008000 | NUT |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||
| 020 | A 6884907030 | PROTECTIVE PLATE |
| 023 | A 6884927041 | BRACKET |
| BRACKET TO HEAT SHIELD | ||
| 026 | N 000933006220 | SCREW |
| PROTECTIVE PLATE TO ENGINE | ||
| 029 | N 000127006203 | LOCK WASHER |
| PROTECTIVE PLATE TO ENGINE | ||
| 032 | N 000125006420 | WASHER |
| PROTECTIVE PLATE TO ENGINE | ||
| 035 | N 000933006220 | SCREW |
| PROTECTIVE PLATE TO ENGINE | ||
| 038 | N 000127006203 | LOCK WASHER |
| PROTECTIVE PLATE TO ENGINE | ||
| 041 | A 6884207044 | PROTECTIVE PLATE |
| 041 | A 6884207044 | PROTECTIVE PLATE |
| 041 | A 6884207044 | PROTECTIVE PLATE |
| 044 | N 000961010038 | SCREW |
| SIDE MEMBER | ||
| 044 | N 000961010038 | SCREW |
| SIDE MEMBER | ||
| 044 | N 000961010038 | SCREW |
| SIDE MEMBER | ||
| 047 | N 000125010157 | WASHER |
| SIDE MEMBER | ||
| 047 | N 000125010157 | WASHER |
| SIDE MEMBER | ||
| 047 | N 000125010157 | WASHER |
| SIDE MEMBER | ||
| 050 | N 913004010010 | NUT |
| SIDE MEMBER | ||
| 050 | N 913004010010 | NUT |
| SIDE MEMBER | ||
| 050 | N 913004010010 | NUT |
| SIDE MEMBER | ||
| 053 | A 3084920016 | SUPPORT |
| Repalced by: A 6884927216 | ||
| 053 | A 6884927216 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 053 | A 6884927216 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 053 | A 6884927216 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 053 | A 6884927216 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 053 | A 6884927216 | SUPPORT |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 056 | N 000933010174 | SCREW |
| Repalced by: N 910105010001 | ||
| 056 | N 910105010001 | HEXAGON HEAD BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M10X30 | ||
| 056 | N 910105010001 | HEXAGON HEAD BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M10X30 | ||
| 056 | N 910105010001 | HEXAGON HEAD BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M10X30 | ||
| 056 | N 910105010001 | HEXAGON HEAD BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M10X30 | ||
| 056 | N 910105010001 | HEXAGON HEAD BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M10X30 | ||
| 059 | N 913004010004 | NUT |
| Repalced by: N 913023010002 | ||
| 059 | N 913023010002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 059 | N 913023010002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 059 | N 913023010002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 059 | N 913023010002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 059 | N 913023010002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 062 | A 3084927082 | DAMPING PAD |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 062 | A 3084927082 | DAMPING PAD |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 062 | A 3084927082 | DAMPING PAD |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 062 | A 3084927082 | DAMPING PAD |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 062 | A 3084927082 | DAMPING PAD |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 065 | A 1204920118 | BASE PLATE |
| RUBBER MOUNTING TO BRACKET | ||
| 065 | A 1204920118 | BASE PLATE |
| RUBBER MOUNTING TO BRACKET | ||
| 065 | A 1204920118 | BASE PLATE |
| RUBBER MOUNTING TO BRACKET | ||
| 065 | A 1204920118 | BASE PLATE |
| RUBBER MOUNTING TO BRACKET | ||
| 065 | A 1204920118 | BASE PLATE |
| RUBBER MOUNTING TO BRACKET | ||
| 068 | A 1209911140 | SPACER TUBE |
| RUBBER MOUNTING TO SUPPORT | ||
| 068 | A 1209911140 | SPACER TUBE |
| RUBBER MOUNTING TO SUPPORT | ||
| 068 | A 1209911140 | SPACER TUBE |
| RUBBER MOUNTING TO SUPPORT | ||
| 068 | A 1209911140 | SPACER TUBE |
| RUBBER MOUNTING TO SUPPORT | ||
| 068 | A 1209911140 | SPACER TUBE |
| RUBBER MOUNTING TO SUPPORT | ||
| 071 | N 000931008058 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 8X40 | ||
| 071 | N 000931008058 | SCREW |
| TOP | ||
| M 8X40 | ||
| 071 | N 000931008058 | SCREW |
| TOP | ||
| M 8X40 | ||
| 071 | N 000931008058 | SCREW |
| TOP | ||
| M 8X40 | ||
| 071 | N 000931008058 | SCREW |
| TOP | ||
| M 8X40 | ||
| 071 | N 000931008058 | SCREW |
| TOP | ||
| M 8X40 | ||
| 071 | N 000931008181 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| M 8X45 | ||
| 071 | N 000931008181 | SCREW |
| BOTTOM | ||
| M 8X45 | ||
| 071 | N 000931008181 | SCREW |
| BOTTOM | ||
| M 8X45 | ||
| 071 | N 000931008181 | SCREW |
| BOTTOM | ||
| M 8X45 | ||
| 071 | N 000931008181 | SCREW |
| BOTTOM | ||
| M 8X45 | ||
| 071 | N 000931008181 | SCREW |
| BOTTOM | ||
| M 8X45 | ||
| 074 | N 000125008417 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 074 | N 000125008417 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 074 | N 000125008417 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 074 | N 000125008417 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 074 | N 000125008417 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 077 | N 913004008001 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 077 | N 913004008001 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 077 | N 913004008001 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 077 | N 913004008001 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 077 | N 913004008001 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 080 | A 1204920083 | INSULATION |
| RUBBER MOUNTING TO SUPPORT | ||
| 080 | A 1204920083 | INSULATION |
| RUBBER MOUNTING TO SUPPORT | ||
| 080 | A 1204920083 | INSULATION |
| RUBBER MOUNTING TO SUPPORT | ||
| 080 | A 1204920083 | INSULATION |
| RUBBER MOUNTING TO SUPPORT | ||
| 080 | A 1204920083 | INSULATION |
| RUBBER MOUNTING TO SUPPORT | ||
| 083 | A 6884917516 | SUPPORT |
| CLAMP TO RUBBER BUFFER | ||
| 083 | A 6884917516 | SUPPORT |
| CLAMP TO RUBBER BUFFER | ||
| 083 | A 6884917516 | SUPPORT |
| CLAMP TO RUBBER BUFFER | ||
| 083 | A 6884917516 | SUPPORT |
| CLAMP TO RUBBER BUFFER | ||
| 083 | A 6884917516 | SUPPORT |
| CLAMP TO RUBBER BUFFER | ||
| 086 | N 071555075503 | CLAMP |
| EXHAUST PIPE TO SUPPORT | ||
| 086 | N 071555075503 | CLAMP |
| EXHAUST PIPE TO SUPPORT | ||
| 086 | N 071555075503 | CLAMP |
| EXHAUST PIPE TO SUPPORT | ||
| 086 | N 071555075503 | CLAMP |
| EXHAUST PIPE TO SUPPORT | ||
| 086 | N 071555075503 | CLAMP |
| EXHAUST PIPE TO SUPPORT | ||
| 089 | N 000933010260 | SCREW |
| EXHAUST PIPE TO SUPPORT | ||
| M 8X35 | ||
| 089 | N 000933010260 | SCREW |
| EXHAUST PIPE TO SUPPORT | ||
| M 8X35 | ||
| 089 | N 000933010260 | SCREW |
| EXHAUST PIPE TO SUPPORT | ||
| M 8X35 | ||
| 089 | N 000933010260 | SCREW |
| EXHAUST PIPE TO SUPPORT | ||
| M 8X35 | ||
| 089 | N 000933010260 | SCREW |
| EXHAUST PIPE TO SUPPORT | ||
| M 8X35 | ||
| 092 | N 913004010000 | NUT |
| EXHAUST PIPE TO SUPPORT | ||
| 092 | N 913004010000 | NUT |
| EXHAUST PIPE TO SUPPORT | ||
| 092 | N 913004010000 | NUT |
| EXHAUST PIPE TO SUPPORT | ||
| 092 | N 913004010000 | NUT |
| EXHAUST PIPE TO SUPPORT | ||
| 092 | N 913004010000 | NUT |
| EXHAUST PIPE TO SUPPORT | ||

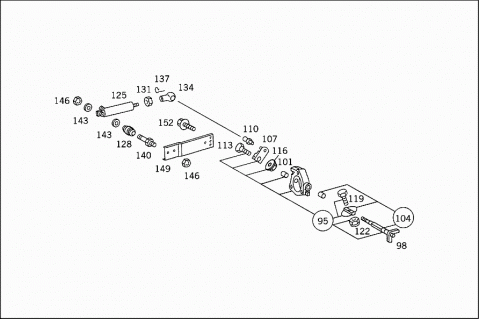

| 095 | A 3661405153 | THROTTLE HOUSING |
| PARTS KIT | ||
| 095 | A 3741407153 | THROTTLE HOUSING |
| 098 | A 3661400328 | SHAFT |
| THROTTLE VALVE SHAFT | ||
| 098 | A 3741407028 | SHAFT |
| THROTTLE VALVE SHAFT | ||
| 101 | A 3521441650 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 101 | A 3521441650 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 101 | A 3761447350 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 101 | A 3761447350 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 104 | A 3741407063 | VALVE |
| 104 | A 3741407063 | VALVE |
| 107 | A 3661400232 | LEVER |
| EXHAUST-BRAKE THROTTLE VALVE | ||
| 107 | A 3661400232 | LEVER |
| EXHAUST-BRAKE THROTTLE VALVE | ||
| 110 | N 071803013211 | BALL PIVOT |
| 110 | N 071803013211 | BALL PIVOT |
| 113 | N 914126006025 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| M6X28 | ||
| 113 | N 914126006025 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| M6X28 | ||
| 116 | N 913017006000 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| 116 | N 913017006000 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| 119 | N 304017008033 | SCREW |
| THROTTLE VALVE TO SHAFT | ||
| M8X30 | ||
| 119 | N 304017008033 | SCREW |
| THROTTLE VALVE TO SHAFT | ||
| M8X30 | ||
| 122 | N 910113008001 | NUT |
| THROTTLE VALVE TO SHAFT | ||
| 122 | N 910113008001 | NUT |
| THROTTLE VALVE TO SHAFT | ||
| 125 | A 0004306026 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| KNORR | ||
| 125 | A 0004306026 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| KNORR | ||
| 125 | A 0004305926 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| TECHNOMATIK | ||
| 125 | A 0004305926 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| TECHNOMATIK | ||
| 128 | A 4421440050 | BUSHING |
| 128 | A 4421440050 | BUSHING |
| 131 | N 000439008201 | NUT |
| 131 | N 000439008201 | NUT |
| 134 | A 4039910222 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 134 | A 4039910222 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 134 | A 3769917022 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 134 | A 3769917022 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 137 | N 071805013403 | CIRCLIP |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 137 | N 071805013403 | CIRCLIP |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 140 | A 4421440274 | PIN |
| SHIFTING CYLINDER TO BRACKET | ||
| 140 | A 4421440274 | PIN |
| SHIFTING CYLINDER TO BRACKET | ||
| 143 | A 0039902940 | WASHER |
| SHIFTING CYLINDER TO BRACKET | ||
| 143 | A 0039902940 | WASHER |
| SHIFTING CYLINDER TO BRACKET | ||
| 146 | N 000934008000 | NUT |
| SHIFTING CYLINDER TO BRACKET | ||
| 146 | N 000934008000 | NUT |
| SHIFTING CYLINDER TO BRACKET | ||
| 149 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 149 | A 3661440440 | BRACKET |
| SHIFTING CYLINDER | ||
| 149 | A 6884900040 | BRACKET |
| SHIFTING CYLINDER | ||
| 152 | N 914126008037 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||
| 155 | Q T2309440300 | PART NAME MISSING |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| PARAFUSO | ||
| N 304017008040 | SCREW | |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M 8X40 | ||
| 158 | Q T2309319013 | PART NAME MISSING |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| ARRUELLA | ||
| N 914440008000 | NUT | |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 161 | Q T2309247108 | PART NAME MISSING |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| PORCA | ||
| N 913004010000 | NUT | |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| N 910105010001 | HEXAGON HEAD BOLT | |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M10X30 | ||
| N 000939010127 | STUD BOLT | |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 164 | H LM6854900022 | EXHAUST PIPE |
| CENTRAL PART | ||
| 167 | A 6884900001 | EXHAUST MUFFLER |
| 167 | A 6884900101 | EXHAUST MUFFLER |
| 167 | A 6884900201 | EXHAUST MUFFLER |
| 167 | A 6734900001 | EXHAUST MUFFLER |
| 167 | A 6884907501 | EXHAUST MUFFLER |
| 167 | A 6884907701 | EXHAUST MUFFLER |
| 167 | A 6884907501 | EXHAUST MUFFLER |
| 167 | A 6884907501 | EXHAUST MUFFLER |
| 167 | A 6884907501 | EXHAUST MUFFLER |
| 167 | A 6884907601 | EXHAUST MUFFLER |
| 167 | A 6174900301 | EXHAUST MUFFLER |
| Repalced by: A 6884907201 | ||
| 167 | A 6884900301 | EXHAUST MUFFLER |
| Repalced by: A 6884907201 | ||
| 167 | A 6884900401 | EXHAUST MUFFLER |
| Repalced by: A 6884907201 | ||
| 167 | A 6884907101 | EXHAUST MUFFLER |
| Repalced by: A 6884907201 | ||
| 167 | A 6884907201 | EXHAUST MUFFLER |
| 167 | A 6884907201 | EXHAUST MUFFLER |
| 167 | A 6884907201 | EXHAUST MUFFLER |
| 167 | A 6884907201 | EXHAUST MUFFLER |
| 167 | A 6884907201 | EXHAUST MUFFLER |
| 167 | A 6884907301 | EXHAUST MUFFLER |
| 167 | A 6884907301 | EXHAUST MUFFLER |
| 167 | A 6884907301 | EXHAUST MUFFLER |
| 167 | A 6884907301 | EXHAUST MUFFLER |
| 167 | A 6884907301 | EXHAUST MUFFLER |
| 170 | H LM6854901001 | EXHAUST MUFFLER |
| 173 | A 6684920040 | CLAMP |
| Repalced by: A 6734920140 | ||
| 173 | A 6734920140 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 75,5 MM | ||
| 173 | A 6734920140 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 75,5 MM | ||
| 173 | A 6734920140 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 75,5 MM | ||
| 173 | A 6734920140 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 75,5 MM | ||
| 173 | A 6734920140 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 75,5 MM | ||
| 176 | N 000931008390 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M8X110 | ||
| 176 | N 000931008390 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M8X110 | ||
| 176 | N 910105008046 | HEXAGON HEAD BOLT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M 8X110 | ||
| 176 | N 000931008382 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M8X100 | ||
| 176 | N 000931008382 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M8X100 | ||
| 176 | N 000931008382 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M8X100 | ||
| 176 | N 000931008382 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M8X100 | ||
| 176 | N 000931008382 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M8X100 | ||
| 176 | N 000931008382 | SCREW |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| M8X100 | ||
| 179 | A 6089900640 | WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 179 | A 6089900640 | WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 179 | A 6089900640 | WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 179 | A 6089900640 | WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 179 | A 6089900640 | WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 179 | A 6089900640 | WASHER |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 182 | N 913004008007 | NUT |
| Repalced by: N 913023008003 | ||
| 182 | N 913023008003 | NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 182 | N 913023008003 | NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 182 | N 913023008003 | NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 182 | N 913023008003 | NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 182 | N 913023008003 | NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 185 | A 6884917341 | BRACKET |
| EXHAUST MUFFLER | ||
| 178 MM | ||
| 185 | A 6884917441 | BRACKET |
| EXHAUST MUFFLER | ||
| 305 MM | ||
| 185 | A 6884917441 | BRACKET |
| EXHAUST MUFFLER | ||
| 305 MM | ||
| 185 | A 6884917441 | BRACKET |
| EXHAUST MUFFLER | ||
| 305 MM | ||
| 185 | A 6884917441 | BRACKET |
| EXHAUST MUFFLER | ||
| 305 MM | ||
| 187 | N 000933010200 | SCREW |
| Repalced by: N 910105010001 | ||
| 187 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M10X30 | ||
| 190 | N 913004010004 | NUT |
| Repalced by: N 913023010002 | ||
| 190 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 193 | A 0019873140 | RUBBER BUFFER |
| 193 | A 0019873140 | RUBBER BUFFER |
| 193 | A 0019873140 | RUBBER BUFFER |
| 193 | A 0019873140 | RUBBER BUFFER |
| 193 | A 0019873140 | RUBBER BUFFER |
| 196 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 199 | N 000934010005 | NUT |
| Repalced by: N 910112010001 | ||
| 199 | N 910112010001 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 202 | A 6884917316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 202 | A 6884917316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 202 | A 6884917316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 202 | A 6884917316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 202 | A 6884917316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 202 | A 6884917616 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 95 MM | ||
| 202 | A 6884917616 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 95 MM | ||
| 202 | A 6884917616 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 95 MM | ||
| 202 | A 6884917616 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 95 MM | ||
| 202 | A 6884917616 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 95 MM | ||
| 202 | A 6884917716 | SUPPORT |
| EXHAUST MUFFLER | ||
| 140 MM | ||
| 202 | A 6884917716 | SUPPORT |
| EXHAUST MUFFLER | ||
| 140 MM | ||
| 202 | A 6884917716 | SUPPORT |
| EXHAUST MUFFLER | ||
| 140 MM | ||
| 202 | A 6884917716 | SUPPORT |
| EXHAUST MUFFLER | ||
| 140 MM | ||
| 202 | A 6884917716 | SUPPORT |
| EXHAUST MUFFLER | ||
| 140 MM | ||
| 205 | H LM6854921216 | SUPPORT |
| EXHAUST MUFFLER | ||
| 208 | H LM6854921116 | SUPPORT |
| EXHAUST MUFFLER | ||
| 211 | H LM6854921316 | SUPPORT |
| EXHAUST MUFFLER | ||
| 214 | Q T2311007125 | PART NAME MISSING |
| SUPPORT TO FRAME | ||
| PARAFUSO | ||
| 217 | N 000125010517 | WASHER |
| SUPPORT TO FRAME | ||
| 220 | Q T2311020006 | PART NAME MISSING |
| SUPPORT TO FRAME | ||
| PORCA | ||
| 223 | A 6884917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 223 | A 6884917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 223 | A 6884917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 223 | A 6884917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 223 | A 6884917040 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 223 | A 6684910240 | CLAMP |
| Repalced by: A 6884917240 | ||
| 223 | A 6884917240 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 226 | N 071555078500 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 226 | H LM6854920640 | CLAMP |
| EXHAUST MUFFLER TO SUPPORT | ||
| 229 | N 000933008270 | SCREW |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 229 | N 000933008270 | SCREW |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 229 | N 000933008270 | SCREW |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 229 | N 000933008270 | SCREW |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 229 | N 000933008270 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| N 000933010270 | SCREW | |
| EXHAUST MUFFLER TO SUPPORT | ||
| N 000933010270 | SCREW | |
| EXHAUST MUFFLER TO SUPPORT | ||
| 229 | N 000933010294 | SCREW |
| Repalced by: N 910105010006 | ||
| 229 | N 910105010006 | SCREW |
| M 10X20 | ||
| 229 | N 910105010006 | SCREW |
| M 10X20 | ||
| 229 | N 910105010006 | SCREW |
| M 10X20 | ||
| 232 | Q T2309436150 | PART NAME MISSING |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| PARAFUSO | ||
| 235 | N 000125008417 | WASHER |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 235 | N 000125008417 | WASHER |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 235 | N 000125008417 | WASHER |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 235 | N 000125008417 | WASHER |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 235 | N 000125008417 | WASHER |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 238 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 238 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 238 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 238 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 238 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 238 | N 913004008007 | NUT |
| Repalced by: N 913023008003 | ||
| 238 | N 913023008003 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 238 | N 913023008003 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| 238 | N 913004010004 | NUT |
| Repalced by: N 913023010002 | ||
| 238 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 238 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 238 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 238 | N 913023010002 | NUT |
| EXHAUST MUFFLER TO SUPPORT | ||
| 241 | Q T2309901106 | NUT |
| CLAMP TO BRACKET AND TO EXHAUST MUFFLER | ||
| PORCA | ||
| 244 | A 6884907021 | EXHAUST PIPE |
| (TAIL PIPE) | ||
| 244 | A 6884927301 | FRONT EXHAUST PIPE |
| (TAIL PIPE) | ||
| 244 | A 6884927204 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 244 | A 3834926504 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 244 | A 6884927304 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 244 | A 6884927304 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 244 | A 6884927904 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 244 | A 6884928004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 244 | A 6884928004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 244 | A 6884928004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 247 | A 6884917141 | BRACKET |
| TAIL PIPE | ||
| 247 | A 6884917141 | BRACKET |
| TAIL PIPE | ||
| 247 | A 6884917141 | BRACKET |
| TAIL PIPE | ||
| 247 | A 3084320016 | SUPPORT |
| TAIL PIPE | ||
| 250 | A 3864917041 | BRACKET |
| TAIL PIPE | ||
| 250 | A 3864917041 | BRACKET |
| TAIL PIPE | ||
| 250 | A 3864917041 | BRACKET |
| TAIL PIPE | ||
| 253 | N 000933010267 | SCREW |
| BRACKET TO FRAME | ||
| 10X25 MM | ||
| 253 | N 000933010267 | SCREW |
| BRACKET TO FRAME | ||
| 10X25 MM | ||
| 253 | N 000933010254 | SCREW |
| BRACKET TO FRAME | ||
| 10X28 MM | ||
| 253 | N 000933010254 | SCREW |
| BRACKET TO FRAME | ||
| 10X28 MM | ||
| 256 | N 000933010174 | SCREW |
| Repalced by: N 910105010001 | ||
| 256 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M10X30 | ||
| 256 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M10X30 | ||
| 259 | N 000125010517 | WASHER |
| 259 | N 000125010517 | WASHER |
| 262 | N 913004010004 | NUT |
| Repalced by: N 913023010002 | ||
| 262 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 262 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 262 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 265 | A 6884297240 | BRACKET |
| TAIL PIPE | ||
| 268 | N 000933008271 | SCREW |
| BRACKET TO FRAME | ||
| 8X20 MM | ||
| 271 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| 274 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 277 | A 0019873140 | RUBBER BUFFER |
| 277 | A 0019873140 | RUBBER BUFFER |
| 277 | A 0019873140 | RUBBER BUFFER |
| 277 | A 0019873140 | RUBBER BUFFER |
| 280 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 280 | N 000125010517 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 283 | N 913004010004 | NUT |
| Repalced by: N 913023010002 | ||
| 283 | N 913023010002 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 283 | N 913023010002 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 286 | A 6884917116 | SUPPORT |
| EXHAUST PIPE TO BRACKET | ||
| 286 | A 6884917116 | SUPPORT |
| EXHAUST PIPE TO BRACKET | ||
| 286 | A 6884917116 | SUPPORT |
| EXHAUST PIPE TO BRACKET | ||
| 286 | A 6884917416 | SUPPORT |
| EXHAUST PIPE TO BRACKET | ||
| 286 | A 6884927116 | SUPPORT |
| EXHAUST PIPE TO BRACKET | ||
| 286 | A 6884927116 | SUPPORT |
| EXHAUST PIPE TO BRACKET | ||
| 286 | A 6884927116 | SUPPORT |
| EXHAUST PIPE TO BRACKET | ||
| 289 | N 071555075503 | CLAMP |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 289 | N 071555075503 | CLAMP |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 289 | N 071555075503 | CLAMP |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 292 | N 000933010260 | SCREW |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 292 | N 000933010260 | SCREW |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 292 | N 000933010260 | SCREW |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 292 | N 000933010260 | SCREW |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 295 | N 913004010000 | NUT |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 295 | N 913004010000 | NUT |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 295 | N 913004010000 | NUT |
| REAR EXHAUST PIPE TO SUPPORT | ||

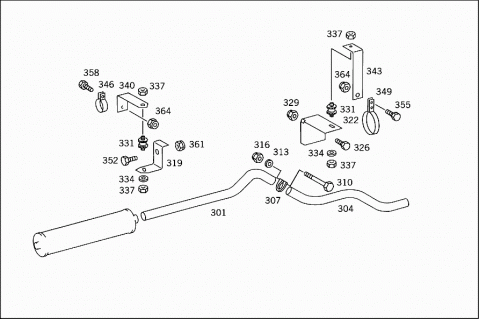

| 301 | A 6884927104 | REAR EXHAUST PIPE |
| 301 | A 6884927104 | REAR EXHAUST PIPE |
| 304 | A 6884927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 304 | A 6884927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 307 | A 6684920340 | CLAMP |
| REAR EXHAUST PIPES | ||
| 307 | A 6684920340 | CLAMP |
| REAR EXHAUST PIPES | ||
| 310 | N 000931008247 | SCREW |
| REAR EXHAUST PIPES | ||
| M8X120 | ||
| 310 | N 000931008247 | SCREW |
| REAR EXHAUST PIPES | ||
| M8X120 | ||
| 313 | N 000125008417 | WASHER |
| REAR EXHAUST PIPES | ||
| 313 | N 000125008417 | WASHER |
| REAR EXHAUST PIPES | ||
| 316 | N 913004008007 | NUT |
| Repalced by: N 913023008003 | ||
| 316 | N 913023008003 | NUT |
| REAR EXHAUST PIPES | ||
| 316 | N 913023008003 | NUT |
| REAR EXHAUST PIPES | ||
| 319 | A 6884927141 | BRACKET |
| SHOCK ABSORBER MOUNTING | ||
| 319 | A 6884927141 | BRACKET |
| SHOCK ABSORBER MOUNTING | ||
| 322 | A 6884927241 | BRACKET |
| FRAME | ||
| 326 | N 000933010174 | SCREW |
| Repalced by: N 910105010001 | ||
| 326 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M10X30 | ||
| 326 | N 910105010001 | HEXAGON HEAD BOLT |
| FRAME | ||
| M10X30 | ||
| 326 | N 000933010200 | SCREW |
| Repalced by: N 910105010001 | ||
| 326 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M10X30 | ||
| 326 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M10X30 | ||
| 329 | N 913004010004 | NUT |
| Repalced by: N 913023010002 | ||
| 329 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 329 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 331 | A 0019873140 | RUBBER BUFFER |
| BRACKET TO BRACKET | ||
| 331 | A 0019873140 | RUBBER BUFFER |
| BRACKET TO BRACKET | ||
| 334 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 334 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 337 | N 000934010005 | NUT |
| BRACKET TO BRACKET | ||
| 337 | N 000934010005 | NUT |
| BRACKET TO BRACKET | ||
| 340 | A 6884927116 | SUPPORT |
| SHOCK ABSORBER MOUNTING | ||
| 340 | A 6884927116 | SUPPORT |
| SHOCK ABSORBER MOUNTING | ||
| 343 | A 6884927016 | SUPPORT |
| FRAME | ||
| 343 | A 6884927016 | SUPPORT |
| FRAME | ||
| 346 | N 071555075503 | CLAMP |
| SHOCK ABSORBER MOUNTING | ||
| 346 | N 071555075503 | CLAMP |
| SHOCK ABSORBER MOUNTING | ||
| 349 | A 6684920440 | CLAMP |
| FRAME | ||
| 349 | A 6684920440 | CLAMP |
| FRAME | ||
| 352 | N 000933010269 | SCREW |
| M 10X35 MM | ||
| 352 | N 000933010269 | SCREW |
| M 10X35 MM | ||
| 355 | N 000933008288 | SCREW |
| Repalced by: N 910105008016 | ||
| 355 | N 910105008016 | SCREW |
| M 8X30 | ||
| 355 | N 910105008016 | SCREW |
| M 8X30 | ||
| 358 | N 000933008273 | SCREW |
| CLAMP TO BRACKET | ||
| M 8X28 MM | ||
| 358 | N 000933008273 | SCREW |
| CLAMP TO BRACKET | ||
| M 8X28 MM | ||
| 361 | N 913004010000 | NUT |
| 361 | N 913004010000 | NUT |
| 364 | N 913004008007 | NUT |
| Repalced by: N 913023008003 | ||
| 364 | N 913023008003 | NUT |
| 364 | N 913023008003 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
