Transporto priemonė: 1114; VIN numerio dalis: 688143

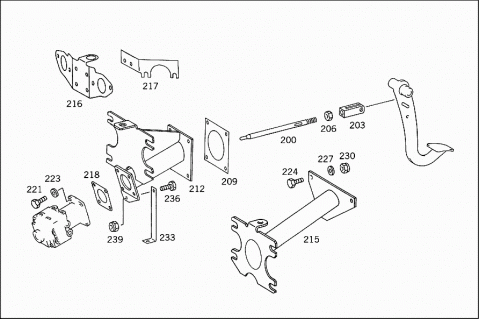

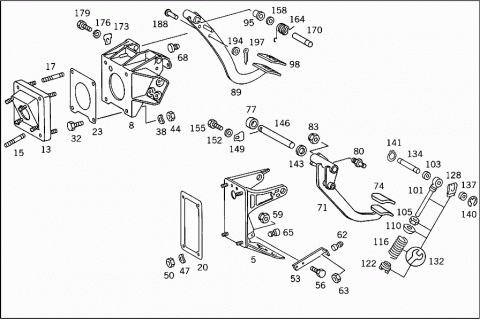

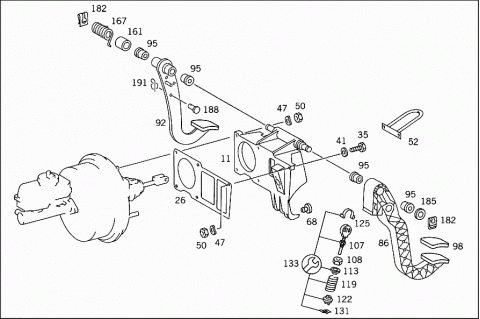

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6882940201 | BEARING BRACKET |
| Repalced by: A 6882947001 | ||
| 005 | A 6882947001 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | A 3842947001 | BEARING BRACKET |
| Repalced by: A 3842947201 | ||
| 008 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 011 | A 6672900319 | BEARING BRACKET |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 013 | A 3844307010 | BRACKET |
| 013 | A 3844307210 | BRACKET |
| 015 | N 000835008086 | STUD |
| M 8X25 | ||
| 017 | N 000835008096 | STUD |
| M 8X30 | ||
| 020 | A 6452940080 | GASKET |
| Repalced by: A 6452940280 | ||
| 020 | A 6452940280 | GASKET |
| BEARING BRACKET TO CAB | ||
| 023 | A 3842947080 | GASKET |
| BEARING BRACKET TO CAB | ||
| 026 | A 6672940180 | GASKET |
| BEARING BRACKET TO CAB | ||
| A 6882920070 | STUD | |
| BEARING BRACKET TO CAB | ||
| 032 | N 000933008275 | SCREW |
| BEARING BRACKET TO CAB | ||
| M8X35 | ||
| 035 | N 000933008273 | SCREW |
| BEARING BRACKET TO CAB | ||
| M8X30 | ||
| 038 | N 001440008002 | WASHER |
| BEARING BRACKET TO CAB | ||
| 041 | N 000125008417 | WASHER |
| BEARING BRACKET TO CAB | ||
| 044 | N 910112008000 | NUT |
| BEARING BRACKET TO CAB | ||
| 047 | N 000137008101 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 047 | N 000137008101 | SPRING WASHER |
| BEARING BRACKET TO CAB | ||
| 050 | N 910112008000 | NUT |
| BEARING BRACKET TO CAB | ||
| 050 | N 910112008000 | NUT |
| BEARING BRACKET TO CAB | ||
| 052 | A 6882907023 | CLAMP |
| BEARING BRACKET TO CAB | ||
| 053 | A 6882910030 | STOP |
| (ANGLE) | ||
| 053 | A 3842907032 | STOP |
| PEDAL STOP | ||
| 053 | A 3842907032 | STOP |
| PEDAL STOP | ||
| 056 | N 000000001147 | SCREW |
| STOP TO BEARING BRACKET | ||
| 059 | N 913023006002 | NUT |
| STOP TO BEARING BRACKET | ||
| 062 | A 6732910286 | STOP |
| CLUTCH PEDAL | ||
| 062 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| M8 | ||
| 062 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| M8 | ||
| 063 | N 910112008000 | NUT |
| CLUTCH PEDAL | ||
| 065 | A 6882910086 | STOP |
| Repalced by: A 6882917286 | ||
| 065 | A 6882917286 | STOP |
| Repalced by: A 6882917586 | ||
| 065 | A 6882917586 | STOP |
| CLUTCH PEDAL | ||
| 065 | A 6882917586 | STOP |
| CLUTCH PEDAL | ||
| 065 | A 6882917586 | STOP |
| CLUTCH PEDAL | ||
| 065 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 065 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 068 | A 6672910086 | STOP |
| Repalced by: A 6882917186 | ||
| 068 | A 6882917186 | STOP |
| BRAKE PEDAL | ||
| 068 | A 1232910186 | STOP |
| BRAKE PEDAL | ||
| 068 | A 1232910186 | STOP |
| 068 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 071 | A 6882907016 | PEDAL |
| CLUTCH | ||
| 071 | A 6882907016 | PEDAL |
| CLUTCH | ||
| 071 | A 6882900316 | PEDAL |
| 071 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 074 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 077 | A 0019816310 | NEEDLE BEARING |
| 077 | A 0109818010 | NEEDLE BEARING |
| 080 | A 6882910074 | PIN |
| 083 | N 913002010001 | NUT |
| 086 | A 6672900316 | PEDAL |
| CLUTCH | ||
| 089 | A 3842907018 | PEDAL |
| BRAKE | ||
| 092 | A 6672900418 | PEDAL |
| Repalced by: A 6672900718 | ||
| 092 | A 6672900718 | PEDAL |
| BRAKE | ||
| 095 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 095 | A 1102910550 | BUSHING |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 098 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 098 | A 1102910182 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 101 | A 3812901439 | ROD |
| Repalced by: A 3822908419 | ||
| 101 | A 3822908419 | BEARING BRACKET |
| 101 | A 3822908419 | BEARING BRACKET |
| 103 | A 0059814410 | NEEDLE BEARING |
| 103 | A 0059814410 | NEEDLE BEARING |
| 103 | A 0059814410 | NEEDLE BEARING |
| 103 | A 0059813810 | NEEDLE BEARING |
| 103 | A 0059813810 | NEEDLE BEARING |
| 103 | A 0059813810 | NEEDLE BEARING |
| 103 | A 0089811210 | NEEDLE BEARING |
| 103 | A 0089811210 | NEEDLE BEARING |
| 103 | A 0089811210 | NEEDLE BEARING |
| 103 | A 0139818210 | NEEDLE BEARING |
| 103 | A 0139818210 | NEEDLE BEARING |
| 103 | A 0139818210 | NEEDLE BEARING |
| 105 | N 000439010221 | NUT |
| 105 | N 000439010221 | NUT |
| 107 | A 6682900339 | ROD |
| 108 | N 000934008007 | NUT |
| 110 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 110 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 113 | A 6732910091 | SPRING RETAINER |
| TOP | ||
| 116 | A 1109930501 | SPRING |
| Repalced by: A 3869937001 | ||
| 116 | A 3869937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 116 | A 6882917092 | SPRING |
| CLUTCH PEDAL RESET | ||
| 116 | A 6882917092 | SPRING |
| CLUTCH PEDAL RESET | ||
| 119 | A 1089930201 | SPRING |
| CLUTCH PEDAL RESET | ||
| 122 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 122 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 125 | A 6682910183 | INSULATOR |
| ROD TO CLUTCH PEDAL | ||
| 128 | A 6459880178 | CLIP |
| 128 | A 6459880178 | CLIP |
| 131 | A 6732910083 | INSULATOR |
| BOTTOM | ||
| 132 | A 6882900093 | REPAIR KIT |
| Repalced by: A 3862900039 | ||
| 132 | A 3862900039 | ROD |
| Repalced by: A 3822900093 | ||
| 132 | A 3822900093 | SPRING |
| PARTS KIT | ||
| 133 | A 6702900093 | REPAIR KIT |
| 134 | A 6452910374 | PIN |
| Repalced by: A 3842917074 | ||
| 134 | A 3842917074 | PIN |
| PUSH ROD TO CLUTCH PEDAL | ||
| 52 MM | ||
| 134 | A 3842917074 | PIN |
| PUSH ROD TO CLUTCH PEDAL | ||
| 52 MM | ||
| 137 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 137 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 140 | N 006799006002 | LOCK PLATE |
| PUSH ROD TO CLUTCH PEDAL | ||
| 140 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 141 | N 000471008001 | LOCK RING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 141 | N 000471008001 | LOCK RING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 141 | N 000471008001 | LOCK RING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 143 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 146 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 149 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 149 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 152 | N 000125006420 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 155 | N 000000001147 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 158 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 161 | A 6672940053 | SPACER TUBE |
| BRAKE PEDAL TO PIVOT PIN | ||
| 164 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 167 | A 6679930220 | SPRING |
| BRAKE PEDAL RESET | ||
| 170 | A 3842927174 | PIN |
| Repalced by: A 6452940074 | ||
| 170 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 173 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 173 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 176 | N 000127006203 | LOCK WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 179 | N 000000001147 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 182 | A 0009941151 | LOCK |
| PEDALS TO PIVOT PINS | ||
| 185 | A 1152910076 | WASHER |
| PEDALS TO PIVOT PINS | ||
| 185 | A 1262920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 188 | A 3529910007 | PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 188 | A 6889917007 | PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 191 | N 912011102000 | LOCK |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 194 | N 000433010504 | WASHER |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 194 | N 000433008403 | WASHER |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 197 | N 000094003238 | COTTER PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 197 | N 000094002077 | COTTER PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 200 | A 6884200274 | ROD |
| Repalced by: A 6884260230 | ||
| 200 | A 6884260230 | ROD |
| 200 | A 6884260230 | ROD |
| 200 | A 3842927032 | ROD |
| 203 | A 3849967001 | YOKE |
| 203 | A 6889967001 | YOKE |
| 206 | N 910112012001 | NUT |
| 206 | N 910112012001 | NUT |
| 209 | A 6884310080 | GASKET |
| BRACKET TO FIRE WALL AND TO PEDAL BEARING BRACKET | ||
| 212 | A 6884300210 | BRACKET |
| 212 | A 6884300210 | BRACKET |
| Repalced by: A 6884307010 | ||
| 212 | A 6884307010 | BRACKET |
| 212 | A 6884307010 | BRACKET |
| 212 | A 6884307010 | BRACKET |
| 212 | A 6884307010 | BRACKET |
| 212 | A 6884307910 | BRACKET |
| 212 | A 6884308010 | BRACKET |
| 212 | A 6884308010 | BRACKET |
| 212 | A 6884308010 | BRACKET |
| 215 | A 6884307110 | BRACKET |
| 215 | A 6884307110 | BRACKET |
| 215 | A 6884307710 | BRACKET |
| 216 | A 6884317840 | BRACKET |
| BRACKET TO BRACKET | ||
| 216 | A 6884317840 | BRACKET |
| BRACKET TO BRACKET | ||
| 216 | A 6884317840 | BRACKET |
| BRACKET TO BRACKET | ||
| 217 | A 6884317740 | BRACKET |
| 218 | A 3134310080 | GASKET |
| BRAKE VALVE TO BRACKET | ||
| 221 | N 000933008288 | SCREW |
| BRAKE VALVE TO BRACKET | ||
| 221 | N 000000001388 | SCREW |
| BRAKE VALVE TO BRACKET | ||
| 223 | N 000125008417 | WASHER |
| BRAKE VALVE TO BRACKET | ||
| A 8,4 | ||
| 223 | N 000125008417 | WASHER |
| BRAKE VALVE TO BRACKET | ||
| 224 | N 000933010524 | SCREW |
| BRACKET TO BRACKET | ||
| 227 | N 000125010157 | WASHER |
| BRACKET TO BRACKET | ||
| 230 | N 913002010000 | NUT |
| BRACKET TO BRACKET | ||
| 233 | A 6884310395 | WEB |
| 233 | A 6884310395 | WEB |
| 236 | N 000933008282 | SCREW |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M 8X20 | ||
| 236 | N 000939008134 | STUD BOLT |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M 8X22 | ||
| 236 | N 000933008317 | SCREW |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M 8X18 | ||
| 239 | N 913004008001 | NUT |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP 25 | ||
