Transporto priemonė: 1117 L; VIN numerio dalis: 676217

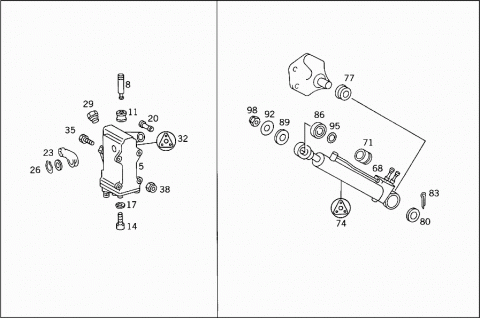

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005538901 | PUMP |
| (HAND PUMP) | ||
| WEBER | ||
| 008 | A 0005532590 | PISTON |
| 011 | A 0005504655 | VALVE |
| 014 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 014 | N 000000000190 | SCREW |
| BOX COVER | ||
| 017 | N 912004008102 | LOCK WASHER |
| BOX COVER | ||
| 020 | A 0005530403 | FILTER |
| 023 | N 000988020011 | FITTED WASHER |
| OIL FILLING | ||
| 026 | N 000471020001 | LOCK RING |
| 029 | A 0009901610 | SCREW |
| OIL FILLING | ||
| 032 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| 035 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 035 | N 304017010002 | SCREW |
| HAND PUMP TO BRACKET | ||
| 038 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 038 | N 910113010000 | NUT |
| HAND PUMP TO BRACKET | ||
| 041 | A 6735530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 041 | A 6745530982 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 044 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 047 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 047 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HAND PUMP AND TO HYDRAULIC CYLINDER | ||
| 050 | A 3129970581 | GROMMET |
| 050 | A 3129970581 | GROMMET |
| 053 | A 3852670040 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 056 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 056 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 059 | A 6739901040 | WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 062 | N 910113012002 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 065 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 068 | A 6745530405 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| 071 | A 0005531628 | GUIDE |
| 074 | A 0005501707 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| 077 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 080 | N 000125025005 | WASHER |
| Repalced by: N 000125025008 | ||
| 080 | N 000125025008 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 083 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 086 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 089 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 092 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 095 | A 6745530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 098 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 098 | N 910113016002 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
