Transporto priemonė: 1120 S; VIN numerio dalis: 677053

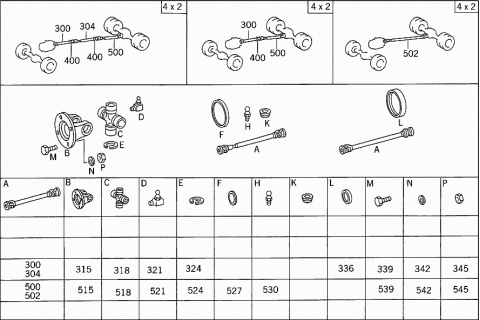

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 300 | A 3854107104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1018 MM | ||
| 300 | A 6174100004 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1328 MM | ||
| 300 | A 3854107204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1757 MM | ||
| 300 | A 3854106904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1602 MM | ||
| 304 | A 3854106204 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1145 MM | ||
| 315 | A 3854111711 | DRIVE FLANGE |
| 318 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 318 | A 9734100031 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 321 | N 071412008302 | GREASE NIPPLE |
| 324 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 324 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 324 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 324 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 324 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 336 | A 3854130161 | PROTECTIVE CAP |
| 336 | A 3854130461 | PROTECTIVE CAP |
| 339 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 339 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 339 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO INTERMEDIATE BEARING | ||
| 342 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 345 | N 000934012034 | NUT |
| PROPELLER SHAFT | ||

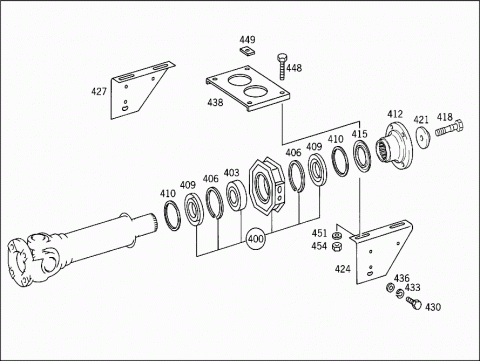

| 400 | A 3854100922 | INTERMEDIATE BEARING |
| Repalced by: A 3854101722 | ||
| 400 | A 3854101722 | INTERMEDIATE BEARING |
| Repalced by: A 9734100022 | ||
| 400 | A 9734100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 403 | A 0019818125 | BALL BEARING |
| Repalced by: A 0079818525 | ||
| 403 | A 0079818525 | BALL BEARING |
| 406 | N 912009100200 | SNAP RING |
| 409 | A 3854130061 | PROTECTIVE CAP |
| 410 | A 9734110052 | SPACER WASHER |
| PROPELLER SHAFT BEARING | ||
| 412 | A 3854100030 | CENTERING FLANGE |
| Repalced by: A 3854110045 | ||
| 412 | A 3854110045 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 415 | A 3854130161 | PROTECTIVE CAP |
| FOLLOWER FLANGE | ||
| 415 | A 3854130461 | PROTECTIVE CAP |
| FOLLOWER FLANGE | ||
| 418 | A 3839900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 421 | A 3894110162 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 424 | A 3854138042 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3804130342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854138242 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854132942 | BRACKET |
| PROPELLER SHAFT BEARING I,LEFT | ||
| 424 | A 3854135642 | BRACKET |
| PROPELLER SHAFT BEARING II,LEFT | ||
| 424 | A 3854138142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854133042 | BRACKET |
| PROPELLER SHAFT BEARING I,LEFT | ||
| 424 | A 3854135742 | BRACKET |
| PROPELLER SHAFT BEARING II,LEFT | ||
| 424 | A 3854139242 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854139342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 427 | A 3854138142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3804130442 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854138342 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854133042 | BRACKET |
| PROPELLER SHAFT BEARING I,RIGHT | ||
| 427 | A 3854135742 | BRACKET |
| PROPELLER SHAFT BEARING II,RIGHT | ||
| 427 | A 3854138042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854132942 | BRACKET |
| PROPELLER SHAFT BEARING I,RIGHT | ||
| 427 | A 3854135642 | BRACKET |
| PROPELLER SHAFT BEARING II,RIGHT | ||
| 427 | A 3854139342 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854139242 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 430 | N 000931010282 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 10X40 | ||
| 430 | N 000933010105 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 10X25 | ||
| 433 | N 912004010102 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 436 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 436 | N 007349010007 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 438 | A 3854130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING | ||
| 448 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 448 | N 000961010031 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 449 | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 451 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 451 | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 454 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 500 | A 3854105307 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1250 MM | ||
| 500 | A 3854105207 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1520 MM | ||
| 500 | A 3854103007 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1750 MM | ||
| 500 | A 3854105107 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1355 MM | ||
| 500 | A 3854104907 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1450 MM | ||
| 500 | A 3854107307 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1715 MM | ||
| 502 | A 3854103007 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1750 MM | ||
| 515 | A 3854111711 | DRIVE FLANGE |
| 518 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 518 | A 9734100031 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 521 | N 071412008302 | GREASE NIPPLE |
| 524 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 524 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 524 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 524 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 524 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 527 | A 3854110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 530 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 530 | N 071412008102 | GREASE NIPPLE |
| 539 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 539 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 539 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 542 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 545 | N 000934012034 | NUT |
| PROPELLER SHAFT | ||
