Transporto priemonė: 1314/L; VIN numerio dalis: 675034
Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|

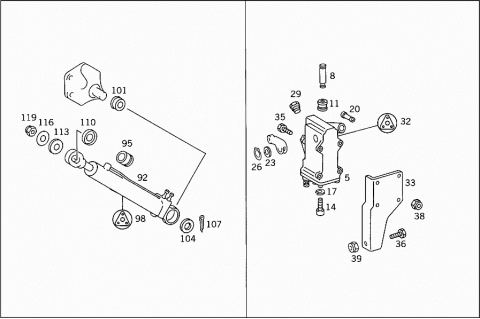

| 005 | A 0005533901 | PUMP |
| Repalced by: A 0005538901 | ||
| 005 | A 0005538901 | PUMP |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 008 | A 0005531790 | PISTON |
| TO 000 553 39 01 | ||
| 008 | A 0005532590 | PISTON |
| TO 000 553 89 01 | ||
| 011 | A 0005501555 | VALVE |
| Repalced by: A 0005502855 | ||
| 011 | A 0005502855 | VALVE |
| TO 000 553 39 01 | ||
| 011 | A 0005504655 | VALVE |
| TO 000 553 89 01 | ||
| 014 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 014 | N 000000000190 | SCREW |
| BOX COVER | ||
| WEBER | ||
| 017 | N 912004008102 | LOCK WASHER |
| BOX COVER | ||
| WEBER | ||
| 020 | A 0005530403 | FILTER |
| WEBER | ||
| 023 | N 000988020011 | FITTED WASHER |
| WEBER | ||
| 026 | N 000471020001 | LOCK RING |
| WEBER | ||
| 029 | A 0009901310 | SCREW |
| Repalced by: A 0009901610 | ||
| 029 | A 0009901610 | SCREW |
| OIL REFILLING | ||
| 032 | A 0015532760 | SEAL RING |
| Repalced by: A 0005502583 | ||
| 032 | A 0005502583 | GASKET KIT |
| HAND PUMP | ||
| TO 000 553 39 01 | ||
| 032 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| TO 000 553 89 01 | ||
| 033 | A 6743170340 | BRACKET |
| HAND PUMP | ||
| 035 | N 000933010157 | SCREW |
| HAND PUMP TO BRACKET | ||
| 035 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 035 | N 304017010002 | SCREW |
| HAND PUMP TO BRACKET | ||
| 036 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 038 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 038 | N 910113010000 | NUT |
| HAND PUMP TO BRACKET | ||
| 039 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 039 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||

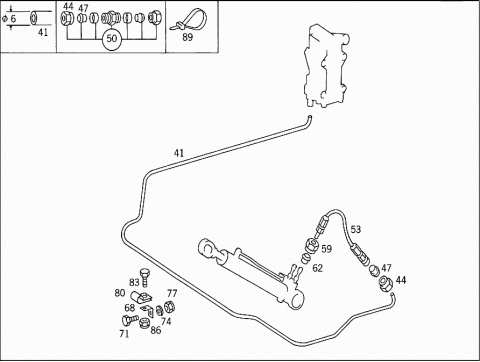

| 041 | A 6745500057 | PIPE LINE |
| Repalced by: A 0004290001 | ||
| 041 | A 0004290001 | LINE |
| FROM HAND PUMP TO HIGH PRESSURE HOSE | ||
| 6X1 MM | ||
| 044 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 047 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 047 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 050 | A 0039979172 | FITTING |
| LINE CONNECTIONS | ||
| 053 | A 3875530482 | HOSE |
| Repalced by: A 3875530182 | ||
| 053 | A 3875530182 | HOSE |
| FROM HYDRAULIC LINE TO CYLINDER | ||

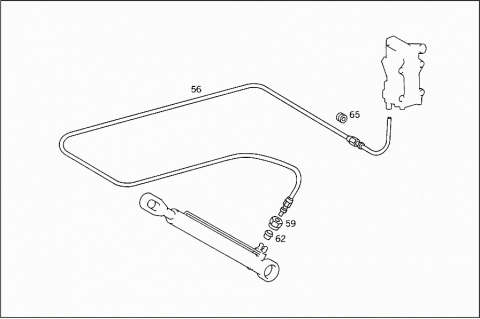

| 056 | A 6745530182 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 056 | A 6735530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 056 | A 6745530982 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 059 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE | ||
| 062 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 062 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE | ||
| 065 | A 3129970581 | GROMMET |
| HIGH PRESSURE HOSE | ||
| 065 | A 3129970581 | GROMMET |
| 065 | A 3129970581 | GROMMET |
| 068 | A 3874292940 | BRACKET |
| Repalced by: A 3582670040 | ||
| 068 | A 3582670040 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 071 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 071 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 074 | A 6739901040 | WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 077 | N 910113012002 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 080 | A 3609950101 | CLAMP |
| OIL DELIVERY LINE TO BRACKET | ||
| 083 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 083 | N 304017006018 | SCREW |
| OIL DELIVERY LINE TO BRACKET | ||
| 086 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 086 | N 913004006001 | NUT |
| OIL DELIVERY LINE TO BRACKET | ||
| 089 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 092 | A 6745530105 | CYLINDER |
| Repalced by: A 6745530405 | ||
| 092 | A 6745530405 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 095 | A 0005530528 | GUIDE |
| WEBER,TO 674 553 01 05 | ||
| 095 | A 0005531628 | GUIDE |
| WEBER,TO 674 553 04 05 | ||
| 098 | A 0005501635 | GUIDE |
| Repalced by: A 0015535005 | ||
| 098 | A 0015535005 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 674 553 01 05 | ||
| 098 | A 0005501707 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 674 553 04 05 | ||
| 101 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 104 | N 000125025005 | WASHER |
| Repalced by: N 000125025008 | ||
| 104 | N 000125025008 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 107 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 110 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 113 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 116 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 116 | A 6745530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 119 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 119 | N 910113016002 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
