Transporto priemonė: 1314/L; VIN numerio dalis: 675034

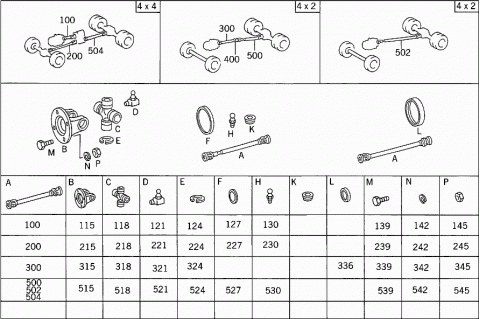

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 100 | A 3814108402 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 470 MM | ||
| 100 | A 3814109102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 450 MM | ||
| 100 | A 6744100602 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 810 MM | ||
| 100 | A 6744102002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 720 MM | ||
| 115 | A 3814110811 | DRIVE FLANGE |
| 118 | A 6174100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004104031 | ||
| 118 | A 0004104031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 121 | N 071412008302 | GREASE NIPPLE |
| 124 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 124 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 124 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 127 | A 3814110559 | SEAL RING |
| PROTECTIVE TUBE | ||
| 77X14.5 MM | ||
| 127 | A 0004110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 74.5X22 MM | ||
| 130 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 130 | N 071412008102 | GREASE NIPPLE |
| 139 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 139 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 139 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 142 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 145 | N 000934010010 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 200 | A 6744101902 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 974 MM | ||
| 200 | A 6744102902 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1099 MM | ||
| 200 | A 6744102602 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 1365 MM | ||
| 215 | A 3814110811 | DRIVE FLANGE |
| 218 | A 6174100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004104031 | ||
| 218 | A 0004104031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 221 | N 071412008302 | GREASE NIPPLE |
| 224 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 224 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 224 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 227 | A 3814110559 | SEAL RING |
| PROTECTIVE TUBE | ||
| 77X14.5 MM | ||
| 227 | A 0004110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 74.5X22 MM | ||
| 230 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 230 | N 071412008102 | GREASE NIPPLE |
| 239 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 239 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 239 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 242 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 245 | N 000934010010 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE AND TO FRONT AXLE | ||
| 300 | A 6744100004 | PROPELLER SHAFT |
| Repalced by: A 6744101904 | ||
| 300 | A 6744101904 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1064 MM | ||
| 300 | A 6744100304 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 974 MM | ||
| 300 | A 6744100104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1323 MM | ||
| 300 | A 6744101204 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1236 MM | ||
| 300 | A 6744101104 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1691 MM | ||
| 300 | A 6744101404 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1610 MM | ||
| 315 | A 3814110811 | DRIVE FLANGE |
| 318 | A 6174100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004104031 | ||
| 318 | A 0004104031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 321 | N 071412008302 | GREASE NIPPLE |
| 324 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 324 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 324 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 336 | A 3814130261 | PROTECTIVE CAP |
| 336 | A 3814130461 | PROTECTIVE CAP |
| 339 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 339 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 339 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 342 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 345 | N 000934010010 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||

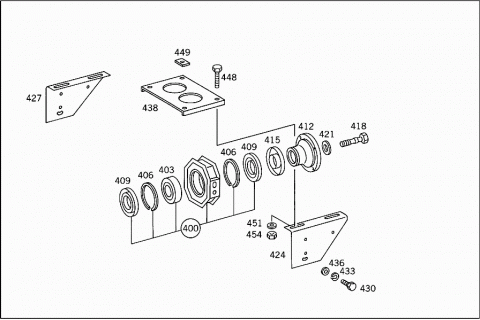

| 400 | A 3814100222 | INTERMEDIATE BEARING |
| Repalced by: A 3814101222 | ||
| 400 | A 3814101222 | INTERMEDIATE BEARING |
| Repalced by: A 3814101522 | ||
| 400 | A 3814101522 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 403 | A 0019818625 | BALL BEARING |
| 406 | A 0019948141 | LOCK |
| 409 | A 3814130161 | PROTECTIVE CAP |
| 412 | A 3814100130 | CENTERING FLANGE |
| Repalced by: A 3814110145 | ||
| 412 | A 3814110145 | FLANGE |
| PROPELLER SHAFT BEARING | ||
| 415 | A 3814130261 | PROTECTIVE CAP |
| FOLLOWER FLANGE | ||
| 415 | A 3814130461 | PROTECTIVE CAP |
| FOLLOWER FLANGE | ||
| 418 | A 3839900019 | SCREW |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 421 | A 3832820262 | THRUST WASHER |
| FOLLOWER FLANGE TO PROPELLER SHAFT | ||
| 424 | A 3854138142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854138142 | BRACKET |
| 424 | A 3854135042 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854135142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854132142 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 424 | A 3854138342 | BRACKET |
| PROPELLER SHAFT BEARING,LEFT | ||
| 427 | A 3854138042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854138042 | BRACKET |
| 427 | A 3854135142 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854135042 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854132242 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 427 | A 3854138242 | BRACKET |
| PROPELLER SHAFT BEARING,RIGHT | ||
| 430 | N 000931010282 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 10X40 | ||
| 430 | N 000933010105 | SCREW |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| M 10X25 | ||
| 433 | N 912004010102 | LOCK WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 436 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 436 | N 007349010007 | WASHER |
| BRACKET TO PROPELLER SHAFT BEARING HOUSING | ||
| 438 | A 3854130011 | REINFORCEMENT |
| PROPELLER SHAFT BEARING | ||
| 448 | N 000961010042 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 449 | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 451 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 451 | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 454 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 500 | A 3814107202 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1314 MM | ||
| 500 | A 6744104502 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1265 MM | ||
| 500 | A 6744100202 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1575 MM | ||
| 500 | A 6744101102 | PROPELLER SHAFT |
| Repalced by: A 6744104002 | ||
| 500 | A 6744104002 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1859 MM | ||
| 500 | A 6744104602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING TO REAR AXLE | ||
| 1830 MM | ||
| 502 | A 6744100102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1814 MM | ||
| 502 | A 6744101802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1720 MM | ||
| 502 | A 6164100702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 2013 MM | ||
| 502 | A 6164100102 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 1918 MM | ||
| 504 | A 3854106207 | PROPELLER SHAFT |
| Repalced by: A 3004100507 | ||
| 504 | A 3004100507 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 785 MM | ||
| 504 | A 6174101202 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 750 MM | ||
| 504 | A 3004100407 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 710 MM | ||
| 504 | A 3004100407 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 710 MM | ||
| 504 | A 3854106107 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 995 MM | ||
| 504 | A 3974100107 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 965 MM | ||
| 515 | A 3814110811 | DRIVE FLANGE |
| 515 | A 3854111711 | DRIVE FLANGE |
| 518 | A 6174100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004104031 | ||
| 518 | A 0004104031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 518 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 518 | A 9734100031 | UNIVERSAL JOINT CROSS |
| MAINTENANCE-FREE | ||
| 521 | N 071412008302 | GREASE NIPPLE |
| 524 | N 000472042001 | LOCK RING |
| AS REQUIRED | ||
| 1.750 MM | ||
| 524 | A 0059949941 | LOCK |
| AS REQUIRED | ||
| 1.875 MM | ||
| 524 | A 0069940441 | LOCK |
| AS REQUIRED | ||
| 2.000 MM | ||
| 524 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 524 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 524 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 527 | A 3814110559 | SEAL RING |
| PROTECTIVE TUBE | ||
| 77X14.5 MM | ||
| 527 | A 0004110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 74.5X22 MM | ||
| 527 | A 3854110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 530 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 530 | N 071412008102 | GREASE NIPPLE |
| 539 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 539 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 539 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE | ||
| 539 | A 0079901001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 539 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 539 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE AND TO REAR AXLE | ||
| 542 | N 912004010102 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 542 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 545 | N 000934010010 | NUT |
| PROPELLER SHAFT | ||
| 545 | N 000934012034 | NUT |
| PROPELLER SHAFT | ||
