Transporto priemonė: 1320 L,2020 L; VIN numerio dalis: 677233

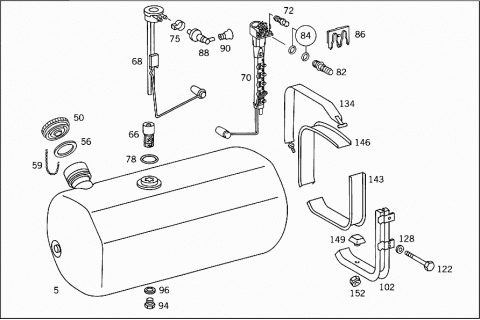

Grupė: 47 FUEL SYSTEM - 180 FUEL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6164700001 | FUEL TANK |
| Repalced by: A 6524700101 | ||
| 005 | A 6524700101 | FUEL TANK |
| Repalced by: A 6704700101 | ||
| 005 | A 6704700101 | FUEL TANK |
| 125 L | ||
| 050 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 050 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 050 | A 0004700305 | FILLER CAP |
| 050 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 056 | A 3049970340 | SEAL RING |
| FILLER CAP | ||
| 059 | A 3034700031 | CHAIN |
| 066 | A 3094700006 | FUEL STRAINER |
| 066 | A 0004710935 | FUEL STRAINER |
| SENDER UNIT | ||
| 068 | A 6765420017 | SENDER UNIT |
| FUEL GAUGE | ||
| 070 | A 0115426017 | SENDER UNIT |
| FUEL GAUGE | ||
| 072 | A 0029977086 | PLUG |
| TO SEAL AUXILIARY HEATER CONNECTION | ||
| 8 MM | ||
| 075 | A 0039975390 | LOOM TIE |
| VENT VALVE TO FUEL TANK | ||
| 078 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 082 | A 0019905978 | CONNECTOR |
| FEED LINE AND RETURN LINE | ||
| 12,5X1,25 MM | ||
| 082 | A 0019907478 | CONNECTOR |
| FEED LINE AND RETURN LINE | ||
| 11X1,5 MM | ||
| 082 | A 0019907578 | CONNECTOR |
| FEED LINE AND RETURN LINE | ||
| 8X1 MM | ||
| 084 | A 0129970545 | GASKET KIT |
| CONNECTION ON FUEL GAUGE SENSOR | ||
| 086 | A 0005420873 | LOCK |
| CONNECTION ON FUEL GAUGE SENSOR | ||
| 088 | A 1234700393 | VALVE |
| Repalced by: A 1244760432 | ||
| 088 | A 1244760432 | VALVE |
| (VENT VALVE) | ||
| 088 | A 1074700993 | VALVE |
| Repalced by: A 2014760132 | ||
| 088 | A 2014760132 | VALVE |
| (VENT VALVE) | ||
| 090 | A 1074710281 | BOOT |
| BLEEDER VALVE | ||
| 094 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 094 | N 007604014110 | SCREW PLUG |
| AT TANK | ||
| 096 | N 915035000017 | SEAL RING |
| AT TANK | ||
| 102 | A 6764700942 | SUPPORT |
| FUEL TANK | ||
| 122 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X30 | ||
| 122 | N 000961012151 | SCREW |
| 122 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 122 | N 308676012026 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X35 | ||
| 128 | A 6739901040 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 128 | A 3012420266 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 128 | A 3012420266 | WASHER |
| 134 | A 6174700240 | STRAP |
| FUEL TANK | ||
| 143 | A 3634750220 | PAD |
| FUEL TANK TO SUPPORT | ||
| 61X70 MM | ||
| 146 | A 3634750320 | PAD |
| FUEL TANK TO SUPPORT | ||
| 46X55 MM | ||
| 149 | A 3834750087 | STOP |
| FUEL TANK TO SUPPORT | ||
| 152 | N 910113012002 | NUT |
| STRAP TO SUPPORT | ||
