Transporto priemonė: 1320 LS; VIN numerio dalis: 677258

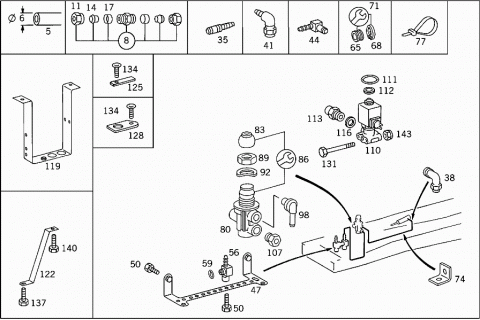

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| EXHAUST BRAKE VALVE LINE CONNECTION | ||
| 005 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 005 | A 0009872627 | PLASTIC PIPE |
| 6X1 MM | ||
| 008 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 011 | N 915017006100 | UNION NUT |
| 014 | N 003861006007 | GLAND |
| 017 | N 915062004000 | SLEEVE |
| 035 | A 0009906578 | CONNECTOR |
| Repalced by: A 0029905378 | ||
| 035 | A 0029905378 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 038 | A 0019909871 | ELBOW FITTING |
| POWER CYLINDER | ||
| DMR | ||
| 041 | A 0029905271 | ELBOW FITTING |
| POWER CYLINDER | ||
| 044 | A 0019907871 | ELBOW FITTING |
| Repalced by: A 0049905271 | ||
| 044 | A 0049905271 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 047 | A 6734302010 | BRACKET |
| DISTRIBUTOR TO CAB | ||
| 050 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 050 | N 304017006034 | SCREW |
| DISTRIBUTOR TO CAB | ||
| 050 | N 304017006034 | HEXAGON HEAD BOLT |
| CONNECTOR TO CAB | ||
| 056 | A 6459901178 | CONNECTOR |
| DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION | ||
| TO 008 997 60 82 | ||
| 059 | A 0149977648 | SEAL RING |
| 6.8X2.5 MM | ||
| 065 | A 0009940147 | SEAL RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 22 | ||
| 065 | A 0009940047 | SEAL RING |
| Repalced by: A 0009940747 | ||
| 065 | A 0009940747 | LOCK RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 068 | A 0009941448 | LOCK |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 22 | ||
| 068 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 068 | A 0009945448 | LOCK |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 071 | A 6739970145 | TS SEALING RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 22 | ||
| 071 | A 6739970045 | REPAIR KIT |
| Repalced by: A 0309971748 | ||
| 071 | A 0309971748 | REPAIR KIT |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 074 | A 3852670040 | BRACKET |
| COMPRESSED AIR LINE TO BELL HOUSING | ||
| 077 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| EXHAUST BRAKE VALVE | ||
| 080 | A 0039972536 | VALVE |
| ENGINE SHUT-OFF | ||
| WABCO | ||
| 080 | A 0039972336 | VALVE |
| ENGINE SHUT-OFF | ||
| BOSCH | ||
| 083 | A 0004340586 | CUP |
| WABCO | ||
| 086 | A 0025869843 | REPAIR KIT |
| VALVE | ||
| WABCO | ||
| 086 | A 0025865343 | REPAIR KIT |
| VALVE | ||
| BOSCH | ||
| 089 | N 074305026202 | NUT |
| VALVE TO CAB | ||
| 092 | N 000137027201 | SPRING WASHER |
| VALVE TO CAB | ||
| 098 | A 6233280365 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTION: | ||
| "30" | ||
| 107 | A 0009970834 | UNION SCREW |
| Repalced by: A 0009973734 | ||
| 107 | A 0009973734 | UNION SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,20",M16 | ||
| 110 | A 0049975736 | VALVE |
| (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF | ||
| 111 | A 0149970048 | SEAL RING |
| BOSCH | ||
| 112 | N 007603006106 | SEAL RING |
| BOSCH | ||
| 113 | A 0059978972 | FITTING |
| SOLENOID VALVE | ||
| 116 | N 007603012405 | SEAL RING |
| SOLENOID VALVE | ||
| 119 | A 6734301910 | BRACKET |
| Repalced by: A 6734302110 | ||
| 119 | A 6734302110 | BRACKET |
| SOLENOID VALVE | ||
| 122 | A 6734320295 | REINFORCEMENT |
| BRACKET TO CAB | ||
| 125 | A 6734310084 | SHIM |
| BRACKET TO CAB | ||
| 128 | A 6734310184 | SHIM |
| BRACKET TO CAB | ||
| 131 | N 000931008378 | SCREW |
| SOLENOID VALVE TO BRACKET | ||
| M 8X55 | ||
| 134 | N 007991008009 | SCREW |
| BRACKET TO CAB | ||
| M8X20 | ||
| 137 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 137 | N 304017008016 | SCREW |
| BRACKET TO CAB | ||
| M 8X16 | ||
| 140 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 140 | N 304017006016 | SCREW |
| BRACKET TO CAB | ||
| M 6X16 | ||
| 143 | N 913004008004 | NUT |
| SOLENOID VALVE TO BRACKET | ||
