Transporto priemonė: 209 D/210 D; VIN numerio dalis: 601412
Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR SIDE MEMBER REPAIR VERSION,SEE: | ||
| SA 43 683 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REINFORCEMENT USED FOR STRAIGHTENED SIDE MEMBER,SEE: | ||
| SA 43 676 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR CROSS MEMBER USED FOR TRAILER COUPLING (RETROFIT), SEE: | ||
| SA 43 742 | ||
| 020 | A 6013101022 | CROSS MEMBER |
| RADIATOR | ||
| NO.1 | ||
| 020 | A 6013101622 | CROSS MEMBER |
| RADIATOR | ||
| NO.1 | ||
| 030 | N 000933010128 | SCREW |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 036 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 042 | N 000934010014 | NUT |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 050 | A 6013100008 | TOW HOOK |
| Repalced by: A 6113100008 | ||
| 050 | A 6113100008 | TOW HOOK |
| (TOW-HOOK) | ||
| 064 | A 6013170215 | RAIL |
| FRONT SPRING FRONT BRACKET | ||
| 068 | A 6013100052 | COVER |
| STEERING BRACKET TO SIDE MEMBER,LEFT | ||
| 068 | A 6013100152 | COVER |
| STEERING BRACKET TO SIDE MEMBER,RIGHT | ||
| 068 | A 6013170655 | COVER |
| STEERING BRACKET TO SIDE MEMBER,LEFT | ||
| 068 | A 6013170755 | COVER |
| STEERING BRACKET TO SIDE MEMBER,RIGHT | ||
| 070 | A 6013200270 | REAR SUBFRAME |
| FRONT SPRING SUSPENSION,FRONT | ||
| 076 | A 6013200470 | REAR SUBFRAME |
| FRONT SPRING SUSPENSION,REAR | ||
| 090 | A 6013100809 | BRACKET |
| RUBBER SPRING | ||
| 102 | A 6016110230 | CONNECTION |
| LEFT ENTRANCE | ||
| 102 | A 6016110330 | CONNECTION |
| RIGHT ENTRANCE | ||
| 114 | A 6013200841 | CONSOLE |
| LEFT FRONT STABILIZER | ||
| 114 | A 6013200941 | CONSOLE |
| RIGHT FRONT STABILIZER | ||
| 126 | A 6012420002 | SUPPORT |
| ENGINE LEFT REAR MOUNTING | ||
| 126 | A 6012420602 | SUPPORT |
| ENGINE LEFT REAR MOUNTING | ||
| 126 | A 6012420102 | SUPPORT |
| Repalced by: A 6012400006 | ||
| 126 | A 6012400006 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 126 | A 6012420702 | SUPPORT |
| ENGINE RIGHT REAR MOUNTING | ||
| 138 | A 6013100424 | CROSS MEMBER |
| Repalced by: A 6013101024 | ||
| 138 | A 6013101024 | CROSS MEMBER |
| FRONT SPRING,REAR | ||
| NO. 2 | ||
| 138 | A 6013100524 | CROSS MEMBER |
| Repalced by: A 6013101124 | ||
| 138 | A 6013101124 | CROSS MEMBER |
| FRONT SPRING,REAR | ||
| NO. 2 | ||
| 162 | A 6013103609 | BRACKET |
| LEFT | ||
| 162 | A 6013170040 | BRACKET |
| Repalced by: A 6013100109 | ||
| 162 | A 6013100109 | BRACKET |
| LEFT FRONT WHEELHOUSE | ||
| 164 | A 6013101409 | BRACKET |
| RIGHT FRONT WHEELHOUSE | ||
| 164 | A 6013171240 | BRACKET |
| RIGHT FRONT WHEELHOUSE | ||
| 174 | A 6013100168 | RAIL |
| LEFT | ||
| 174 | A 6013103509 | BRACKET |
| LEFT | ||
| A 6013100068 | RAIL | |
| RIGHT | ||
| 198 | A 6013102137 | CROSS MEMBER |
| Repalced by: A 6013100237 | ||
| 198 | A 6013100237 | CROSS MEMBER |
| Repalced by: A 6113101137 | ||
| 198 | A 6113101137 | CROSS MEMBER |
| CAB,REAR | ||
| NO.3 | ||
| 198 | A 6013101237 | CROSS MEMBER |
| Repalced by: | ||
| 198 | A 6113101237 | CROSS MEMBER |
| Repalced by: A 6113102537 | ||
| 198 | A 6113102537 | CROSS MEMBER |
| CAB,REAR | ||
| NO.3 | ||
| 210 | A 6014700281 | BRACKET |
| FUEL TANK | ||
| 210 | A 6014700281 | BRACKET |
| VACUUM TANK | ||
| 222 | A 6014900440 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 234 | A 6013100636 | CROSS MEMBER |
| Repalced by: A 6113100436 | ||
| 234 | A 6113100436 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 236 | A 6013100336 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.4 | ||
| 236 | A 6013100336 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.5 | ||
| 238 | A 6014901040 | BRACKET |
| EXHAUST SYSTEM | ||
| 240 | A 6014030301 | SUPPORT |
| Repalced by: A 6014030701 | ||
| 240 | A 6014030701 | SUPPORT |
| (CROSS MEMBER) | ||
| NO.4 | ||
| 240 | A 6014030701 | SUPPORT |
| (CROSS MEMBER) | ||
| NO.7 | ||
| 240 | A 6014030701 | SUPPORT |
| (CROSS MEMBER) | ||
| NO.9 | ||
| 240 | A 6014030701 | SUPPORT |
| (CROSS MEMBER) | ||
| NO.8 | ||
| 240 | A 6013103837 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.4 | ||
| 246 | A 6013101709 | BRACKET |
| SPARE WHEEL | ||
| 256 | A 6013101637 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.5 | ||
| 256 | A 6013101637 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.6 | ||
| 266 | A 6013101737 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.5 | ||
| 282 | A 6013120825 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.5 | ||
| 294 | A 6013101367 | BODY SUPPORT |
| (CROSS MEMBER) | ||
| NO.5 | ||
| 294 | A 6013101367 | BODY SUPPORT |
| (CROSS MEMBER) | ||
| NO.5,NO.10 | ||
| 294 | A 6013101367 | BODY SUPPORT |
| (CROSS MEMBER) | ||
| NO.10 | ||
| 306 | A 6013100909 | BRACKET |
| BODY MOUNTING | ||
| 318 | A 6013101467 | BODY SUPPORT |
| OUTSIDE LEFT | ||
| 330 | A 6014901440 | BRACKET |
| REAR EXHAUST PIPE | ||
| 340 | A 6014922541 | BRACKET |
| REAR EXHAUST PIPE | ||
| 360 | A 6014700081 | BRACKET |
| Repalced by: A 6014700581 | ||
| 360 | A 6014700581 | BRACKET |
| REAR FUEL TANK | ||
| 360 | A 6014700781 | BRACKET |
| REAR FUEL TANK | ||
| 370 | A 6013100438 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.6 | ||
| 370 | A 6013100438 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.5 | ||
| 370 | A 6013100438 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.6 | ||
| 370 | A 6013100638 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.6 | ||
| 380 | A 6113100638 | CROSS MEMBER |
| NO.6 | ||
| 380 | A 6113100638 | CROSS MEMBER |
| NO.7 | ||
| 390 | A 6013100637 | CROSS MEMBER |
| Repalced by: A 6013100538 | ||
| 390 | A 6013100538 | CROSS MEMBER |
| REAR SPRING,FRONT | ||
| NO.7 | ||
| 400 | A 6013101009 | BRACKET |
| CENTRAL | ||
| 410 | A 6013101109 | BRACKET |
| LEFT | ||
| 420 | A 6013100737 | CROSS MEMBER |
| FRAME STRUTTING | ||
| NO.8 | ||
| 430 | A 6014270241 | BRACKET |
| BRAKE CABLE | ||
| 440 | A 6013110940 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 450 | A 6013103209 | BRACKET |
| BRAKE PRESSURE REGULATION LEVER | ||
| 460 | A 6013260350 | BUSHING |
| SHOCK ABSORBER,INSIDE LEFT | ||
| 460 | A 6013260250 | BUSHING |
| SHOCK ABSORBER,INSIDE RIGHT | ||
| 470 | A 6013260450 | BUSHING |
| SHOCK ABSORBER,OUTSIDE LEFT | ||
| 470 | A 6013260550 | BUSHING |
| SHOCK ABSORBER,OUTSIDE RIGHT | ||
| 480 | A 6013110187 | STOP |
| RUBBER SPRING | ||
| A 6014030340 | BRACKET | |
| SPARE WHEEL MOUNTING | ||
| 500 | A 6014001339 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| 510 | A 6014001539 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| 520 | A 6014001639 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| 530 | A 6014001439 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| 540 | A 6014001839 | BRACKET |
| SPARE WHEEL MOUNTING | ||
| 560 | A 6013100342 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.7 | ||
| 560 | A 6013100342 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.6 | ||
| 560 | A 6013100342 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.7 | ||
| 580 | A 6013101042 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.7 | ||
| 580 | A 6013100442 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.8 | ||
| 580 | A 6013100442 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.11 | ||
| 580 | A 6013100442 | CROSS MEMBER |
| REAR SPRING,REAR | ||
| NO.9 | ||
| 590 | A 6013120654 | COVER |
| AT CROSS MEMBER | ||
| A 6013120854 | COVER | |
| AT CROSS MEMBER | ||
| 600 | A 6013102218 | SIDE MEMBER |
| REAR LEFT | ||
| 600 | A 6013102318 | SIDE MEMBER |
| REAR RIGHT | ||
| 610 | A 6013102018 | SIDE MEMBER |
| REAR LEFT | ||
| 610 | A 6013102118 | SIDE MEMBER |
| REAR RIGHT | ||
| 640 | A 6013200475 | SPRING BRACKET |
| FRONT LEFT | ||
| 640 | A 6013200775 | SPRING BRACKET |
| FRONT RIGHT | ||
| 650 | A 6013200375 | SPRING BRACKET |
| FRONT LEFT AND RIGHT | ||
| 660 | A 6013250303 | REAR SPRING BRACKET |
| REAR LEFT | ||
| 660 | A 6013250403 | REAR SPRING BRACKET |
| REAR RIGHT | ||
| 670 | A 6013250203 | REAR SPRING BRACKET |
| REAR LEFT AND RIGHT | ||
| 670 | A 6013250603 | REAR SPRING BRACKET |
| REAR LEFT AND RIGHT | ||
| 670 | A 6013250703 | REAR SPRING BRACKET |
| REAR LEFT AND RIGHT | ||
| 700 | A 6013250955 | COVER PLATE |
| REAR SPRING BRACKET | ||
| 710 | A 6013101546 | CROSS MEMBER |
| REAR | ||
| 720 | A 6013101646 | CROSS MEMBER |
| REAR | ||
| 725 | A 6013100490 | STIFFENING |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 725 | A 6013100190 | STIFFENING |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 740 | A 6013170631 | COVER PLATE |
| AT REAR CROSS MENBER | ||
| 750 | N 000933006102 | SCREW |
| COVER PLATE TO REAR CROSS MEMBER | ||
| 755 | N 000137006204 | SPRING WASHER |
| COVER PLATE TO REAR CROSS MEMBER | ||
| 760 | A 0019904191 | NUT RETAINER |
| COVER PLATE TO REAR CROSS MEMBER | ||
| 770 | N 000934006007 | NUT |
| COVER PLATE TO REAR CROSS MEMBER | ||
| 780 | A 6013170105 | SUPPORT |
| Repalced by: A 6013100167 | ||
| 780 | A 6013170105 | SUPPORT |
| Repalced by: A 6013101667 | ||
| 780 | A 6013170205 | SUPPORT |
| Repalced by: A 6013100367 | ||
| 780 | A 6013170205 | SUPPORT |
| Repalced by: A 6013101867 | ||
| 780 | A 6013170305 | SUPPORT |
| Repalced by: A 6013100467 | ||
| 780 | A 6013170305 | SUPPORT |
| Repalced by: A 6013102067 | ||
| 780 | A 6013100167 | BODY SUPPORT |
| Repalced by: A 6023100067 | ||
| 780 | A 6023100067 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 780 | A 6013100367 | BODY SUPPORT |
| Repalced by: A 6023100267 | ||
| 780 | A 6023100267 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 780 | A 6013100467 | BODY SUPPORT |
| Repalced by: A 6023100367 | ||
| 780 | A 6023100367 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 780 | A 6013101667 | BODY SUPPORT |
| Repalced by: A 6023100767 | ||
| 780 | A 6023100767 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 780 | A 6013101867 | BODY SUPPORT |
| Repalced by: A 6023100967 | ||
| 780 | A 6023100967 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 780 | A 6013102067 | BODY SUPPORT |
| Repalced by: A 6023101167 | ||
| 780 | A 6023101167 | BODY SUPPORT |
| LEFT AND RIGHT | ||
| 810 | A 6013170001 | CONSOLE |
| Repalced by: A 6013171001 | ||
| 810 | A 6013171001 | CONSOLE |
| BODY MOUNTING | ||
| 810 | A 6013100058 | CONSOLE |
| Repalced by: A 6013100158 | ||
| 810 | A 6013100158 | CONSOLE |
| BODY MOUNTING | ||
| 810 | A 6013171001 | CONSOLE |
| BODY MOUNTING | ||
| 810 | A 6013100158 | CONSOLE |
| BODY MOUNTING | ||
| 830 | A 6013170131 | COVER PLATE |
| AT CROSS MEMBER | ||
| NO.4 | ||
| 830 | A 6013170131 | COVER PLATE |
| AT CROSS MEMBER | ||
| NO.5 | ||
| 830 | A 6013170131 | COVER PLATE |
| AT CROSS MEMBER | ||
| NO.5 | ||
| 830 | A 6013170031 | COVER PLATE |
| AT CROSS MEMBER | ||
| NO.6,NO.7 | ||

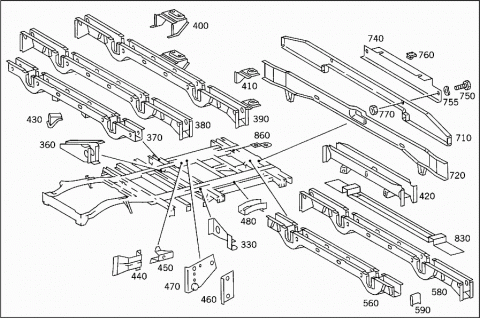

| 830 | A 6013170031 | COVER PLATE |
| AT CROSS MEMBER | ||
| NO.6 | ||
| 830 | A 6013170031 | COVER PLATE |
| AT CROSS MEMBER | ||
| NO.5 | ||
| 830 | A 6013170031 | COVER PLATE |
| AT CROSS MEMBER | ||
| NO.7 | ||
| 830 | A 6013170231 | COVER PLATE |
| AT CROSS MEMBER | ||
| NO.6,NO.7 | ||
| 860 | A 6013150061 | EYE |
| (TOW-HOOK) | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
