Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684006
Grupė: 42 BRAKES

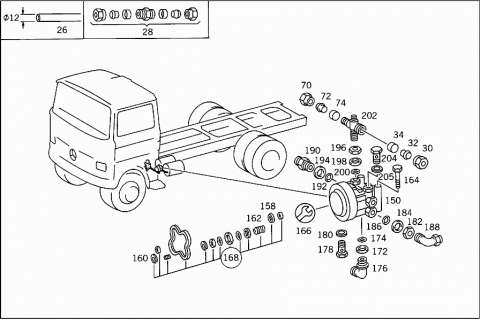

| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0029978972 | FITTING |
| AIR COMPRESSOR,CONNECTION: | ||
| "2" | ||
| 012 | N 007603022403 | SEAL RING |
| AIR COMPRESSOR,CONNECTION: | ||
| "2" | ||

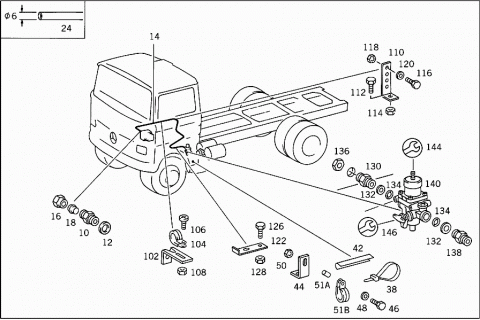

| 014 | A 0004291401 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 15X1.5 MM;MESSING | ||
| 016 | N 915017015100 | UNION NUT |
| 018 | N 003861015004 | GLAND |
| 024 | A 3144202029 | LINE |
| FROM MASTER CYLINDER TO DISTRIBUTOR | ||
| 6X0.7; 1850 MM | ||
| 026 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 026 | A 0009872827 | PLASTIC PIPE |
| BLACK | ||
| 12X1.5 MM | ||
| 026 | A 0009872827 | PLASTIC PIPE |
| FROM PRESSURE REGULATOR TO FOURCIRCUIT PROTECTIVE VALVE | ||
| 12X1.5 MM | ||
| 026 | A 0009872827 | PLASTIC PIPE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 12X1.5 MM | ||
| 026 | A 0009872827 | PLASTIC PIPE |
| FROM AIR RESERVOIR TO BRAKE CYLINDER | ||
| 12X1.5 MM | ||
| 026 | A 0009872827 | PLASTIC PIPE |
| FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE | ||
| 12X1.5 MM | ||
| 026 | A 0009872827 | PLASTIC PIPE |
| FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 12X1.5 MM | ||
| 028 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 028 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 030 | N 915017012100 | UNION NUT |
| 032 | N 003861012007 | GLAND |
| 034 | N 915062009000 | SLEEVE |
| 036 | N 915052009005 | BANJO UNION |
| 038 | A 0019978390 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 280 MM | ||
| 038 | A 0019978490 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 376 MM | ||
| 040 | A 0089975482 | HOSE |
| FROM AIR RESERVOIR TO BRAKE CYLINDER | ||
| 11X1.5 MM;SCHWARZ | ||
| 042 | A 1106940485 | EDGE GUARD SECTION |
| Repalced by: A 0009873272 | ||
| 042 | A 0009873272 | EDGE GUARD SECTION |
| AT SIDE MEMBER | ||
| 044 | A 3144290240 | BRACKET |
| 046 | N 000931006118 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 048 | N 000125006421 | WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 050 | N 913004006002 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 051A | A 3892680525 | TUBE |
| BRACKET TO FRAME SIDE MEMBER | ||
| 051B | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 051B | N 916016008200 | CLAMP |
| BRACKET TO FRAME SIDE MEMBER | ||
| 052 | N 915052008007 | BANJO UNION |
| BRAKE MASTER CYLINDER | ||
| 054 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 054 | A 0009872627 | PLASTIC PIPE |
| BLACK | ||
| 6X1 MM | ||
| 054 | A 0009872627 | PLASTIC PIPE |
| FROM SEPARATION POINT TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 6X1 MM | ||
| 054 | A 0009872627 | PLASTIC PIPE |
| PRESSURE GAUGE LINE | ||
| 6X1 MM | ||

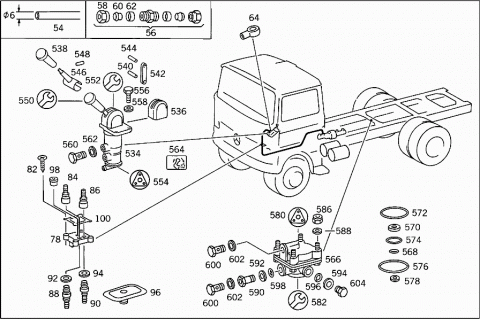

| 056 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 058 | N 915017006100 | UNION NUT |
| 060 | N 003861006007 | GLAND |
| 062 | N 915062004000 | SLEEVE |
| 062 | A 0009920105 | BUSHING |
| 064 | A 3149900188 | BANJO UNION |
| 064 | N 915052006014 | BANJO UNION |

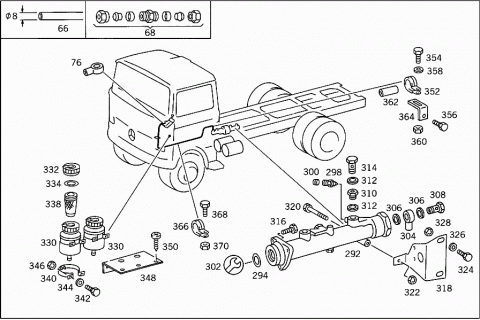

| 066 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 066 | A 0009872727 | PLASTIC PIPE |
| FROM SEPARATION POINT TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 8X1 MM | ||
| 066 | A 0009872727 | PLASTIC PIPE |
| FROM SEPARATION POINT TO RELAY VALVE | ||
| 8X1 MM | ||
| 066 | A 0009872727 | PLASTIC PIPE |
| FROM SEPARATION POINT TO BRAKE VALVE | ||
| 8X1 MM | ||
| 066 | A 0009872727 | PLASTIC PIPE |
| FROM SEPARATION POINT TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 8X1 MM | ||
| 068 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 068 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 070 | N 915017008100 | UNION NUT |
| 072 | N 003861008005 | GLAND |
| 074 | N 915062006000 | SLEEVE |
| 076 | N 915052006021 | BANJO UNION |
| 078 | A 0003270088 | COUPLING PIECE |
| AT CAB FLOOR | ||
| A 0003270188 | COUPLING PIECE | |
| AT CAB FLOOR | ||
| 082 | N 007983006301 | SHEET METAL SCREW |
| 084 | A 0009903978 | CONNECTOR |
| 086 | A 0009904078 | CONNECTOR |
| 088 | A 0009904278 | CONNECTOR |
| 090 | A 0009904378 | CONNECTOR |
| 092 | A 0069975948 | SEAL RING |
| 5X1.5; TO 000 990 42 78 | ||
| 094 | A 0069976048 | SEAL RING |
| 6X2; TO 000 990 43 78 | ||
| 096 | A 3169970381 | GROMMET |
| BREATHING; THRU CAB FLOOR | ||
| 098 | N 915044009000 | PLUG |
| AT CAB FLOOR | ||
| 100 | A 3144290080 | GASKET |
| AT CAB FLOOR | ||
| 102 | A 3184291540 | BRACKET |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 104 | A 3609952001 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 106 | N 000933006121 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 108 | N 913004006002 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 110 | A 3604292240 | BRACKET |
| Repalced by: A 3604292940 | ||
| 110 | A 3604292940 | BRACKET |
| AT SIDE MEMBER | ||
| 110 | A 3604292440 | BRACKET |
| AT BRAKE BOOSTER | ||
| 112 | N 000933010128 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 114 | N 913004010008 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 116 | N 000933008212 | SCREW |
| BRACKET TO BRAKE BOOSTER | ||
| 118 | N 913004008004 | NUT |
| BRACKET TO BRAKE BOOSTER | ||
| 120 | A 3609902340 | WASHER |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 122 | A 3184313740 | BRACKET |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||

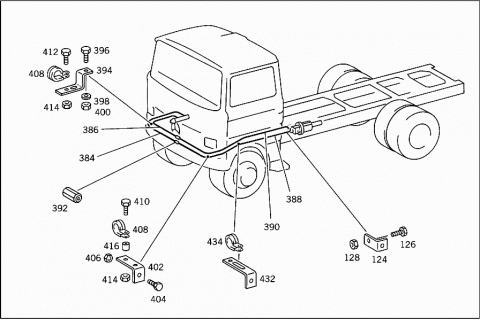

| 124 | A 3184280043 | ANGLE |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 126 | N 000933006183 | SCREW |
| BRACKET TO CAB CROSS MEMBER | ||
| 126 | N 000933006183 | SCREW |
| ANGLE TO FRAME | ||
| 128 | N 913004006002 | NUT |
| BRACKET TO CAB CROSS MEMBER | ||
| 128 | N 913004006002 | NUT |
| ANGLE TO FRAME | ||
| 130 | N 003910015002 | BULKHEAD FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 132 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 134 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION: | ||
| "1,2" | ||
| 136 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 138 | A 0029971172 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2" | ||
| 140 | A 0024314306 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| BOSCH | ||
| 140 | A 0024314906 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| WABCO | ||
| 140 | A 0024318306 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| KNORR | ||
| 144 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 43 06,BOSCH | ||
| 146 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 43 06,BOSCH | ||
| 146 | A 0014304960 | REPAIR KIT |
| TO 002 431 49 06;WABCO | ||
| A 0004300407 | REPAIR KIT | |
| TO 002 431 83 06,KNORR 3500-5/90309 | ||
| A 0004301807 | REPAIR KIT | |
| TO 002 431 83 06,KNORR 3500-5/90286 | ||
| 150 | A 0024310406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| BOSCH | ||
| 150 | A 0014318406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| KNORR | ||
| 150 | A 0014314706 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WABCO | ||
| 150 | A 0024312906 | VALVE |
| Repalced by: A 0024319306 | ||
| 150 | A 0024319306 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| GRAU | ||
| 158 | A 0014310986 | CUP |
| TO 002 431 04 06; "BOSCH" | ||
| 160 | N 000472055000 | LOCK RING |
| TO 002 431 04 06; "BOSCH" | ||
| 162 | A 0009935205 | SPRING |
| TO 002 431 04 06; "BOSCH" | ||
| 164 | N 000933006127 | SCREW |
| TO 002 431 04 06; "BOSCH" | ||
| 166 | A 0004302906 | GASKET KIT |
| BOOT | ||
| TO 002 431 04 06; "BOSCH" | ||
| 168 | A 0004303160 | REPAIR KIT |
| TO 001 431 84 06; KNORR | ||
| 168 | A 0004300468 | REPAIR KIT |
| TO 001 431 47 06,WABCO | ||
| 172 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 174 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 176 | A 0009905168 | FITTING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 178 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 180 | N 007603016105 | SEAL RING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 182 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| 184 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| 186 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| 188 | A 0019903471 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| 190 | A 0029971572 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "11,12" | ||
| 192 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 11,12 | ||
| 194 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| 11,12 | ||
| 196 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 198 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 200 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 202 | A 0029979072 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 204 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 205 | N 007603016105 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 206 | A 0004326501 | RESERVOIR |
| 20 L | ||
| 208 | A 0029971172 | FITTING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "11,22" | ||
| 210 | A 0004290227 | THRUST RING |
| AIR RESERVOIR,CONNECTIONS: | ||
| 11,12,21,22 | ||
| 212 | A 0009870446 | SEALING CORD |
| AIR RESERVOIR,CONNECTIONS: | ||
| 11,12,21,22 | ||
| 214 | A 0009905168 | FITTING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "12;21" | ||
| 216 | N 915047012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTIONS: | ||
| "12;21" | ||
| 218 | N 007603016105 | SEAL RING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "12;21" | ||
| 220 | A 0004321107 | VALVE |
| DRAIN VALVE | ||
| VOSS | ||
| 220 | A 0004320807 | VALVE |
| DRAIN VALVE | ||
| EISELE | ||
| 220 | A 0004321307 | VALVE |
| DRAIN VALVE | ||
| TECHNOMATIK | ||
| 220 | A 0004321907 | VALVE |
| DRAIN VALVE | ||
| GRAU | ||
| 220 | A 0004322107 | VALVE |
| DRAIN VALVE | ||
| ARCO | ||
| 222 | A 0004290227 | THRUST RING |
| AIR RESERVOIR,CONNECTIONS "31,32" | ||
| 224 | A 0009870446 | SEALING CORD |
| AIR RESERVOIR,CONNECTIONS "31,32" | ||
| 226 | A 3604301311 | CONSOLE |
| AIR RESERVOIR | ||
| 228 | N 000961012106 | SCREW |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 230 | N 006796012101 | CONICAL SPRING WASHER |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 232 | A 3604300040 | STRAP |
| AIR RESERVOIR TO CONSOLE | ||
| 234 | N 000934010014 | NUT |
| STRAP TO CONSOLE | ||
| 236 | A 3354320218 | BASE |
| AIR RESERVOIR | ||
| 238 | N 000933008212 | SCREW |
| STRAP TO CONSOLE | ||
| 240 | N 913004008004 | NUT |
| STRAP TO CONSOLE | ||
| 242 | A 0014318614 | BRAKE CYLINDER |
| BOSCH | ||
| 244 | A 0044206818 | WHEEL BRAKE CYLINDER |
| SLAVE CYLINDER | ||
| KUGELFISCHER | ||
| 246 | A 3075530107 | VALVE |
| TO 004 420 68 18; KUGELFISCHER | ||
| 248 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 248 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 248 | A 0004210887 | PROTECTIVE CAP |
| TO 004 420 68 18; KUGELFISCHER | ||
| 250 | A 0059977348 | SEAL RING |
| TO 001 431 86 14,BOSCH | ||
| 252 | A 0004317983 | PISTON |
| TO 001 431 86 14,BOSCH | ||
| 253 | N 000472017000 | LOCK RING |
| TO 001 431 86 14,BOSCH | ||
| A 0004311022 | COVER | |
| TO 001 431 86 14,BOSCH | ||
| 257 | N 000933008191 | SCREW |
| TO 001 431 86 14,BOSCH | ||
| 257 | N 000933010160 | SCREW |
| TO 001 431 86 14,BOSCH | ||
| 262 | A 0025865542 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 004 420 68 18; KUGELFISCHER | ||
| 264 | A 0025860743 | REPAIR KIT |
| Repalced by: A 0004302108 | ||
| 264 | A 0004302108 | REPAIR KIT |
| TO 001 431 86 14; BOSCH | ||
| 266 | N 915036012203 | HOLLOW SCREW |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11;12" | ||
| 268 | N 007603016105 | SEAL RING |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "11;12" | ||
| 270 | N 007604016102 | SCREW PLUG |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "21;22" | ||
| 272 | A 0004290927 | THRUST RING |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "21; 22" | ||
| 274 | A 0009971548 | SEAL RING |
| TWO-CIRCUIT BRAKE CYLINDER;CONNECTION: | ||
| "21;22" | ||
| 276 | A 0005455214 | SWITCH |
| BRAKE CYLINDER STROKE INDICATOR | ||
| 278 | N 007603010404 | SEAL RING |
| BRAKE CYLINDER STROKE INDICATOR | ||
| 280 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 280 | A 0009872727 | PLASTIC PIPE |
| SLAVE CYLINDER | ||
| 8X1 MM | ||
| 282 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 282 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 284 | A 3184313940 | BRACKET |
| BRAKE BOOSTER | ||
| 286 | N 000933010105 | SCREW |
| BRAKE BOOSTER TO CONSOLE | ||
| 288 | N 000961012151 | SCREW |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 290 | N 913004012008 | NUT |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 292 | A 0034309401 | BRAKE MASTER CYLINDER |
| KUGELFISCHER | ||
| 292 | A 0034308101 | BRAKE MASTER CYLINDER |
| ATE | ||
| 294 | A 0014312960 | SEAL RING |
| TO 003 430 81 01; ATE | ||
| 294 | A 0014313060 | SEAL RING |
| TO 003 430 81 01; ATE | ||
| 298 | A 3075530107 | VALVE |
| KUGELFISCHER; ATE | ||
| 300 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 300 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 300 | A 0004210887 | PROTECTIVE CAP |
| KUGELFISCHER; ATE | ||
| 302 | A 0035860143 | REPAIR KIT |
| TO 003 430 94 01,KUGELFISCHER | ||
| 302 | A 0025866843 | REPAIR KIT |
| TO 003 430 81 01; ATE | ||
| 304 | A 0004280830 | CONNECTOR |
| CONNECTIONS "21,22" | ||
| 306 | N 007603014104 | SEAL RING |
| CONNECTIONS "21,22" | ||
| 308 | A 0004280026 | HOLLOW SCREW |
| CONNECTIONS "21,22" | ||
| 310 | A 0009905168 | FITTING |
| BRAKE MASTER CYLINDER | ||
| "01,02" | ||
| 312 | N 007603022403 | SEAL RING |
| BRAKE MASTER CYLINDER | ||
| "01,02" | ||
| 312 | N 007603016105 | SEAL RING |
| BRAKE MASTER CYLINDER | ||
| "01,02" | ||
| 314 | N 915036012203 | HOLLOW SCREW |
| BRAKE MASTER CYLINDER | ||
| "01,02" | ||
| 316 | N 000933010260 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 318 | A 3184314040 | BRACKET |
| BRAKE MASTER CYLINDER | ||
| 320 | N 000931008278 | SCREW |
| BRAKE MASTER CYLINDER | ||
| 322 | N 913004008004 | NUT |
| BRAKE MASTER CYLINDER | ||
| 324 | N 000961012151 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 326 | N 000125013008 | WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 328 | N 913004012008 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 330 | A 0004315802 | RESERVOIR |
| BRAKE FLUID | ||
| ATE | ||
| 330 | A 0014313802 | RESERVOIR |
| BRAKE FLUID | ||
| KUGELFISCHER | ||
| 332 | A 0004313733 | FILLER CAP |
| ATE; KUGELFISCHER | ||
| 334 | A 0009972940 | SEAL RING |
| ATE | ||
| 334 | A 0039976440 | SEAL RING |
| KUGELFISCHER | ||
| 338 | A 0004313134 | STRAINER |
| ATE | ||
| 338 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 338 | A 0004314334 | STRAINER |
| KUGELFISCHER | ||
| 340 | A 0004311040 | CLAMP |
| ATE | ||
| 342 | N 000933006183 | SCREW |
| RESERVOIR TO DRIVER'S SEAT BOX | ||
| 344 | N 000125006421 | WASHER |
| RESERVOIR TO DRIVER'S SEAT BOX | ||
| 346 | N 913004006002 | NUT |
| RESERVOIR TO DRIVER'S SEAT BOX | ||
| 348 | A 3184314340 | BRACKET |
| FLUID RESERVOIR | ||
| 350 | N 007981005211 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 352 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 352 | N 916016008200 | CLAMP |
| BRAKE LINE TO FRAME | ||
| 354 | N 000931006118 | SCREW |
| BRAKE LINE TO FRAME | ||
| 356 | N 000933006183 | SCREW |
| AT BRAKE BOOSTER CONSOLE | ||
| 358 | N 000125006421 | WASHER |
| BRAKE LINE TO FRAME | ||
| 360 | N 913004006002 | NUT |
| BRAKE LINE TO FRAME | ||
| 360 | N 913004006002 | NUT |
| AT BRAKE BOOSTER CONSOLE | ||
| 362 | A 3892680525 | TUBE |
| BRAKE LINE TO FRAME | ||
| 364 | A 3464295840 | BRACKET |
| Repalced by: A 6844660240 | ||
| 364 | A 6844660240 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 366 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 366 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 366 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 368 | N 000931006118 | SCREW |
| BRAKE LINE MOUNTING | ||
| 370 | N 913004006002 | NUT |
| BRAKE LINE MOUNTING | ||

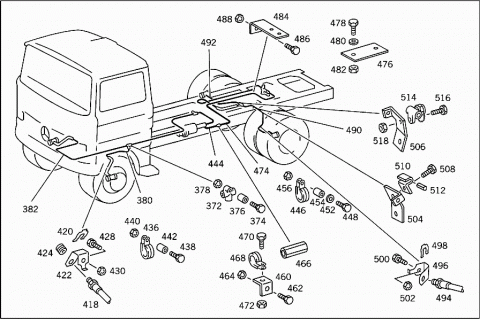

| 372 | A 0004290437 | DISTRIBUTOR |
| 374 | N 000931008244 | SCREW |
| AT DISTRIBUTOR | ||
| 376 | A 1801550053 | SPACER TUBE |
| AT DISTRIBUTOR | ||
| 378 | N 913004008004 | NUT |
| AT DISTRIBUTOR | ||
| 380 | A 3144200829 | LINE |
| FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 550 MM | ||
| 382 | A 3144201729 | LINE |
| FROM DISTRIBUTOR TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 2800 MM | ||
| 384 | A 3164204128 | LINE |
| FROM CONNECTOR TO MASTER CYLINDER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTION "21" | ||
| 386 | A 3164204228 | LINE |
| FROM CONNECTOR TO MASTER CYLINDER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTION "22" | ||
| 388 | A 3164203928 | LINE |
| FROM SLAVE CYLINDER TO CONNECTOR | ||
| 2500 MM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTION "11" | ||
| 390 | A 3164204028 | LINE |
| FROM SLAVE CYLINDER TO CONNECTOR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTION "12" | ||
| 392 | A 0002950736 | INTERMEDIATE PIECE |
| BRAKE LINE | ||
| 394 | A 3164290040 | BRACKET |
| AT CROSS MEMBER | ||
| 396 | N 000933006183 | SCREW |
| BRACKET TO FRONT CROSS MEMBER | ||
| 398 | N 000125006421 | WASHER |
| BRACKET TO FRONT CROSS MEMBER | ||
| 400 | N 913004006002 | NUT |
| BRACKET TO FRONT CROSS MEMBER | ||
| 402 | A 3144290240 | BRACKET |
| AT CAB FLOOR | ||
| 404 | N 000933008153 | SCREW |
| BRACKET TO CAB CONSOLE | ||
| 406 | N 913004008004 | NUT |
| BRACKET TO CAB CONSOLE | ||
| 408 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 408 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 408 | N 916016008200 | CLAMP |
| BRAKE LINE TO BRACKET | ||
| 410 | N 000933006183 | SCREW |
| CLAMP TO BRAKE LINE BRACKET | ||
| M 6X16 | ||
| 412 | N 000931006118 | SCREW |
| CLAMP TO BRAKE LINE BRACKET | ||
| M 6X35 | ||
| 414 | N 913004006002 | NUT |
| CLAMP TO BRAKE LINE BRACKET | ||
| 416 | A 3892680525 | TUBE |
| CLAMP TO BRAKE LINE BRACKET | ||
| 418 | A 0004288235 | BRAKE HOSE |
| FRONT | ||
| 550 MM | ||
| 420 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 420 | A 6525040038 | MOUNTING PLATE |
| AT FRAME, FRONT | ||
| 422 | A 3144280043 | ANGLE |
| AT FRAME, FRONT | ||
| 424 | A 3149970481 | GROMMET |
| AT FRAME, FRONT | ||
| 428 | N 000933010129 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| M 10X30 | ||
| 428 | N 000933010105 | SCREW |
| ANGLE TO FRAME RIGHT SIDE MEMBER | ||
| M 10X25 | ||
| 430 | N 913004010008 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 430 | N 913004010008 | NUT |
| ANGLE TO FRAME RIGHT SIDE MEMBER | ||
| 432 | A 3184280140 | BRACKET |
| LEFT FRONT BRAKE HOSE | ||
| 434 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 434 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 434 | N 916016008200 | CLAMP |
| BRAKE LINE TO BRACKET | ||
| 436 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 436 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO GUSSET PLATE | ||
| 438 | N 000931006118 | SCREW |
| CLAMP TO BRAKE LINE BRACKET | ||
| 440 | N 913004006002 | NUT |
| CLAMP TO BRAKE LINE BRACKET | ||
| 442 | A 3892680525 | TUBE |
| CLAMP TO BRAKE LINE BRACKET | ||
| 444 | A 3184207528 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 6X0.7; 850 MM | ||
| 446 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 446 | N 916016008200 | CLAMP |
| BRAKE LINE TO SIDE MEMBER | ||
| 448 | N 000933006183 | SCREW |
| CLAMP TO BRAKE LINE BRACKET | ||
| M 6X16 | ||
| 448 | N 000931006118 | SCREW |
| CLAMP TO BRAKE LINE BRACKET | ||
| M 6X35 | ||
| 452 | N 000125006421 | WASHER |
| CLAMP TO BRAKE LINE BRACKET | ||
| 454 | A 3892680525 | TUBE |
| CLAMP TO BRAKE LINE BRACKET | ||
| 456 | N 913004006002 | NUT |
| CLAMP TO BRAKE LINE BRACKET | ||
| 460 | A 3604280243 | ANGLE |
| BRAKE LINE MOUNTING | ||
| 462 | N 000933008291 | SCREW |
| Repalced by: A 4609900601 | ||
| 462 | A 4609900601 | SCREW |
| ANGLE TO SIDE MEMBER | ||
| 464 | N 913004008004 | NUT |
| ANGLE TO SIDE MEMBER | ||
| 466 | A 0004292736 | CONNECTOR |
| 468 | A 3609950601 | CLAMP |
| INTERMEDIATE PIECE TO ANGLE | ||
| 470 | N 000933006183 | SCREW |
| INTERMEDIATE PIECE TO ANGLE | ||
| 472 | N 913004006002 | NUT |
| INTERMEDIATE PIECE TO ANGLE | ||
| 474 | A 6844200028 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 476 | A 3124761236 | BRACKET |
| AT CROSS MEMBER | ||
| 478 | N 000933006183 | SCREW |
| BRACKET TO FRONT CROSS MEMBER | ||
| 480 | N 000125006421 | WASHER |
| BRACKET TO FRONT CROSS MEMBER | ||
| 482 | N 913004006002 | NUT |
| BRACKET TO FRONT CROSS MEMBER | ||
| 484 | A 3524281740 | BRACKET |
| AT SIDE MEMBER | ||
| 486 | N 000933008147 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 488 | N 913004008004 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 490 | A 3184205928 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.7; 1400 MM | ||
| 492 | A 3184200729 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.7; 600 MM | ||
| 494 | A 0024280535 | BRAKE HOSE |
| REAR | ||
| 494 | A 0014285535 | BRAKE HOSE |
| REAR | ||
| 496 | A 3144280043 | ANGLE |
| REAR | ||
| 498 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 498 | A 6525040038 | MOUNTING PLATE |
| 500 | N 000933010105 | SCREW |
| REAR ANGLE TO SIDE MEMBER | ||
| 502 | N 913004010008 | NUT |
| REAR ANGLE TO SIDE MEMBER | ||
| 504 | A 3144280840 | BRACKET |
| LEFT | ||
| 506 | A 3144280940 | BRACKET |
| RIGHT | ||
| 508 | N 000933008290 | SCREW |
| BRACKET AND BRAKE LINE TO REAR AXLE | ||
| 510 | A 3129951020 | CLAMP |
| BRACKET TO REAR AXLE | ||
| 510 | A 3129951020 | CLAMP |
| BRAKE LINE TO REAR AXLE | ||
| 512 | A 3129973482 | HOSE |
| BRACKET TO REAR AXLE | ||
| 512 | A 3129973482 | HOSE |
| BRAKE LINE TO REAR AXLE | ||
| 514 | A 0004290437 | DISTRIBUTOR |
| 516 | N 000933008150 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 518 | N 913004008004 | NUT |
| DISTRIBUTOR TO BRACKET | ||

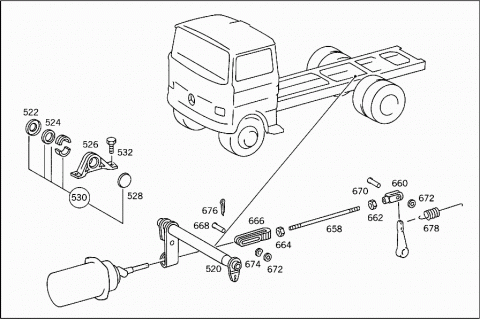

| 520 | A 3184201480 | BRAKE INTERMEDIATE SHAFT |
| 522 | A 3274270058 | SEAL HOLDER |
| BRAKE INTERMEDIATE SHAFT BEARING BRACKET | ||
| 524 | A 3279970040 | SEAL RING |
| BRAKE INTERMEDIATE SHAFT BEARING BRACKET | ||
| 526 | A 3184200578 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 526 | A 3184200678 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 528 | N 000470050001 | EXPANSION PLUG |
| 530 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 532 | N 000933010164 | SCREW |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| 534 | A 0014306581 | VALVE |
| PARKING BRAKE | ||
| WABCO | ||
| 534 | A 0024300381 | VALVE |
| PARKING BRAKE | ||
| BOSCH | ||
| 534 | A 0014301881 | VALVE |
| PARKING BRAKE | ||
| KNORR | ||
| 536 | A 0014311287 | PROTECTIVE CAP |
| KNORR | ||
| 536 | A 0014310887 | PROTECTIVE CAP |
| WABCO | ||
| 538 | A 0009972777 | HANDLE |
| WABCO | ||
| 538 | A 0009972877 | HANDLE |
| BOSCH | ||
| 540 | A 0009911501 | PIN |
| BOSCH | ||
| 542 | A 0004311064 | ACTUATING PART |
| BOSCH | ||
| 544 | A 0009911601 | PIN |
| BOSCH | ||
| 546 | A 0004312139 | LEVER |
| WABCO | ||
| 548 | A 0009910855 | PIN |
| WABCO | ||
| 550 | A 0004300227 | HANDLE |
| (PARTS KIT) | ||
| KNORR | ||
| 552 | A 0025867443 | REPAIR KIT |
| Repalced by: A 0034303181 | ||
| 552 | A 0034303181 | REPAIR KIT |
| WABCO | ||
| 554 | A 0004301760 | REPAIR KIT |
| GASKETS | ||
| BOSCH | ||
| 554 | A 0004300360 | REPAIR KIT |
| KNORR | ||
| 556 | N 000933008147 | SCREW |
| PARKING BRAKE VALVE TO CAB | ||
| 558 | N 009021008205 | WASHER |
| PARKING BRAKE VALVE TO CAB | ||
| 560 | N 915036010204 | HOLLOW SCREW |
| PARKING BRAKE VALVE,CONNECTIONS: | ||
| "11;21" | ||
| 562 | N 007603014104 | SEAL RING |
| PARKING BRAKE VALVE,CONNECTIONS: | ||
| "11;21" | ||
| 564 | A 3185840238 | GUMMED LABEL |
| PARKING BRAKE | ||
| 566 | A 0034291644 | VALVE |
| RELAY VALVE | ||
| BOSCH | ||
| 566 | A 0034295344 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 566 | A 0014296844 | VALVE |
| RELAY VALVE | ||
| WESTINGHOUSE | ||
| 568 | A 0059972648 | SEAL RING |
| GRAU | ||
| 570 | A 0004312788 | VALVE SEAT |
| GRAU | ||
| 572 | A 0059972748 | SEAL RING |
| GRAU | ||
| 574 | A 0014311660 | SEAL RING |
| GRAU | ||
| 576 | A 0014311760 | SEAL RING |
| GRAU | ||
| 578 | A 0004311980 | GASKET |
| GRAU | ||
| 580 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 580 | A 0004201071 | VALVE |
| GASKET KIT | ||
| BOSCH | ||
| A 0004201271 | VALVE | |
| GASKET KIT | ||
| A 0025865742 | REPAIR KIT | |
| BLEEDER VALVE | ||
| BOSCH | ||
| 582 | A 0005865742 | REPAIR KIT |
| LARGE SCOPE | ||
| WESTINGHOUSE | ||
| 582 | H 983455860842 | REPAIR KIT |
| Repalced by: A 0004205555 | ||
| 582 | A 0004205555 | REPAIR KIT |
| SMALL SCOPE | ||
| WESTINGHOUSE | ||
| 582 | A 0025863542 | REPAIR KIT |
| KNORR | ||
| 586 | N 913004008004 | NUT |
| RELAY VALVE TO CROSS MEMBER | ||
| 588 | N 000125008417 | WASHER |
| RELAY VALVE TO CROSS MEMBER | ||
| 590 | A 0009905168 | FITTING |
| RELAY VALVE,CONNECTION "1" | ||
| 592 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION "1" | ||
| 594 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 596 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 598 | A 0009870446 | SEALING CORD |
| RELAY VALVE,CONNECTION "1" | ||
| 600 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE;CONNECTIONS: | ||
| "1;4" | ||
| 600 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| "1;4" | ||
| 602 | N 007603016105 | SEAL RING |
| RELAY VALVE;CONNECTIONS: | ||
| "1;4" | ||
| 602 | N 007603016105 | SEAL RING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| "1;4" | ||
| 604 | N 007604016102 | SCREW PLUG |
| RELAY VALVE,CONNECTION "2",LEFT | ||

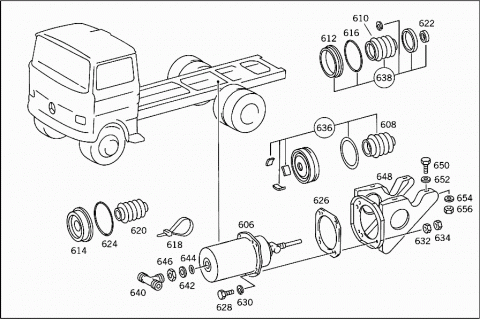

| 606 | A 0004312114 | BRAKE CYLINDER |
| BOSCH | ||
| 606 | A 0014311314 | BRAKE CYLINDER |
| WABCO | ||
| 606 | A 0004317714 | BRAKE CYLINDER |
| KNORR | ||
| 608 | A 0004318587 | PROTECTIVE CAP |
| WABCO | ||
| 610 | A 0004319586 | CUP |
| KNORR | ||
| 612 | A 0004312786 | CUP |
| BOSCH | ||
| 614 | A 0004318583 | PISTON |
| BOSCH | ||
| 616 | A 0049971740 | SEAL RING |
| BOSCH | ||
| 618 | A 0029973690 | LOOM TIE |
| KNORR | ||
| 620 | A 0004319686 | CUP |
| KNORR | ||
| 622 | A 0014311160 | SEAL RING |
| KNORR | ||
| 624 | A 0059971148 | SEAL RING |
| KNORR | ||
| 626 | A 0004311880 | GASKET |
| KNORR | ||
| 628 | N 000933006245 | SCREW |
| KNORR | ||
| 630 | N 912004006102 | LOCK WASHER |
| KNORR | ||
| 632 | N 000934006012 | NUT |
| KNORR | ||
| 634 | N 000934016011 | NUT |
| KNORR | ||
| 636 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 636 | A 0034201724 | REPAIR KIT |
| BOSCH | ||
| 638 | A 0025861443 | REPAIR KIT |
| WABCO | ||
| 640 | A 0009904770 | T-FITTING |
| CONNECTION "1" | ||
| 642 | A 0009971548 | SEAL RING |
| CONNECTION "1" | ||
| 644 | A 0004290927 | THRUST RING |
| CONNECTION "1" | ||
| 646 | N 080705016003 | NUT |
| CONNECTION "1" | ||
| 648 | A 3164300111 | CONSOLE |
| 648 | A 3604300911 | CONSOLE |
| 650 | N 000933010105 | SCREW |
| SPRING LOAD ACCUMULATOR CYLINDER TO BEARING BRACKET | ||
| 650 | N 000933010105 | SCREW |
| BEARING BRACKET TO CROSS MEMBER | ||
| 652 | A 3609900040 | WASHER |
| Repalced by: A 4219905440 | ||
| 652 | A 4219905440 | WASHER |
| BEARING BRACKET TO CROSS MEMBER | ||
| 654 | N 000125010517 | WASHER |
| BEARING BRACKET TO CROSS MEMBER | ||
| 656 | N 913004010008 | NUT |
| SPRING LOAD ACCUMULATOR CYLINDER TO BEARING BRACKET | ||
| 656 | N 913004010008 | NUT |
| BEARING BRACKET TO CROSS MEMBER | ||
| 658 | N 900331010669 | PULL ROD |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 660 | A 0009961501 | YOKE |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 662 | N 000934010014 | NUT |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 664 | N 000934010035 | NUT |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 666 | A 3144200047 | YOKE |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 668 | A 3149910207 | PIN |
| PULL ROD TO INTERMEDIATE LEVER SHAFT | ||
| 670 | A 3529910007 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 672 | N 000125010517 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER SHAFT | ||
| 672 | N 000125010517 | WASHER |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 674 | N 900055010002 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER SHAFT | ||
| 676 | N 000094003200 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER SHAFT | ||
| 676 | N 000094003200 | COTTER PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 678 | A 3149931210 | SPRING |
| BRAKE LEVER,REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
