Mercedes-benz | iAUTO.lt

Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684006

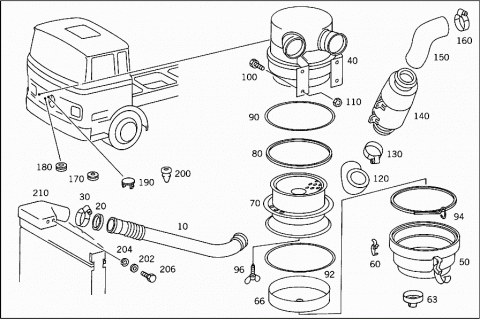

Grupė: 52 CHASSIS SHEET METAL

#	Kodas	Pavadinimas
010	A 3145280508	AIR INTAKE PIPE
		FROM OIL BATH AIR CLEANER TO INTAKE SCOOP
020	A 3145280060	SEAL RING
		FROM OIL BATH AIR CLEANER TO INTAKE SCOOP
030	N 916017070000	CLAMP
	Repalced by: N 000000000674
030	N 000000000674	CLAMP
		AIR INTAKE PIPE TO SCOOP
040	A 0110940402	AIR CLEANER
	Repalced by: A 0140948602
040	A 0140948602	AIR CLEANER
		"DONALDSON"
050	A 0000944903	FILTER BOWL
		LOWER PART
		TO 011 094 04 02
060	A 0000941255	FASTENER
		TO 011 094 04 02
063	A 0000942605	SEPARATOR
		TO 014 094 86 02
066	A 0000940320	SCREENING
		TO 014 094 86 02
070	A 0000949504	FILTER ELEMENT
		TO 011 094 04 02
070	A 0030942804	FILTER ELEMENT
		TO 014 094 86 02
080	A 0000949180	GASKET
		INSIDE
		TO 011 094 04 02
090	A 0000949280	GASKET
		OUTSIDE
		TO 011 094 04 02
092	A 0149973548	SEAL RING
		TO 014 094 86 02
094	A 0000940515	RETAINING RING
		TO 014 094 86 02
096	A 0000942471	SCREW
		TO 014 094 86 02
100	N 000933010105	SCREW
		OIL BATH AIR CLEANER TO FRAME
110	N 913004010001	NUT
		OIL BATH AIR CLEANER TO FRAME
120	A 3140941082	HOSE
		FROM MUFFLER TO AIR CLEANER
130	N 916017070000	CLAMP
	Repalced by: N 000000000674
130	N 000000000674	CLAMP
		FROM MUFFLER TO AIR CLEANER
140	A 3095280608	AIR INTAKE PIPE
		INTAKE MUFFLER
140	A 3095280908	AIR INTAKE PIPE
		INTAKE MUFFLER
150	A 3140940882	HOSE
		FROM MUFFLER TO ENGINE
160	N 916017070000	CLAMP
	Repalced by: N 000000000674
160	N 000000000674	CLAMP
		FROM MUFFLER TO ENGINE
170	A 0009870444	EXPANSION PLUG
		TO PLUG THE FREE HOLES IN TOEBOARD
180	A 0009978881	GROMMET
		DUMPER CONTROL
190	A 3226890030	CAP
		P.T.O.
200	A 1119871115	PLUG
		SCOOP TO CAB
202	N 000125005317	WASHER
		SCOOP TO CAB
204	N 912004005103	LOCK WASHER
		SCOOP TO CAB
206	N 000933005058	SCREW
		SCOOP TO CAB
210	A 3145000055	FAN SHROUD
		AIR INTAKE
