Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684006
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

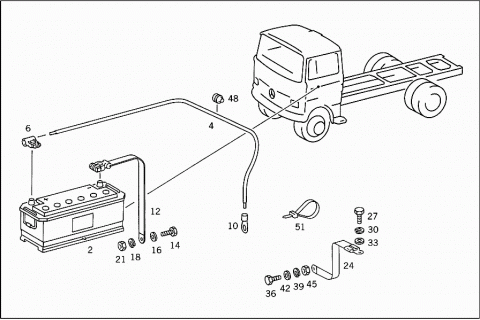

| 002 | A 0015414101 | BATTERY |
| LESS ACID | ||
| 12V/66 AH | ||
| 004 | N 922002070000 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 004 | N 922002070000 | ELECTRIC CABLE |
| FROM BATTERY NEG.POLE TO BATTERY POS.POLE | ||
| 006 | N 072332013100 | SOLDERING TERMINAL |
| POS. CABLE | ||
| 008 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 010 | N 046234010007 | CABLE SHOE |
| STARTING MOTOR | ||
| 012 | A 3145400931 | NEG. CABLE |
| Repalced by: A 3145402131 | ||
| 012 | A 3145402131 | NEG. CABLE |
| FROM BATTERY TO CAB CROSS MEMBER | ||
| 014 | N 000933010105 | SCREW |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 016 | N 009021010202 | WASHER |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 018 | N 912004010102 | LOCK WASHER |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 021 | N 000934010014 | NUT |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 024 | A 3145400241 | GROUND STRAP |
| Repalced by: A 3145400041 | ||
| 024 | A 3145400041 | GROUND STRAP |
| Repalced by: A 3525400041 | ||
| 024 | A 3525400041 | GROUND STRAP |
| FROM BELL HOUSING TO CAB CROSS MEMBER | ||
| 027 | N 000933010128 | SCREW |
| GROUND STRAP TO CAB CROSS MEMBER | ||
| 030 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO CAB CROSS MEMBER | ||
| 033 | N 009021010202 | WASHER |
| GROUND STRAP TO CAB CROSS MEMBER | ||
| 036 | N 000933010105 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 039 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 042 | N 009021010202 | WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 045 | N 000934010014 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 048 | A 3219970281 | GROMMET |
| BATTERY CABLES THRU BATTERY CASE | ||
| 051 | A 0019978390 | LOOM TIE |
| BATTERY CABLE | ||

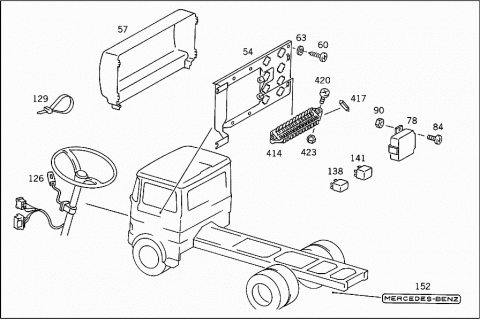

| 054 | A 3145402573 | BRACKET |
| APPARATUS | ||
| 057 | A 3145420091 | COVERING |
| APPARATUS PLATE | ||
| 060 | N 007981004226 | SHEET METAL SCREW |
| APPARATUS PLATE TO BRACKET | ||
| 063 | N 009021005205 | WASHER |
| APPARATUS PLATE TO BRACKET | ||
| 078 | A 0055451424 | SENDER UNIT |
| Repalced by: A 0055450624 | ||
| 078 | A 0055450624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 078 | A 0055451624 | SENDER UNIT |
| WIPER PULSE SENDER UNIT | ||
| 084 | N 007985006157 | SCREW |
| PULSE SENDER UNIT | ||
| 090 | N 913004006002 | NUT |
| PULSE SENDER UNIT | ||

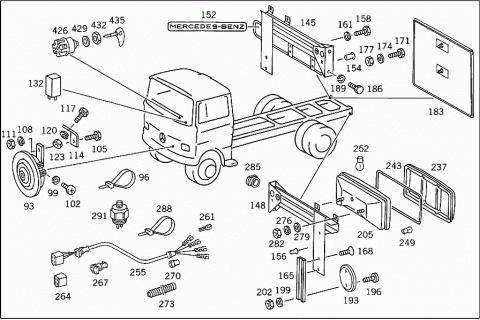

| 093 | A 0035420520 | HORN |
| 096 | A 0019978390 | LOOM TIE |
| CABLE CONNECTION TO HORN | ||
| 099 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 102 | N 007985004123 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 105 | N 000933010129 | SCREW |
| HORN TO BRACKET | ||
| 108 | N 912004010102 | LOCK WASHER |
| HORN TO BRACKET | ||
| 111 | N 000934010014 | NUT |
| HORN TO BRACKET | ||
| 114 | A 3185420040 | BRACKET |
| HORN | ||
| 117 | N 000933010128 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 120 | N 912004010102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 123 | N 000934010014 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 126 | A 0055452424 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 129 | A 0019978390 | LOOM TIE |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 132 | A 0025448332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| HELLA | ||
| 132 | A 0025449432 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| STRIEBEL | ||
| 138 | A 0005455405 | RELAY |
| Repalced by: A 0035459605 | ||
| 138 | A 0035459605 | RELAY |
| BRAKE FLUID CONTROL | ||
| 138 | A 0035459605 | RELAY |
| OIL SUPPLY | ||
| 141 | A 0005458405 | RELAY |
| BRAKE FLUID CONTROL | ||
| HELLA | ||
| 141 | A 0005458405 | RELAY |
| OIL SUPPLY | ||
| HELLA | ||
| 141 | A 0005458405 | RELAY |
| OIL SUPPLY | ||
| HELLA | ||
| 145 | A 3165403973 | BRACKET |
| RIGHT TAIL LAMP | ||
| 148 | A 3165403573 | BRACKET |
| LEFT TAIL LAMP | ||
| 152 | A 3605840025 | NAME PLATE |
| 154 | N 910006004018 | RIVET |
| NAME PLATE TO TAIL LAMP BRACKET | ||
| 156 | N 910001004105 | RIVET |
| NAME PLATE TO TAIL LAMP BRACKET | ||
| 158 | N 000933006103 | SCREW |
| NAME PLATE TO TAIL LAMP BRACKET | ||
| 161 | N 912004006102 | LOCK WASHER |
| NAME PLATE TO TAIL LAMP BRACKET | ||
| 165 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 168 | N 000965006049 | SCREW |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| M6X18 | ||
| 171 | N 007985006192 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| M 6X16 | ||
| 171 | N 007985006192 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| M 6X16 | ||
| 174 | N 000125006421 | WASHER |
| LICENSE PLATE TO BRACKET | ||
| 174 | N 000125006421 | WASHER |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 174 | N 000125006421 | WASHER |
| LICENSE PLATE TO BRACKET | ||
| 177 | N 913004006002 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 177 | N 913004006002 | NUT |
| REFLECTOR BRACKET TO TAIL LAMP BRACKET | ||
| 177 | N 913004006002 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 183 | A 3095200046 | LICENSE PLATE MOULDING |
| LICENSE PLATE | ||
| 183 | A 3095200046 | LICENSE PLATE MOULDING |
| LICENSE PLATE | ||
| 186 | N 000933010129 | SCREW |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 189 | N 912004010102 | LOCK WASHER |
| TAIL LAMP BRACKET TO SIDE MEMBER | ||
| 193 | A 0005443305 | REFLECTOR |
| 196 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 199 | N 000125005317 | WASHER |
| REFLECTOR TO BRACKET | ||
| 202 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 205 | A 0015447103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 205 | A 0015448203 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 205 | A 0015447003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 205 | A 0015448303 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 237 | A 0015448390 | LENS |
| HELLA | ||
| 237 | A 0015448490 | LENS |
| R & S | ||
| 243 | A 0005448580 | GASKET |
| HELLA | ||
| 243 | A 0005448880 | GASKET |
| R & S | ||
| 249 | N 072601024702 | BULB |
| 24V/10W | ||
| 252 | N 072601024190 | BULB |
| 24V/21W | ||
| 255 | A 6175401207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 1300 MM | ||
| 255 | A 6175401007 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| 2100 MM | ||
| 261 | A 0005453726 | PIN BUSHING |
| 264 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 267 | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 270 | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 273 | A 0005467130 | INSULATING HOSE |
| 276 | N 912004008102 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 279 | N 009021008205 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 282 | N 000934008010 | NUT |
| TAIL LAMP TO BRACKET | ||
| 285 | A 3169970081 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 288 | A 0019978490 | LOOM TIE |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 288 | A 0019978390 | LOOM TIE |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 291 | A 0005455909 | SWITCH |
| STOP LIGHT | ||

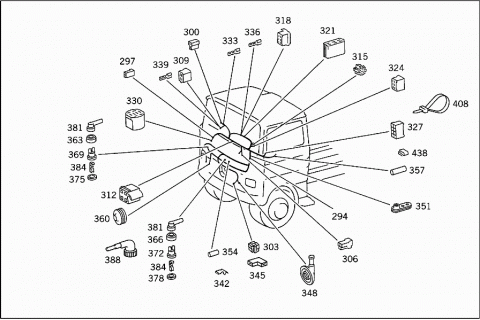

| 294 | A 3185402805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 297 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 300 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 303 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 306 | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 309 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 312 | A 0075457328 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 315 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 318 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 321 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 324 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 327 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 330 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 333 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 336 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 339 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 342 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 2.5 MM2 | ||
| 345 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 348 | A 3149970181 | GROMMET |
| HEADLAMP | ||
| 351 | A 3169970581 | GROMMET |
| HEADLAMP CONNECTION | ||
| 354 | A 0009970381 | GROMMET |
| 357 | A 0009970581 | GROMMET |
| 360 | A 1119970281 | GROMMET |
| 363 | A 0009903654 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| 366 | A 0009902054 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| 369 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 372 | A 3185450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 375 | A 3809900140 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 378 | A 0009906840 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 381 | A 3805460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| 381 | A 6015460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| 384 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| 388 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 388 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 408 | A 0019978490 | LOOM TIE |
| 376 MM | ||
| 408 | A 0019978390 | LOOM TIE |
| 280 MM | ||
| A 3165407027 | ELECTRIC CABLE | |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||
| A 0025450628 | PLUG | |
| A 0005453726 | PIN BUSHING | |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| A 0009970381 | GROMMET | |
| A 0029970981 | GROMMET | |
| A 3805460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1 | ||
| A 6015460335 | BOOT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1 | ||
| A 0009903654 | NUT | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1 | ||
| A 3805450226 | PLUG SOCKET | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1 | ||
| A 0015454826 | ROUND PIN BUSHING | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1 | ||
| A 3809900140 | WASHER | |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M27X1 | ||
| A 3805402281 | PLUG SOCKET | |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| TO M27X1 | ||
| A 0018201856 | EXTERIOR LAMP | |
| BACK-UP LIGHT | ||
| A 0015449290 | LENS | |
| N 072601024190 | BULB | |
| 414 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 414 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 417 | A 0005458234 | FUSE |
| 8 A | ||
| 420 | N 007985006168 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 423 | N 913004006002 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 426 | A 0005453013 | SWITCH |
| AT INSTRUMENT PANEL | ||
| 429 | A 0005450376 | WASHER |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 432 | A 0005451072 | NUT |
| SWITCH BOX TO INSTRUMENT PANEL | ||
| 435 | A 0005451235 | KEY |
| TO SWITCH BOX | ||
| 438 | A 0009881778 | CLIP |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS FLUID RESERVOIR IN SEAT BOX | ||

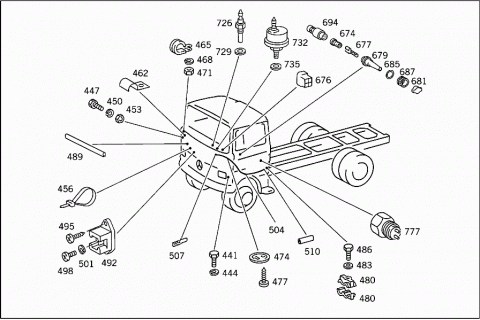

| 441 | N 000933006183 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 444 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 447 | N 000933006183 | SCREW |
| GROUND CABLE TO CAB | ||
| 450 | N 912004006102 | LOCK WASHER |
| GROUND CABLE TO CAB | ||
| 453 | N 000934006007 | NUT |
| GROUND CABLE TO CAB | ||
| 456 | A 0019978490 | LOOM TIE |
| TO MOUNT MAIN CABLE HARNESS | ||
| 456 | A 0019978390 | LOOM TIE |
| TO MOUNT MAIN CABLE HARNESS | ||
| 462 | N 072571001010 | CLAMP |
| ELECTRIC CABLE AND PANE WASHER HOSE | ||
| 465 | N 916016015202 | CLAMP |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 468 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 471 | N 000934006007 | NUT |
| MAIN CABLE HARNESS TO CAB REAR PANEL | ||
| 474 | A 3816820086 | BRACKET |
| MAIN CABLE HARNESS TO CAB SIDE MEMBER | ||
| 474 | A 3816820086 | BRACKET |
| MAIN CABLE HARNESS BRANCH-OFF TOWARDS STOP LIGHT SWITCH TO SIDE MEMBER | ||
| 474 | A 3816820086 | BRACKET |
| HEADLAMP BRANCH-OFF THRU FRAME | ||
| 474 | A 3816820086 | BRACKET |
| AT DRIVER'S SEAT | ||
| 477 | N 007981004226 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 477 | N 007981004226 | SHEET METAL SCREW |
| HEADLAMP BRANCH-OFF THRU FRAME | ||
| 480 | A 3835460044 | CLAMPING PIECE |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 483 | N 009021006205 | WASHER |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 486 | N 007985006163 | SCREW |
| MAIN CABLE HARNESS TO CAB FLOOR PLATE | ||
| 489 | A 0019877625 | PLASTIC SECTION |
| MAIN CABLE HARNESS & SPEEDOMETER FLEX. SHAFT THRU WINDOW LEVEL GIRDER | ||
| 492 | A 0015463541 | CABLE CONNECTOR |
| FRONT | ||
| 495 | N 007981004244 | SHEET METAL SCREW |
| CABLE CONNECTOR | ||
| 498 | N 007985006161 | SCREW |
| CABLE CONNECTOR | ||
| 501 | N 912004006102 | LOCK WASHER |
| CABLE CONNECTOR | ||

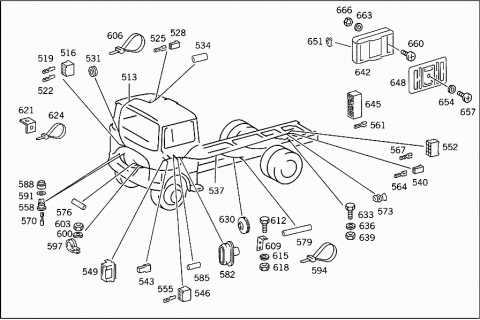

| 504 | A 3145405827 | ELECTRIC CABLE |
| CHASSIS/CAB PLUG CONNECTION | ||
| 507 | A 0015458628 | PLUG |
| 510 | A 0009970381 | GROMMET |
| 513 | A 3165401137 | ELECTRIC CABLE |
| FROM BLINKER LAMP PLUG CONNECTION TO SIDE BLINKER LAMP | ||
| 516 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 519 | A 0015458628 | PLUG |
| 2.5 MM2 | ||
| 522 | A 0025451428 | PLUG |
| FRAME MOUNTED CABLE HARNESS | ||
| 525 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 528 | A 0005451745 | BOOT |
| 531 | A 0009972881 | GROMMET |
| 534 | A 0009970381 | GROMMET |
| 537 | A 3165405227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 540 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 543 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 546 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 549 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 552 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 555 | A 0025450628 | PLUG |
| 558 | A 3805450026 | PLUG SOCKET |
| 561 | A 0005454026 | PIN BUSHING |
| 4-6 MM2 | ||
| 564 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 567 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 570 | A 0015454826 | ROUND PIN BUSHING |
| 573 | A 3805461937 | GROMMET |
| 576 | A 0009970481 | GROMMET |
| 579 | A 0009970381 | GROMMET |
| 582 | A 3169970681 | GROMMET |
| 585 | A 0009970581 | GROMMET |
| 588 | A 0009902054 | NUT |
| 591 | A 0009906840 | WASHER |
| 594 | A 0019978390 | LOOM TIE |
| 597 | N 916016012202 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 600 | N 000137005105 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| 603 | N 000934005008 | NUT |
| CABLE TO ALTERNATOR | ||
| 606 | A 0019978490 | LOOM TIE |
| OIL LEVEL INDICATION | ||
| 609 | A 3604292240 | BRACKET |
| Repalced by: A 3604292940 | ||
| 609 | A 3604292940 | BRACKET |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 612 | N 000933010128 | SCREW |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 615 | N 912004010102 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 618 | N 000934010014 | NUT |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 621 | A 3604280243 | ANGLE |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 624 | A 0019978490 | LOOM TIE |
| FRAME MOUNTED CABLE HARNESS | ||
| 376 MM | ||
| 624 | A 0019978390 | LOOM TIE |
| FRAME MOUNTED CABLE HARNESS | ||
| 280 MM | ||
| 630 | A 3529970281 | GROMMET |
| FUEL GAUGE SENDER UNIT CABLE THRU FRAME SIDE MEMBER | ||
| 633 | N 000933010128 | SCREW |
| GROUND TO FRAME SIDE MEMBER | ||
| 636 | N 000125010517 | WASHER |
| GROUND TO FRAME SIDE MEMBER | ||
| 639 | N 913002010001 | NUT |
| GROUND TO FRAME SIDE MEMBER | ||
| 642 | A 0015465441 | CABLE CONNECTOR |
| REAR | ||
| 645 | A 0105456728 | PLUG |
| 648 | A 0005460581 | COVERING |
| 651 | A 0009872844 | EXPANSION PLUG |
| TO LOCK TRAILER-PLUG-SOCKET PLUGCONNECTION | ||
| 654 | A 3609902440 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 657 | N 007985005165 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| AM 5X40 | ||
| 660 | N 007985005146 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| AM 5X25 | ||
| 663 | N 009021005202 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 666 | N 913004005001 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 669 | A 0095429106 | SPEEDOMETER |
| Repalced by: A 0105424606 | ||
| 669 | A 0105424606 | SPEEDOMETER |
| "VDO" | ||
| 670 | A 0005420287 | FRAME |
| SPEEDOMETER | ||
| 671 | A 0005420690 | BLIND CAP |
| SPEEDOMETER | ||
| 674 | A 0125450928 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 676 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 677 | A 0005453826 | PIN BUSHING |
| FROM SPEEDOMETER TO PULSE SENDER UNIT | ||
| 679 | A 0005463435 | BOOT |
| FROM SPEEDOMETER TO PULSE SENDER UNIT | ||
| 681 | A 0029978590 | CLIP |
| FROM SPEEDOMETER TO PULSE SENDER UNIT | ||
| 685 | A 3019901440 | WASHER |
| FROM SPEEDOMETER TO PULSE SENDER UNIT | ||
| 687 | A 0005421572 | NUT |
| FROM SPEEDOMETER TO PULSE SENDER UNIT | ||
| 689 | A 3169970781 | GROMMET |
| ELECTRIC CABLE THRU CAB FLOOR | ||
| 694 | A 0055429417 | SENDER UNIT |
| 694 | A 0065424617 | SENDER UNIT |
| 698 | A 0005421740 | BRACKET |
| 699 | A 0005421072 | NUT |
| 701 | A 0019978490 | LOOM TIE |
| ELECTRIC CABLE TO SENDER UNIT | ||

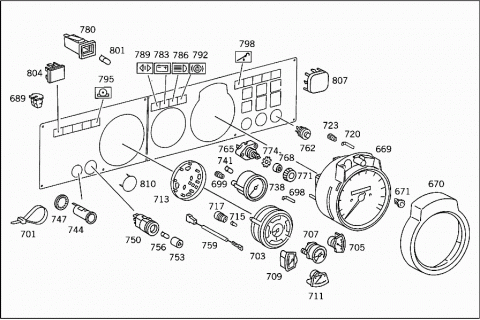

| 703 | A 0035407847 | INSTRUMENT CLUSTER |
| Repalced by: A 0035409647 | ||
| 703 | A 0035409647 | INSTRUMENT CLUSTER |
| "VDO" | ||
| 705 | A 0035428805 | TEMPERATURE GAUGE |
| TO 003 540 78 47 | ||
| 705 | A 0035427405 | TEMPERATURE GAUGE |
| TO 003 540 96 47 | ||
| 707 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| 707 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 96 47 | ||
| 709 | A 0025422702 | OIL PRESSURE GAUGE |
| TO 003 540 78 47 | ||
| 709 | A 0025421702 | OIL PRESSURE GAUGE |
| TO 003 540 96 47 | ||
| 711 | A 0025429203 | FUEL GAUGE DASH UNIT |
| TO 003 540 78 47 | ||
| 711 | A 0025428503 | FUEL GAUGE DASH UNIT |
| TO 003 540 96 47 | ||
| 713 | A 0005423178 | CONNECTION PLATE |
| TO 003 540 78 47 | ||
| 713 | A 0005423578 | CONNECTION PLATE |
| TO 003 540 96 47 | ||
| 715 | N 072601024801 | BULB |
| 24V/2W,TO 003 540 78 47 | ||
| 715 | A 0015442694 | BULB |
| TO 003 540 96 47 | ||
| 717 | A 0005451219 | SOCKET |
| TO 003 540 78 47 | ||
| 720 | A 0005421740 | BRACKET |
| INSTRUMENT CLUSTER | ||
| 723 | A 0005421072 | NUT |
| INSTRUMENT CLUSTER | ||
| 726 | A 0015422317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 729 | N 007603014402 | SEAL RING |
| TEMPERATURE GAUGE | ||
| 732 | A 0045428917 | SENDER UNIT |
| Repalced by: A 0015425617 | ||
| 732 | A 0015425617 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 735 | N 007603014104 | SEAL RING |
| OIL PRESSURE GAUGE | ||
| 738 | A 0015421416 | TACHOMETER |
| 741 | N 072601024801 | BULB |
| TACHOMETER | ||
| 24V/2W | ||
| 744 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 744 | A 0045454326 | PLUG SOCKET |
| HAND LAMP | ||
| 747 | A 0009900946 | WASHER |
| AT INSTRUMENT PANEL | ||
| 750 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 753 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 756 | N 072601024801 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| H 24 V/2 W | ||
| 759 | A 3015400265 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 762 | A 0015454914 | SWITCH |
| STARTING MOTOR | ||
| 765 | A 6155420225 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 768 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| 771 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING SWITCH | ||
| 774 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING SWITCH | ||
| 777 | A 0005455414 | SWITCH |
| SPRING-LOADED BRAKE INDICATOR | ||
| 777 | A 0005455414 | SWITCH |
| SUPPLY CONTROL;BRAKE CIRCUIT III | ||
| 780 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 783 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 786 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 786 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 789 | A 0035455290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 792 | A 0005455090 | LENS |
| Repalced by: A 0055458890 | ||
| 792 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| 795 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 798 | A 0035455190 | LENS |
| OIL SUPPLY | ||
| 801 | N 072601024801 | BULB |
| TELL-TALE LAMP | ||
| 24V/2W | ||
| 804 | A 0009974335 | PLUG |
| TELL-TALE LAMP | ||
| 807 | A 0009974435 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 810 | A 3226890030 | CAP |
| TO PLUG THE FREE HOLE FOR STARTER PILOT PUMP | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
