Transporto priemonė: 508 I INDONESIA; VIN numerio dalis: 684006

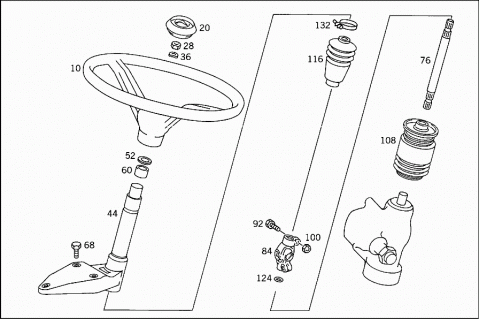

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3834640201 | STEERING WHEEL |
| "PETRI" | ||
| 020 | A 0004640432 | BADGE |
| STEERING WHEEL | ||
| 028 | N 000439022205 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 036 | N 000137022202 | SPRING WASHER |
| STEERING WHEEL TO STEERING COLUMN | ||
| 044 | A 3144600831 | STEERING COLUMN BRACKET |
| WITH UPPER STEERING SHAFT | ||
| A 3144600731 | STEERING COLUMN BRACKET | |
| 052 | A 3224620023 | COVER |
| STEERING COLUMN BRACKET | ||
| 060 | A 0119815110 | NEEDLE BEARING |
| STEERING COLUMN | ||
| 068 | N 000933010145 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 076 | A 3184620101 | STEERING SHAFT |
| BOTTOM | ||
| 076 | A 3184621101 | STEERING SHAFT |
| BOTTOM | ||
| 084 | A 3164600057 | UNIVERSAL JOINT |
| 084 | A 3164600157 | UNIVERSAL JOINT |
| 084 | A 3164600057 | UNIVERSAL JOINT |
| 092 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 100 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 108 | A 3184620896 | BOOT |
| STEERING JOINT | ||
| 116 | A 3184621196 | BOOT |
| STEERING JOINT | ||
| 124 | A 3164620060 | SEAL RING |
| STEERING JOINT | ||
| 132 | A 0019978390 | LOOM TIE |
| BOOT TO CAB FLOOR | ||
| 140 | A 3144612340 | STEERING SUPPORT |
| 140 | A 3144612740 | STEERING SUPPORT |
| 148 | A 3144612540 | STEERING SUPPORT |
| REAR | ||
| 156 | A 3169900814 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 164 | N 000960012296 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M 12X1.5X60 | ||
| 172 | N 000960012335 | SCREW |
| STEERING TO STEERING BRACKET | ||
| M 12X1.5X85 | ||
| 180 | N 912004012100 | LOCK WASHER |
| STEERING TO STEERING BRACKET | ||
| 188 | A 3144610153 | SPACER TUBE |
| STEERING BRACKET TO FRAME | ||
| 196 | N 000961012120 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X1.5X40 | ||
| 204 | N 000960012334 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X1.5X45 | ||
| 212 | N 000960012336 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X1.5X90 | ||
| 220 | N 913004012009 | NUT |
| STEERING BRACKET TO FRAME | ||
| 228 | A 3164631101 | PITMAN ARM |
| 236 | A 3164600905 | DRAG LINK |
| "LEMFOERDER" | ||
| 244 | A 0003303135 | JOINT |
| Repalced by: A 0013300335 | ||
| 244 | A 0013300335 | JOINT |
| ADJUSTABLE | ||
| 260 | A 0003300385 | BOOT |
| Repalced by: A 0003301185 | ||
| 260 | A 0003301185 | BOOT |
| 268 | N 000937018004 | NUT |
| DRAG LINK TO LEVER | ||
| 276 | N 000094004065 | COTTER PIN |
| DRAG LINK TO LEVER | ||
| 284 | A 0003381645 | CLAMP |
| Repalced by: A 4619955044 | ||
| 284 | A 4619955044 | CLAMP |
| DRAG LINK END TO DRAG LINK | ||
| 292 | N 308676010016 | SCREW |
| CLAMP TO DRAG LINK | ||
| 300 | N 913004010010 | NUT |
| CLAMP TO DRAG LINK | ||
| 316 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 316 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 324 | N 000937018004 | NUT |
| DRAG LINK TO LEVER | ||
| 332 | N 000094004065 | COTTER PIN |
| DRAG LINK TO LEVER | ||
