Mercedes-benz | iAUTO.lt

Transporto priemonė: 712 E/31,5; VIN numerio dalis: 688121

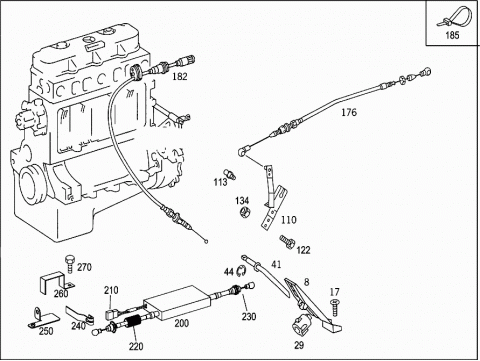

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL

#	Kodas	Pavadinimas
008	A 3843007004	ACCELERATOR PEDAL
008	A 3843007004	ACCELERATOR PEDAL
017	N 000000001145	SCREW
		PEDAL TO CAB FLOOR
		M6X12
017	N 000000001424	SCREW
		PEDAL TO CAB FLOOR
		M6X45
017	N 000965006064	SCREW
		PEDAL TO CAB FLOOR
		M6X45
029	A 1263010141	STOP
		FULL THROTTLE
041	A 3843007625	LEVER
		(PEDAL LEVER)
041	A 6883000125	LEVER
		(PEDAL LEVER)
041	A 6883000125	LEVER
		(PEDAL LEVER)
044	N 006799009002	LOCK PLATE
044	N 006799009002	LOCK PLATE

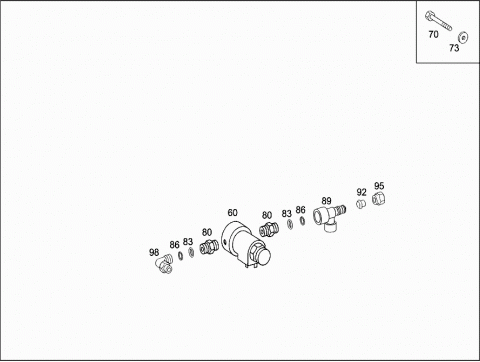

060	A 3889978236	VALVE
060	A 6889977336	VALVE
070	N 910105005010	SCREW
		SOLENOID VALVE TO BRACKET
		M5X10 MM
073	N 912001005100	LOCK
		SOLENOID VALVE TO BRACKET
080	A 3454298136	CONNECTOR
		CONNECTION:
		I II M12X1,5
083	A 0009940103	THRUST RING
		CONNECTION:
		I II
086	A 0019975046	SEAL RING
		CONNECTION:
		I II
089	A 3829907070	T-FITTING
		CONNECTION:
		I
092	N 003861006007	GLAND
		CONNECTION:
		I
095	N 915017006100	UNION NUT
		CONNECTION:
		I
098	N 003952006102	FITTING
		CONNECTION:
		II
110	A 6883007025	LEVER
113	N 071803008200	BALL PIVOT
		B8X4
122	N 000000001422	SCREW
		CONTROL LEVER TO PEDAL LEVER
		M 6X30
122	N 000000001422	SCREW
		CONTROL LEVER TO PEDAL LEVER
		M 6X30
134	N 913023006002	NUT
		CONTROL LEVER TO PEDAL LEVER
134	N 913023006002	NUT
		CONTROL LEVER TO PEDAL LEVER
176	A 6883007130	WIRE CABLE
182	A 6883000032	WIRE CABLE
		IDLING ADJUSTER
182	A 6883008832	WIRE CABLE
		IDLING ADJUSTER
185	A 3459977390	LOOM TIE
185	A 3889977590	LOOM TIE
185	A 3459977590	LOOM TIE
200	A 6883000030	WIRE CABLE
		IN BELL HOUSING
200	A 6883000132	WIRE CABLE
		IN BELL HOUSING
210	A 6955407108	CABLE HARNESS
		MANUAL CONTROL
		TO A 6883000132
220	A 0003010923	CABLE
		ACCELERATOR PEDAL
		TO A 6883000132
230	A 0003010823	CABLE
		INJECTION PUMP SIDE
		TO A 6883000132
240	A 6883000325	LEVER
		IN BELL HOUSING
240	A 6883000225	LEVER
		IN BELL HOUSING
250	A 6883000040	BRACKET
		IN BELL HOUSING
260	A 3823019540	BRACKET
		IN BELL HOUSING
270	N 910105006006	SCREW
		IN BELL HOUSING
