Transporto priemonė: 712 E/31,5; VIN numerio dalis: 688121

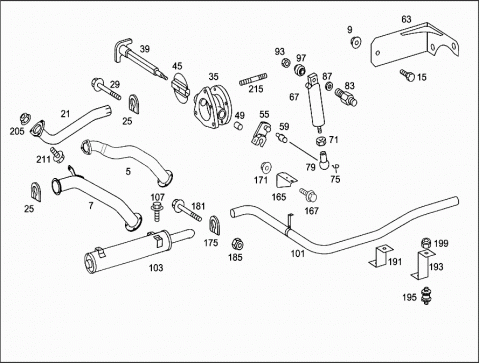

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6884900119 | EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 007 | A 6884900419 | EXHAUST PIPE |
| 007 | A 6884900419 | EXHAUST PIPE |
| 007 | A 6884900419 | EXHAUST PIPE |
| 009 | N 913023010002 | NUT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M10 | ||
| 009 | N 913023010002 | NUT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M10 | ||
| 009 | N 914440008000 | NUT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M8 | ||
| 015 | N 910105010011 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M10X40 | ||
| 015 | N 910105010011 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M10X40 | ||
| 015 | N 000000001153 | SCREW |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M8 X 40 | ||
| 015 | N 910105010001 | SCREW |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M10 X 30 | ||
| 021 | A 6884900019 | EXHAUST PIPE |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 606.5MM | ||
| 021 | A 6884900619 | EXHAUST PIPE |
| 021 | A 6884900619 | EXHAUST PIPE |
| TO EXHAUST GAS TURBOCHARGER | ||
| 543MM | ||
| 021 | A 6884900519 | EXHAUST PIPE |
| 021 | A 6884900919 | EXHAUST PIPE |
| 025 | A 2024900841 | CLAMP |
| TO EXHAUST GAS TURBOCHARGER | ||
| 025 | A 2024900841 | CLAMP |
| TO EXHAUST GAS TURBOCHARGER | ||
| 025 | A 2024900841 | CLAMP |
| TO EXHAUST GAS TURBOCHARGER | ||
| 029 | N 910105012003 | SCREW |
| TO EXHAUST GAS TURBOCHARGER | ||
| M12 X 1.5 X 20 | ||
| 029 | N 910105008060 | SCREW |
| TO EXHAUST GAS TURBOCHARGER | ||
| M8 X 35 | ||
| 029 | N 000933012122 | SCREW |
| TO EXHAUST GAS TURBOCHARGER | ||
| M12 X 30 | ||
| 029 | N 910105012002 | SCREW |
| TO EXHAUST GAS TURBOCHARGER | ||
| M12 X 25 | ||

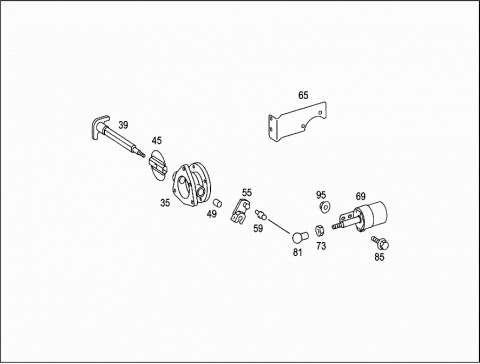

| 035 | A 3741407153 | THROTTLE HOUSING |
| 035 | A 3741407153 | THROTTLE HOUSING |
| 035 | A 3741447112 | THROTTLE HOUSING |
| 039 | A 3741407028 | SHAFT |
| 039 | A 3741407028 | SHAFT |
| 039 | A 3741407028 | SHAFT |
| 045 | A 3741407063 | VALVE |
| 045 | A 3741407063 | VALVE |
| 045 | A 3741407063 | VALVE |
| 049 | A 3761447350 | BUSHING |
| 049 | A 3761447350 | BUSHING |
| 049 | A 3761447350 | BUSHING |
| 055 | A 3661400232 | LEVER |
| 055 | A 3661400232 | LEVER |
| 055 | A 3661400232 | LEVER |
| 059 | N 071803013211 | BALL PIVOT |
| 059 | N 071803013211 | BALL PIVOT |
| 059 | N 071803013211 | BALL PIVOT |
| 063 | A 6884900040 | BRACKET |
| 063 | A 6884900040 | BRACKET |
| 065 | A 6884920441 | BRACKET |
| 067 | A 0004306026 | CYLINDER |
| 067 | A 0004306026 | CYLINDER |
| 067 | A 0004305926 | CYLINDER |
| 069 | A 3741447018 | POWER CYLINDER |
| 071 | N 000934008013 | NUT |
| M8 | ||
| 071 | N 000934008013 | NUT |
| M8 | ||
| 073 | N 000934008000 | NUT |
| 075 | N 071805013403 | CIRCLIP |
| 075 | N 071805013403 | CIRCLIP |
| 079 | A 3769917022 | BALL SOCKET |
| 079 | A 3769917022 | BALL SOCKET |
| 079 | A 4039910222 | BALL SOCKET |
| 081 | N 071805013202 | BALL SOCKET |
| 083 | A 4421440274 | PIN |
| 083 | A 4421440274 | PIN |
| 085 | N 910105008041 | SCREW |
| M8 X 16 | ||
| 087 | A 0039902940 | WASHER |
| 087 | A 0039902940 | WASHER |
| 093 | N 000934008000 | NUT |
| 093 | N 000934008000 | NUT |
| 095 | N 913023008003 | NUT |
| 097 | A 4421440050 | BUSHING |
| 097 | A 4421440050 | BUSHING |

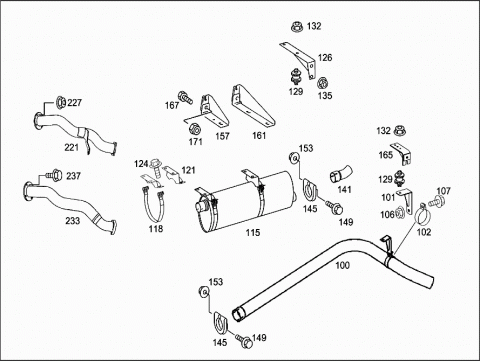

| 100 | A 6884900127 | TAILPIPE |
| REAR EXHAUST PIPE | ||
| 101 | A 6884900240 | BRACKET |
| REAR EXHAUST PIPE REAR PART | ||
| 102 | A 9584920040 | CLAMP |
| REAR EXHAUST PIPE REAR PART | ||
| 89.5MM | ||
| 103 | A 6884907501 | EXHAUST MUFFLER |
| 103 | A 6884907501 | EXHAUST MUFFLER |
| 103 | A 6884907701 | EXHAUST MUFFLER |
| 106 | N 913023010002 | NUT |
| REAR EXHAUST PIPE REAR PART | ||
| M10 | ||
| 107 | N 910105010006 | SCREW |
| M10 X 20 | ||
| 107 | N 910105010006 | SCREW |
| EXHAUST MUFFLER TO SUPPORT | ||
| M10 X 20 | ||
| 107 | N 910105010011 | HEXAGON HEAD BOLT |
| REAR EXHAUST PIPE REAR PART | ||
| M10X40 | ||
| 115 | A 6884901101 | EXHAUST MUFFLER |
| 115 | A 6884901101 | EXHAUST MUFFLER |
| 115 | A 6884901001 | EXHAUST MUFFLER |
| 118 | A 0004900242 | RETAINING STRAP |
| 118 | A 0004900242 | RETAINING STRAP |
| 121 | A 0004910242 | BRACKET |
| 121 | A 0004910242 | BRACKET |
| 124 | N 910105008043 | HEXAGON HEAD BOLT |
| 124 | N 910105008043 | HEXAGON HEAD BOLT |
| 126 | A 6954900140 | BRACKET |
| 126 | A 6954900140 | BRACKET |
| 126 | A 6954900140 | BRACKET |
| 129 | A 3749877139 | RUBBER BUFFER |
| 129 | A 3749877139 | RUBBER BUFFER |
| 129 | A 0019873140 | RUBBER BUFFER |
| 129 | A 0019873140 | RUBBER BUFFER |
| EXHAUST PIPE TO BRACKET ON SIDE MEMBER | ||
| 132 | N 913023010002 | NUT |
| M10 | ||
| 132 | N 913023010002 | NUT |
| M10 | ||
| 132 | N 910112010001 | NUT |
| EXHAUST PIPE TO BRACKET ON SIDE MEMBER | ||
| M10 | ||
| 132 | N 910112010001 | NUT |
| M10 | ||
| 132 | N 910112010001 | NUT |
| M10 | ||
| 135 | N 913023012002 | NUT |
| M12 | ||
| 135 | N 913023010002 | NUT |
| M10 | ||
| 135 | N 913023010002 | NUT |
| EXHAUST PIPE TO BRACKET ON SIDE MEMBER | ||
| M10 | ||
| 141 | A 6954921304 | REAR EXHAUST PIPE |
| 145 | A 6744920040 | CLAMP |
| 145 | A 6744920040 | CLAMP |
| 145 | A 6744920040 | CLAMP |
| 145 | A 9794920340 | CLAMP |
| 149 | N 910105008065 | SCREW |
| M8 X 120 | ||
| 149 | N 910105008062 | HEXAGON HEAD BOLT |
| M8 X 130 | ||
| 149 | N 910105008062 | SCREW |
| M8 X 130 | ||
| 149 | N 910105008062 | SCREW |
| M8 X 130 | ||
| 149 | N 910105008046 | HEXAGON HEAD BOLT |
| M8 X 110 | ||
| 153 | N 913023008003 | NUT |
| M8 | ||
| 153 | N 913023008003 | NUT |
| M8 | ||
| 153 | N 913023008003 | NUT |
| M8 | ||
| 153 | N 913023008003 | NUT |
| M8 | ||
| 157 | A 6884917341 | BRACKET |
| 157 | A 6884917341 | BRACKET |
| 161 | A 6884917441 | BRACKET |
| 161 | A 6884917441 | BRACKET |
| 165 | A 6884917541 | BRACKET |
| EXHAUST PIPE TO BRACKET ON SIDE MEMBER | ||
| 167 | N 910105010001 | HEXAGON HEAD BOLT |
| M10 X 30 | ||
| 167 | N 910105010001 | HEXAGON HEAD BOLT |
| M10 X 30 | ||
| 167 | N 910105010001 | SCREW |
| M10 X 30 | ||
| 171 | N 913023010002 | NUT |
| 171 | N 913023010002 | NUT |
| 171 | N 913023010002 | NUT |
| 175 | A 6734920140 | CLAMP |
| 175 | A 6734920140 | CLAMP |
| 181 | N 910105008046 | HEXAGON HEAD BOLT |
| M8 X 110 | ||
| 181 | N 910105008046 | HEXAGON HEAD BOLT |
| M8 X 110 | ||
| 185 | N 913023008003 | NUT |
| M8 | ||
| 185 | N 913023008003 | NUT |
| M8 | ||
| 191 | A 6884917616 | SUPPORT |
| 191 | A 6884917616 | SUPPORT |
| 193 | A 6884917716 | SUPPORT |
| 193 | A 6884917716 | SUPPORT |
| 195 | A 0019873140 | RUBBER BUFFER |
| 195 | A 0019873140 | RUBBER BUFFER |
| 199 | N 913023010002 | NUT |
| 199 | N 910112010001 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 205 | N 914440008000 | NUT |
| FROM TURBOCHARGER TO EXHAUST MUFFLER | ||
| M8 | ||
| 205 | N 914440008000 | NUT |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M8 | ||
| 205 | N 913023010002 | NUT |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M10 | ||
| 205 | N 914440008000 | NUT |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M8 | ||
| 205 | N 913023010002 | NUT |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M10 | ||
| 211 | N 304017008040 | SCREW |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M8 X 40 | ||
| 211 | N 910105010001 | SCREW |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M10 X 30 | ||
| 211 | N 000000001153 | SCREW |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M8 X 40 | ||
| 211 | N 910105010007 | SCREW |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M10 X 35 | ||
| 215 | N 000939010127 | STUD BOLT |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M10 X 20 | ||
| 215 | N 000939010127 | STUD BOLT |
| EXHAUST PIPE FLANGE TO THROTTLE HOUSING | ||
| M10 X 20 | ||
| 221 | A 6884900719 | EXHAUST PIPE |
| 227 | N 914440008000 | NUT |
| M8 | ||
| 227 | N 914440008000 | NUT |
| M8 | ||
| 233 | A 6884900819 | EXHAUST GAS LINE |
| 237 | N 000933012123 | SCREW |
| M12 X 20 |
