Transporto priemonė: 712 E/31,5; VIN numerio dalis: 688121

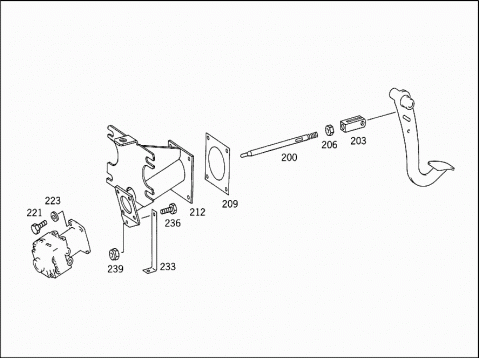

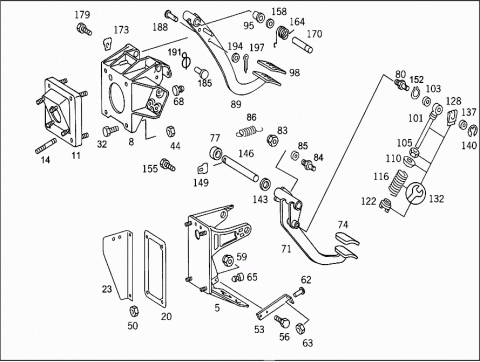

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6882940201 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 005 | A 6882940201 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 005 | A 6882940201 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | A 3842947001 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 008 | A 3842947001 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 008 | A 3842947001 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 011 | A 3844307210 | BRACKET |
| BRAKE VALVE | ||
| 011 | A 3844307010 | BRACKET |
| BRAKE VALVE | ||
| 014 | N 000835008086 | STUD |
| M8X25 | ||
| 014 | A 6732940370 | STUD |
| M8X51 | ||
| 014 | A 6882920170 | STUD |
| M8X37 | ||
| 014 | A 6882920170 | STUD |
| M8X37 | ||
| 020 | A 6452940280 | GASKET |
| CLUTCH PEDAL BEARING BRACKET | ||
| 020 | A 6452940280 | GASKET |
| CLUTCH PEDAL BEARING BRACKET | ||
| 020 | A 6452940280 | GASKET |
| CLUTCH PEDAL BEARING BRACKET | ||
| 020 | A 6452940280 | GASKET |
| CLUTCH PEDAL BEARING BRACKET | ||
| 023 | A 6884668440 | BRACKET |
| FLUID RESERVOIR | ||
| 032 | N 000000001153 | SCREW |
| CLUTCH PEDAL BEARING BRACKET TO CAB | ||
| M8X40 MM | ||
| 044 | N 910112008003 | NUT |
| BRAKE PEDAL BEARING BRACKET TO CAB | ||
| Repalced by: N 913023008003 | ||
| 044 | N 913023008003 | NUT |
| BRAKE PEDAL BEARING BRACKET TO CAB | ||
| 044 | N 910112008000 | NUT |
| BRAKE PEDAL BEARING BRACKET TO CAB | ||
| 050 | N 910112008003 | NUT |
| CLUTCH PEDAL BEARING BRACKET TO CAB | ||
| Repalced by: N 913023008003 | ||
| 050 | N 913023008003 | NUT |
| CLUTCH PEDAL BEARING BRACKET TO CAB | ||
| 050 | N 910112008000 | NUT |
| CLUTCH PEDAL BEARING BRACKET TO CAB | ||
| 050 | N 910112008000 | NUT |
| CLUTCH PEDAL BEARING BRACKET TO CAB | ||
| 050 | N 910112008000 | NUT |
| CLUTCH PEDAL BEARING BRACKET TO CAB | ||
| 053 | A 3842907032 | STOP |
| (ANGLE) | ||
| 053 | A 3842907032 | STOP |
| (ANGLE) | ||
| 056 | N 000000001147 | SCREW |
| STOP TO BEARING BRACKET | ||
| 056 | N 000000001147 | SCREW |
| STOP TO BEARING BRACKET | ||
| 059 | N 913023006002 | NUT |
| STOP TO BEARING BRACKET | ||
| 059 | N 913023006002 | NUT |
| STOP TO BEARING BRACKET | ||
| 062 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| M8 | ||
| 062 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| M8 | ||
| 063 | N 913023008003 | NUT |
| CLUTCH PEDAL | ||
| 063 | N 913023008003 | NUT |
| CLUTCH PEDAL | ||
| 065 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 065 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 065 | A 6882917186 | STOP |
| CLUTCH PEDAL | ||
| 065 | A 6882917286 | STOP |
| CLUTCH PEDAL | ||
| 068 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 068 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 068 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 071 | A 6882907216 | PEDAL |
| CLUTCH | ||
| 071 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 071 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 071 | A 6952900316 | CLUTCH PEDAL |
| CLUTCH | ||
| 071 | A 6952907216 | PEDAL |
| CLUTCH | ||
| 074 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 074 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 077 | A 0019816310 | NEEDLE BEARING |
| 077 | A 0019816310 | NEEDLE BEARING |
| 077 | A 0019816310 | NEEDLE BEARING |
| 077 | A 0109818010 | NEEDLE BEARING |
| 077 | A 0109818010 | NEEDLE BEARING |
| 077 | A 0109818010 | NEEDLE BEARING |
| 080 | A 6882910074 | PIN |
| 39 MM (M10) | ||
| 080 | A 6882910074 | PIN |
| 39 MM (M10) | ||
| 080 | A 3862917074 | PIN |
| 083 | N 913002010001 | NUT |
| 083 | N 913002010001 | NUT |
| 083 | N 913002010001 | NUT |
| 084 | A 6959910015 | HEADED PIN |
| 084 | A 6959910015 | HEADED PIN |
| 085 | N 000000001044 | WASHER |
| 085 | N 000000001044 | WASHER |
| 086 | A 6939930010 | SPRING |
| Repalced by: A 6939930110 | ||
| 086 | A 6939930110 | COMPENSATING SPRING |
| 089 | A 3842907018 | PEDAL |
| BRAKE | ||
| 089 | A 3842907018 | PEDAL |
| BRAKE | ||
| 089 | A 3842907018 | PEDAL |
| BRAKE | ||
| 095 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 095 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 095 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 098 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 098 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 098 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 098 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 098 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 101 | A 3822908419 | ROD |
| 101 | A 3822908419 | ROD |
| 101 | A 3822908419 | BEARING BRACKET |
| 103 | A 0059814410 | NEEDLE BEARING |
| 103 | A 0059814410 | NEEDLE BEARING |
| 103 | A 0059814410 | NEEDLE BEARING |
| 103 | A 0059813810 | NEEDLE BEARING |
| 103 | A 0059813810 | NEEDLE BEARING |
| 103 | A 0059813810 | NEEDLE BEARING |
| 103 | A 0089811210 | NEEDLE BEARING |
| 103 | A 0089811210 | NEEDLE BEARING |
| 103 | A 0089811210 | NEEDLE BEARING |
| 103 | A 0139818210 | NEEDLE BEARING |
| 103 | A 0139818210 | NEEDLE BEARING |
| 103 | A 0139818210 | NEEDLE BEARING |
| 105 | N 000439010221 | NUT |
| 105 | N 000439010221 | NUT |
| 105 | N 000439010221 | NUT |
| 110 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 110 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 110 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 110 | A 6732910291 | SPRING RETAINER |
| TOP | ||
| 110 | A 6732910291 | SPRING RETAINER |
| TOP | ||
| 116 | A 6882917092 | SPRING |
| CLUTCH PEDAL RESET | ||
| 116 | A 6882917092 | SPRING |
| CLUTCH PEDAL RESET | ||
| 116 | A 3869937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 116 | A 9709930801 | SPRING |
| CLUTCH PEDAL RESET | ||
| 122 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 122 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 122 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 128 | A 6459880178 | CLIP |
| 128 | A 6459880178 | CLIP |
| 128 | A 6459880178 | CLIP |
| 132 | A 3822900093 | SPRING |
| PARTS KIT | ||
| 137 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 137 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 137 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 140 | N 006799006002 | LOCK PLATE |
| PUSH ROD TO CLUTCH PEDAL | ||
| 143 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 143 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 143 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 146 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 138 MM | ||
| 146 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 138 MM | ||
| 146 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 138 MM | ||
| 149 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 149 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 149 | A 6732920073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 152 | N 000471008001 | LOCK RING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 152 | N 000471008001 | LOCK RING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 152 | N 000471008001 | LOCK RING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 155 | N 000000001146 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M6X16 MM | ||
| 155 | N 000000001146 | HEXALOBULAR BOLT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M6X16 MM | ||
| 155 | N 000000001146 | HEXALOBULAR BOLT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M6X16 MM | ||
| 158 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 158 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 158 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 164 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 164 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 164 | A 3849937020 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 170 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 170 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 170 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 173 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 173 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 173 | A 6732920073 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 179 | N 000000001145 | HEXALOBULAR BOLT |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M6X12MM | ||
| 179 | N 000000001145 | HEXALOBULAR BOLT |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M6X12MM | ||
| 179 | N 000000001145 | SCREW |
| BRAKE PEDAL TO BEARING BRACKET | ||
| M6X12 MM | ||
| 185 | A 1262920074 | PIN |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 188 | A 3529910007 | PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 188 | A 3529910007 | PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 191 | N 912011102000 | LOCK |
| BRAKE PEDAL TO BRAKE BOOSTER | ||
| 194 | N 000433010504 | WASHER |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 194 | N 000433010504 | WASHER |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 197 | N 000094003238 | COTTER PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 197 | N 000094003238 | COTTER PIN |
| BRAKE PEDAL TO BRAKE VALVE | ||
| 200 | A 6884260230 | ROD |
| 275 MM | ||
| 200 | A 3842927032 | ROD |
| 115 MM | ||
| 203 | A 3849967001 | YOKE |
| 203 | A 3849967001 | YOKE |
| 206 | N 910112012001 | NUT |
| 206 | N 910112012001 | NUT |
| 209 | A 6884310080 | GASKET |
| BRACKET TO FIRE WALL AND TO PEDAL BEARING BRACKET | ||
| 209 | A 6884310080 | GASKET |
| BRACKET TO FIRE WALL AND TO PEDAL BEARING BRACKET | ||
| 212 | A 6884308010 | BRACKET |
| 212 | A 6884308010 | BRACKET |
| 221 | N 910105008039 | SCREW |
| BRAKE VALVE TO BRACKET | ||
| M 8X25 | ||
| 223 | N 000125008417 | WASHER |
| BRAKE VALVE TO BRACKET | ||
| A 8,4 | ||
| 233 | A 6884310395 | WEB |
| 236 | N 910105008016 | SCREW |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| M8X35 MM | ||
| 239 | N 913023008003 | NUT |
| STAY TO BRACKET AND TO SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP 25 | ||
