Transporto priemonė: 814; VIN numerio dalis: 674019

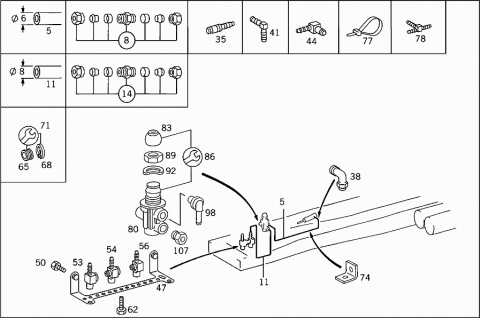

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| EXHAUST BRAKE VALVE LINE CONNECTION | ||
| 005 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 005 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| 008 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 011 | A 0089979082 | HOSE |
| Repalced by: A 0009872727 | ||
| 011 | A 0009872727 | PLASTIC PIPE |
| 6X8 MM | ||
| 014 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 035 | A 0009906578 | CONNECTOR |
| Repalced by: A 0029905378 | ||
| 035 | A 0029905378 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 035 | A 0009906678 | CONNECTOR |
| Repalced by: A 0029905478 | ||
| 035 | A 0029905478 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 038 | A 0019909871 | ELBOW FITTING |
| POWER CYLINDER | ||
| A 0029905271 | ELBOW FITTING | |
| POWER CYLINDER | ||
| 041 | A 0019907871 | ELBOW FITTING |
| Repalced by: A 0049905271 | ||
| 041 | A 0049905271 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 044 | A 0019907971 | ELBOW FITTING |
| Repalced by: A 0049905371 | ||
| 044 | A 0049905371 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 047 | A 6734302010 | BRACKET |
| DISTRIBUTOR TO CAB | ||
| 050 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 050 | N 304017006034 | SCREW |
| DISTRIBUTOR TO CAB | ||
| 053 | A 6459900178 | CONNECTOR |
| DISTRIBUTOR INPUT, COMPRESSED AIR LINE PLUG CONNECTION | ||
| TO 008 997 90 82 | ||
| 054 | A 6459900478 | CONNECTOR |
| DISTRIBUTOR MIDDLE, COMPRESSED AIR LINE PLUG CONNECTION; WITH THROTTLE | ||
| TO 008 997 60 82 | ||
| 056 | A 6459901178 | CONNECTOR |
| DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION | ||
| TO 008 997 60 82 | ||
| 062 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 062 | N 304017006034 | SCREW |
| CONNECTOR TO CAB | ||
| M 6X10 | ||
| 065 | A 0009940047 | SEAL RING |
| Repalced by: A 0009940747 | ||
| 065 | A 0009940747 | LOCK RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 068 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 068 | A 0009945448 | LOCK |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 071 | A 6739970045 | REPAIR KIT |
| Repalced by: A 0309971748 | ||
| 071 | A 0309971748 | REPAIR KIT |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 074 | A 3852670040 | BRACKET |
| COMPRESSED AIR LINE TO BELL HOUSING | ||
| 077 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| EXHAUST BRAKE VALVE | ||
| 078 | A 0009907990 | T-FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 078 | A 0004294237 | DISTRIBUTOR |
| 3/2-WAY-VALVE-TO-CYLINDER HOSE | ||
| 080 | A 0039972536 | VALVE |
| ENGINE SHUT-OFF | ||
| WABCO | ||
| 080 | A 0039972336 | VALVE |
| ENGINE SHUT-OFF | ||
| BOSCH | ||
| 083 | A 0004340586 | CUP |
| WABCO | ||
| 086 | A 0025869843 | REPAIR KIT |
| VALVE | ||
| WABCO | ||
| 086 | A 0025865343 | REPAIR KIT |
| VALVE | ||
| BOSCH | ||
| 089 | N 074305026202 | NUT |
| VALVE TO CAB | ||
| 092 | N 000137027201 | SPRING WASHER |
| VALVE TO CAB | ||
| 098 | A 6233280365 | PIPE SOCKET |
| 3/2-WAY VALVE;CONNECTION: | ||
| "30" | ||
| 107 | A 0009970834 | UNION SCREW |
| Repalced by: A 0009973734 | ||
| 107 | A 0009973734 | UNION SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,20";M 16 | ||
