Transporto priemonė: 814; VIN numerio dalis: 674019

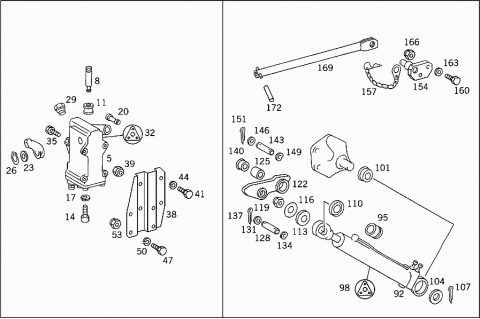

Grupė: 55 HYDRAULIC SYSTEM - 030 HYDRAULIC SYSTEM USED FOR CAB TILTING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005538901 | PUMP |
| HAND PUMP | ||
| 005 | A 0005537601 | PUMP |
| HAND PUMP | ||
| 008 | A 0005532590 | PISTON |
| 011 | A 0005504655 | VALVE |
| 014 | N 000912008111 | SCREW |
| Repalced by: N 000000000190 | ||
| 014 | N 000000000190 | SCREW |
| BOX COVER | ||
| 017 | N 912004008102 | LOCK WASHER |
| BOX COVER | ||
| 020 | A 0005530403 | FILTER |
| 023 | N 000988020011 | FITTED WASHER |
| 026 | N 000471020001 | LOCK RING |
| 029 | A 0009901610 | SCREW |
| OIL REFILLING | ||
| 032 | A 0005502783 | GASKET KIT |
| HAND PUMP | ||
| 032 | A 0005502683 | GASKET KIT |
| HAND PUMP | ||
| 035 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 035 | N 304017010002 | SCREW |
| HAND PUMP TO BRACKET | ||
| 038 | A 6745500039 | MOUNTING PLATE |
| HAND PUMP | ||
| 039 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 039 | N 910113010000 | NUT |
| HAND PUMP TO BRACKET | ||
| 041 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 041 | N 304017010028 | HEXAGON HEAD BOLT |
| HAND PUMP TO PLATE | ||
| 044 | N 912004010102 | LOCK WASHER |
| HAND PUMP TO PLATE | ||
| 047 | N 000933010164 | SCREW |
| PLATE TO CONSOLE | ||
| 050 | N 912004010102 | LOCK WASHER |
| PLATE TO CONSOLE | ||
| 053 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 053 | N 910113010000 | NUT |
| PLATE TO CONSOLE | ||
| 056 | A 6735530082 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 056 | A 6745530982 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 056 | A 6745531982 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 056 | A 6745531782 | HOSE |
| FROM HAND PUMP TO HYDRAULIC CYLINDER | ||
| 059 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 062 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 062 | A 0019901667 | SEAL CONE |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 065 | A 3129970581 | GROMMET |
| HIGH PRESSURE HOSE | ||
| 068 | A 3852670040 | BRACKET |
| AT SIDE MEMBER | ||
| 071 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 071 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 074 | A 6739901040 | WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 077 | N 910113012002 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 089 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 092 | A 6745530405 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 092 | A 6745530205 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| 095 | A 0005531628 | GUIDE |
| 098 | A 0005501707 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| 098 | A 0005502607 | REPAIR KIT |
| HYDRAULIC CYLINDER | ||
| 101 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 104 | N 000125025005 | WASHER |
| Repalced by: N 000125025008 | ||
| 104 | N 000125025008 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 107 | N 000094006317 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 110 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 113 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 113 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO LEVER | ||
| 116 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 116 | A 6745530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 119 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 119 | N 910113016002 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| 122 | A 6745500113 | LEVER |
| HYDRAULIC CYLINDER TO CAB | ||
| 125 | A 6745530250 | BUSHING |
| 128 | A 6745530174 | PIN |
| LEVER TO CAB SIDE MEMBER | ||
| 131 | N 000125025005 | WASHER |
| Repalced by: N 000125025008 | ||
| 131 | N 000125025008 | WASHER |
| LEVER TO CAB SIDE MEMBER | ||
| 134 | N 900055024001 | SPRING WASHER |
| LEVER TO CAB SIDE MEMBER | ||
| 137 | N 000094006308 | COTTER PIN |
| LEVER TO CAB SIDE MEMBER | ||
| 140 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO LEVER | ||
| 143 | A 6745530174 | PIN |
| HYDRAULIC CYLINDER TO LEVER | ||
| 146 | N 000125025005 | WASHER |
| Repalced by: N 000125025008 | ||
| 146 | N 000125025008 | WASHER |
| HYDRAULIC CYLINDER TO LEVER | ||
| 149 | N 900055024001 | SPRING WASHER |
| HYDRAULIC CYLINDER TO LEVER | ||
| 151 | N 000094006308 | COTTER PIN |
| HYDRAULIC CYLINDER TO LEVER | ||
| 154 | A 6745500038 | SUPPORT |
| CAB RETAINING STRUT | ||
| 154 | A 6745500138 | SUPPORT |
| CAB RETAINING STRUT | ||
| 157 | A 3805900073 | LOCK |
| CAB RETAINING STRUT | ||
| 160 | N 000961012122 | SCREW |
| CAB RETAINING STRUT | ||
| 163 | A 6739901040 | WASHER |
| SUPPORT TO FRAME | ||
| 166 | N 910113012002 | NUT |
| SUPPORT TO FRAME | ||
| 169 | A 6155900121 | STAY |
| SUPPORT TO FRAME | ||
| 172 | N 001471010000 | GROOVED PIN |
