Transporto priemonė: 814 F; VIN numerio dalis: 674086

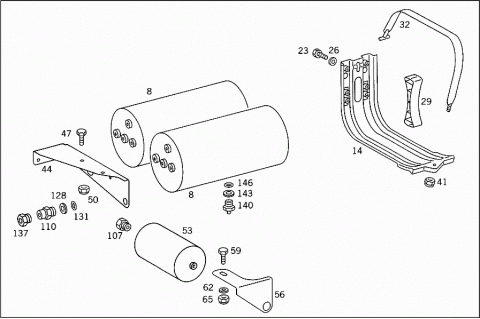

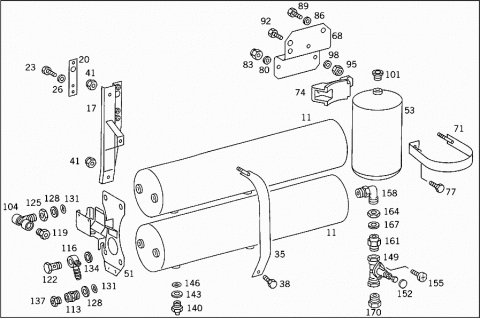

Grupė: 42 BRAKES - 310 AIR RESERVOIR,DRAIN VALVE
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 0034322001 | RESERVOIR |
| Repalced by: A 0054322201 | ||
| 008 | A 0054322201 | RESERVOIR |
| AIR RESERVOIRS I AND II | ||
| 30 L; TO VOSS 232 | ||
| 011 | A 0014328901 | RESERVOIR |
| AIR RESERVOIRS I AND II | ||
| 5/25 L | ||
| 014 | A 6734300411 | CONSOLE |
| AIR RESERVOIR TO FRAME | ||
| 017 | A 6764300039 | SUPPORT |
| AIR RESERVOIR TO FRAME | ||
| 020 | A 6744320019 | BASE |
| SUPPORT TO FRAME SIDE MEMBER | ||
| 023 | N 000961012151 | SCREW |
| AIR RESERVOIR TO FRAME SIDE MEMBER | ||
| M 12X1.5X30 | ||
| 023 | N 000961012097 | SCREW |
| AIR RESERVOIR TO FRAME SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 023 | N 000961012122 | SCREW |
| AIR RESERVOIR TO FRAME SIDE MEMBER | ||
| M 12X1.5X40 | ||
| 023 | N 000961012107 | SCREW |
| Repalced by: N 308676012011 | ||
| 023 | N 308676012011 | SCREW |
| 026 | N 001440013001 | WASHER |
| AIR RESERVOIR TO FRAME SIDE MEMBER | ||
| 026 | A 6739901040 | WASHER |
| AIR RESERVOIR TO FRAME SIDE MEMBER | ||
| 026 | A 1362240566 | ADJUSTING WASHER |
| CONSOLE TO FRAME SIDE MEMBER | ||
| 029 | A 3354320218 | BASE |
| AIR RESERVOIR TO CONSOLE | ||
| 032 | A 6734300240 | STRAP |
| AIR RESERVOIR TO CONSOLE | ||
| 035 | A 6154300040 | STRAP |
| AIR RESERVOIR TO CONSOLE | ||
| 038 | N 000933010105 | SCREW |
| AIR RESERVOIR TO SUPPORT | ||
| 041 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 041 | N 910113010000 | NUT |
| AIR RESERVOIR TO CONSOLE | ||
| 041 | A 0009906550 | NUT |
| AIR RESERVOIR TO CONSOLE | ||
| 044 | A 6734210094 | BRACKET |
| AIR RESERVOIR | ||
| 047 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 050 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 050 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 051 | A 6764300139 | SUPPORT |
| (PROTECTION AGAINST TORSION) | ||
| A 6764300239 | SUPPORT | |
| (PROTECTION AGAINST TORSION) | ||
| 053 | A 0034320301 | RESERVOIR |
| AIR RESERVOIR | ||
| 4 L: EURO | ||
| 056 | A 6734210294 | BRACKET |
| AIR RESERVOIR | ||
| 059 | N 000933010128 | SCREW |
| BRACKET TO CONSOLE | ||
| 062 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 062 | N 000125010532 | WASHER |
| BRACKET TO CONSOLE | ||
| 065 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 065 | N 910113010000 | NUT |
| BRACKET TO CONSOLE | ||
| 068 | A 6764320240 | BRACKET |
| AIR RESERVOIR | ||
| 071 | A 6164300340 | STRAP |
| AIR RESERVOIR | ||
| 074 | A 6454320118 | BASE |
| AIR RESERVOIR TO BRACKET | ||
| 077 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 077 | N 304017008021 | SCREW |
| AIR RESERVOIR TO BRACKET | ||
| 080 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 080 | N 000125008443 | WASHER |
| AIR RESERVOIR TO BRACKET | ||
| 083 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 083 | N 913004008001 | NUT |
| AIR RESERVOIR TO BRACKET | ||
| 086 | A 6739900940 | WASHER |
| Repalced by: N 006902011100 | ||
| 086 | N 006902011100 | WASHER |
| Repalced by: N 006902011102 | ||
| 086 | N 006902011102 | WASHER |
| AT SIDE MEMBER | ||
| 086 | A 6739901040 | WASHER |
| AT SIDE MEMBER | ||
| 089 | N 000933010105 | SCREW |
| AT SIDE MEMBER | ||
| M 10X25 | ||
| 092 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 092 | N 304017008021 | SCREW |
| AT SIDE MEMBER | ||
| M 8X22 | ||
| 092 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 092 | N 304017010002 | SCREW |
| AT SIDE MEMBER | ||
| M 10X30 | ||
| 092 | N 000961012151 | SCREW |
| AT SIDE MEMBER | ||
| M 12X1.5X30 | ||
| 095 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 095 | N 913004008001 | NUT |
| AT SIDE MEMBER | ||
| 095 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 095 | N 910113010000 | NUT |
| AT SIDE MEMBER | ||
| 095 | N 910113012002 | NUT |
| AT SIDE MEMBER | ||
| M 12X1.5 | ||
| 098 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 098 | N 009021008213 | WASHER |
| AT SIDE MEMBER | ||
| Repalced by: N 000000003250 | ||
| 098 | N 000000003250 | WASHER |
| AT SIDE MEMBER | ||
| 101 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 101 | N 000908022011 | SCREW PLUG |
| AIR RESERVOIR | ||
| 4 L | ||
| 101 | N 000908022011 | SCREW PLUG |
| AIR RESERVOIR,CONNECTION: | ||
| "52" | ||
| 104 | A 0029902770 | T-FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "11" | ||
| 104 | A 0029902770 | T-FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "21" | ||
| 104 | A 0029902770 | T-FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "22" | ||
| A 0059979072 | FITTING | |
| AIR RESERVOIR,CONNECTION: | ||
| "22" | ||
| 107 | A 0059978272 | FITTING |
| AIR RESERVOIR | ||
| 110 | A 0059978772 | FITTING |
| AIR RESERVOIR | ||
| 113 | A 0059971172 | FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "12" | ||
| 113 | A 0059971172 | FITTING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "21,22" | ||
| 113 | A 0059971172 | FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "11" | ||
| A 0059971372 | FITTING | |
| AIR RESERVOIR,CONNECTION: | ||
| "21" | ||
| 113 | A 0059977672 | FITTING |
| AIR RESERVOIR | ||
| 116 | A 0019900788 | BANJO UNION |
| AIR RESERVOIR,CONNECTIONS: | ||
| "41,42" | ||
| 119 | A 0009905168 | FITTING |
| AIR RESERVOIR,CONNECTIONS: | ||
| "41,42" | ||
| 122 | N 915036012203 | HOLLOW SCREW |
| AIR RESERVOIR,CONNECTIONS: | ||
| "41,42" | ||
| 125 | N 074305022202 | NUT |
| AIR RESERVOIR | ||
| 128 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 128 | A 0009940203 | THRUST RING |
| AIR RESERVOIR | ||
| 131 | A 0009870446 | O-RING |
| AIR RESERVOIR | ||
| 134 | N 007603016401 | SEAL RING |
| AIR RESERVOIR | ||
| 137 | A 0009970834 | UNION SCREW |
| Repalced by: A 0009973734 | ||
| 137 | A 0009973734 | UNION SCREW |
| AIR RESERVOIR | ||
| M 16 | ||
| 137 | A 0009970934 | UNION SCREW |
| AIR RESERVOIR | ||
| M 22 | ||
| 140 | A 0004321107 | VALVE |
| DRAIN | ||
| Repalced by: A 0004322407 | ||
| 140 | A 0004322407 | DRAIN VALVE |
| DRAIN | ||
| Repalced by: A 0004322107 | ||
| 140 | A 0004322107 | DRAIN VALVE |
| DRAIN | ||
| 140 | A 0004322107 | VALVE |
| DRAIN | ||
| 140 | A 0004322407 | VALVE |
| DRAIN | ||
| Repalced by: A 0004322107 | ||
| 140 | A 0004322107 | DRAIN VALVE |
| DRAIN | ||
| 143 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 143 | A 0009940203 | THRUST RING |
| DRAIN VALVE TO AIR RESERVOIR | ||
| 146 | A 0009870446 | O-RING |
| DRAIN VALVE TO AIR RESERVOIR | ||
| 149 | A 0034290844 | VALVE |
| (OVERFLOW VALVE) | ||
| GRAU | ||
| 149 | A 0034290944 | VALVE |
| (OVERFLOW VALVE) | ||
| WABCO | ||
| 152 | A 0004290945 | DIAPHRAGM |
| WABCO | ||
| 152 | A 0004290745 | DIAPHRAGM |
| GRAU | ||
| 155 | N 007985006190 | SCREW |
| WABCO | ||
| 158 | A 0004294638 | ELBOW FITTING |
| AIR RESERVOIR,CONNECTION: | ||
| "52" | ||
| 161 | A 0049978272 | FITTING |
| OVERFLOW VALVE,CONNECTIONS: | ||
| "11,12" | ||
| 164 | N 074305022202 | NUT |
| OVERFLOW VALVE TO AIR RESERVOIR | ||
| 167 | N 007603022404 | SEAL RING |
| OVERFLOW VALVE,CONNECTIONS: | ||
| "11,12" | ||
| 170 | A 0009970934 | UNION SCREW |
| OVERFLOW VALVE,CONNECTIONS: | ||
| "11,12" | ||
