Transporto priemonė: 814 F; VIN numerio dalis: 674086

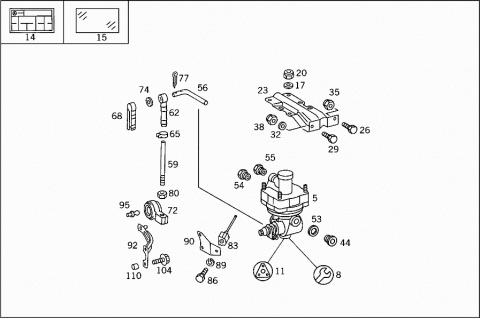

Grupė: 42 BRAKES - 390 BRAKE POWER REGULATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0014318312 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| WABCO | ||
| 005 | A 0014318712 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| BOSCH | ||
| 005 | A 0014318112 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| KNORR | ||
| 005 | A 0024311612 | BRAKE PRESSURE REGULATOR |
| LOAD-DEPENDING BRAKE | ||
| WABCO;042 0 | ||
| 008 | A 0004307560 | REPAIR KIT |
| WABCO | ||
| 011 | A 0004301007 | REPAIR KIT |
| KNORR | ||
| 011 | A 0004301868 | REPAIR KIT |
| GASKETS | ||
| BOSCH | ||
| 014 | A 6735844421 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 014 | A 6745846921 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 014 | A 6745845621 | GUIDE SIGN |
| SA 24770/30,ALB 042 0,WABCO | ||
| 014 | A 6735844121 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 014 | A 6745845421 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 015 | A 3875840055 | ADHESIVE FOIL |
| LOAD-DEPENDING BRAKE | ||
| 017 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 017 | N 000125008443 | WASHER |
| BRAKE POWER REGULATOR TO CONSOLE | ||
| 020 | N 913004008004 | NUT |
| BRAKE POWER REGULATOR TO CONSOLE | ||
| 023 | A 6754310140 | BRACKET |
| BRAKE BOOSTER ASSEMBLY | ||
| 023 | A 6734311640 | BRACKET |
| BRAKE BOOSTER ASSEMBLY | ||
| 026 | N 000933010328 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 029 | N 000961012069 | SCREW |
| Repalced by: N 308676012015 | ||
| 029 | N 308676012015 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| M 12X45 | ||
| 029 | N 000961012107 | SCREW |
| Repalced by: N 308676012011 | ||
| 029 | N 308676012011 | SCREW |
| 032 | A 6739901040 | WASHER |
| BRACKET TO FRAME SIDE MEMBER | ||
| 035 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 035 | N 910113010000 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 038 | N 910113012002 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 044 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 044 | N 000908022011 | SCREW PLUG |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "20" | ||
| 053 | N 007603022404 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "20" | ||
| 054 | A 0009970934 | UNION SCREW |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "10,20" | ||
| 055 | A 0009970834 | UNION SCREW |
| Repalced by: A 0009973734 | ||
| 055 | A 0009973734 | UNION SCREW |
| BRAKE POWER REGULATOR,CONNECTIONS: | ||
| "40" | ||
| 056 | A 6744310039 | LEVER |
| BRAKE POWER REGULATOR CONTROL | ||
| 059 | N 900331008420 | PULL ROD |
| BRAKE POWER REGULATOR CONTROL | ||
| 062 | A 0004310735 | CONNECTOR |
| PULL ROD TO LEVER | ||
| 065 | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 065 | N 000000000665 | CLAMP |
| CONNECTOR TO ROD | ||
| 068 | A 6249950065 | CLAMP |
| CONNECTOR TO ROD | ||
| 072 | A 0009918222 | BALL SOCKET |
| BRAKE POWER REGULATOR CONTROL | ||
| 074 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 074 | N 000125008443 | WASHER |
| CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER | ||
| 077 | N 000094002077 | COTTER PIN |
| CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER | ||
| 080 | N 304032008006 | NUT |
| BRAKE POWER REGULATOR CONTROL | ||
| 083 | A 0004311118 | METAL SPRING BELLOWS |
| 086 | N 000961012047 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| 089 | N 912004012100 | LOCK WASHER |
| METAL SPRING BELLOWS TO BRACKET | ||
| 090 | A 6734312940 | BRACKET |
| METAL SPRING BELLOWS | ||
| 092 | A 6734310240 | BRACKET |
| BRAKE POWER REGULATOR CONTROL | ||
| 095 | A 0009910420 | BALL PIVOT |
| 104 | N 914112010002 | SCREW |
| BRACKET TO REAR AXLE | ||
| 110 | A 3094310151 | SPACER RING |
| BRACKET TO REAR AXLE | ||
