Transporto priemonė: 814 LO; VIN numerio dalis: 674478

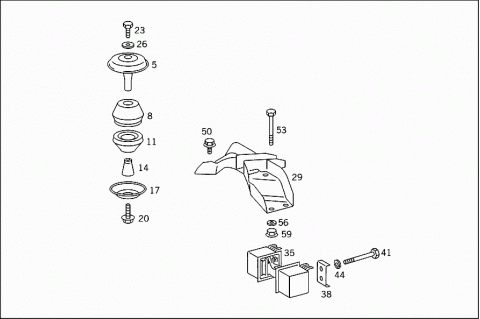

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6742400114 | BEARING SHELL |
| FRONT TOP | ||
| 008 | A 0002413613 | RUBBER MOUNTING |
| FRONT TOP | ||
| 011 | A 0002414113 | RUBBER MOUNTING |
| FRONT BOTTOM | ||
| 014 | A 6732410326 | INTERMEDIATE PIECE |
| FRONT | ||
| 017 | A 6742410236 | BEARING SHELL |
| FRONT BOTTOM | ||
| 020 | A 0029903504 | SCREW |
| RUBBER MOUNTING TO FRONT CONSOLE | ||
| 023 | N 000960014235 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 026 | A 3379900440 | WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 029 | A 6732400002 | ENGINE SUPPORT |
| RUBBER MOUNT | ||
| 035 | A 6732421113 | RUBBER MOUNTING |
| REAR | ||
| 035 | A 6732421513 | RUBBER MOUNTING |
| REAR | ||
| 035 | A 6732421713 | RUBBER MOUNTING |
| REAR | ||
| 038 | A 6732420132 | REINFORCEMENT |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 041 | A 0029902604 | SCREW |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 044 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 050 | N 910105016021 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| 053 | N 000960018111 | SCREW |
| Repalced by: N 308676018010 | ||
| 053 | N 308676018010 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| M 18X70 | ||
| 056 | A 6209900040 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 059 | N 910113018003 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
