Transporto priemonė: 814 LO; VIN numerio dalis: 674478

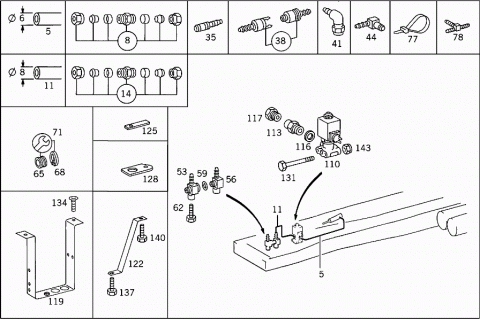

Grupė: 43 EXHAUST BRAKE - 050 ENGINE SHUT-OFF
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| LINE CONNECTION | ||
| 005 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| 008 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 011 | A 0009872727 | PLASTIC PIPE |
| 6X8 MM | ||
| 014 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 035 | A 0009906678 | CONNECTOR |
| Repalced by: A 0029905478 | ||
| 035 | A 0029905478 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 038 | A 0019976289 | PLUG |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 041 | A 0029905271 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 041 | A 0019907871 | ELBOW FITTING |
| Repalced by: A 0049905271 | ||
| 041 | A 0049905271 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 044 | A 0019907971 | ELBOW FITTING |
| Repalced by: A 0049905371 | ||
| 044 | A 0049905371 | ELBOW FITTING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| A 0019909871 | ELBOW FITTING | |
| EXHAUST BRAKE CYLINDER,CONNECTION: | ||
| "10" | ||
| 053 | A 6459900478 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 056 | A 6459901178 | CONNECTOR |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| 059 | A 0149977648 | SEAL RING |
| 6.8X2.5 MM | ||
| 062 | A 0019901104 | SCREW |
| Repalced by: N 304017006018 | ||
| 062 | N 304017006018 | SCREW |
| CONNECTOR TO CAB | ||
| 065 | A 0009940047 | SEAL RING |
| Repalced by: A 0009940747 | ||
| 065 | A 0009940747 | LOCK RING |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 068 | A 0009941248 | LOCK |
| Repalced by: A 0009945448 | ||
| 068 | A 0009945448 | LOCK |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 071 | A 6739970045 | REPAIR KIT |
| Repalced by: A 0309971748 | ||
| 071 | A 0309971748 | REPAIR KIT |
| COMPRESSED-AIR-LINE PLUG-CONNECTION | ||
| TO M 16 | ||
| 077 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 376 MM | ||
| 077 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 280 MM | ||
| 078 | A 0004294237 | DISTRIBUTOR |
| 3/2-WAY-VALVE-TO-CYLINDER HOSE | ||
| A 1239950265 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ENGINE SHUT-OFF | ||
| 110 | A 0049975736 | VALVE |
| 3/2-WAY;ENGINE SHUT-OFF | ||
| "EKS" | ||
| 113 | A 0059978972 | FITTING |
| 116 | N 007603012405 | SEAL RING |
| 117 | A 0009970834 | UNION SCREW |
| Repalced by: A 0009973734 | ||
| 117 | A 0009973734 | UNION SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,20";M 16 | ||
| 119 | A 6734302110 | BRACKET |
| 122 | A 6734320295 | REINFORCEMENT |
| BRACKET TO CAB | ||
| 125 | A 6734310084 | SHIM |
| BRACKET TO CAB | ||
| 128 | A 6734310184 | SHIM |
| BRACKET TO CAB | ||
| 131 | A 0019904704 | SCREW |
| SOLENOID VALVE TO BRACKET | ||
| 134 | N 007991008009 | SCREW |
| BRACKET TO CAB | ||
| M8X20 | ||
| 137 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 137 | N 304017008016 | SCREW |
| REINFORCEMENT TO FRAME | ||
| M 8X16 | ||
| 140 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 140 | N 304017006016 | SCREW |
| REINFORCEMENT TO FRAME | ||
| M 6X16 | ||
| 143 | N 913004008004 | NUT |
| SOLENOID VALVE TO BRACKET | ||
