Transporto priemonė: 814 LO; VIN numerio dalis: 674478

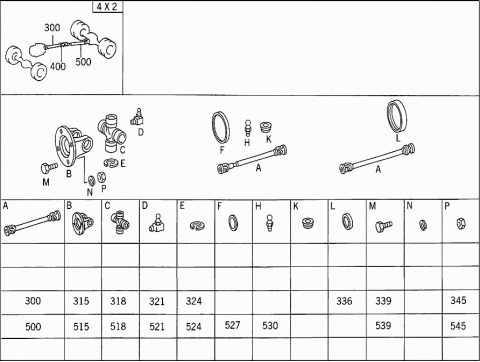

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
300	A 6744101904	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1064 MM
300	A 6744100104	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1323 MM
300	A 6744103704	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1690 MM
315	A 3814111411	DRIVE FLANGE
318	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
318	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
321	N 071412008302	GREASE NIPPLE
324	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
324	A 0059949741	LOCK
		AS REQUIRED
		1.825 MM
324	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
324	A 0069940141	LOCK
		AS REQUIRED
		1.925 MM
324	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
336	A 3814130461	PROTECTIVE CAP
339	A 0079901001	SCREW
		PROPELLER SHAFT TO TRANSMISSION
345	N 308673010001	NUT
		PROPELLER SHAFT TO TRANSMISSION
400	A 3814101522	INTERMEDIATE BEARING
		PROPELLER SHAFT
412	A 3814110145	FLANGE
		PROPELLER SHAFT BEARING
415	A 3814130461	PROTECTIVE CAP
		FOLLOWER FLANGE
418	A 3839900019	SCREW
		FOLLOWER FLANGE TO PROPELLER SHAFT
421	A 3832820262	THRUST WASHER
		FOLLOWER FLANGE TO PROPELLER SHAFT
424	A 3854132242	BRACKET
		PROPELLER SHAFT BEARING,LEFT
424	A 3854138242	BRACKET
		PROPELLER SHAFT BEARING,LEFT
424	A 3854138442	BRACKET
		PROPELLER SHAFT BEARING,LEFT
427	A 3854132142	BRACKET
		PROPELLER SHAFT BEARING,RIGHT
427	A 3854138342	BRACKET
		PROPELLER SHAFT BEARING,RIGHT
427	A 3854138542	BRACKET
		PROPELLER SHAFT BEARING,RIGHT
430	A 0019908104	SCREW
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
		M 10X20
433	N 912004010102	LOCK WASHER
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
436	N 007349010007	WASHER
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
438	A 3854130011	REINFORCEMENT
		PROPELLER SHAFT BEARING
448	A 0029901904	SCREW
		BRACKET TO CROSS MEMBER
449	A 3854130111	REINFORCEMENT
		BRACKET TO CROSS MEMBER
451	N 007349010003	WASHER
	Repalced by: N 007349010007
451	N 007349010007	WASHER
		BRACKET TO CROSS MEMBER
454	A 0009906650	NUT
		BRACKET TO CROSS MEMBER
500	A 3814107202	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1314 MM
500	A 6744100202	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1575 MM
500	A 6744105802	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1862 MM
515	A 3814111411	DRIVE FLANGE
518	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
518	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
521	N 071412008302	GREASE NIPPLE
524	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
524	A 0059949741	LOCK
		AS REQUIRED
		1.825 MM
524	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
524	A 0069940141	LOCK
		AS REQUIRED
		1.925 MM
524	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
527	A 3814110559	SEAL RING
		PROTECTIVE TUBE
		77X14.5 MM
530	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
530	N 071412008102	GREASE NIPPLE
539	A 0079901001	SCREW
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
545	N 308673010001	NUT
		PROPELLER SHAFT TO PROPELLER SHAFT BEARING AND TO REAR AXLE
