Transporto priemonė: 814 LO; VIN numerio dalis: 674478

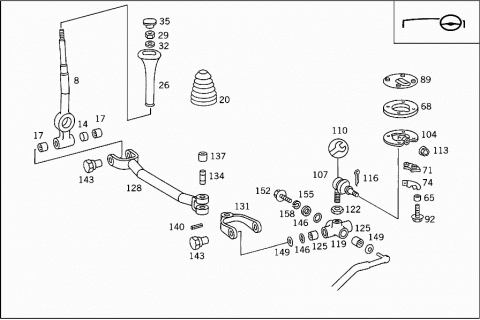

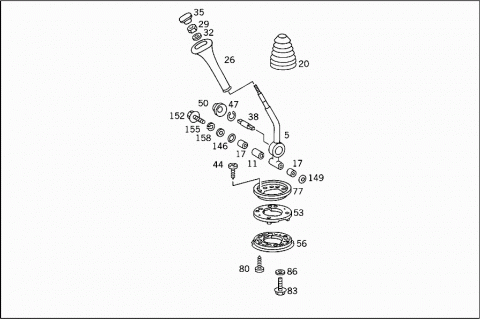

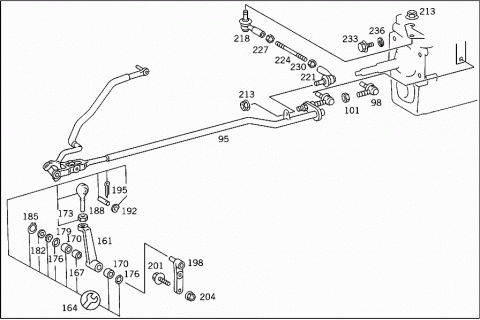

Grupė: 26 TRANSMISSION - 300 MANUAL SHIFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6732600239 | SHIFT LEVER |
| 008 | A 6732600339 | SHIFT LEVER |
| 011 | A 6732680350 | BUSHING |
| 014 | A 6732680450 | BUSHING |
| 017 | A 0109818010 | NEEDLE BEARING |
| 017 | A 0119812910 | NEEDLE BEARING |
| 020 | A 3892680097 | BOOT |
| 026 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 029 | N 000439010216 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 032 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 032 | N 000125010532 | WASHER |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 035 | A 9702680157 | COVER |
| SHIFT LEVER KNOB | ||
| 038 | A 6552680074 | PIN |
| SHIFT LEVER BEARING | ||
| 044 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 044 | N 000000000460 | SHEET METAL SCREW |
| SHIFT LEVER BEARING | ||
| 047 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 050 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 053 | A 6552682940 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 056 | A 6552682740 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 065 | A 3892680525 | BUSHING |
| SHIFTING TRANSFER,LEFT | ||
| 068 | A 6202680092 | RUBBER PAD |
| SHIFTING TRANSFER,LEFT | ||
| 071 | A 3852680492 | RUBBER PAD |
| SHIFTING TRANSFER,LEFT | ||
| 074 | A 6732681940 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 077 | A 3852601962 | BRACKET |
| BOOT | ||
| 080 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB FLOOR | ||
| 083 | N 000931008046 | SCREW |
| Repalced by: N 304017008018 | ||
| 083 | N 304017008018 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 086 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 086 | N 000125008443 | WASHER |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 089 | A 6732600065 | COVER |
| SHIFTING TRANSFER,LEFT | ||
| 092 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 092 | N 304017008027 | SCREW |
| SHIFTING TRANSFER,LEFT | ||
| 095 | A 6732604833 | SHIFTING ROD |
| Repalced by: A 6732604933 | ||
| 095 | A 6732604933 | SHIFTING ROD |
| BOTTOM | ||
| 098 | A 0009967045 | ARTICULATION PIECE |
| 101 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 101 | N 308673014001 | HEXAGON NUT |
| 104 | A 6202600662 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 107 | A 0009965245 | ARTICULATION PIECE |
| SHIFTING TRANSFER,LEFT | ||
| 110 | A 2013300185 | REPAIR KIT |
| BOOT | ||
| 113 | N 000979010001 | NUT |
| JOINT TO BRACKET | ||
| 116 | N 000094002077 | COTTER PIN |
| JOINT TO BRACKET | ||
| 119 | A 6732680028 | CONNECTOR |
| SHIFTING TRANSFER,LEFT | ||
| 122 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 122 | N 308675014001 | NUT |
| JOINT TO CONNECTOR | ||
| 125 | A 0119812910 | NEEDLE BEARING |
| CONNECTOR | ||
| 125 | A 0109818010 | NEEDLE BEARING |
| CONNECTOR | ||
| 128 | A 6732602033 | SHIFTING ROD |
| FRONT; TRANSVERSE | ||
| 131 | A 6732680223 | YOKE |
| SHIFTING ROD | ||
| 134 | A 6732680674 | PIN |
| SHIFTING ROD TO YOKE | ||
| 137 | A 0129813410 | NEEDLE BEARING |
| SHIFTING ROD TO YOKE | ||
| 137 | A 0129814610 | NEEDLE BEARING |
| SHIFTING ROD TO YOKE | ||
| 140 | N 001481004015 | CLAMPING SLEEVE |
| SHIFTING ROD TO YOKE | ||
| 143 | A 6732680174 | PIN |
| SHIFTING TRANSFER TO SHIFT LEVER AND TO CONNECTOR | ||
| 146 | A 0099972648 | SEAL RING |
| SHIFTING TRANSFER TO SHIFT LEVER AND TO CONNECTOR | ||
| 146 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 149 | N 900055016001 | SPRING WASHER |
| SHIFTING TRANSFER TO SHIFT LEVER AND TO CONNECTOR | ||
| 149 | N 900055016001 | SPRING WASHER |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 152 | N 000933010128 | SCREW |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 155 | N 912004010102 | LOCK WASHER |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 158 | A 3859900740 | WASHER |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 161 | A 6732680940 | BRACKET |
| SHIFTING ROD | ||
| 164 | A 6752600362 | REPAIR KIT |
| BRACKET | ||
| 167 | A 6732680250 | BUSHING |
| 170 | A 0109818010 | NEEDLE BEARING |
| 170 | A 0119812910 | NEEDLE BEARING |
| 173 | N 000439012207 | NUT |
| JOINT TO BRACKET | ||
| 176 | A 0099972648 | SEAL RING |
| BRACKET TO STEERING BRACKET | ||
| 179 | N 900055016001 | SPRING WASHER |
| BRACKET TO STEERING BRACKET | ||
| 182 | A 6739900540 | WASHER |
| BRACKET TO STEERING BRACKET | ||
| 185 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 185 | A 0079942041 | LOCK |
| BRACKET TO STEERING BRACKET | ||
| 188 | N 001444010222 | PIN |
| SHIFTING ROD TO BRACKET | ||
| 192 | N 900055010001 | SPRING WASHER |
| SHIFTING ROD TO BRACKET | ||
| 195 | N 000094003219 | COTTER PIN |
| SHIFTING ROD TO BRACKET | ||
| 198 | A 6732600862 | BRACKET |
| SHIFTING ROD | ||
| 201 | A 0039903904 | SCREW |
| BRACKET TO FRAME | ||
| 204 | A 0009907150 | NUT |
| BRACKET TO FRAME | ||
| 213 | N 913004010004 | NUT |
| Repalced by: N 910113010000 | ||
| 213 | N 910113010000 | NUT |
| SHIFTING ROD TO BRACKET | ||
| 213 | N 910113010000 | NUT |
| SHIFTING ROD TO LEVER | ||
| 218 | A 0009966645 | ARTICULATION PIECE |
| SHIFTING ROD TO BRACKET | ||
| 221 | A 0009966745 | ARTICULATION PIECE |
| AT SHIFTING ROD | ||
| 224 | N 900331012338 | PULL ROD |
| 227 | N 304032012001 | NUT |
| R.H. THREAD | ||
| 230 | N 304032012002 | NUT |
| L.H. THREAD | ||
| 233 | A 0039902804 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 236 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
