Transporto priemonė: 817 LS; VIN numerio dalis: 676250

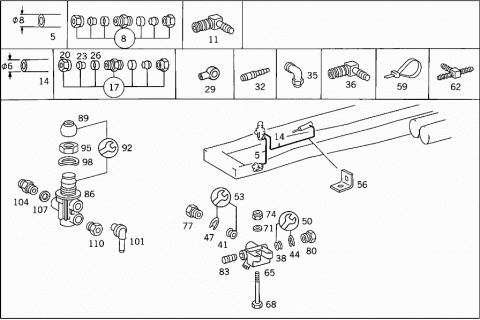

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		EXHAUST BRAKE VALVE LINE CONNECTION
005	A 0089979082	HOSE
	Repalced by: A 0009872727
005	A 0009872727	PLASTIC PIPE
		FROM 3/2-WAY VALVE TO DISTRIBUTOR
		8X1 MM
008	A 0039978972	FITTING
	Repalced by: A 0029905971
008	A 0029905971	FITTING
		(PARTS KIT),LINE RUPTURE
011	A 0019907971	ELBOW FITTING
	Repalced by: A 0049905371
011	A 0049905371	ELBOW FITTING
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 16
014	A 0089976082	HOSE
	Repalced by: A 0009872627
014	A 0009872627	PLASTIC PIPE
		6X1 MM
014	A 0009872627	PLASTIC PIPE
		FROM DISTRIBUTOR TO VALVE
014	A 0009872627	PLASTIC PIPE
		ENGINE SHUT-OFF AND EXHAUST BRAKE
017	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
020	N 915017006100	UNION NUT
023	N 003861006007	GLAND
026	N 915062004000	SLEEVE
029	N 915052004019	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/16 MM
032	A 0009906578	CONNECTOR
	Repalced by: A 0029905378
032	A 0029905378	CONNECTOR
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 16
	A 0029905271	ELBOW FITTING
		POWER CYLINDER
035	N 003952006102	FITTING
	Repalced by: A 0019909871
035	A 0019909871	ELBOW FITTING
		POWER CYLINDER
036	A 0019907871	ELBOW FITTING
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 16
	A 6734302010	BRACKET
		DISTRIBUTOR TO CAB
	N 000933006122	SCREW
	Repalced by: N 304017006034
	N 304017006034	SCREW
		DISTRIBUTOR TO CAB
	A 6459900178	CONNECTOR
		DISTRIBUTOR INPUT, COMPRESSED AIR LINE PLUG CONNECTION
		TO 008 997 90 82
	A 6459900478	CONNECTOR
		DISTRIBUTOR MIDDLE, COMPRESSED AIR LINE PLUG CONNECTION; WITH THROTTLE
		TO 008 997 90 82
	A 6459900378	CONNECTOR
		DISTRIBUTOR MIDDLE, COMPRESSED AIR LINE PLUG CONNECTION; WITH THROTTLE
		TO 008 997 60 82
	A 6459901178	CONNECTOR
		DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
		TO 008 997 60 82
	A 0149977648	SEAL RING
		6.8X2.5 MM
	N 000933006122	SCREW
	Repalced by: N 304017006034
	N 304017006034	SCREW
		CONNECTOR TO CAB
038	A 0009940047	SEAL RING
	Repalced by: A 0009940747
038	A 0009940747	LOCK RING
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 16
041	A 0009940147	SEAL RING
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 22
044	A 0009941248	LOCK
	Repalced by: A 0009945448
044	A 0009945448	LOCK
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 16
047	A 0009941448	LOCK
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 22
050	A 6739970045	REPAIR KIT
	Repalced by: A 0309971748
050	A 0309971748	REPAIR KIT
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 16
053	A 6739970145	TS SEALING RING
		COMPRESSED-AIR-LINE PLUG-CONNECTION
		TO M 22
056	A 3874292940	BRACKET
	Repalced by: A 3852670040
056	A 3852670040	BRACKET
		COMPRESSED AIR LINE TO BELL HOUSING
056	A 3604280243	ANGLE
		COMPRESSED AIR LINE TO TRANSMISSION CASE
059	A 0019978490	LOOM TIE
		LINE MOUNTING
		376 MM
062	A 0004294237	DISTRIBUTOR
		3/2-WAY-VALVE-TO-CYLINDER HOSE
065	A 0009903272	DISTRIBUTOR
		ENGINE SHUT-OFF
065	A 0009902872	DISTRIBUTOR
		ENGINE SHUT-OFF AND EXHAUST BRAKE
068	N 000931006118	SCREW
		DISTRIBUTOR TO CAB
071	N 000125006421	WASHER
		DISTRIBUTOR TO CAB
074	N 913004006002	NUT
	Repalced by: N 913004006001
074	N 913004006001	NUT
		DISTRIBUTOR TO CAB
077	A 0009970934	UNION SCREW
		DISTRIBUTOR,CONNECTION:
		"01",M 22
080	A 0009970834	UNION SCREW
	Repalced by: A 0009973734
080	A 0009973734	UNION SCREW
		DISTRIBUTOR,CONNECTIONS:
		"02,03,04,05",M 16
080	A 0009973734	SCREW
		"06,07,08,09"
083	A 0009977935	PLUG
		DISTRIBUTOR,CONNECTIONS:
		"03,04,05",TO M 16
083	A 0009977935	PLUG
		"06,07,09"
	X XXXXXXXXXXXX	PART NAME MISSING
		EXHAUST BRAKE VALVE
086	A 0039972536	VALVE
		ENGINE SHUT-OFF AND EXHAUST BRAKE
		WABCO
086	A 0039972336	VALVE
		ENGINE SHUT-OFF AND EXHAUST BRAKE
		BOSCH
089	A 0004340586	CUP
		WABCO
092	A 0025869843	REPAIR KIT
		VALVE
		WABCO
092	A 0025865343	REPAIR KIT
		VALVE
		BOSCH
095	N 074305026202	NUT
		VALVE TO CAB
098	N 000137027201	SPRING WASHER
		VALVE TO CAB
101	A 6233280365	PIPE SOCKET
		3/2-WAY VALVE;CONNECTION:
		"30"
104	A 0019975172	FITTING
		3/2-WAY VALVE;CONNECTION:
		"20"
107	N 007603016401	SEAL RING
		3/2-WAY VALVE;CONNECTION:
		"20"
110	A 0009970834	UNION SCREW
	Repalced by: A 0009973734
110	A 0009973734	UNION SCREW
		3/2-WAY VALVE;CONNECTIONS:
		"20,20",M 16
