Transporto priemonė: 817 LS; VIN numerio dalis: 676250

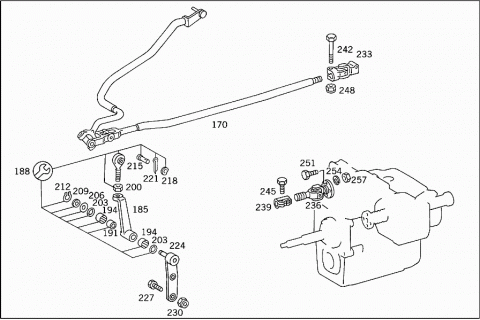

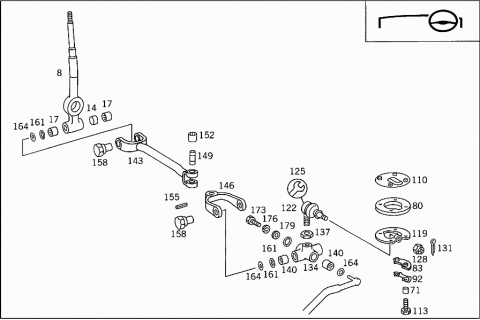

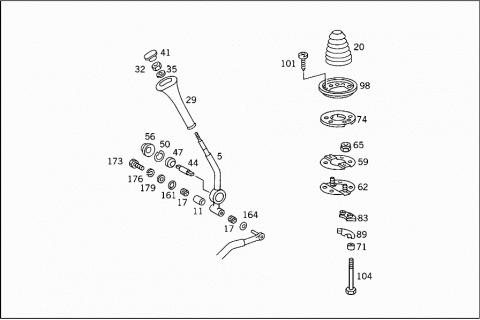

Grupė: 26 TRANSMISSION - 300 MANUAL SHIFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6732600239 | SHIFT LEVER |
| 008 | A 6732600339 | SHIFT LEVER |
| 011 | A 6732680350 | BUSHING |
| 014 | A 6732680450 | BUSHING |
| 017 | A 0109818010 | NEEDLE BEARING |
| 017 | A 0119812910 | NEEDLE BEARING |
| 020 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 029 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 032 | N 000439010216 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 035 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 035 | N 000125010532 | WASHER |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 041 | A 6202680557 | COVER |
| GEARSHIFT DIAGRAM | ||
| 041 | A 6202680557 | COVER |
| 041 | A 6202680357 | COVER |
| GEARSHIFT DIAGRAM | ||
| 041 | A 6202680357 | COVER |
| 044 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 047 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 047 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 047 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 050 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 056 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 056 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 059 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 062 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 065 | N 913004008004 | NUT |
| BRACKET TO BRACKET | ||
| A 6552680074 | PIN | |
| SHIFT LEVER BEARING | ||
| A 6552682740 | BRACKET | |
| SHIFT LEVER LOWER PART | ||
| A 6552682940 | BRACKET | |
| SHIFT LEVER LOWER PART | ||
| N 007981004233 | SHEET METAL SCREW | |
| Repalced by: N 000000000460 | ||
| N 000000000460 | SHEET METAL SCREW | |
| SHIFT LEVER BEARING | ||
| N 000933008116 | SCREW | |
| Repalced by: N 000933008337 | ||
| N 000933008337 | SCREW | |
| Repalced by: A 0099900101 | ||
| A 0099900101 | SCREW | |
| SHIFT LEVER BEARING | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| SHIFT LEVER BEARING | ||
| 071 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 071 | A 3892680525 | SHIFTING ROD |
| SHIFTING TRANSFER,LEFT | ||
| 074 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 080 | A 6202680092 | RUBBER PAD |
| SHIFTING TRANSFER,LEFT | ||
| 083 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 083 | A 3852680492 | RUBBER PAD |
| SHIFTING TRANSFER,LEFT | ||
| 089 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 092 | A 6732681940 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 098 | A 3852601962 | BRACKET |
| BOOT | ||
| 101 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB FLOOR | ||
| 104 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 104 | N 304017008018 | SCREW |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 110 | A 6732600065 | COVER |
| SHIFTING TRANSFER,LEFT | ||
| 113 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 113 | N 304017008027 | SCREW |
| SHIFTING TRANSFER,LEFT | ||
| 119 | A 6202600662 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 122 | A 6732680189 | JOINT |
| Repalced by: A 0009965245 | ||
| 122 | A 0009965245 | ARTICULATION PIECE |
| SHIFTING TRANSFER,LEFT | ||
| 125 | A 0003381997 | BOOT |
| Repalced by: A 2013300185 | ||
| 125 | A 2013300185 | REPAIR KIT |
| BOOT | ||
| 128 | N 000979010001 | NUT |
| JOINT TO BRACKET | ||
| 131 | N 000094002077 | COTTER PIN |
| JOINT TO BRACKET | ||
| 134 | A 6732680028 | CONNECTOR |
| SHIFTING TRANSFER,LEFT | ||
| 137 | N 000439014203 | NUT |
| Repalced by: N 308675014001 | ||
| 137 | N 308675014001 | NUT |
| JOINT TO CONNECTOR | ||
| 140 | A 0109818010 | NEEDLE BEARING |
| CONNECTOR | ||
| 140 | A 0119812910 | NEEDLE BEARING |
| CONNECTOR | ||
| 143 | A 6732602033 | SHIFTING ROD |
| FRONT; TRANSVERSE | ||
| 146 | A 6732680223 | YOKE |
| (YOKE) | ||
| 149 | A 6732680674 | PIN |
| SHIFTING ROD TO YOKE | ||
| 152 | A 0129813410 | NEEDLE BEARING |
| SHIFTING ROD TO YOKE | ||
| 152 | A 0129814610 | NEEDLE BEARING |
| SHIFTING ROD TO YOKE | ||
| 155 | N 001481004015 | CLAMPING SLEEVE |
| SHIFTING ROD TO YOKE | ||
| 158 | A 6732680174 | PIN |
| SHIFTING TRANSFER TO SHIFT LEVER AND TO CONNECTOR | ||
| 161 | A 0099972648 | SEAL RING |
| SHIFTING TRANSFER TO SHIFT LEVER AND TO CONNECTOR | ||
| 161 | A 0099972648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 164 | N 900055016001 | SPRING WASHER |
| SHIFTING TRANSFER TO SHIFT LEVER AND TO CONNECTOR | ||
| 164 | N 900055016001 | LOCK RING |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 170 | A 6732600133 | SHIFTING ROD |
| 170 | A 6732600533 | SHIFTING ROD |
| 170 | A 6732600533 | SHIFTING ROD |
| 170 | A 6732603633 | SHIFTING ROD |
| 173 | N 000933010128 | SCREW |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 176 | N 912004010102 | LOCK WASHER |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 179 | A 3859900740 | WASHER |
| SHIFTING ROD TO SHIFT LEVER AND TO CONNECTOR | ||
| 185 | A 6732680940 | BRACKET |
| SHIFTING ROD | ||
| 188 | A 6752600362 | REPAIR KIT |
| BRACKET | ||
| 191 | A 6732680250 | BUSHING |
| BRACKET TO STEERING BRACKET | ||
| 194 | A 0109818010 | NEEDLE BEARING |
| BRACKET TO STEERING BRACKET | ||
| 194 | A 0119812910 | NEEDLE BEARING |
| BRACKET TO STEERING BRACKET | ||
| A 6732680089 | JOINT | |
| SHIFTING ROD | ||
| A 6732680489 | JOINT | |
| SHIFTING ROD | ||
| 200 | N 000439012207 | NUT |
| JOINT TO BRACKET | ||
| 203 | A 0099972648 | SEAL RING |
| BRACKET TO STEERING BRACKET | ||
| 206 | N 900055016001 | SPRING WASHER |
| BRACKET TO STEERING BRACKET | ||
| 209 | A 6739900540 | WASHER |
| BRACKET TO STEERING BRACKET | ||
| 212 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 212 | A 0079942041 | LOCK |
| BRACKET TO STEERING BRACKET | ||
| 215 | N 001444010222 | PIN |
| SHIFTING ROD TO BRACKET | ||
| 218 | N 000137010205 | SPRING WASHER |
| SHIFTING ROD TO BRACKET | ||
| 221 | N 000094003219 | COTTER PIN |
| SHIFTING ROD TO BRACKET | ||
| 224 | A 6732600862 | BRACKET |
| SHIFTING ROD | ||
| 227 | N 308676016022 | SCREW |
| BRACKET TO FRAME | ||
| 230 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 230 | N 910113016002 | NUT |
| BRACKET TO FRAME | ||
| 233 | A 3142680289 | JOINT |
| REAR SHIFTING ROD | ||
| 236 | A 3872680089 | JOINT |
| REAR SHIFTING ROD | ||
| 236 | A 0002686489 | JOINT |
| REAR SHIFTING ROD | ||
| 239 | A 3852680188 | CLAMPING PIECE |
| SHIFTING ROD TO JOINT | ||
| 242 | N 000931010306 | SCREW |
| SHIFTING ROD TO JOINT | ||
| 245 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 245 | N 304017010047 | SCREW |
| SHIFTING ROD TO JOINT | ||
| 248 | N 913004010011 | NUT |
| SHIFTING ROD TO JOINT | ||
| 251 | A 3219900601 | SCREW |
| JOINT TO TRANSMISSION | ||
| 254 | N 912004008102 | LOCK WASHER |
| JOINT TO TRANSMISSION | ||
| 257 | N 000934008010 | NUT |
| JOINT TO TRANSMISSION | ||
