Transporto priemonė: AUTOBUS RAMIREZ; VIN numerio dalis: FA1033

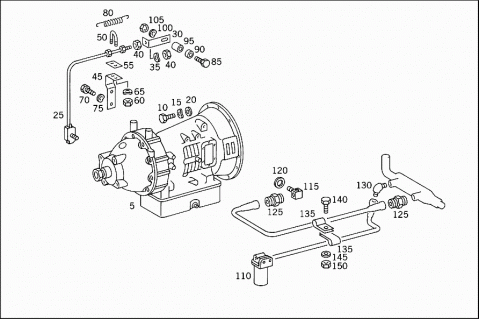

Grupė: 27 AUTOMATIC TRANSMISSION

#	Kodas	Pavadinimas
005	Q 502387R91	PART NAME MISSING
		ALLISON AUTOMATIC TRANSMISSION
		MTB-643
010	N 000933010255	SCREW
		M 10X1.5X35 ZG 8.8
015	Q 933965R1	PART NAME MISSING
		SPRING WASHER
		M 10-Z
020	Q 25709R1	PART NAME MISSING
	Repalced by: A 6859900140
020	A 6859900140	WASHER
		3/8-.812-.089 Z
025	Q 502382R91	PART NAME MISSING
		BOWDEN CABLE
	Y YYYYYYYYYYYY	PART NAME MISSING
		UPSHIFT RELAY VALVE
030	Q 502247R1	PART NAME MISSING
		BRACKET
035	Q 120380	PART NAME MISSING
		SPRING WASHER
		1/4-.255 F
040	Q 118623	PART NAME MISSING
	Repalced by: A 6859901451
040	A 6859901451	NUT
		1/4-28 FG8
045	Q 502467R1	PART NAME MISSING
		BRACKET
	Y YYYYYYYYYYYY	PART NAME MISSING
		BOWDEN CABLE
050	Q 502451R1	PART NAME MISSING
		BRACKET
		"U" 5/16-24 Z
055	Q 502452R1	PART NAME MISSING
		CLAMPING PLATE
	Y YYYYYYYYYYYY	PART NAME MISSING
		BOWDEN CABLE
060	Q 120368	PART NAME MISSING
		NUT
		5/16-24 ZG 5
065	Q 120214	PART NAME MISSING
		SPRING WASHER
		5/16-.318 Z
070	Q 24860R1	PART NAME MISSING
		SCREW
		1/2-13X1 FG 8
075	Q 120384	PART NAME MISSING
		SPRING WASHER
		1/2X.873X.135 Z
080	Q 10454VA	PART NAME MISSING
		SPRING
085	Q 25487R1	PART NAME MISSING
		SCREW
		1/4-20X1 1/2 FG8
090	Q 502466R1	PART NAME MISSING
		INTERMEDIATE PIECE
095	Q 502465R1	PART NAME MISSING
		BUSHING
100	Q 120380	PART NAME MISSING
		SPRING WASHER
		1/4-.255 F
105	Q 26110R1	PART NAME MISSING
	Repalced by: A 6859900551
105	A 6859900551	NUT
		1/4-20 FG8
110	Q 502693R91	PART NAME MISSING
		OIL FILTER
		ELEMENTO
115	Q 502437R91	PART NAME MISSING
		T-FITTING
		1 1/16-12 X 3/4-14 X 1/2-14
	Y YYYYYYYYYYYY	PART NAME MISSING
		CONNECTOR TO TRANSMISSION
115	Q 1672250C1	PART NAME MISSING
		T-FITTING
		1 1/16-12 X 3/4 X 1/2
	Y YYYYYYYYYYYY	PART NAME MISSING
		CONNECTOR TO TRANSMISSION
120	Q 876108C1	PART NAME MISSING
		SEAL RING
		TO Q 1672250C1
125	Q 9402711	PART NAME MISSING
		TRANSMISSION
		3/4-14 X 11/16-12
125	Q 9402711	PART NAME MISSING
		OIL COOLER
		3/4-14 X 11/16-12
130	Q 9402828	PART NAME MISSING
		ELBOW FITTING
		45 GR. 3/4-1 1/16-12
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL COOLER
135	Q 299608C1	PART NAME MISSING
		CLAMP
140	Q 24860R1	PART NAME MISSING
		SCREW
		1/2-13 X 1 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO SIDE MEMBER
145	Q 25710R1	PART NAME MISSING
		WASHER
		1/2-1.062-.134 Z
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO SIDE MEMBER
150	Q 9412230	PART NAME MISSING
	Repalced by: A 6859901151
150	A 6859901151	NUT
		1/2-13 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO SIDE MEMBER
