Transporto priemonė: AUTOBUS RAMIREZ; VIN numerio dalis: FA1033

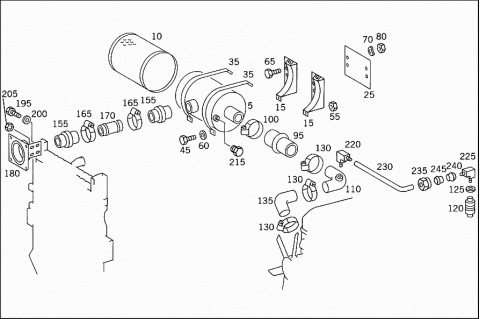

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | Q 501027R91 | PART NAME MISSING |
| AIR CLEANER | ||
| 005 | A 0150944202 | AIR CLEANER |
| 010 | Q 476741C1 | PART NAME MISSING |
| Repalced by: Q DN P129545 | ||
| 010 | Q DN P129545 | PART NAME MISSING |
| FILTER ELEMENT | ||
| TO A 015 094 42 02 | ||
| 010 | Q 501029R1 | PART NAME MISSING |
| FILTER ELEMENT | ||
| TO Q 501027R91 | ||
| 010 | Q 482644C1 | PART NAME MISSING |
| Repalced by: Q DN P137640 | ||
| 010 | Q DN P137640 | PART NAME MISSING |
| FILTER ELEMENT | ||
| TO A 015 094 42 02 | ||
| 010 | Q 501030R1 | PART NAME MISSING |
| FILTER ELEMENT | ||
| TO Q 501027R91 | ||
| 015 | Q 500539R91 | PART NAME MISSING |
| SUPPORT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR CLEANER | ||
| 020 | A 6855200133 | SUPPORT |
| AIR CLEANER | ||
| 025 | Q 501814R1 | PART NAME MISSING |
| PLATE | ||
| 030 | Q 502488R1 | PART NAME MISSING |
| PLATE | ||
| 035 | A 6855280021 | STRAP |
| AIR CLEANER TO BRACKET | ||
| TO A 015 094 42 02 | ||
| 035 | Q 484004C3 | PART NAME MISSING |
| STRAP | ||
| TO A 015 094 42 02 | ||
| 040 | Q 501406R1 | PART NAME MISSING |
| STRAP | ||
| TO Q 501027R91 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR CLEANER TO BRACKET | ||
| 045 | A 6859900301 | SCREW |
| STRAP TO SUPPORT | ||
| 045 | Q 24842R1 | PART NAME MISSING |
| Repalced by: A 6859900301 | ||
| 045 | A 6859900301 | SCREW |
| SCREW | ||
| 3/8-16X13/4 FG8 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| STRAP TO SUPPORT | ||
| 050 | Q 24843R1 | PART NAME MISSING |
| SCREW | ||
| 3/8-16X2 FG8 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| STRAP TO SUPPORT | ||
| 055 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 055 | A 6859900351 | NUT |
| STRAP TO SUPPORT | ||
| 3/8-16 FG8 | ||
| 060 | Q 25709R1 | PART NAME MISSING |
| Repalced by: A 6859900140 | ||
| 060 | A 6859900140 | WASHER |
| STRAP TO SUPPORT | ||
| 3/8-.812-.089 Z | ||
| 065 | Q 25493R1 | PART NAME MISSING |
| Repalced by: A 6859900701 | ||
| 065 | A 6859900701 | SCREW |
| 5/16-18X1 FG8 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FIRE WALL | ||
| 065 | A 6859900701 | SCREW |
| BRACKET TO PLATE | ||
| 5/16-18X1 FG8 | ||
| 070 | A 6859900147 | LOCK WASHER |
| BRACKET TO FIRE WALL | ||
| 070 | Q 120214 | PART NAME MISSING |
| SPRING WASHER | ||
| 5/16-318Z | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FIRE WALL | ||
| 075 | Q 27304R1 | PART NAME MISSING |
| Repalced by: A 6859900147 | ||
| 075 | A 6859900147 | LOCK WASHER |
| BRACKET TO PLATE | ||
| 5/16-318 INOX | ||
| 080 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 080 | A 6859900251 | NUT |
| BRACKET TO FIRE WALL | ||
| 5/18-18 FG8 | ||
| 085 | Q 25520R1 | PART NAME MISSING |
| Repalced by: A 6859900751 | ||
| 085 | A 6859900751 | NUT |
| BRACKET TO PLATE | ||
| 5/19-18 FG8 | ||
| 090 | Q 328388C1 | PART NAME MISSING |
| SCREW | ||
| CF BSD 10X1/2 C | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| PLATE TO SUBSTRUCTURE | ||
| 095 | A 6855280282 | HOSE |
| HOSE TO AIR CLEANER | ||
| 100 | Q 327094R91 | PART NAME MISSING |
| Repalced by: A 6859950501 | ||
| 100 | A 6859950501 | CLAMP |
| HOSE TO AIR CLEANER | ||
| 5 3/4-4.88 Z | ||
| 105 | Q 502243R1 | PART NAME MISSING |
| PIPE | ||
| 110 | Q 501809R1 | PART NAME MISSING |
| PIPE ELBOW | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR INTAKE | ||
| 115 | A 6855280482 | HOSE |
| AIR INTAKE | ||
| 120 | Q 501317R91 | PART NAME MISSING |
| MAINTENANCE INDICATOR | ||
| 125 | Q 501072R1 | PART NAME MISSING |
| SEAL RING | ||
| 130 | Q 422688R91 | PART NAME MISSING |
| Repalced by: A 6859950601 | ||
| 130 | A 6859950601 | CLAMP |
| PIPE ELBOW TO ACCORDION TUBE | ||
| 5.0-4.06Z | ||
| 135 | Q 501810R1 | PART NAME MISSING |
| PIPE ELBOW | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR INTAKE | ||
| 140 | Q 502490R91 | PART NAME MISSING |
| PIPE ELBOW | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR INTAKE | ||
| 145 | Q 502502R1 | PART NAME MISSING |
| HOSE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR COMPRESSOR INLET | ||
| 150 | Q 502489R91 | PART NAME MISSING |
| BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| PIPE ELBOW | ||
| 155 | Q 319119C1 | PART NAME MISSING |
| Repalced by: A 6855280682 | ||
| 155 | A 6855280682 | HOSE |
| 5.5X7 | ||
| 160 | Q 287947C1 | PART NAME MISSING |
| PIPE ELBOW | ||
| 165 | A 6859950701 | CLAMP |
| 165 | Q 371677R91 | PART NAME MISSING |
| CLAMP | ||
| 170 | Q 499105R1 | PART NAME MISSING |
| Repalced by: A 6855280009 | ||
| 170 | A 6855280009 | PIPE |
| 175 | Q 502507R1 | PART NAME MISSING |
| SLEEVE | ||
| 180 | Q 501811R1 | PART NAME MISSING |
| BRACKET | ||
| 185 | Q 502484R91 | PART NAME MISSING |
| HOUSING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR INTAKE | ||
| 190 | Q 328388C1 | PART NAME MISSING |
| SCREW | ||
| CF BSD 10X1/2 C | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| HOUSING TO SIDE PANEL | ||
| 195 | Q 25228R1 | PART NAME MISSING |
| Repalced by: A 6859900401 | ||
| 195 | A 6859900401 | SCREW |
| 5/16-18X3/4 FG8 | ||
| 200 | Q 25708R1 | PART NAME MISSING |
| Repalced by: A 6859900240 | ||
| 200 | A 6859900240 | WASHER |
| 5/16-.688-.089 Z | ||
| 205 | Q 25520R1 | PART NAME MISSING |
| Repalced by: A 6859900751 | ||
| 205 | A 6859900751 | NUT |
| 5/16-18 FG8 | ||
| Q 501581C1 | PART NAME MISSING | |
| CONNECTOR | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR INTAKE | ||
| 215 | Q 105410 | PART NAME MISSING |
| PLUG | ||
| 1/8 NPTH | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR CLEANER | ||
| 220 | Q 123646R1 | PART NAME MISSING |
| ELBOW FITTING | ||
| 90 GR.1/8 NPTFM X 1/4 TBR | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| MAINTENANCE INDICATOR | ||
| 225 | Q 91913R1 | PART NAME MISSING |
| ELBOW FITTING | ||
| 90 GR.1/4 X 1/8-27 NPT BR H | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| MAINTENANCE INDICATOR | ||
| 230 | Q 417196C2 | PART NAME MISSING |
| Repalced by: A 6859870827 | ||
| 230 | A 6859870827 | PLASTIC PIPE |
| 1/4 | ||
| 230 | A 6859870927 | PLASTIC PIPE |
| 230 | A 6859870927 | PLASTIC PIPE |
| 1400 MM | ||
| 230 | A 6859870927 | PLASTIC PIPE |
| 800 MM | ||
| 235 | Q 414510C2 | PART NAME MISSING |
| NUT | ||
| 1/4T X 7/16-24 B | ||
| 240 | Q 414504C1 | PART NAME MISSING |
| SLEEVE | ||
| 1/4 DIA EXT | ||
| 245 | Q 30774V | PART NAME MISSING |
| GLAND | ||
| 1/4 BR | ||
| 250 | Q 306132C1 | PART NAME MISSING |
| LOOM TIE | ||
| 255 | Q 501360R1 | PART NAME MISSING |
| BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| OIL DIPSTICK | ||
| 260 | Q 25493R1 | PART NAME MISSING |
| Repalced by: A 6859900701 | ||
| 260 | A 6859900701 | SCREW |
| AT BRACKET | ||
| 5/19-18X1 FG8 | ||
| 265 | Q 25708R1 | PART NAME MISSING |
| Repalced by: A 6859900240 | ||
| 265 | A 6859900240 | WASHER |
| AT BRACKET | ||
| 5/19-.688-.089 Z | ||
| 270 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 270 | A 6859900251 | NUT |
| AT BRACKET | ||
| 5/16-18 FG8 | ||
| 275 | Q 24840R1 | PART NAME MISSING |
| SCREW | ||
| 3/8-16X1 FG8 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FIRE WALL | ||
| 280 | Q 115093 | PART NAME MISSING |
| SPRING WASHER | ||
| 3/8-.382 F | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FIRE WALL | ||
| 285 | Q 25896R1 | PART NAME MISSING |
| WASHER | ||
| 3/8-.812-.089 Z | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO FIRE WALL | ||
| 290 | Q 25522R1 | PART NAME MISSING |
| Repalced by: A 6859900851 | ||
| 290 | A 6859900851 | NUT |
| BRACKET TO FIRE WALL | ||
| 3/8-16 FG8 | ||

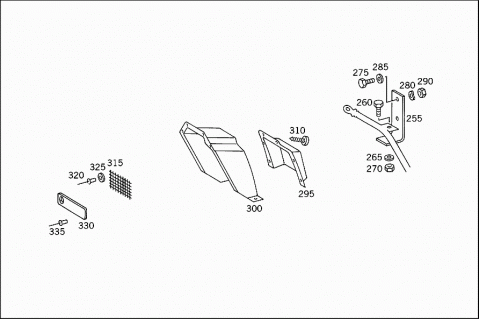

| 295 | Q 502178R1 | PART NAME MISSING |
| COVERING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| ENGINE;INSIDE | ||
| 300 | Q 501986R91 | PART NAME MISSING |
| ENGINE COVERING | ||
| 310 | Q 27209R1 | PART NAME MISSING |
| SHEET METAL SCREW | ||
| OVAL CRUZ 10X3/4 INOX | ||
| 310 | Q 27203R1 | PART NAME MISSING |
| SHEET METAL SCREW | ||
| OVAL CRUZ 8X1/2 INOX | ||
| 315 | Q 501229R1 | PART NAME MISSING |
| PROTECTIVE GRILLE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR INTAKE | ||
| 320 | Q 434837C1 | PART NAME MISSING |
| RIVET | ||
| .187 X .19 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR INTAKE | ||
| 325 | Q 250097R1 | PART NAME MISSING |
| WASHER | ||
| 10 X 1 1/16 CAD | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| AIR INTAKE | ||
| 330 | Q 501287R2 | PART NAME MISSING |
| BADGE | ||
| MOTOR DIESEL MERCEDES BENZ | ||
| 335 | Q 487641C1 | PART NAME MISSING |
| RIVET | ||
| .187 X .520 AL | ||
