Transporto priemonė: AUTOBUS RAMIREZ; VIN numerio dalis: FA1033

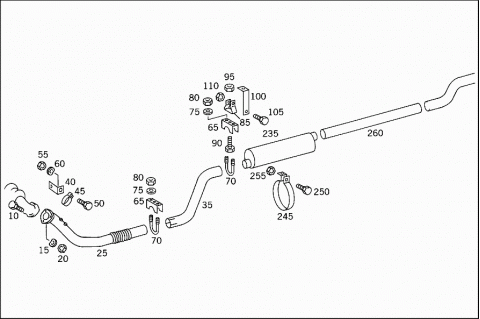

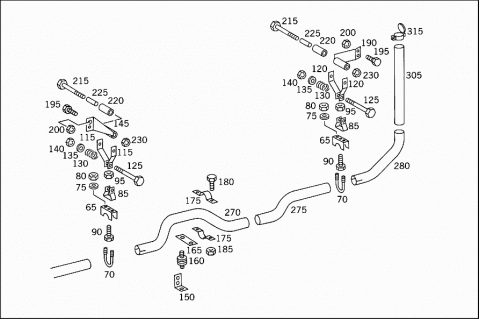

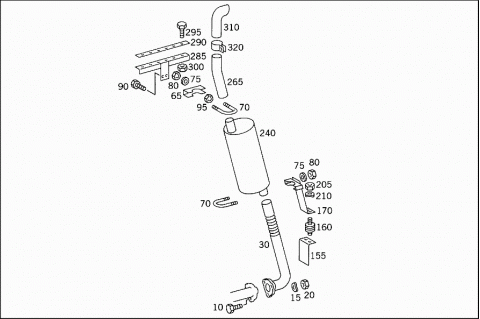

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 6859902001 | SCREW |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 010 | Q 25281R1 | PART NAME MISSING |
| SCREW | ||
| 1/2-13X2 3/4 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 010 | Q 24863R1 | PART NAME MISSING |
| SCREW | ||
| 1/2-13X1 3/4 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 015 | Q 120384 | PART NAME MISSING |
| SPRING WASHER | ||
| 1/2 -.509Z | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 6859901651 | NUT |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 020 | Q 25526R1 | PART NAME MISSING |
| NUT | ||
| 1/2-13 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 025 | A 6854900319 | EXHAUST PIPE |
| FRONT | ||
| 030 | Q 502378R91 | PART NAME MISSING |
| EXHAUST PIPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| VERTICAL | ||
| 035 | Q 501812R1 | PART NAME MISSING |
| EXHAUST PIPE | ||
| 040 | A 6854927041 | BRACKET |
| 045 | N 071555100500 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 100.5 | ||
| 050 | Q 25654R1 | PART NAME MISSING |
| SCREW | ||
| 5/16-18X1 1/2 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 055 | Q 25520R1 | PART NAME MISSING |
| Repalced by: A 6859900751 | ||
| 055 | A 6859900751 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 5/16-18 FG8 | ||
| 060 | Q 120214 | PART NAME MISSING |
| SPRING WASHER | ||
| 5/16-.318Z | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 065 | A 6854910140 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 070 | Q 450165C1 | PART NAME MISSING |
| Repalced by: A 6854910127 | ||
| 070 | A 6854910127 | CLAMP |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 075 | Q 25846R1 | PART NAME MISSING |
| WASHER | ||
| 7/16-.922-.105Z | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 080 | Q 9413981 | PART NAME MISSING |
| Repalced by: A 6859901551 | ||
| 080 | A 6859901551 | NUT |
| FRONT AND REAR EXHAUST PIPES TO MUFFLER | ||
| 7/16-14 FG8 | ||
| 085 | Q 500727R1 | PART NAME MISSING |
| BRACKET | ||
| 090 | Q 25228R1 | PART NAME MISSING |
| Repalced by: A 6859900401 | ||
| 090 | A 6859900401 | SCREW |
| CLAMP TO BRACKET | ||
| 5/16-18X3/4 FG8 | ||
| 095 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 095 | A 6859900251 | NUT |
| CLAMP TO BRACKET | ||
| 5/16-18 FG8 | ||
| 100 | Q 501815R1 | PART NAME MISSING |
| BRACKET | ||
| 105 | Q 25228R1 | PART NAME MISSING |
| Repalced by: A 6859900401 | ||
| 105 | A 6859900401 | SCREW |
| MUFFLER BRACKET TO FRAME | ||
| 5/16-18X3/4 FG8 | ||
| 110 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 110 | A 6859900251 | NUT |
| MUFFLER BRACKET TO FRAME | ||
| 5/16-18 FG8 | ||
| 115 | Q 501464R1 | PART NAME MISSING |
| BRACKET | ||
| 120 | Q 501465R1 | PART NAME MISSING |
| BRACKET | ||
| 125 | Q 24621R1 | PART NAME MISSING |
| Repalced by: A 6859900801 | ||
| 125 | A 6859900801 | SCREW |
| BRACKET TO BRACKET | ||
| 3/8-16X21/4 FG8 | ||
| 130 | Q 64899H | PART NAME MISSING |
| SPRING | ||
| 135 | Q 25709R1 | PART NAME MISSING |
| Repalced by: A 6859900140 | ||
| 135 | A 6859900140 | WASHER |
| BRACKET TO BRACKET | ||
| 3/8-.812-.089Z | ||
| 140 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 140 | A 6859900351 | NUT |
| BRACKET TO BRACKET | ||
| 3/8-16 FG8 | ||
| 145 | Q 200154R11 | PART NAME MISSING |
| BRACKET | ||
| 150 | Q 501466R1 | PART NAME MISSING |
| BRACKET | ||
| 155 | Q 502474R91 | PART NAME MISSING |
| BRACKET | ||
| 160 | Q 498435C1 | PART NAME MISSING |
| BUFFER | ||
| 165 | Q 499022R1 | PART NAME MISSING |
| BRACKET | ||
| 170 | Q 502475R1 | PART NAME MISSING |
| BRACKET | ||
| 175 | Q 500603R1 | PART NAME MISSING |
| CLAMP | ||
| 180 | Q 24840R1 | PART NAME MISSING |
| SCREW | ||
| 3/8-16X1 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| CLAMP TO EXHAUST PIPE | ||
| 185 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 185 | A 6859900351 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| 3/8-16 FG8 | ||
| 190 | Q 232980R11 | PART NAME MISSING |
| BRACKET | ||
| 195 | Q 140483H | PART NAME MISSING |
| SCREW | ||
| 3/8-16X1 1/4 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER | ||
| 195 | A 6859901101 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 200 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 200 | A 6859900351 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 FG8 | ||
| 205 | Q 25522R1 | PART NAME MISSING |
| Repalced by: A 6859900851 | ||
| 205 | A 6859900851 | NUT |
| BUFFER TO BRACKET | ||
| 3/8-16 FG8 | ||
| 210 | Q 120382 | PART NAME MISSING |
| Repalced by: A 6859900347 | ||
| 210 | A 6859900347 | LOCK WASHER |
| BUFFER TO BRACKET | ||
| 3/8-.382 Z | ||
| 215 | Q 24621R1 | PART NAME MISSING |
| Repalced by: A 6859900801 | ||
| 215 | A 6859900801 | SCREW |
| BRACKET TO BRACKET | ||
| 3/8-16X2 1/4 FG8 | ||
| 220 | Q 72696R1 | PART NAME MISSING |
| INTERMEDIATE PIECE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO BRACKET | ||
| 225 | Q 150554R1 | PART NAME MISSING |
| INSULATION | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO BRACKET | ||
| 230 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 230 | A 6859900351 | NUT |
| BRACKET TO BRACKET | ||
| 3/8-16 FG8 | ||
| 235 | A 6854900101 | EXHAUST MUFFLER |
| 235 | Q 500592R91 | PART NAME MISSING |
| EXHAUST MUFFLER | ||
| 240 | Q 502493R91 | PART NAME MISSING |
| EXHAUST MUFFLER | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| VERTICAL | ||
| 245 | Q 501818R1 | PART NAME MISSING |
| CLAMP | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| AT MUFFLER | ||
| 250 | Q 24841R1 | PART NAME MISSING |
| Repalced by: A 6859901401 | ||
| 250 | A 6859901401 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| 3/8-16X1 1/2 FG8 | ||
| 255 | Q 9413979 | PART NAME MISSING |
| Repalced by: A 6859900351 | ||
| 255 | A 6859900351 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 3/8-16 FG8 | ||
| 260 | Q 502201R1 | PART NAME MISSING |
| EXHAUST PIPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST PIPE TO MUFFLER | ||
| 265 | Q 502477R1 | PART NAME MISSING |
| EXHAUST PIPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST PIPE TO MUFFLER | ||
| 270 | Q 502202R1 | PART NAME MISSING |
| EXHAUST PIPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 275 | Q 502200R1 | PART NAME MISSING |
| EXHAUST PIPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 280 | Q 501924R1 | PART NAME MISSING |
| EXHAUST PIPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 285 | Q 502480R91 | PART NAME MISSING |
| BRACKET | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ROOF,REAR | ||
| 290 | Q 5022481R1 | PART NAME MISSING |
| LEDGE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ROOF,REAR | ||
| 295 | Q 25235R1 | PART NAME MISSING |
| SCREW | ||
| 5/16-18X2 1/2 FG8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO ROOF | ||
| 300 | Q 9413977 | PART NAME MISSING |
| Repalced by: A 6859900251 | ||
| 300 | A 6859900251 | NUT |
| BRACKET TO ROOF | ||
| 5/16-18 FG8 | ||
| 305 | Q 502208R1 | PART NAME MISSING |
| TAIL PIPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| VERTICAL | ||
| 310 | Q 502483R1 | PART NAME MISSING |
| TAIL PIPE | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| VERTICAL | ||
| 315 | Q 501925R91 | PART NAME MISSING |
| RAIN DEFLECTOR | ||
| 320 | Q 502482R91 | PART NAME MISSING |
| CLAMP | ||
| 4" | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TAIL PIPE TO EXHAUST PIPE | ||
