Transporto priemonė: AUTOBUS RAMIREZ; VIN numerio dalis: FA1033

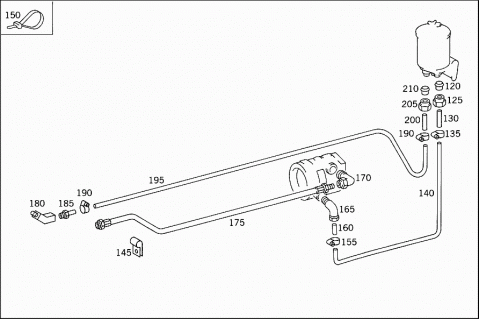

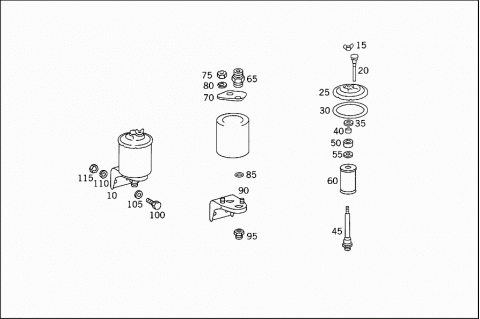

Grupė: 46 STEERING

#	Kodas	Pavadinimas
010	A 3504667002	TANK
		HYDRAULIC POWER STEERING
015	A 0009901562	NUT
020	A 0004660218	PIPE
025	A 0004662005	COVER
		OIL TANK
030	A 0004660260	SEAL RING
035	A 0004660275	WASHER
040	A 0004660153	SPACER TUBE
045	A 0004610065	FILTER SUPPORT
050	A 0009870643	RUBBER SLEEVE
055	A 0004660675	CENTERING RING
060	A 0004660604	FILTER
065	A 0004660571	FITTING
070	A 0004660095	STRUT
		TANK TO BRACKET
070	A 0004660037	REINFORCEMENT
		TANK TO BRACKET
075	N 000934008035	NUT
		TANK TO BRACKET
080	N 000127008205	LOCK WASHER
		TANK TO BRACKET
085	A 0059970848	SEAL RING
		TANK TO BRACKET
090	A 0004660640	BRACKET
		OIL TANK
095	A 0004660358	CONNECTOR
095	A 0004660458	CONNECTOR
100	Q 24840R1	PART NAME MISSING
		SCREW
		3/8-16X1 FG8
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL TANK TO BRACKET
105	Q 25896R1	PART NAME MISSING
		WASHER
		3/8-.812-.089 F
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL TANK TO BRACKET
110	Q 115093	PART NAME MISSING
		LOCK WASHER
		3/8-.382 F
	Y YYYYYYYYYYYY	PART NAME MISSING
		OIL TANK TO BRACKET
115	Q 25522R1	PART NAME MISSING
	Repalced by: A 6859900851
115	A 6859900851	NUT
		OIL TANK TO BRACKET
		3/8-16 F
120	Q 501630R1	PART NAME MISSING
		SEAL RING
		22 D
	Y YYYYYYYYYYYY	PART NAME MISSING
		FROM PIPE LINE TO OIL TANK
125	Q 501629R1	PART NAME MISSING
		NUT
		M 30X2
	Y YYYYYYYYYYYY	PART NAME MISSING
		FROM PIPE LINE TO OIL TANK
130	Q 501631R1	PART NAME MISSING
		PIPE LINE
		22D
	Y YYYYYYYYYYYY	PART NAME MISSING
		FROM PIPE LINE TO OIL TANK
135	N 916017020000	CLAMP
	Repalced by: N 000000000667
135	N 000000000667	CLAMP
		PIPE TO HOSE
		20-32
140	Q 364360C1	PART NAME MISSING
		HOSE
		3/4 D.I.X2220 MM
	Y YYYYYYYYYYYY	PART NAME MISSING
		FROM OIL TANK TO PUMP
145	Q 450386C1	PART NAME MISSING
		CLAMP
		1 1/4X13/32X3/4
145	Q 299415C1	PART NAME MISSING
		CLAMP
		15/16X.25Z
145	Q 299413C1	PART NAME MISSING
		CLAMP
		13/16X.38Z
150	Q 291207C1	PART NAME MISSING
		LOOM TIE
155	N 916017020000	CLAMP
	Repalced by: N 000000000667
155	N 000000000667	CLAMP
		PIPE TO HOSE
160	Q 501633R1	PART NAME MISSING
		PIPE LINE
		22D
	Y YYYYYYYYYYYY	PART NAME MISSING
		FROM OIL TANK TO PUMP
165	Q 502540R1	PART NAME MISSING
		ELBOW FITTING
		M 26X1.5
	Y YYYYYYYYYYYY	PART NAME MISSING
		SUCTION LINE TO OIL PUMP
170	Q 501635R1	PART NAME MISSING
		ELBOW FITTING
		M16X1.5
	Y YYYYYYYYYYYY	PART NAME MISSING
		DELIVERY LINE TO PUMP
175	Q 502539R1	PART NAME MISSING
		HOSE
	Y YYYYYYYYYYYY	PART NAME MISSING
		HIGH PRESSURE OIL LINE TO SUBSTRUCTURE
180	Q 561989R1	PART NAME MISSING
		ELBOW FITTING
		37 GR. 3/4-16X1/2 NPTF
	Y YYYYYYYYYYYY	PART NAME MISSING
		RETURN; FROM STEERING TO OIL TANK
185	Q 864440R1	PART NAME MISSING
		CONNECTOR
		1/2 NPTF X 5/8 LISO
	Y YYYYYYYYYYYY	PART NAME MISSING
		RETURN; FROM STEERING TO OIL TANK
190	Q 274085R91	PART NAME MISSING
		CLAMP
		1/16-.56Z
195	Q 502541R1	PART NAME MISSING
		HOSE
	Y YYYYYYYYYYYY	PART NAME MISSING
		RETURN; FROM STEERING TO OIL TANK
200	Q 501642R1	PART NAME MISSING
		PIPE LINE
		15D
205	Q 501640R1	PART NAME MISSING
		NUT
		M 22X1.5
	Y YYYYYYYYYYYY	PART NAME MISSING
		RETURN LINE TO OIL TANK
210	Q 501641R1	PART NAME MISSING
		SEAL RING
		15 D
	Y YYYYYYYYYYYY	PART NAME MISSING
		RETURN LINE TO OIL TANK
