Transporto priemonė: BGT-25; VIN numerio dalis: 698424
Grupė: 83 HEATING AND VENTILATION - 420 HEATING WATER LINE

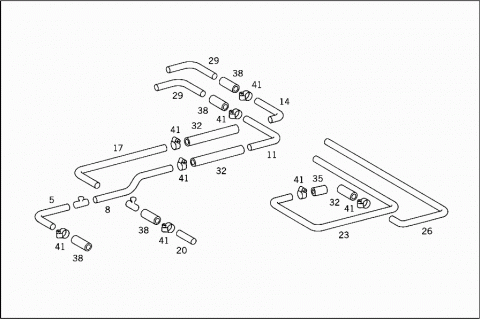

118766

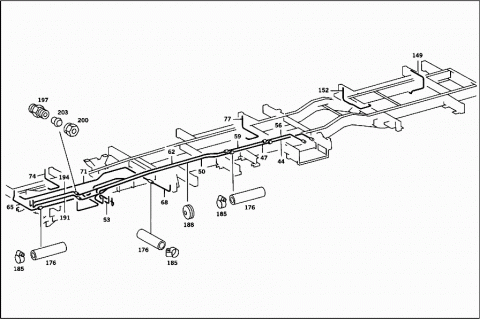

118767

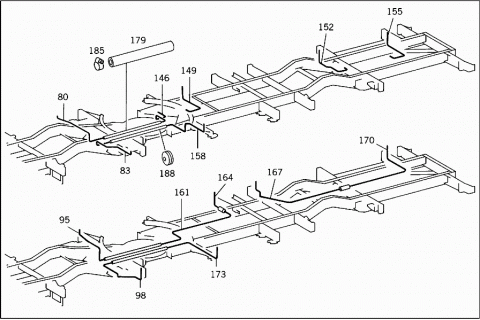

118768

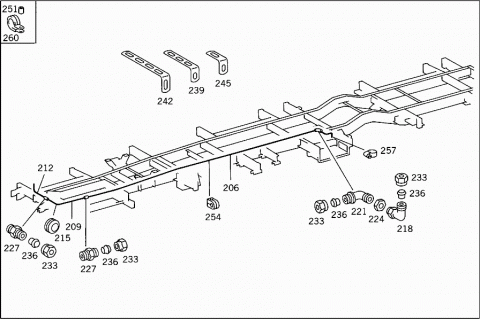

118769

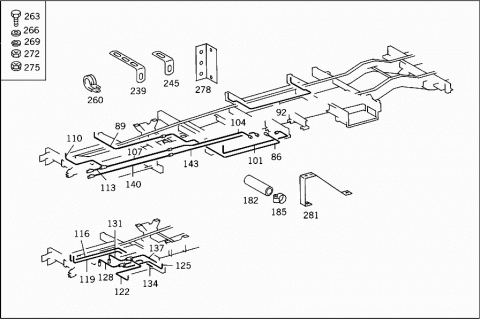

118770
# Kodas Pavadinimas
X XXXXXXXXXXXX PART NAME MISSING
FRONT CARRIAGE
005 Q S 8796 001 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
005 Q S 8791 001 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
008 Q S 8796 002 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM BALL COCK TO SEPARATION POINT
008 Q S 8791 002 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM BALL COCK TO SEPARATION POINT
011 Q S 8796 003 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM CONTINUOUS-FLOW WATER HEATER TO SEPARATION POINT
011 Q S 8791 003 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM CONTINUOUS-FLOW WATER HEATER TO SEPARATION POINT
014 Q S 8796 004 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM CONTINUOUS-FLOW WATER HEATER TO SEPARATION POINT
014 Q S 8791 004 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM CONTINUOUS-FLOW WATER HEATER TO SEPARATION POINT
017 Q S 8796 005 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM BALL COCK TO SEPARATION POINT
017 Q S 8791 005 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM BALL COCK TO SEPARATION POINT
020 Q S 8796 006 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
020 Q S 8791 006 PART NAME MISSING
HEATING WATER LINE
35X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
023 Q S 8890 015 PART NAME MISSING
HEATING WATER LINE
38X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO APPARATUS CLUSTER
026 Q S 8890 016 PART NAME MISSING
HEATING WATER LINE
38X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO APPARATUS CLUSTER
029 A 6988303671 ELBOW
CONTINUOUS-FLOW WATER HEATER
032 A 6988324223 HOSE
35X4X70 MM
035 A 6988324723 HOSE
038 A 6988324423 HOSE
35X4X100 MM
038 A 6988325123 HOSE
35X4X250
041 N 916017032000 CLAMP
Repalced by: N 000000000670
041 N 000000000670 CLAMP
32-50 MM
041 N 916017025000 CLAMP
Repalced by: N 000000000668
041 N 000000000668 CLAMP
25-40 MM
044 Q S 8796 012 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
044 Q S 8791 012 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
047 Q S 8796 013 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM BALL COCK TO SEPARATION POINT
047 Q S 8791 013 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM BALL COCK TO SEPARATION POINT
050 Q S 8796 014 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
050 Q S 8791 014 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
053 Q S 8796 015 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
053 Q S 8791 015 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
056 Q S 8796 018 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
056 Q S 8791 018 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
059 Q S 8796 019 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
059 Q S 8791 019 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO BALL COCK
062 Q S 8796 020 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
062 Q S 8791 020 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
065 Q S 8796 023 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
065 Q S 8791 023 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
068 Q S 8796 030 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
068 Q S 8791 030 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
071 Q S 8796 031 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
071 Q S 8791 031 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
074 Q S 8796 032 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
074 Q S 8791 032 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
077 Q S 8796 033 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
077 Q S 8791 033 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
080 Q S 8791 034 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
083 Q S 8791 035 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
086 Q S 8890 025 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO SEPARATION POINT
089 Q S 8890 012 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FEED; HEATER CONNECTION,RIGHT
092 Q S 8890 017 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FEED,BETWEEN THE HEATERS
095 Q S 8890 018 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FEED, FROM HEATER TO CONNECTING HOSE
098 Q S 8890 019 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
RETURN, FROM CONNECTING HOSE TO HEATER
101 Q S 8890 026 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM LEFT HEATER TO APPARATUS CLUSTER
104 Q S 8890 013 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM APPARATUS CLUSTER TO SEPARATION POINT
107 Q S 8890 011 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO T-FITTING
110 Q S 8890 001 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM T-FITTING TO BODY
113 Q S 8890 067 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM T-FITTING TO T-FITTING
116 Q S 8890 002 PART NAME MISSING
HEATING WATER LINE
15X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
119 Q S 8890 003 PART NAME MISSING
HEATING WATER LINE
15X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
122 Q S 8890 004 PART NAME MISSING
HEATING WATER LINE
15X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
125 Q S 8890 005 PART NAME MISSING
HEATING WATER LINE
15X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
128 Q S 8890 006 PART NAME MISSING
HEATING WATER LINE
22X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
131 Q S 8890 007 PART NAME MISSING
HEATING WATER LINE
22X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
134 Q S 8890 008 PART NAME MISSING
HEATING WATER LINE
18X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
137 Q S 8890 009 PART NAME MISSING
HEATING WATER LINE
18X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
140 Q S 8890 010 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM T-FITTING TO SEPARATION POINT
143 Q S 8890 014 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO APPARATUS CLUSTER
X XXXXXXXXXXXX PART NAME MISSING
REAR CARRIAGE
146 Q S 8791 036 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
149 Q S 8796 037 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
149 Q S 8791 037 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
152 Q S 8796 038 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
152 Q S 8791 038 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
155 Q S 8791 039 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
158 Q S 8791 040 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
161 Q S 8890 020 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
CONNECTING HOSES TO BRACKET
164 Q S 8890 021 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM ELBOW FITTING TO HEATER
167 Q S 8890 023 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
BETWEEN THE HEATERS
170 Q S 8890 024 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
BETWEEN THE HEATERS
173 Q S 8890 022 PART NAME MISSING
HEATING WATER LINE
28X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM HEATER TO CONNECTING HOSE
176 A 6988324323 HOSE
28X4X100 MM
179 A 6988324523 HOSE
28X4X1800 MM
182 A 6988324923 HOSE
22X5X100 MM
185 N 916017025000 CLAMP
Repalced by: N 000000000668
185 N 000000000668 CLAMP
25-40 MM
188 A 6979970481 GROMMET
188 A 6989970481 GROMMET
191 Q S 8796 017 PART NAME MISSING
HEATING WATER LINE
15X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
191 Q S 8791 017 PART NAME MISSING
HEATING WATER LINE
15X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
194 Q S 8796 024 PART NAME MISSING
HEATING WATER LINE
15X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
194 Q S 8791 024 PART NAME MISSING
HEATING WATER LINE
15X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
197 N 003902015002 CONNECTION FITTING
200 N 915017015100 UNION NUT
AL15
203 N 003861015004 GLAND
L15
206 Q S 8796 026 PART NAME MISSING
HEATING WATER LINE
8X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO APPARATUS CLUSTER
206 Q S 8791 026 PART NAME MISSING
HEATING WATER LINE
8X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO APPARATUS CLUSTER
209 Q S 8796 027 PART NAME MISSING
HEATING WATER LINE
8X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
209 Q S 8791 027 PART NAME MISSING
HEATING WATER LINE
8X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO SEPARATION POINT
212 Q S 8796 028 PART NAME MISSING
HEATING WATER LINE
8X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
212 Q S 8791 028 PART NAME MISSING
HEATING WATER LINE
8X1,5 MM
T YYYYYYYYYYYY PART NAME MISSING
FROM SEPARATION POINT TO BODY
215 A 6979973681 GROMMET
218 A 0019902171 ELBOW FITTING
221 N 003911006100 FITTING
224 N 000439014203 NUT
14X1,5 MM
227 A 0029905971 FITTING
A 6979900078 CONNECTOR
233 N 915017008100 UNION NUT
AL8
236 N 003861008005 GLAND
S8
239 A 6985011320 BRACKET
Repalced by: A 6985013820
239 A 6985013820 BRACKET
HEATING PIPE LINES
242 A 6985013820 BRACKET
HEATING PIPE LINES
245 A 6985010620 BRACKET
HEATING PIPE LINES
A 6984291640 BRACKET
HEATING PIPE LINES
251 A 6979920601 BUSHING
Repalced by: A 6732410050
251 A 6732410050 BUSHING
254 A 6984313843 CLAMP
257 N 916017011000 CLAMP
Repalced by: N 916017011001
257 N 916017011001 CLAMP
11-20 MM
260 N 916016008200 CLAMP
8/15
260 N 916016015200 CLAMP
15/20
260 N 916016018202 CLAMP
18/20
260 N 916016022202 CLAMP
22/20
260 N 916016028200 CLAMP
28/20
260 N 916016038205 CLAMP
38/20
260 N 916016052200 CLAMP
52/20
263 N 000933008152 SCREW
Repalced by: N 304017008027
263 N 304017008027 SCREW
M 8X30
263 N 000933008153 SCREW
M 8X25
263 N 000933008147 SCREW
M 8X20
266 N 000125008418 WASHER
269 N 912004008102 LOCK WASHER
272 N 000934008010 NUT
275 N 913004008004 NUT
278 A 6984320017 ANGLE
281 A 6985014320 BRACKET
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
