Transporto priemonė: BH 4-23; VIN numerio dalis: 698141

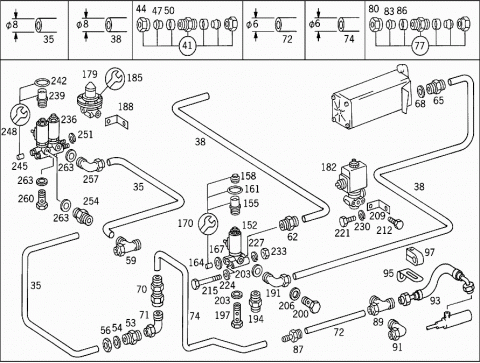

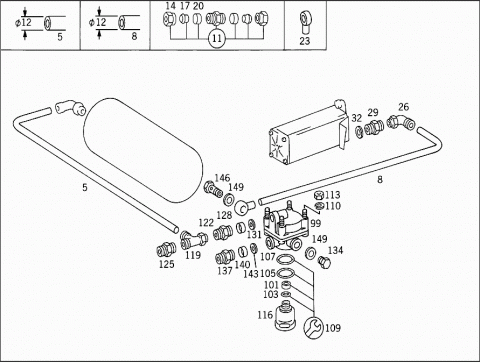

Grupė: 43 EXHAUST BRAKE - 020 RETARDER CONTROL,ENGINE SHUT-OFF
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0004292101 | LINE |
| TOMBAC | ||
| 12 MM | ||
| 005 | A 0004292101 | LINE |
| FROM AIR RESERVOIR TO RELAY VALVE | ||
| 12 MM | ||
| 008 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 008 | A 0009872827 | PLASTIC PIPE |
| RETARDER CONTROL CONNECTION | ||
| 9X12 MM | ||
| 011 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 014 | N 915017012100 | UNION NUT |
| LINE CONNECTIONS | ||
| 017 | N 003861012007 | GLAND |
| LINE CONNECTIONS | ||
| 020 | N 915062009000 | SLEEVE |
| LINE CONNECTIONS | ||
| 023 | N 915052009009 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 9/16 MM | ||
| 026 | A 0019902771 | ELBOW FITTING |
| RETARDER CONTROL CONNECTION | ||
| 029 | A 6989970272 | FITTING |
| Repalced by: A 0039971672 | ||
| 029 | A 0039971672 | FITTING |
| RETARDER CONTROL CONNECTION | ||
| 032 | N 007603018104 | SEAL RING |
| RETARDER CONTROL CONNECTION | ||
| 035 | A 0004291201 | LINE |
| TOMBAC | ||
| 8 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| 3/2-WAY SOLENOID VALVE | ||
| 038 | A 0089979082 | HOSE |
| 6X8 MM | ||
| 038 | A 0089979082 | HOSE |
| COMPRESSED AIR LINE TO 3/2-WAY VALVE | ||
| 6X8 MM | ||
| 041 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 044 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 047 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 050 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 053 | A 0019972772 | FITTING |
| BETWEEN THE LINES | ||
| 054 | N 007603012110 | SEAL RING |
| BETWEEN THE LINES | ||
| 056 | N 080705014002 | NUT |
| BETWEEN THE LINES | ||
| 059 | N 003954008101 | FITTING |
| Repalced by: A 0009909970 | ||
| 059 | A 0009909970 | T-FITTING |
| COMPRESSED AIR LINE TO TWO-WAY VALVE | ||
| 062 | A 0039970672 | FITTING |
| COMPRESSED AIR LINE TO TWO-WAY VALVE | ||
| 065 | A 6979972078 | SCREW CONNECTION |
| RETARDER CONTROL CONNECTION | ||
| 068 | N 007603018101 | SEAL RING |
| RETARDER CONTROL CONNECTION | ||
| 068 | N 007603018104 | SEAL RING |
| RETARDER CONTROL CONNECTION | ||
| 070 | A 0029976772 | FITTING |
| FROM FITTING TO EXHAUST BRAKE CYLINDER | ||
| 071 | A 0019909871 | ELBOW FITTING |
| FROM FITTING TO EXHAUST BRAKE CYLINDER | ||
| 072 | A 0004291101 | LINE |
| ENGINE SHUT-OFF | ||
| 6 MM | ||
| 074 | A 0089976082 | HOSE |
| ENGINE SHUT-OFF | ||
| 4X6 MM | ||
| 077 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 080 | N 915017006100 | UNION NUT |
| LINE CONNECTIONS | ||
| 083 | N 003861006007 | GLAND |
| LINE CONNECTIONS | ||
| 086 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 087 | N 915059004001 | FITTING |
| LINE CONNECTIONS | ||
| 089 | A 0019900170 | T-FITTING |
| FROM FITTING TO EXHAUST BRAKE CYLINDER | ||
| 091 | A 0019909871 | ELBOW FITTING |
| ENGINE SHUT-OFF | ||
| 091 | A 0019909871 | ELBOW FITTING |
| BRAKE HOSE CONNECTION | ||
| A 0029906071 | FITTING | |
| BRAKE HOSE CONNECTION | ||
| 093 | A 3525420035 | HOSE |
| Repalced by: A 3074290035 | ||
| 093 | A 3074290035 | BRAKE HOSE |
| ENGINE SHUT-OFF | ||
| 095 | A 6985010620 | BRACKET |
| HOSE TO SIDE MEMBER | ||
| 097 | A 6984313743 | CLAMP |
| HOSE TO SIDE MEMBER | ||
| 099 | A 0024298444 | VALVE |
| (RELAY VALVE),RETARDER CONTROL | ||
| 101 | A 0004311088 | VALVE SEAT |
| 103 | A 0099970448 | SEAL RING |
| Repalced by: A 0179979048 | ||
| 103 | A 0179979048 | SEAL RING |
| 105 | A 0099970648 | SEAL RING |
| 107 | A 0059976745 | SEAL RING |
| 109 | A 0004309060 | REPAIR KIT |
| RELAY VALVE | ||
| 110 | N 912004008102 | LOCK WASHER |
| RELAY VALVE TO SUPPORT | ||
| 113 | N 000934008010 | NUT |
| RELAY VALVE TO SUPPORT | ||
| 116 | A 0004300370 | MUFFLER |
| Repalced by: A 0004302370 | ||
| 116 | A 0004302370 | MUFFLER |
| RELAY VALVE | ||
| 119 | A 0019900970 | T-FITTING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 122 | A 0029971172 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 125 | A 0039970672 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 128 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 131 | A 0009870446 | O-RING |
| RELAY VALVE,CONNECTION: | ||
| "10" | ||
| 134 | N 007604016102 | SCREW PLUG |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 137 | N 074313008102 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "40" | ||
| 140 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "20,40" | ||
| 143 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "20,40" | ||
| 146 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE;CONNECTIONS: | ||
| "20" | ||
| 149 | N 007603016105 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "20" | ||
| 152 | A 0039971136 | VALVE |
| Repalced by: A 0039975336 | ||
| 152 | A 0039975336 | VALVE |
| (3/2-WAY SOLENOID VALVE) RETARDER CONTROL | ||
| 155 | A 0004311668 | VALVE PART |
| 158 | A 0014310087 | PROTECTIVE CAP |
| 161 | A 0079970248 | SEAL RING |
| 164 | A 0049970640 | SEAL RING |
| 167 | N 007603006100 | SEAL RING |
| 170 | A 0004305660 | REPAIR KIT |
| SOLENOID VALVE | ||
| N 003952008100 | FITTING | |
| Repalced by: A 0019902171 | ||
| A 6984296344 | VALVE | |
| RETARDER CONTROL | ||
| 0.9 BAR | ||
| A 6984296444 | VALVE | |
| RETARDER CONTROL | ||
| 1.7 BAR | ||
| 179 | A 0034311106 | VALVE |
| RETARDER CONTROL | ||
| 3.0 BAR | ||
| 182 | A 0039978836 | VALVE |
| RETARDER CONTROL | ||
| 185 | A 0004300568 | REPAIR KIT |
| TO 003 431 11 06 | ||
| 188 | A 6984295268 | BRACKET |
| PRESSURE RELIEF VALVE | ||
| 191 | A 0019902171 | ELBOW FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10,20" | ||
| 194 | A 0019972572 | FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10,20" | ||
| 197 | N 915047008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10,20" | ||
| 200 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTION: | ||
| "10,20" | ||
| 203 | N 007603012110 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,20" | ||
| 206 | N 007603010110 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,20" | ||
| 209 | A 6984294968 | BRACKET |
| RETARDER CONTROL | ||
| 212 | N 000933008268 | SCREW |
| 3/2-WAY VALVE TO BRACKET | ||
| M 8X16 | ||
| 215 | N 000931008327 | SCREW |
| 3/2-WAY VALVE TO BRACKET | ||
| M 8X55 | ||
| 215 | N 000931008207 | SCREW |
| 3/2-WAY VALVE TO BRACKET | ||
| M 8X90" | ||
| 221 | N 000933010256 | SCREW |
| 3/2-WAY VALVE TO BRACKET | ||
| 224 | N 000125008418 | WASHER |
| 3/2-WAY VALVE TO BRACKET | ||
| 227 | N 912004008102 | LOCK WASHER |
| 3/2-WAY VALVE TO BRACKET | ||
| 230 | N 912004010100 | LOCK WASHER |
| 3/2-WAY VALVE TO BRACKET | ||
| 233 | N 000934008010 | NUT |
| 3/2-WAY VALVE TO BRACKET | ||
| 236 | A 0039971236 | VALVE |
| ENGINE SHUT-OFF | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| EMERGENCY RELEASE | ||
| 239 | A 0004311668 | VALVE PART |
| 242 | A 0079970248 | SEAL RING |
| 245 | A 0049970640 | SEAL RING |
| 248 | A 0004305660 | REPAIR KIT |
| SOLENOID VALVE | ||
| 251 | N 912004008102 | LOCK WASHER |
| 3/2-WAY VALVE TO SUBSTRUCTURE | ||
| 254 | A 0019972572 | FITTING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,20" | ||
| 254 | A 0019972572 | FITTING |
| EMERGENCY RELEASE | ||
| "20" | ||
| 257 | N 003952008100 | FITTING |
| Repalced by: A 0019902171 | ||
| 257 | A 0019902171 | ELBOW FITTING |
| 3/2-WAY VALVE;CONNECTION: | ||
| "20" | ||
| 257 | A 0019902171 | ELBOW FITTING |
| EMERGENCY RELEASE | ||
| "20" | ||
| 260 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,20" | ||
| 263 | N 007603012110 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS: | ||
| "10,20" | ||
| 263 | N 007603012110 | SEAL RING |
| EMERGENCY RELEASE | ||
| "20" | ||
