Transporto priemonė: BH 4-23; VIN numerio dalis: 698141

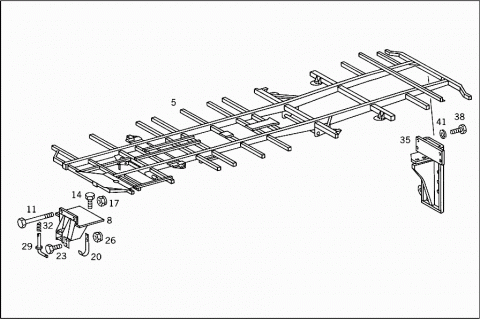

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6983100101 | FRAME |
| 005 | A 6983100901 | FRAME |
| 005 | A 6983103001 | FRAME |
| 008 | A 6983101162 | TOWING ATTACHMENT |
| FRONT | ||
| 011 | N 000931016046 | SCREW |
| TOWING DEVICE TO FRAME | ||
| M 16 X 95 | ||
| 014 | N 000933016015 | SCREW |
| TOWING DEVICE TO FRAME | ||
| M 16 X 50 | ||
| 017 | N 913004016003 | NUT |
| TOWING DEVICE TO FRAME | ||
| 020 | A 6983150073 | LOCK |
| 023 | N 000933006121 | SCREW |
| LOCK TO TOWING DEVICE | ||
| 026 | N 913004006002 | NUT |
| LOCK TO TOWING DEVICE | ||
| 029 | A 6988900157 | PIN |
| 032 | A 6988950135 | SPRING |
| PIN | ||
| 035 | A 6983101358 | CONSOLE |
| TRAILER COUPLING | ||
| 038 | N 000961014116 | SCREW |
| CONSOLE TO REAR CROSS MEMBER | ||
| 041 | N 912004014100 | LOCK WASHER |
| CONSOLE TO REAR CROSS MEMBER |
