Transporto priemonė: BH 4-23; VIN numerio dalis: 698141

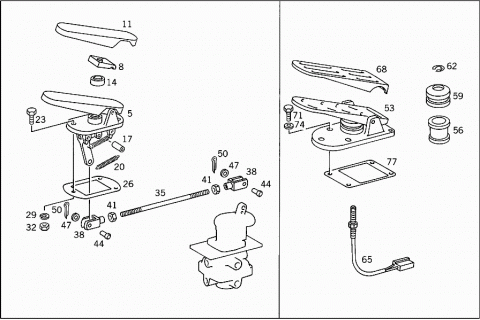

Grupė: 29 PEDAL ASSEMBLY - 060 BRAKE PEDAL ASSEMBLY

#	Kodas	Pavadinimas
005	A 6982920001	PEDAL
		BRAKE
008	A 0002920049	BEARING
011	A 0002920082	PAD
014	A 0002920097	BOOT
017	A 0002920050	BUSHING
020	A 0002920087	SPRING
023	N 000933008152	SCREW
	Repalced by: N 304017008027
023	N 304017008027	SCREW
		BRAKE PEDAL TO SUBSTRUCTURE
026	A 6982923720	INTERMEDIATE PIECE
		BRAKE PEDAL TO SUBSTRUCTURE
029	N 912004008102	LOCK WASHER
		BRAKE PEDAL TO SUBSTRUCTURE
032	N 000934008010	NUT
		BRAKE PEDAL TO SUBSTRUCTURE
035	N 900331012330	PULL ROD
		FROM BRAKE PEDAL TO BRAKE VALVE
038	N 071752012005	YOKE
		PULL ROD TO BRAKE PEDAL AND TO BRAKE VALVE
041	N 000934012021	NUT
		PULL ROD TO BRAKE PEDAL AND TO BRAKE VALVE
044	A 0009912307	PIN
		PULL ROD TO BRAKE PEDAL AND TO BRAKE VALVE
047	N 000433013005	WASHER
	Repalced by: N 000433013010
047	N 000433013010	WASHER
		PULL ROD TO BRAKE PEDAL AND TO BRAKE VALVE
050	N 000094004051	COTTER PIN
		PULL ROD TO BRAKE PEDAL AND TO BRAKE VALVE
053	A 0004300118	BRAKE PEDAL
056	A 0004310050	BUSHING
059	A 0004314887	PROTECTIVE CAP
062	N 006799008005	LOCK PLATE
065	A 0045458332	CONTROL UNIT
		(APPROXIMATION SWITCH) RETARDER AND STOP LIGTH
068	A 0002920082	PAD
		BRAKE PEDAL
071	N 000933008152	SCREW
	Repalced by: N 304017008027
071	N 304017008027	SCREW
		BRAKE PEDAL TO SUBSTRUCTURE
074	N 006796008102	CONICAL SPRING WASHER
		BRAKE PEDAL TO SUBSTRUCTURE
077	A 6982920020	INTERMEDIATE PIECE
		BRAKE PEDAL TO SUBSTRUCTURE
	X XXXXXXXXXXXX	PART NAME MISSING
		FOR SERVICE BRAKE VALVE,SEE GROUP/TU:
		42/357
