Transporto priemonė: BH 4-23; VIN numerio dalis: 698141

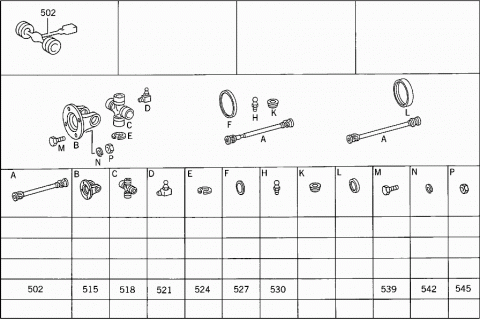

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 502 | A 3854102907 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 671 MM | ||
| 502 | A 3854108807 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 460 MM | ||
| 515 | A 3854111711 | DRIVE FLANGE |
| 518 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 518 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 521 | N 900216008301 | GREASE NIPPLE |
| UNIVERSAL JOINT CROSS | ||
| 524 | A 0069940641 | LOCK |
| AS REQUIRED | ||
| 1.65 MM | ||
| 524 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 524 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 524 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 527 | A 3854110059 | SEAL RING |
| PROTECTIVE TUBE | ||
| 530 | N 071412008101 | GREASE NIPPLE |
| PROPELLER SHAFT | ||
| 539 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 539 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE | ||
| 542 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT | ||
| 545 | N 000934012034 | NUT |
| PROPELLER SHAFT | ||
