Transporto priemonė: BH 4-23; VIN numerio dalis: 698141

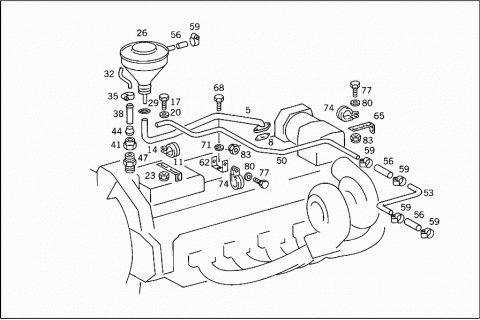

Grupė: 23 SPECIAL INSTALLATIONS - 090 CYLINDER CRANKCASE BREATHING

#	Kodas	Pavadinimas
005	A 6980100370	BREATHER PIPE
		FROM CYLINDER CRANKCASE TO OIL SEPARATOR
008	N 917003040003	GASKET
	Repalced by: N 917003040006
008	N 917003040006	SEAL
	Repalced by: A 3559970149
008	A 3559970149	GASKET
		BREATHER PIPE
011	A 6985011320	BRACKET
	Repalced by: A 6985013820
011	A 6985013820	BRACKET
		BREATHER PIPE
014	N 916016038205	CLAMP
		BREATHER PIPE TO BRACKET
017	N 000933008147	SCREW
		BREATHER PIPE TO BRACKET
020	N 000125008418	WASHER
		BREATHER PIPE TO BRACKET
023	N 913004008004	NUT
		BREATHER PIPE TO BRACKET
026	A 4230100062	OIL DRIP PAN
	Repalced by: A 0000183735
026	A 0000183735	OIL SEPARATOR
		OIL SEPARATOR,WITH VALVE
029	A 0009975348	SEAL RING
032	A 6980183682	HOSE
		OIL RETURN
035	N 916017016000	CLAMP
	Repalced by: N 000000000666
035	N 000000000666	CLAMP
		HOSE
038	A 6989973668	CONNECTOR
		OIL RETURN LINE TO OIL PAN
041	N 915017015100	UNION NUT
		OIL RETURN LINE TO OIL PAN
044	N 003861015004	GLAND
		OIL RETURN LINE TO OIL PAN
047	N 003901015003	SCREW-IN FITTING
		OIL RETURN LINE TO OIL PAN
050	A 6980180712	BREATHER PIPE
		FROM OIL SEPARATOR TO HOSE
053	A 6980181112	BREATHER PIPE
		FROM HOSE TO TURBOCHARGER
056	A 4279971282	HOSE
		BREATHER PIPE
059	N 916017025000	CLAMP
	Repalced by: N 000000000668
059	N 000000000668	CLAMP
		HOSE
062	A 6984291340	BRACKET
		BREATHER PIPE
065	A 6985011320	BRACKET
	Repalced by: A 6985013820
065	A 6985013820	BRACKET
		BREATHER PIPE
068	N 000933014033	SCREW
		BRACKET TO ENGINE
071	N 912004014100	LOCK WASHER
		BRACKET TO ENGINE
074	N 916016022202	CLAMP
		BREATHER PIPE TO BRACKET
077	N 000933008147	SCREW
		BREATHER PIPE TO BRACKET
080	N 000125008418	WASHER
		BREATHER PIPE TO BRACKET
083	N 913004008004	NUT
		BREATHER PIPE TO BRACKET
