Transporto priemonė: BT-25; VIN numerio dalis: 698400
Grupė: 55 HYDRAULIC SYSTEM - 060 JACKKNIFING-ANGLE/DAMPING REGULATION
| # | Kodas | Pavadinimas |
|---|---|---|

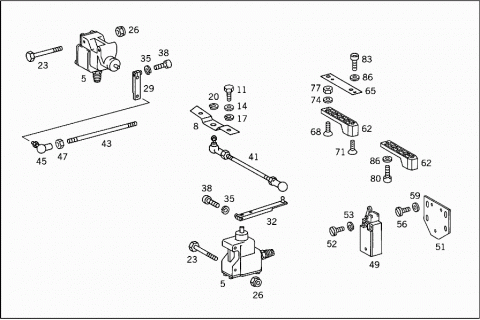

| 005 | A 0055428917 | SENDER UNIT |
| LOCK/JACKKNIFING ANGLE | ||
| 008 | A 3068914214 | BRACKET |
| 011 | N 000933006183 | SCREW |
| Repalced by: N 304017006016 | ||
| 011 | N 304017006016 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 014 | N 000125006421 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 017 | N 912004006002 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 020 | N 912004006102 | LOCK WASHER |
| ANGLE JOINT TO BRACKET | ||
| 023 | N 000931006127 | SCREW |
| JACKKNIFING ANGLE SENDER UNIT TO SUBSTRUCTURE | ||
| 023 | N 000931006226 | SCREW |
| JACKKNIFING ANGLE SENDER UNIT TO SUBSTRUCTURE | ||
| 026 | N 913004006002 | NUT |
| JACKKNIFING ANGLE SENDER UNIT TO SUBSTRUCTURE | ||
| 029 | A 6985403884 | LEVER |
| STEERING ANGLE SENDER UNIT | ||
| 032 | A 3075400284 | LEVER |
| JACKKNIFING ANGLE | ||
| 035 | N 912004006102 | LOCK WASHER |
| 038 | N 000912006040 | SCREW |
| 041 | A 3075500025 | OPERATING ROD |
| 043 | A 6984264230 | ROD |
| STEERING ANGLE SENDER UNIT | ||
| 045 | N 071802010203 | ANGLE JOINT |
| STEERING ANGLE SENDER UNIT | ||
| 047 | N 000934006007 | NUT |
| STEERING ANGLE SENDER UNIT | ||
| 049 | A 3075400044 | SWITCH |
| (LIMIT VALUE FEELER) | ||
| 051 | A 3075400021 | TRAY |
| SWITCH | ||
| 052 | N 000084004128 | SCREW |
| SWITCH TO BRACKET | ||
| M 4X35 | ||
| 052 | N 000084004139 | SCREW |
| SWITCH TO BRACKET | ||
| M 4X10 | ||
| 053 | N 912004004102 | LOCK WASHER |
| SWITCH TO BRACKET | ||
| 056 | N 000084005402 | SCREW |
| PLATE TO BRACKET | ||
| M 5X8 | ||
| 059 | N 000125005317 | WASHER |
| PLATE TO BRACKET | ||
| 062 | A 6985513686 | STOP |
| 062 | A 6985513686 | STOP |
| 065 | A 6985531341 | PLATE |
| (STOP) | ||
| 068 | N 000963006032 | SCREW |
| (STOP) | ||
| M 6X18 | ||
| 071 | N 000963006025 | SCREW |
| (STOP) | ||
| M 6X50 | ||
| 074 | N 000433006405 | WASHER |
| (STOP) | ||
| 077 | N 000934006007 | NUT |
| (STOP) | ||
| 080 | N 000912006044 | SCREW |
| STOP TO RING MOUNT | ||
| M 6X35 | ||
| 080 | N 000912006097 | SCREW |
| STOP TO RING MOUNT | ||
| M 6X16 | ||
| 083 | N 000912006040 | SCREW |
| STOP TO RING MOUNT | ||
| M 6X20 | ||
| 083 | N 000912006004 | SCREW |
| STOP TO RING MOUNT | ||
| M 6X12 | ||
| 086 | N 000433006405 | WASHER |
| STOP TO RING MOUNT | ||

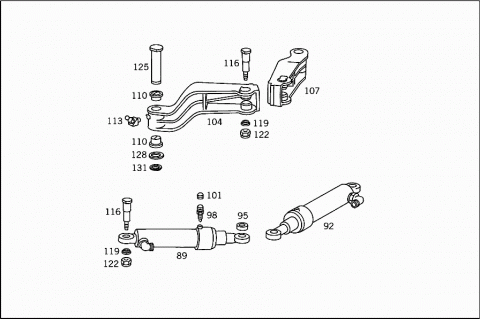

| 089 | A 3055500407 | CYLINDER |
| LEFT FRONT, RIGHT REAR | ||
| 092 | A 3055500507 | CYLINDER |
| RIGHT FRONT,LEFT REAR | ||
| 095 | A 0019812631 | JOINT BEARING |
| 098 | A 3075530107 | VALVE |
| BREATHING | ||
| 101 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 101 | A 0004210887 | PROTECTIVE CAP |
| 104 | A 3075502185 | CONTROL ARM |
| LEFT FRONT | ||
| 104 | A 3075500585 | CONTROL ARM |
| RIGHT REAR | ||
| 107 | A 3075502085 | CONTROL ARM |
| RIGHT FRONT | ||
| 107 | A 3075500485 | CONTROL ARM |
| LEFT REAR | ||
| 110 | A 0009921905 | BUSHING |
| OUTSIDE | ||
| 113 | N 071412008200 | GREASE NIPPLE |
| SUPPORTING ARM | ||
| 116 | A 3055530274 | PIN |
| DAMPING CYLINDER TO BEARING BRACKET AND TO CONTROL ARM | ||
| 119 | A 3055530076 | WASHER |
| DAMPING CYLINDER TO BEARING BRACKET AND TO CONTROL ARM | ||
| 122 | N 913001016010 | NUT |
| DAMPING CYLINDER TO BEARING BRACKET AND TO CONTROL ARM | ||
| 125 | A 3055530374 | PIN |
| CONTROL ARM TO BEARING BRACKET | ||
| 128 | A 3059900940 | WASHER |
| CONTROL ARM TO BEARING BRACKET | ||
| 3 MM | ||
| 128 | A 3059901040 | WASHER |
| CONTROL ARM TO BEARING BRACKET | ||
| 2 MM | ||
| 128 | A 3059901140 | WASHER |
| CONTROL ARM TO BEARING BRACKET | ||
| 1 MM | ||
| 131 | N 000471040002 | LOCK RING |
| CONTROL ARM TO BEARING BRACKET | ||
| 134 | A 0005532907 | VALVE |
| (CONTROL BLOCK) | ||
| WABCO | ||
| 137 | A 0005533307 | VALVE |
| 140 | A 0079970248 | SEAL RING |

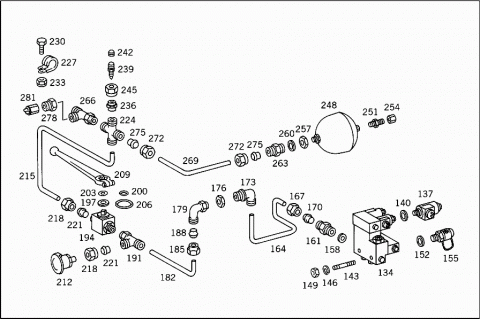

| 143 | N 000939010026 | STUD BOLT |
| CONTROL VALVE TO BRACKET | ||
| 146 | N 912004010102 | LOCK WASHER |
| CONTROL VALVE TO BRACKET | ||
| 149 | N 913004010014 | NUT |
| CONTROL VALVE TO BRACKET | ||
| 152 | N 007603014106 | SEAL RING |
| TEST CONNECTION | ||
| 155 | A 0005500126 | CONNECTOR |
| TEST CONNECTION | ||
| 158 | N 007603026101 | SEAL RING |
| CONTROL VALVE,CONNECTION: | ||
| "SP" | ||
| 161 | N 003901022006 | SCREW-IN FITTING |
| CONTROL VALVE,CONNECTION: | ||
| "SP" | ||
| 164 | A 0004291601 | LINE |
| FROM FITTING TO CONTROL VALVE | ||
| 167 | N 915017022100 | UNION NUT |
| FROM FITTING TO CONTROL VALVE | ||
| 170 | N 003861022004 | GLAND |
| FROM FITTING TO CONTROL VALVE | ||
| 173 | A 6989976878 | SCREW CONNECTION |
| DELIVERY LINE TO FITTING | ||
| 176 | N 080705030000 | NUT |
| DELIVERY LINE TO FITTING | ||
| 179 | N 003952022100 | FITTING |
| CHANGE-OVER COCK | ||
| 182 | A 0004291601 | LINE |
| CHANGE-OVER COCK | ||
| 185 | N 915017022100 | UNION NUT |
| 188 | N 003861022004 | GLAND |
| 191 | N 003954022100 | FITTING |
| CHANGE-OVER COCK | ||
| 194 | A 0029975436 | VALVE |
| CHANGE-OVER COCK | ||
| 197 | A 0019970141 | SEAL RING |
| 200 | A 0019970241 | SEAL RING |
| 203 | A 0069971048 | SEAL RING |
| 15X2.5 | ||
| 206 | A 0069971148 | SEAL RING |
| 34X2.5 | ||
| 209 | A 0005530013 | LEVER |
| CHANGE-OVER COCK | ||
| 212 | A 0005533826 | COUPLING HALF |
| CONTROL VALVE | ||
| 215 | A 0004291601 | LINE |
| FROM FITTING TO CHANGE-OVER COCK | ||
| 218 | N 915017022100 | UNION NUT |
| 221 | N 003861022004 | GLAND |
| 224 | A 6989976978 | SCREW CONNECTION |
| CROSS FITTING | ||
| 227 | N 916016022202 | CLAMP |
| DELIVERY LINE TO BRACKET | ||
| 230 | N 000933008153 | SCREW |
| DELIVERY LINE TO BRACKET | ||
| 233 | N 913004008004 | NUT |
| DELIVERY LINE TO BRACKET | ||
| 236 | A 3079970872 | FITTING |
| BREATHER CONNECTION | ||
| 239 | A 3075530107 | VALVE |
| BREATHING | ||
| 242 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 242 | A 0004210887 | PROTECTIVE CAP |
| BREATHING | ||
| 245 | N 915017022100 | UNION NUT |
| FITTING AND VALVE TO CROSS FITTING | ||
| 248 | A 0003200215 | AIR CELL |
| PRESSURE ACCUMULATOR | ||
| 5L | ||
| 251 | A 0005533007 | VALVE |
| 254 | A 0009886535 | CAP |
| 257 | N 000439036201 | NUT |
| AIR CELL TO SUBSTRUCTURE | ||
| 260 | N 007603026101 | SEAL RING |
| LINE CONNECTION TO AIR RESERVOIR | ||
| 263 | N 003901022006 | SCREW-IN FITTING |
| LINE CONNECTION TO AIR RESERVOIR | ||
| 266 | N 003954022100 | FITTING |
| PRESSURE SWITCH CONNECTION | ||
| 269 | A 0004291601 | LINE |
| FROM AIR RESERVOIR TO CROSS FITTING | ||
| 272 | N 915017022100 | UNION NUT |
| 275 | N 003861022004 | GLAND |
| 278 | A 3079971172 | FITTING |
| PRESSURE SWITCH CONNECTION | ||
| 281 | A 0015456914 | SWITCH |
| PRESSURE WARNING | ||
| 284 | N 003901022006 | SCREW-IN FITTING |

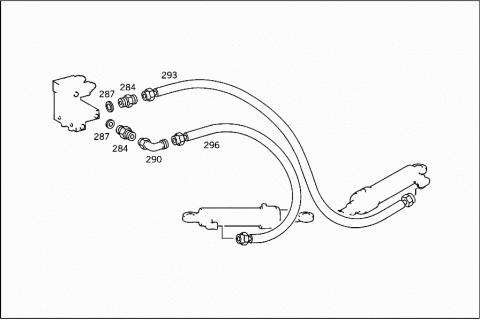

| CONTROL VALVE,CONNECTION: | ||
| "A1,B1" | ||
| 284 | N 003901022006 | SCREW-IN FITTING |
| CONTROL VALVE,CONNECTION: | ||
| "A2,B2" | ||
| 287 | N 007603026101 | SEAL RING |
| CONTROL VALVE,CONNECTION: | ||
| "A1,B1" | ||
| 287 | N 007603026101 | SEAL RING |
| CONTROL VALVE,CONNECTION: | ||
| "A2,B2" | ||
| 290 | N 003952022100 | FITTING |
| CONTROL VALVE,CONNECTION: | ||
| "A2,B2" | ||
| 293 | A 6989975382 | HOSE |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER REAR CARRIAGE | ||
| 296 | A 6989975282 | HOSE |
| HIGH PRESSURE HOSE TO DAMPING CYLINDER FRONT CARRIAGE | ||
| A 6984663977 | CLAMP | |
| HIGH PRESSURE HOSE TO FRAME | ||
| A 6984664078 | SHIM | |
| HIGH PRESSURE HOSE TO FRAME | ||
| N 000931006115 | SCREW | |
| HIGH PRESSURE HOSE TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| HIGH PRESSURE HOSE TO FRAME | ||

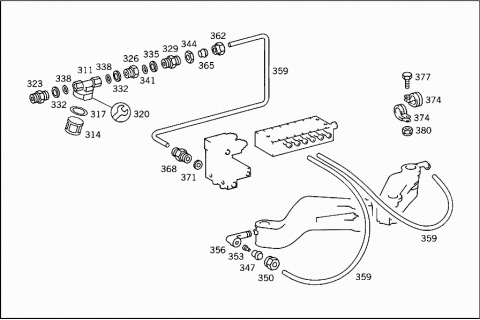

| 311 | A 0004293895 | AIR CLEANER |
| 314 | A 0004291397 | FILTER ELEMENT |
| 317 | A 0109971445 | SEAL RING |
| 36.2X3.0 MM | ||
| 317 | A 0029974345 | SEAL RING |
| 39.2X3.0 MM | ||
| 320 | A 0025861643 | REPAIR KIT |
| AIR CLEANER | ||
| 323 | A 0009970171 | FITTING |
| AIR CLEANER | ||
| "1" | ||
| 326 | A 0009904968 | FITTING |
| AIR CLEANER | ||
| "2" | ||
| 329 | A 0019972772 | FITTING |
| AIR CLEANER | ||
| 332 | A 0004290227 | THRUST RING |
| AIR CLEANER | ||
| 335 | A 0004290627 | THRUST RING |
| AIR CLEANER | ||
| 338 | A 0009870446 | O-RING |
| AIR CLEANER | ||
| 341 | A 0079974245 | SEAL RING |
| AIR CLEANER | ||
| 344 | N 080705014002 | NUT |
| AIR CLEANER | ||
| 347 | A 0009905167 | SEAL CONE |
| PIPE LINE CONNECTION | ||
| 350 | A 0009908068 | FITTING |
| PIPE LINE CONNECTION | ||
| 353 | A 0005730353 | SPACER TUBE |
| PIPE LINE CONNECTION | ||
| 356 | A 0005731930 | ELBOW |
| SUPPORTING ARM | ||
| 359 | A 0004291201 | LINE |
| AIR RESERVOIR,CONTROL VALVE | ||
| 8 MM | ||
| 362 | N 915017008100 | UNION NUT |
| 365 | N 003861008005 | GLAND |
| 368 | A 0019972572 | FITTING |
| CONTROL VALVE,"Z" CONNECTION | ||
| 371 | N 007603012110 | SEAL RING |
| CONTROL VALVE,"Z" CONNECTION | ||
| 374 | N 916016022202 | CLAMP |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| 374 | N 916016010203 | CLAMP |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| 377 | N 000933008153 | SCREW |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
| 380 | N 913004008004 | NUT |
| HIGH AND LOW PRESSURE HOSES TO SUBSTRUCTURE | ||
